Jade Range (Middleby)

Titan JTRH-18B-2-36C 36 Inch Heavy Duty Gas Range with 2 Open Burners, 18 Inch Charbroiler, and Convection Oven

SKU: JTRH-18B-2-36C
$27,416.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Gas Ranges Jade Range (Middleby) New Arrivals Ranges Restaurant Equipment

Titan JTRH-18B-2-36C 36 Inch Heavy Duty Gas Range with 2 Open Burners, 18 Inch Charbroiler, and Convection Oven

Full-Size, Natural Gas (Convertible), Standard Depth

Experience robust cooking versatility and exceptional durability with the Titan JTRH-18B-2-36C heavy-duty gas range, combining powerful open burners, a charbroiler, and a precise convection oven.

  • Equipped with two 35,000 BTU/hr open top burners for high-performance cooking.
  • Features an 18-inch charbroiler with 15,000 BTU/hr burners for perfect grilling.
  • Integrated convection oven base with a 1/4 HP blower motor ensures even baking and roasting.
  • Constructed with a 14-gauge all-welded stainless steel body for maximum durability.
  • Manual gas valves offer infinite control for precise temperature management across all cooking surfaces.
  • Includes two chrome-plated oven racks and a 6-inch plate shelf for operational convenience.

Overall Dimensions:

36.0"W x 38.0"D x 36.5"H

Product Weight:

735.0 lb

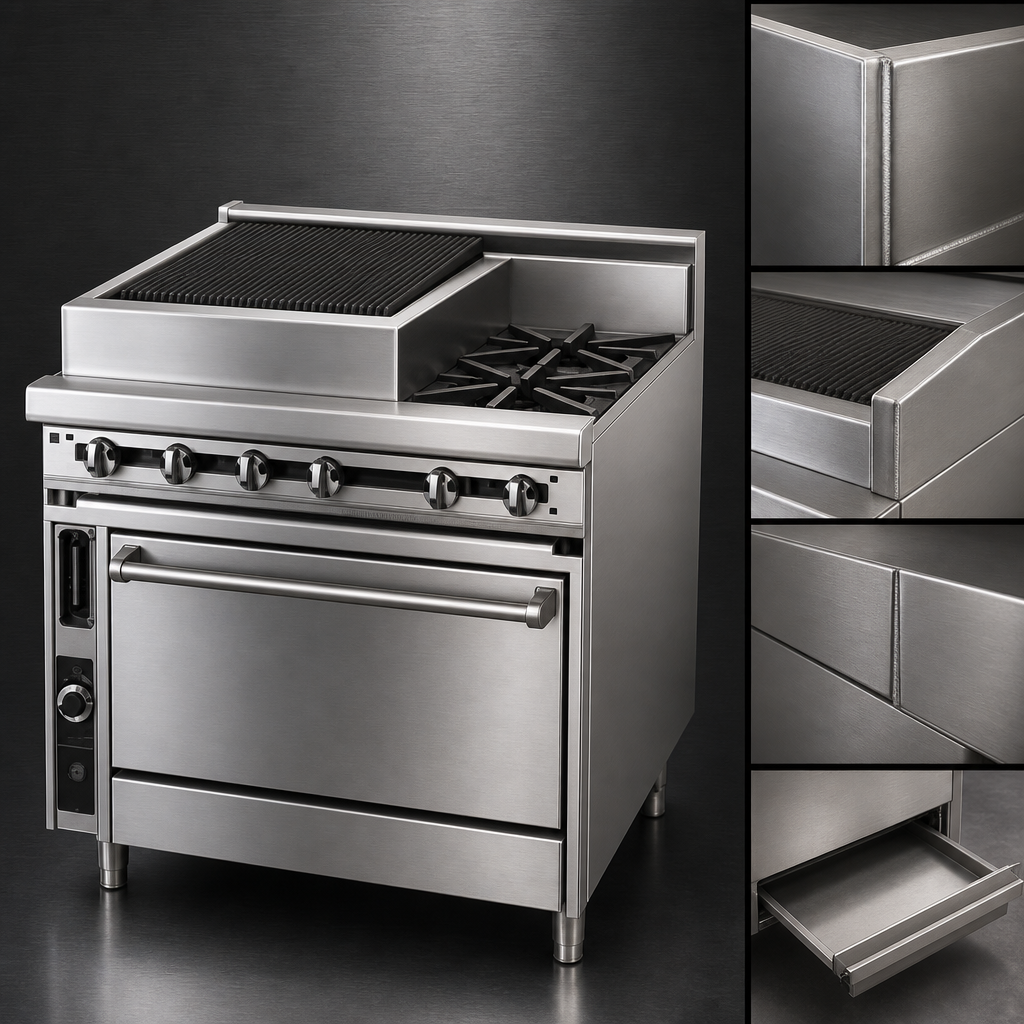

Heavy Duty Construction

Features a 14 gauge all welded body construction with stainless steel front, top, sides, stub back, and tray bed, ensuring long-lasting durability in demanding commercial kitchens.

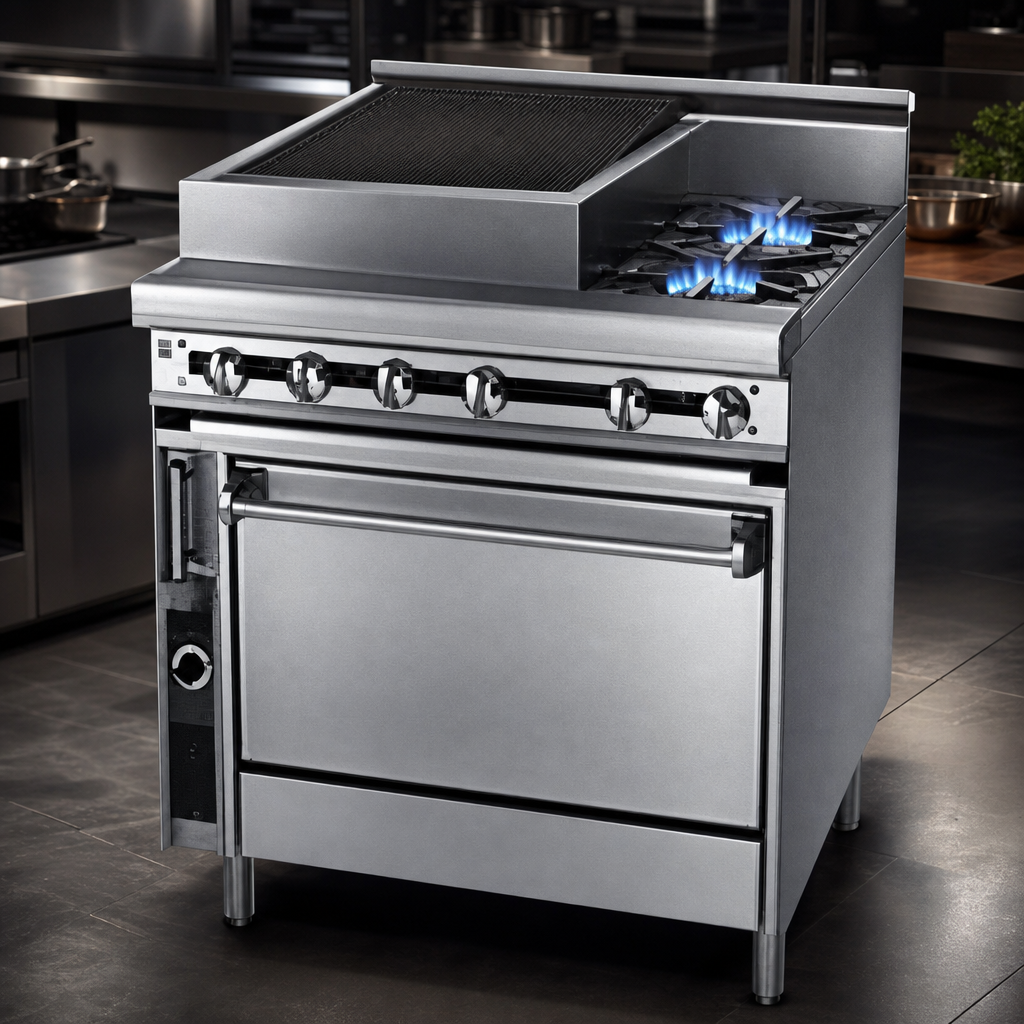

Powerful Open Burners

Two 18-inch open top sections each feature a 35,000 BTU/hr heavy-duty cast iron burner, ideal for high-heat cooking and quick boiling.

Integrated Charbroiler

An 18-inch charbroiler section includes three 15,000 BTU/hr burners (one every 6 inches), with heavy-duty cast iron top grates and burner radiants for consistent, even heat and reduced flaring.

Convection Oven Base

The convection oven base boasts a 14-gauge stainless steel interior, a 35,000 BTU/hr burner, a 1/4 HP 115/60/1 blower motor for uniform heat distribution, and two chrome-plated racks.

Precision Manual Controls

Infinite control manual gas valves are located at each burner for precise heat adjustment, complemented by an electronic spark ignitor for the oven and a three-position fan switch.

Functional Oven Interior

The convection oven interior measures 28 inches W x 13-3/4 inches H x 24-1/2 inches D, providing ample space for standard full-size sheet pans, and is equipped with removable sides and bottom for easy cleaning.

Included Accessories & Details

Comes with a 6-inch stainless steel plate shelf, two separate 14 gauge steel drip pans to control flare-ups, stainless steel gas tubing, pilot tips, and adjustable 6-inch legs for stability.

BTU 145,000 BTU
Gas Type Natural Gas (Convertible to Propane)
Gas Connection Size 3/4 Inch NPT
Gas Inlet Pressure Natural Gas: 5 Inches W.C. (Min), Propane: 10 Inches W.C. (Min)
Voltage 115 Volts
Amps 4.4 Amps
Watts 506 Watts
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 6 Feet
Type Heavy Duty Range
Style Charbroiler Combination Range
Installation Type Floor Model (With 6 Inch Adjustable Legs)
Pan Capacity 2 Full-Size Pans
Pan Size Full-Size
Compartments 1
Controls Manual Gas Valves, Electronic Spark Ignitor, 3-Position Fan Switch
Temperature Range 150°F to 550°F
Exterior Finish Stainless Steel
Interior Finish 14 Gauge Stainless Steel
Material Stainless Steel
Cooking Surface Width 36 Inches
Cooking Surface Depth 38 Inches
Selling Unit Each
Units Per Case 1
Shipping Width 36 Inches
Shipping Depth 38 Inches
Shipping Height 37 Inches
Shipping Weight 735 lb.
Country of Origin USA

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

This model features a convection oven base, indicated by the 'C' suffix in its model number, which includes a blower motor for even heat distribution.
The range has two open top burners each rated at 35,000 BTU/hr, an 18-inch charbroiler with 45,000 BTU/hr (three 15,000 BTU/hr burners), and a convection oven burner rated at 35,000 BTU/hr, totaling 145,000 BTU.
The convection oven requires a 115 Volts, 60 Hz, 1-Phase electrical connection, drawing 4.4 Amps, and is supplied with a 6-foot cord and a 3-prong plug.
Yes, this range is convertible to propane gas. You must specify the desired gas type when ordering to ensure the correct setup and regulator are provided.
The convection oven's interior measures 28 inches Wide x 13-3/4 inches High x 24-1/2 inches Deep, designed to accommodate standard full-size sheet pans.
The range is supplied with a 3/4 inch gas pressure regulator and can connect via a 1-1/4 inch front manifold connection or a 1 inch or 3/4 inch capped rear manifold connection. Ensure the supplied gas appliance regulator is installed.
