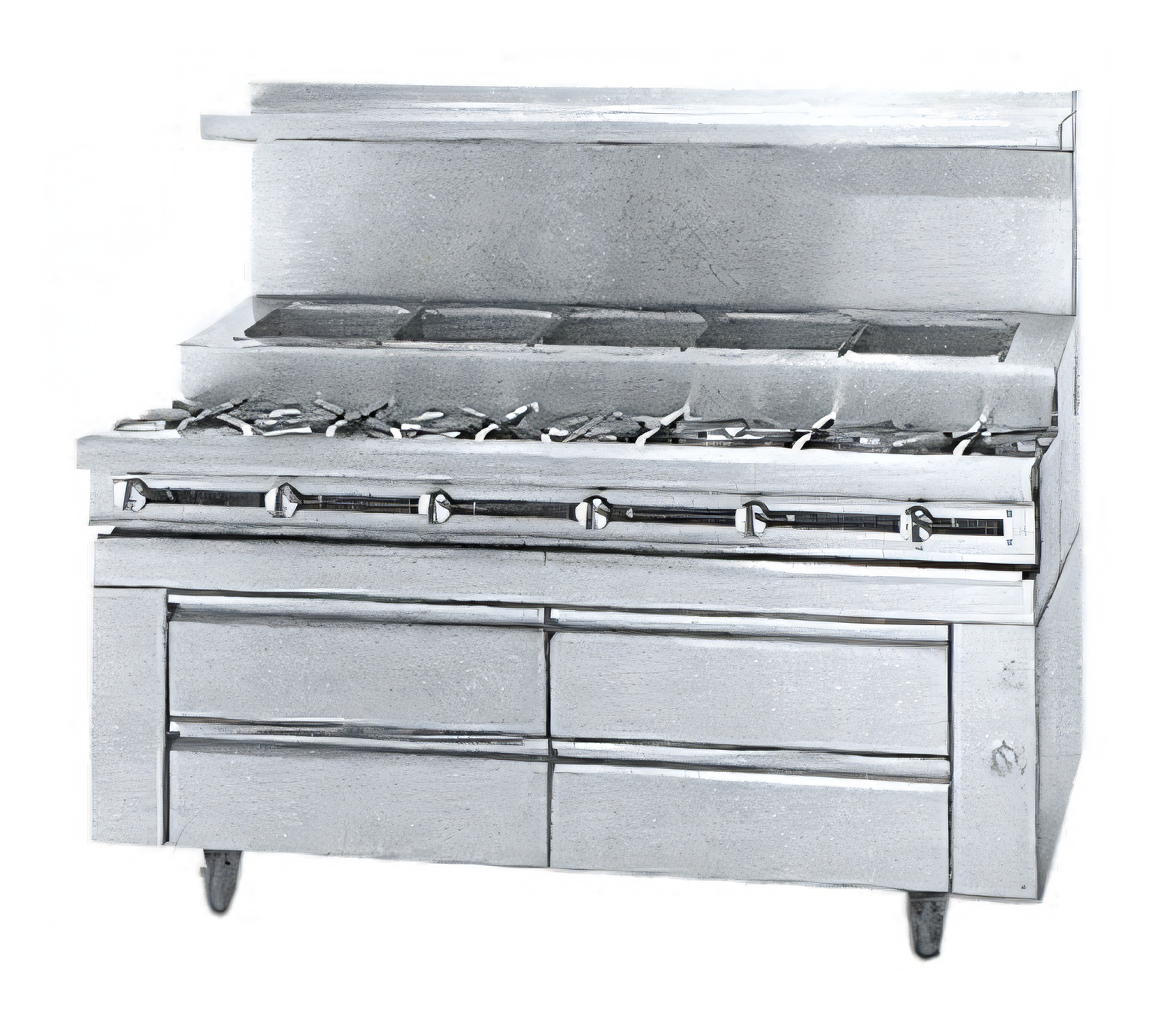

Titan Fire & Ice JMSS-05-T-60 Heavy Duty 60" Gas Sauté Station with 5 Open Burners and Refrigerated Rail

60" Width, 5 Open Burners, 8 (1/4 Size) Pan Capacity, Remote Cold Rail

Designed for high-volume commercial kitchens, the Titan Fire & Ice JMSS-05-T-60 Sauté Station combines powerful gas cooking with an integrated refrigerated rail for unparalleled efficiency and freshness.

  • Combines a heavy-duty gas range with a refrigerated prep rail for streamlined workflow.
  • Features five 30,000 BTU/hr cast iron open burners for versatile cooking.
  • Integrated refrigerated cold rail maintains NSF-7 standards for food safety.
  • Accommodates 8 (1/4 size) pans in the cold rail, ideal for high-volume sautéing.
  • Durable stainless steel construction on front, sides, stub back, and 6" plate shelf.
  • Modular unit designed to match other Jade Range heavy duty equipment.

Overall Dimensions:

60.0"W x 38.0"D x 30.25"H

Product Weight:

350.0 lb

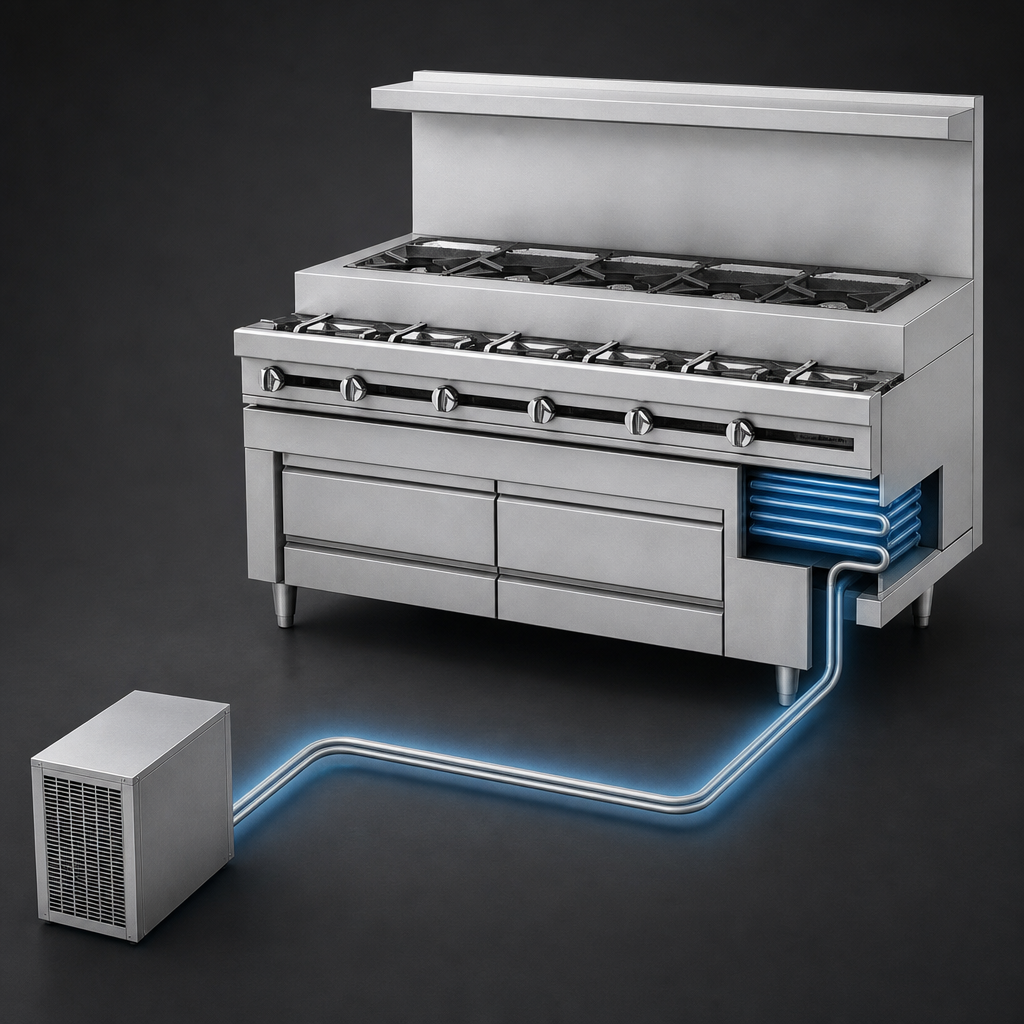

Remote Cold Rail

Constructed of stainless steel and wrapped with refrigerated coils to maintain NSF-7 standards, supplied with an R-404 expansion valve and thermostat control for optimal food preservation.

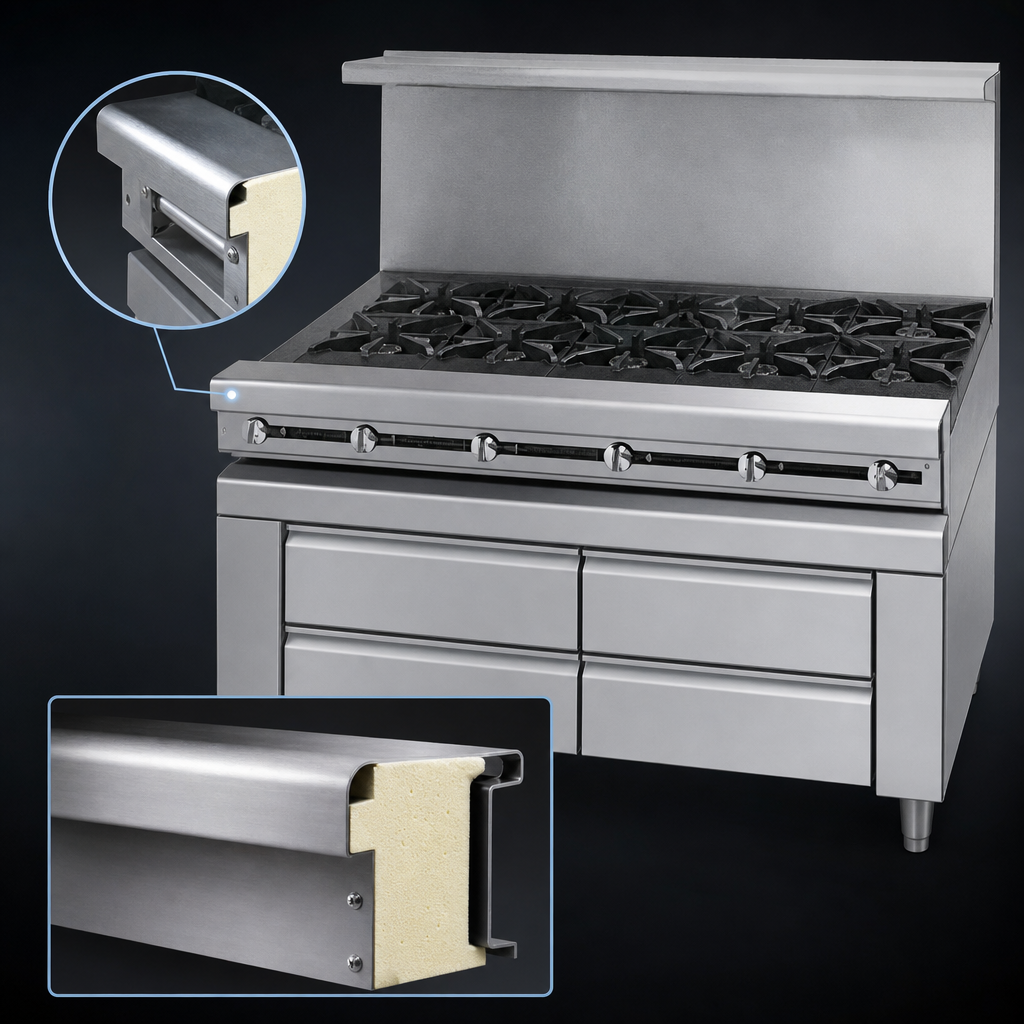

Insulated Raised Rail

The raised rail is 100% polyurethane "Shot-In-Place" foam insulated, ensuring superior temperature retention and energy efficiency.

Heavy-Duty Open Burners

Equipped with five 30,000 BTU/hr cast iron open burners, each featuring individual polished steel lift-off top grates for powerful and versatile cooking.

Removable Night Cover

Includes a stainless steel removable night cover for the cold rail, providing enhanced freshness and hygiene when the unit is not in use.

Integrated Plate Shelf

Features a stainless steel 6" plate shelf, offering convenient space for plating and holding dishes.

Modular Design

Engineered to seamlessly range-match with other Jade Range, LLC. Titan™ heavy duty equipment, allowing for a cohesive and efficient kitchen setup.

Cold Rail Drain

Each cold rail is supplied with a 1/2" I.P.S. brass drain for easy cleaning and sanitation.

Stainless Steel Construction

The front, sides, and stub back are constructed from durable stainless steel, offering longevity and easy maintenance in a commercial environment.

Type Sauté Station
Style Fire & Ice Heavy Duty Range
Installation Type Floor Model (Requires Refrigerated Base)
Width 60 Inches
Depth 38 Inches
Height 30.25 Inches
Weight 350 lb.
Shipping Width 60 Inches
Shipping Depth 38 Inches
Shipping Height 31 Inches
Shipping Weight 350 lb.
Material Stainless Steel
Pan Capacity 8 (1/4 Size Pans)
Compartments 1
Open Burners 5
BTU (Per Burner) 30,000 BTU/hr
BTU (Total) 150,000 BTU
Refrigeration BTU 2,600 BTU
Voltage 115 Volts
Hertz 60 Hz
Phase 1-Phase
Amps 2 Amps
HP 1/4 HP
Controls Individual Burner Controls, Thermostat Control (for cold rail)
Gas Type Natural Gas or Propane
Gas Connection Size 1-1/4 Inches (Front Manifold), 1 Inch or 3/4 Inch (Rear Manifold)
Gas Inlet Pressure (Natural Gas) 5 Inches W.C. Minimum
Gas Inlet Pressure (Propane Gas) 10 Inches W.C. Minimum
Gas Inlet Pressure (Maximum) 14 Inches W.C.
Refrigerant Type R-404
Drain Connection Size 1/2 Inch I.P.S.
Selling Unit Each
Units Per Case 1
Country of Origin USA

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The JMSS-05-T-60 is a modular unit and must be installed on a Jade Range Titan™ refrigerated base, which is not included and must be ordered separately.
The standard electrical requirement is 115 Volts, 60 Hz, 1-Phase, drawing approximately 2 Amps. It requires 1/4 HP for its refrigeration component.
The unit can operate on either Natural Gas or Propane. The specific gas type must be specified when ordering.
The refrigerated rail on the JMSS-05-T-60 is designed to accommodate 8 (1/4 size) pans.
Yes, the sauté station is supplied with a 3/4" gas pressure regulator. Larger 1" or 1-1/4" gas pressure regulators are available as accessories.
