Jade Range (Middleby)

Titan JMSS-03-T-36 Fire & Ice 36 Inch Gas Sauté Station with 3 Open Burners and Refrigerated Rail

SKU: JMSS-03-T-36
$15,142.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Gas Ranges Jade Range (Middleby) New Arrivals Ranges Restaurant Equipment

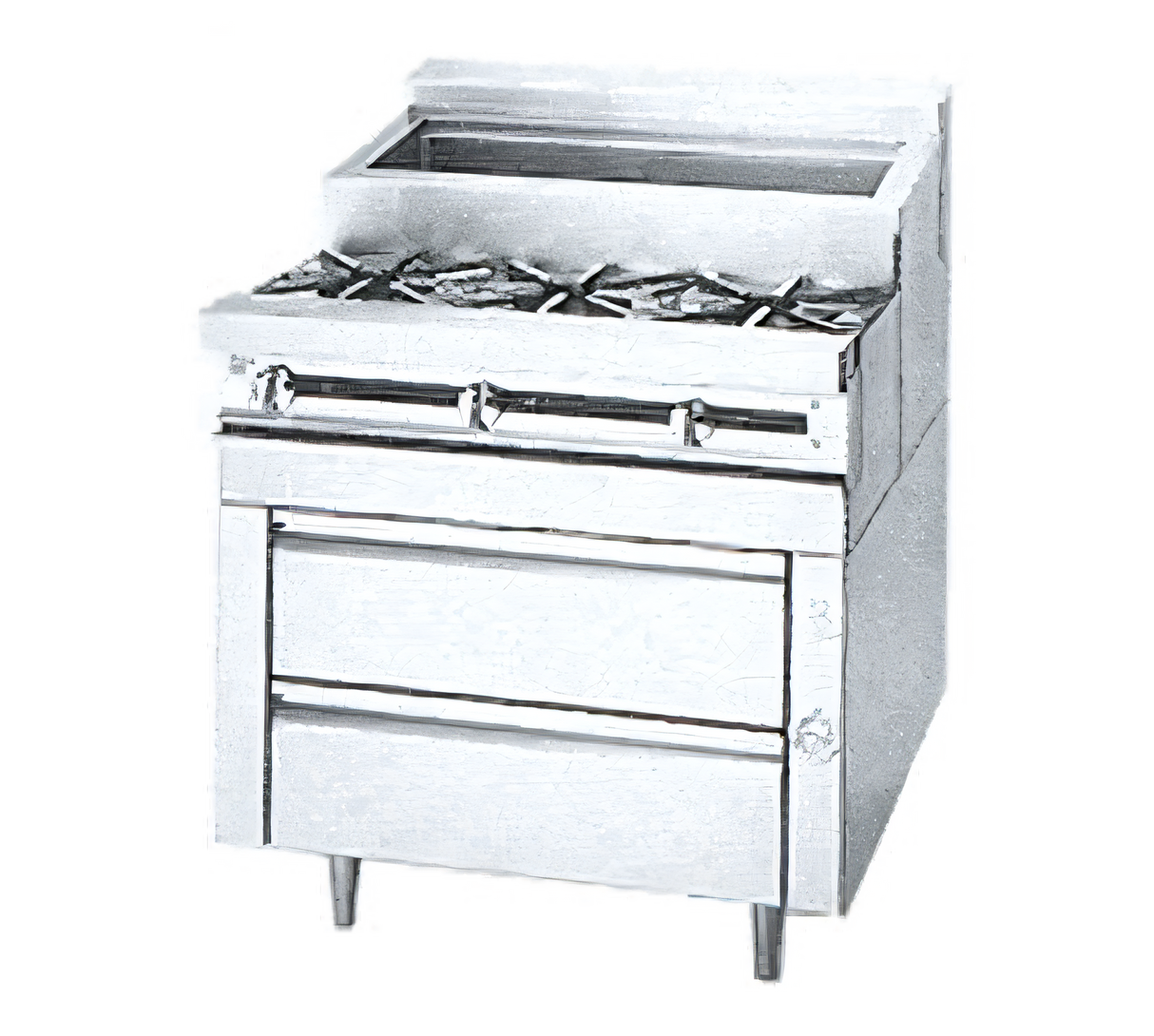

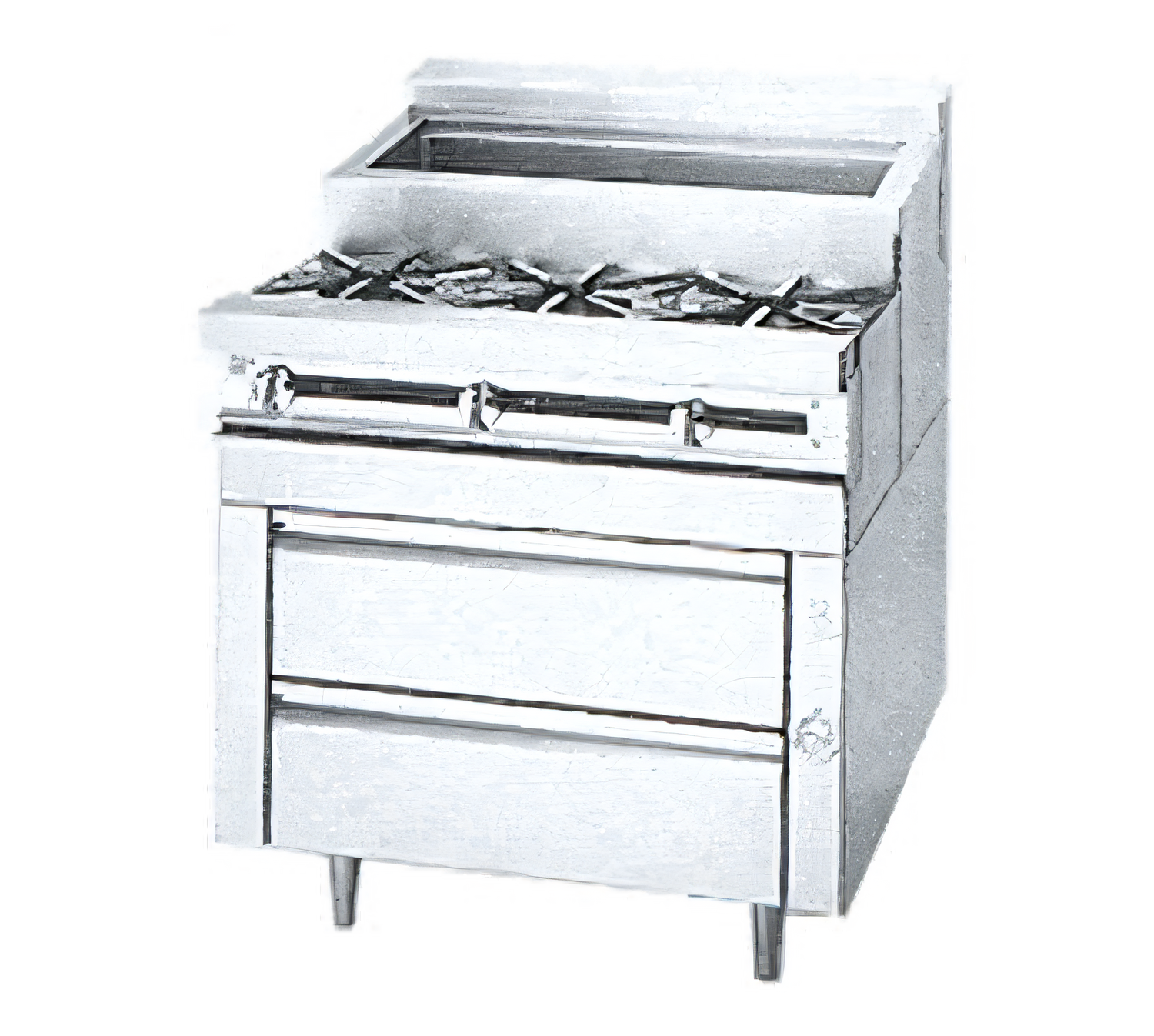

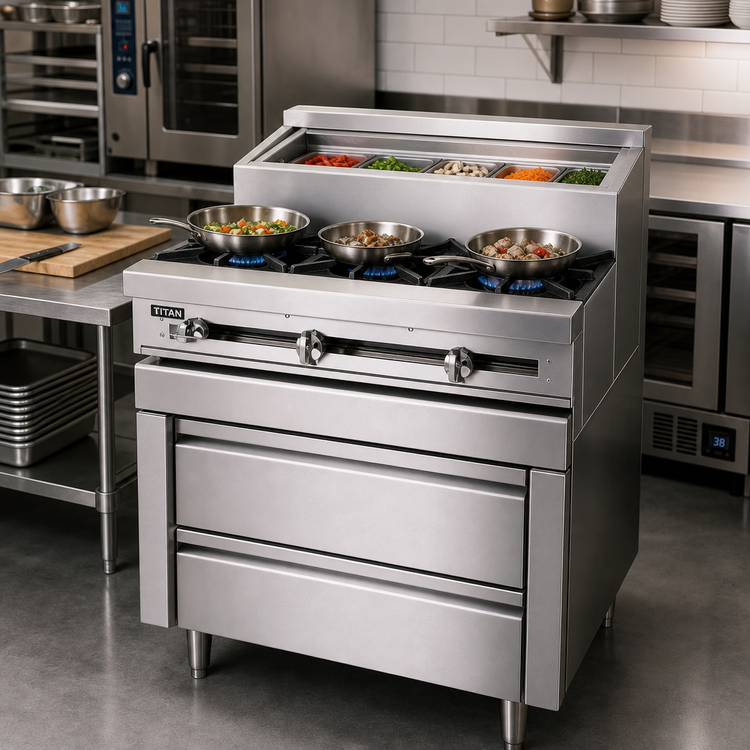

Titan JMSS-03-T-36 Fire & Ice 36 Inch Gas Sauté Station with 3 Open Burners and Refrigerated Rail

Modular, Full-Size, Natural Gas or Propane, Standard Depth

Experience unparalleled versatility and efficiency with the Titan Fire & Ice Sauté Station, combining powerful gas cooking with immediate refrigerated storage for peak performance.

  • Combines (3) 30,000 BTU open gas burners with an integrated refrigerated cold rail.
  • Keeps ingredients fresh and accessible with a 5 (1/4 size) pan capacity cold rail.
  • Heavy-duty stainless steel construction ensures durability and simplifies cleaning.
  • Designed to seamlessly range match with other Jade Range Titan™ heavy-duty equipment.
  • Includes a stainless steel removable night cover for the cold rail to maintain temperatures.
  • Modular unit requires installation on a compatible Jade refrigerated base (sold separately).

Overall Dimensions:

36.0"W x 38.0"D x 30.25"H

Product Weight:

250.0 lb

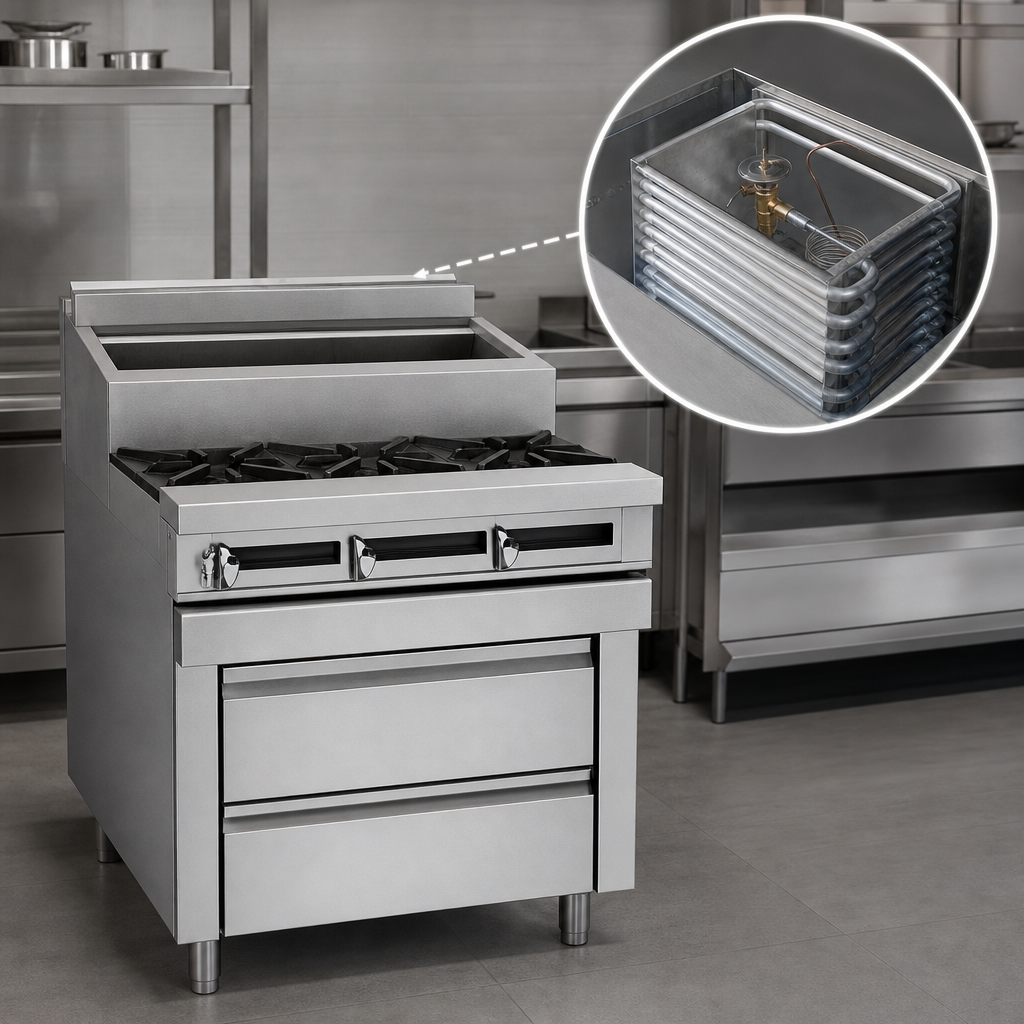

Remote Cold Rail

Constructed with stainless steel and wrapped with refrigerated coils to maintain NSF-7 standards. Supplied with R-404 expansion valve and thermostat control for precise temperature management.

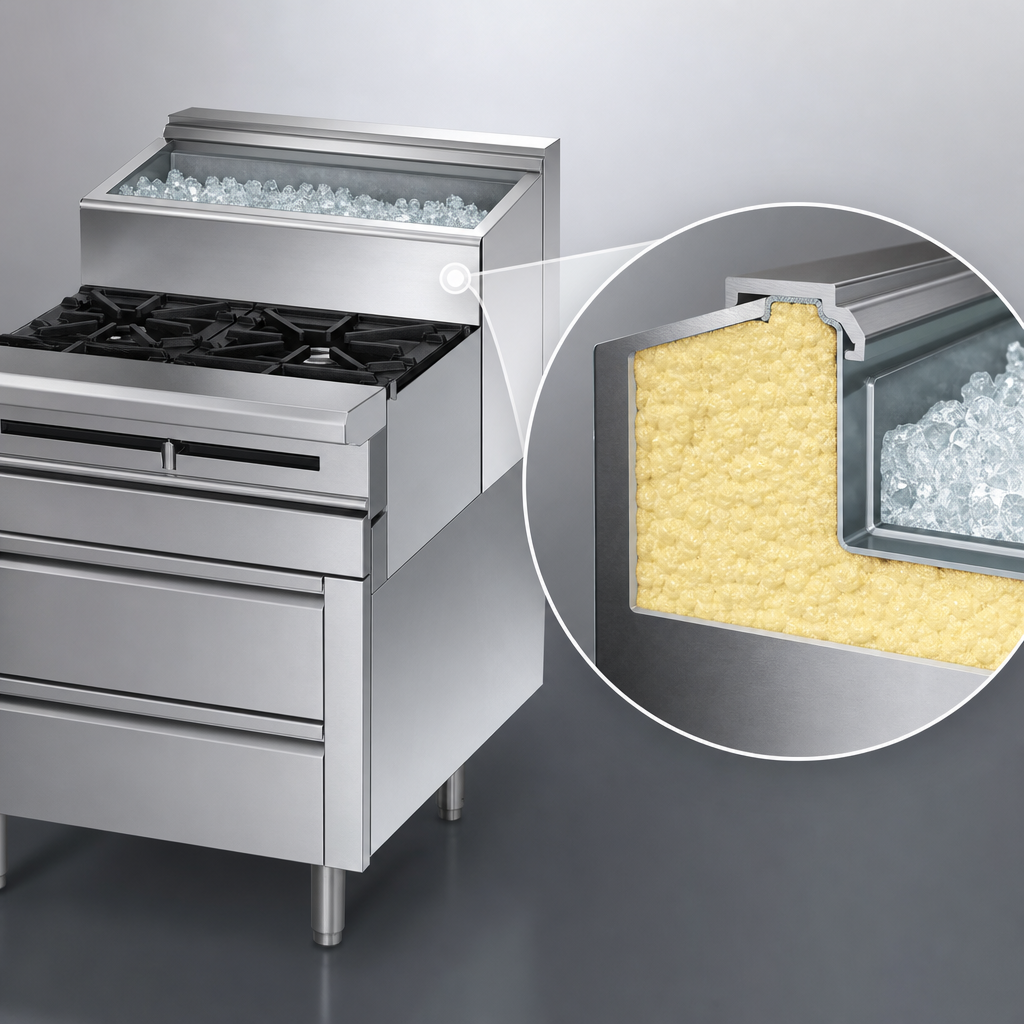

Polyurethane Foam Insulation

The raised cold rail is 100% polyurethane 'Shot-In-Place' foam insulated for optimal thermal retention.

Heavy-Duty Range Matching Design

Engineered to range match and integrate seamlessly with all Jade Range, LLC. Titan™ heavy-duty equipment.

Removable Night Cover

Includes a stainless steel removable night cover for the cold rail, helping to maintain temperatures and hygiene when not in use.

Integrated Cold Rail Drain

Each cold rail is supplied with a 1/2 inch I.P.S. brass drain for easy cleaning and water removal.

Powerful Open Burners

Equipped with (3) individual 30,000 BTU/hr cast iron open burners, each with polished steel lift-off top grates for efficient cooking and easy maintenance.

Durable Exterior Construction

Features a stainless steel front, sides, and stub back, providing a robust and easy-to-clean exterior.

6 Inch Plate Shelf

Includes a stainless steel 6 inch plate shelf, offering convenient staging space.

Type Sauté Station
Style Fire & Ice
Installation Type Floor Model (Modular, requires refrigerated base)
Gas Type Natural Gas or Propane
BTU 90,000 BTU
Refrigeration Type Remote Refrigeration
Refrigerant Type R-404
Refrigeration BTUs 1,150 BTUs
Voltage 115 Volts
Hertz 60 Hz
Phase 1-Phase
Amps 2 Amps
HP 1/5 HP
Pan Capacity 5 (1/4 Size Pans)
Compartments 1
Controls Thermostatic, Manual Knobs
Material Stainless Steel
Interior Finish Stainless Steel
Gas Connection Size 1-1/4 Inches NPT (Front)
Gas Inlet Pressure (Natural Gas) 5 Inches W.C. (minimum)
Gas Inlet Pressure (Propane Gas) 10 Inches W.C. (minimum)
Gas Inlet Pressure (Maximum) 14 Inches W.C.
Drain Connection Size 1/2 Inches I.P.S.
Water Connection Not Required
Drain Connection Required
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 36 Inches
Shipping Depth 38 Inches
Shipping Height 31 Inches
Shipping Weight 250 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The JMSS-03-T-36 sauté station is a modular unit and must be installed on a compatible Jade Range, LLC. Titan™ refrigerated base, which is not included and must be ordered separately.
The unit is supplied with a 1-1/4 inch front manifold connection and either a 1 inch or 3/4 inch capped rear manifold connection. It comes with a 3/4 inch gas pressure regulator, but 1-1/4 inch or 1 inch regulators are available as accessories. Required operating pressure is 5 inches W.C. minimum for Natural Gas and 10 inches W.C. minimum for Propane Gas, with a maximum of 14 inches W.C. for both.
The refrigerated rail has a capacity for 5 quarter-size pans, keeping your ingredients fresh and readily accessible during service.
No, this model is designed with a 'remote cold rail' system. It must be paired with a separate Jade refrigerated base that houses the condensing unit.
The standard electrical requirement is 115 Volts, 60 Hz, 1-Phase, drawing 2 Amps for the cold rail's operation.
