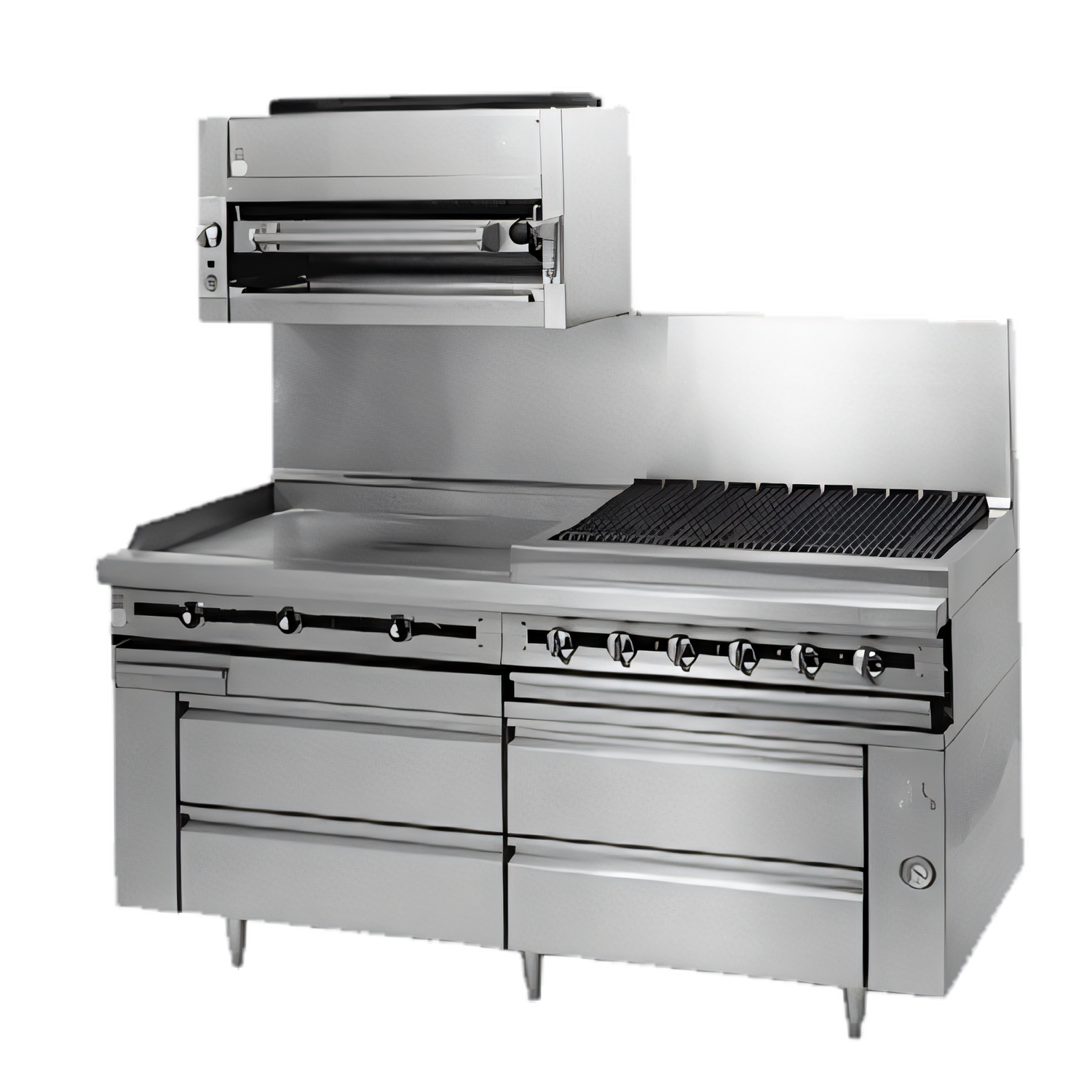

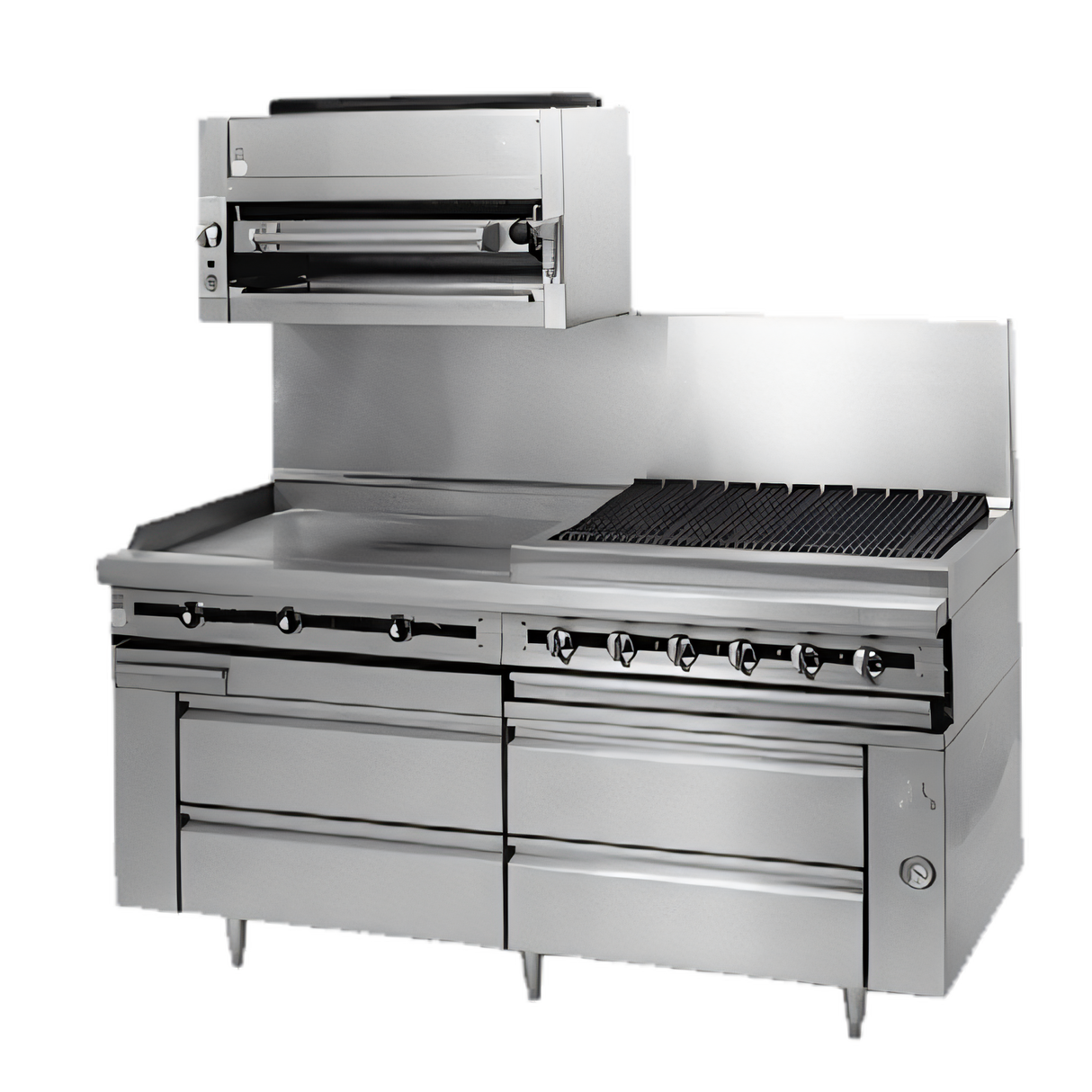

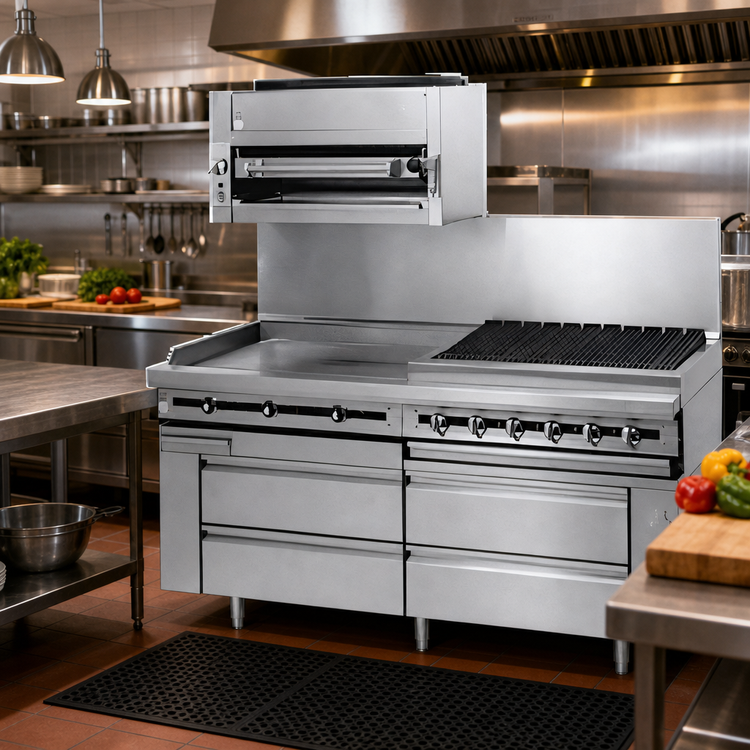

Titan JMRH-36G 36" Modular Heavy Duty Gas Griddle Top Range with Manual Controls

36-inch, Full-Size, Natural Gas or Propane, Standard Depth

The Titan JMRH-36G modular griddle top range delivers robust griddling performance with durable construction and precise manual control for demanding commercial kitchens.

  • Equipped with a polished 1" thick steel griddle plate for even heat distribution and durability.
  • Features 105,000 BTU heating capacity for powerful and efficient cooking.
  • Designed with heavy-duty stainless steel front, sides, and stub back for commercial resilience.
  • Offers flexible installation with a modular design and variable size gas connections.
  • Includes a 14 gauge stainless steel grease trough and splashguards for easy cleaning.
  • Comes with manual controls, ideal for experienced chefs who prefer precise, non-thermostat temperature management.

Overall Dimensions:

36.0"W x 38.25"D x 36.5"H

Product Weight:

530.0 lb

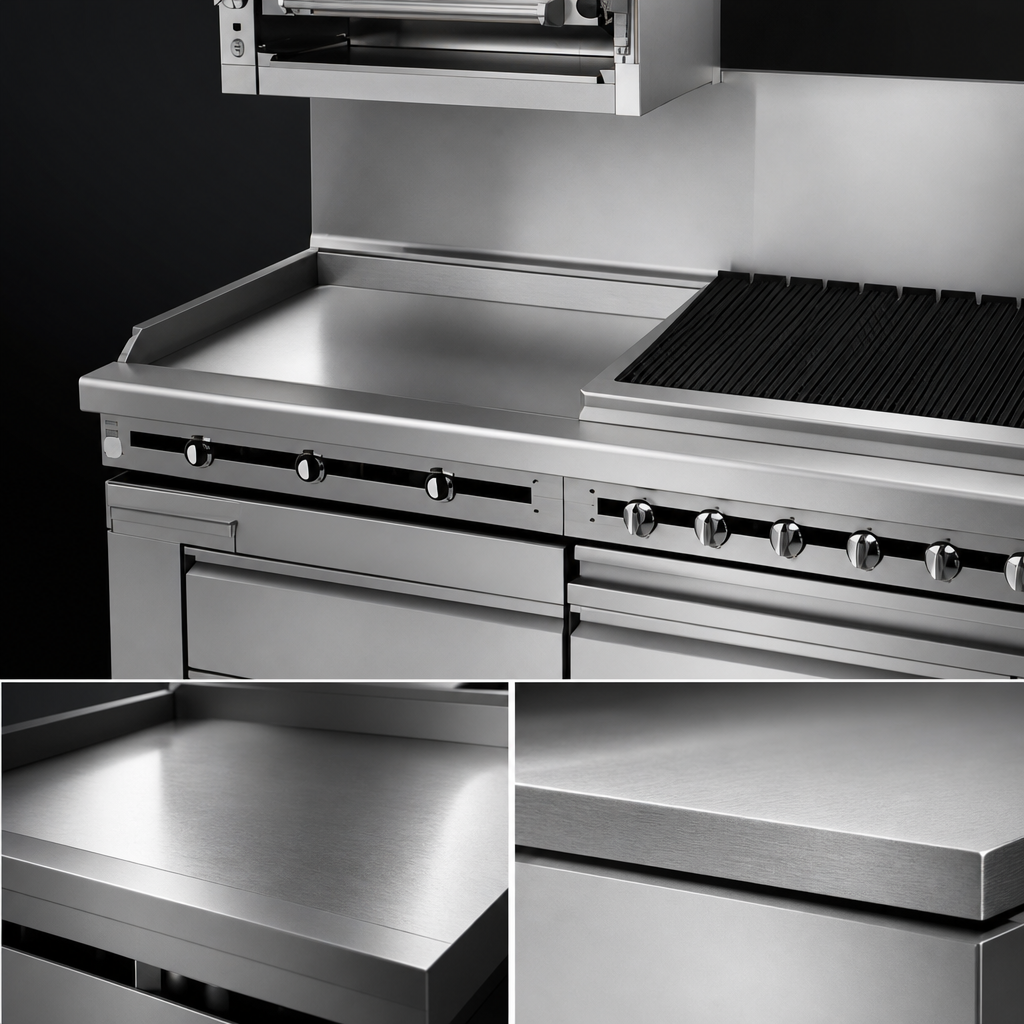

Polished 1" Thick Steel Griddle Plate

Provides superior heat retention and distribution, ensuring consistent cooking results across the entire 36-inch griddle surface.

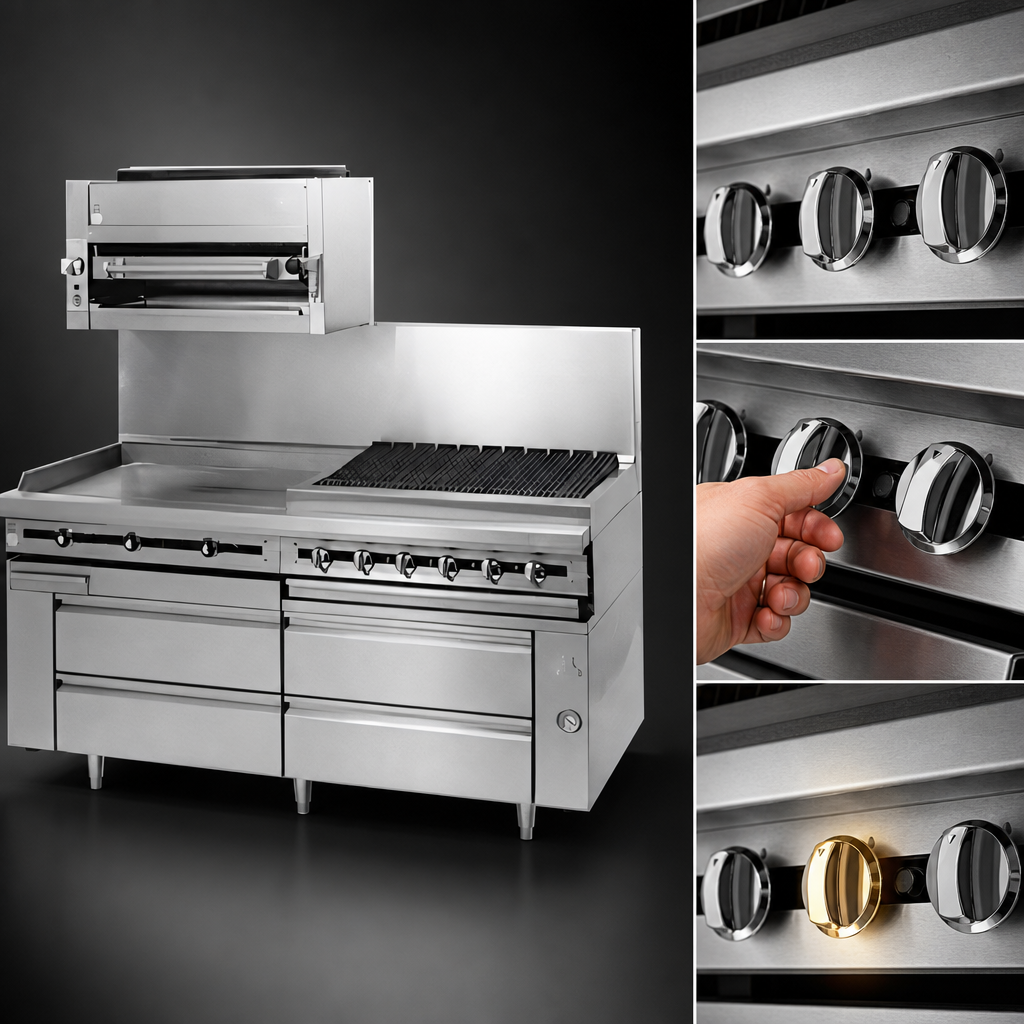

Manual Controls

Allows chefs to finely tune heat settings without a thermostat, offering greater control over cooking temperatures.

Heavy-Duty Stainless Steel Construction

Built with 14 gauge stainless steel front, sides, and stub back for exceptional durability and a sleek, easy-to-clean finish suitable for high-volume commercial kitchens.

Stainless Steel Grease Trough and Splashguards

A 14 gauge stainless steel grease trough and integrated side and rear splashguards simplify cleaning and maintain a tidy cooking area.

Modular Design

Allows for flexible integration into various kitchen configurations, making it adaptable to different cooking line setups.

6" Plate Shelf

A convenient stainless steel plate shelf provides additional workspace or a holding area for prepared dishes.

Variable Gas Connection

Features a 1-1/4" front manifold connection and a 1" or 3/4" capped rear manifold connection for versatile utility hook-up options.

Type Griddle Top Range
Style Modular
Installation Type Floor Model (With 6-inch Adjustable Legs)
BTU 105,000 BTU
Gas Type Natural Gas or Propane
Gas Connection Size 1-1/4 Inch (Front Manifold), 1 Inch or 3/4 Inch (Rear Manifold)
Gas Inlet Pressure (Natural Gas) 5 Inches W.C. minimum
Gas Inlet Pressure (Propane Gas) 10 Inches W.C. minimum
Controls Manual
Plate Thickness 1 Inch
Material Stainless Steel
Exterior Finish All Stainless Steel
Interior Finish Stainless Steel
Cooking Surface Width 36 Inches
Cooking Surface Depth 38.25 Inches
Selling Unit Each
Units Per Case 1
Shipping Width 36 Inches
Shipping Depth 39 Inches
Shipping Height 37 Inches
Shipping Weight 530 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The JMRH-36G model features manual controls, meaning it does not have a temperature thermostat. This provides direct control over the burners.
The griddle plate on the JMRH-36G is made of 1-inch thick polished steel, designed for even heating and durability.
The unit operates on either Natural Gas (minimum 5" W.C. operating pressure) or Propane Gas (minimum 10" W.C. operating pressure). It includes a 3/4" gas pressure regulator and has variable manifold connection options.
Yes, this unit can be used at high altitudes, but it is recommended to specify the altitude when placing an order for proper configuration.
The Titan JMRH-36G features a heavy-duty, all-welded body with a stainless steel front, sides, and stub back, ensuring robust and long-lasting performance.
