Titan Fire & Ice JFLH-04S-T-72 72-Inch Self-Contained Freezer Base with 4 Drawers

Full-Size, Self-Contained Freezer, 4 Drawers, Galvanized Steel Top

Designed for demanding commercial kitchens, the Titan Fire & Ice freezer base offers robust self-contained freezing capabilities and convenient storage beneath your equipment.

  • 72-inch wide self-contained freezer base provides ample frozen storage capacity.
  • Features two 14-3/8 inch and two 27-1/4 inch self-closing drawers for organized access.
  • Accommodates up to five 12" x 20" x 6" deep hotel pans per drawer for versatile storage.
  • Equipped with a built-in condensate evaporator and face-mounted dial thermometers for reliable operation and temperature monitoring.
  • Durable stainless steel front, sides, and 6-inch adjustable legs ensure longevity and stability.
  • Highly efficient 10.7 Amps operation with 115V, 60Hz, 1-Phase electrical requirements.

Overall Dimensions:

72.0"W x 34.0"D x 25.0"H

Product Weight:

500.0 lb

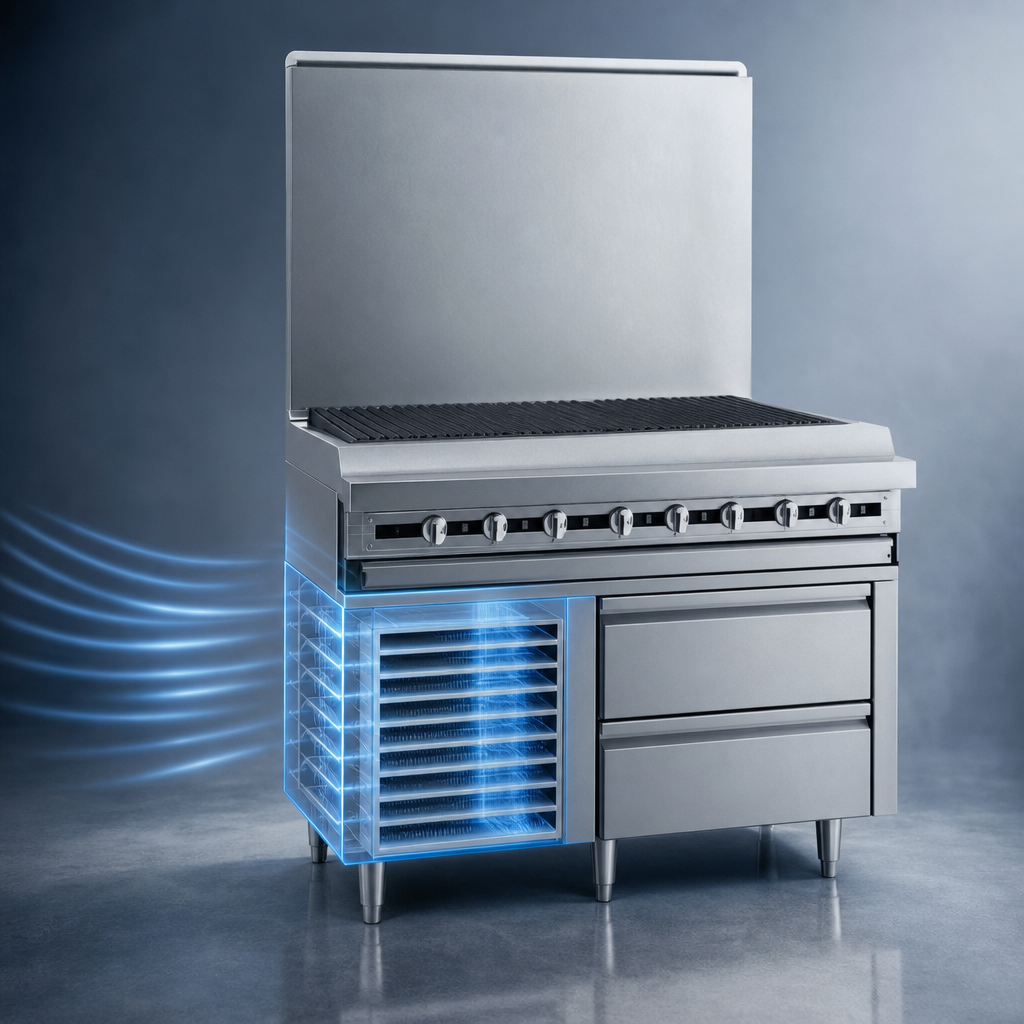

Self-Contained Refrigeration System

Integrated refrigeration system eliminates the need for remote compressors, simplifying installation and maintenance.

Built-In Condensate Evaporator

Automatically evaporates condensate, removing the need for an external drain connection.

Self-Closing Drawers

Features two 14-3/8 inch and two 27-1/4 inch self-closing drawers, designed with heavy-duty skate wheels on 14 gauge stainless steel tracks for smooth operation and durability.

Accommodates Full-Size Hotel Pans

Each drawer is designed to accommodate 12" x 20" x 6" deep hotel pans, offering versatile storage solutions (pans not included).

Face Mounted Dial Thermometers

Provides easy and accurate temperature monitoring at a glance.

Stainless Steel Construction

Cabinet interior, front face, and sides are constructed from durable stainless steel for enhanced hygiene and longevity in commercial environments.

Polyurethane Foam Insulation

Drawers and cabinet are 100% polyurethane 'Shot-In-Place' foam insulated for superior temperature retention and energy efficiency.

Removable Drawers for Cleaning

Drawers are easily removable, simplifying cleaning and maintenance.

Adjustable Stainless Steel Legs

Equipped with stainless steel 6-inch adjustable legs for precise leveling and easy cleaning underneath the unit.

Type Freezer Base
Style Equipment Stand
Installation Type Floor Model (With Legs)
Width 72 Inches
Depth 34 Inches
Height 25 Inches
Weight 500 lb.
Shipping Width 72 Inches
Shipping Depth 34 Inches
Shipping Height 25 Inches
Shipping Weight 500 lb.
Compartments 1
Drawers 4
Pan Capacity 5 Full-Size Pans (12" x 20" x 6" deep)
Controls Dial Thermometers
Refrigeration Type Self-Contained
Exterior Finish Stainless Steel Front & Sides
Top Finish Galvanized Steel
Material (Legs) Stainless Steel
Voltage 115 Volts
Amps 10.7 Amps
Hertz 60 Hz
Phase 1-Phase
Selling Unit Each
Units Per Case 1
Country of Origin USA

Certifications & Compliance

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

This freezer base is equipped with four self-closing drawers: two measuring 14-3/8 inches wide and two measuring 27-1/4 inches wide. They are designed with 14 gauge stainless steel tracks and heavy-duty skate wheels for smooth, reliable operation.
The freezer base is designed to accommodate five 12-inch by 20-inch by 6-inch deep hotel pans. Please note that pans are sold separately.
The unit operates on 115 Volts, 60 Hz, 1-Phase electrical power, drawing 10.7 Amps. It requires a single-point electrical connection.
The JFLH-04S-T-72 features a self-contained freezer system with a built-in condensate evaporator, eliminating the need for external drainage lines.
The cabinet interior, front face, and sides are made of stainless steel. It includes a galvanized steel top and 6-inch stainless steel adjustable legs for durability and stability. The cabinet and drawers are insulated with 100% polyurethane 'Shot-In-Place' foam.
