Description

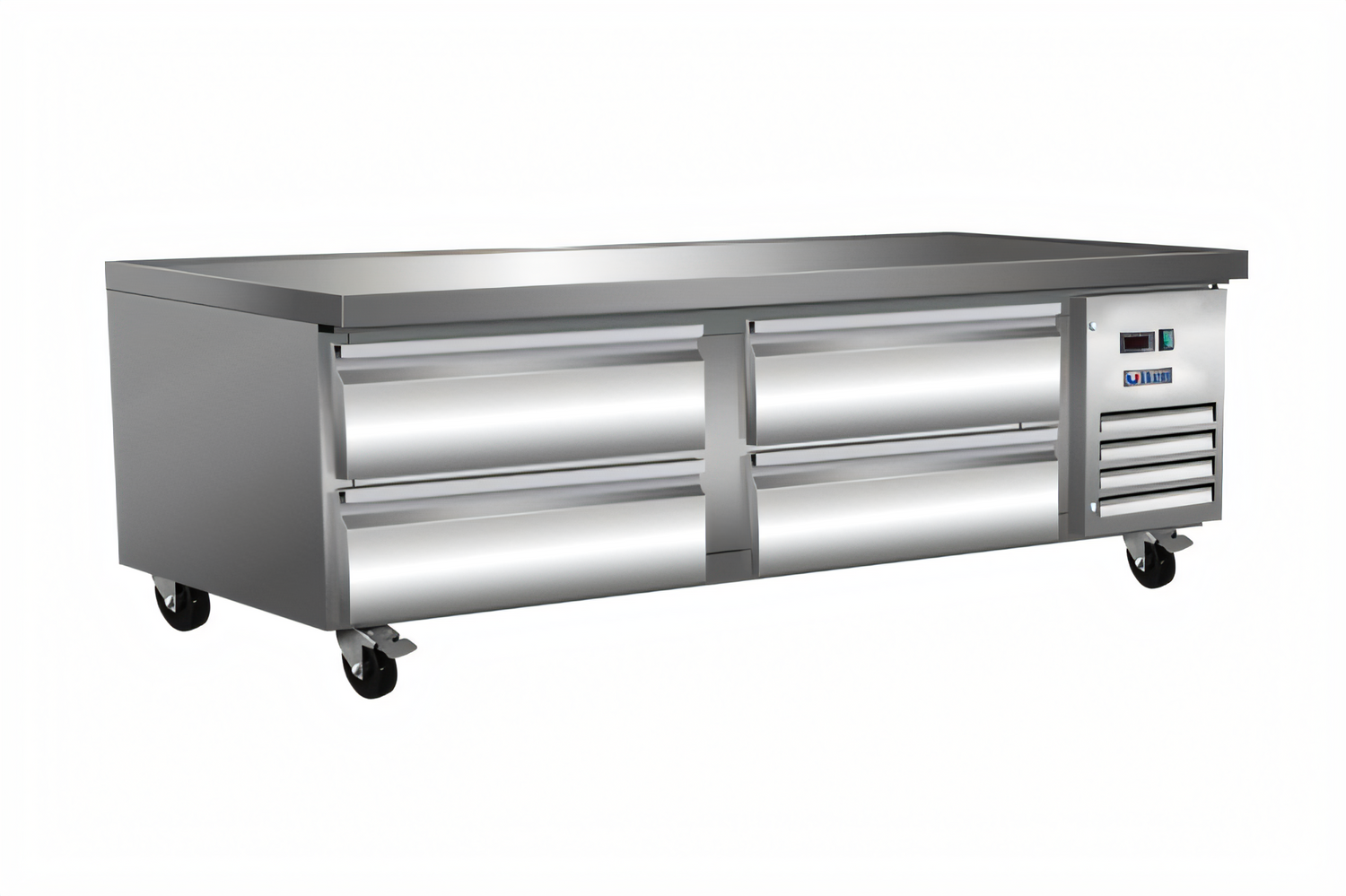

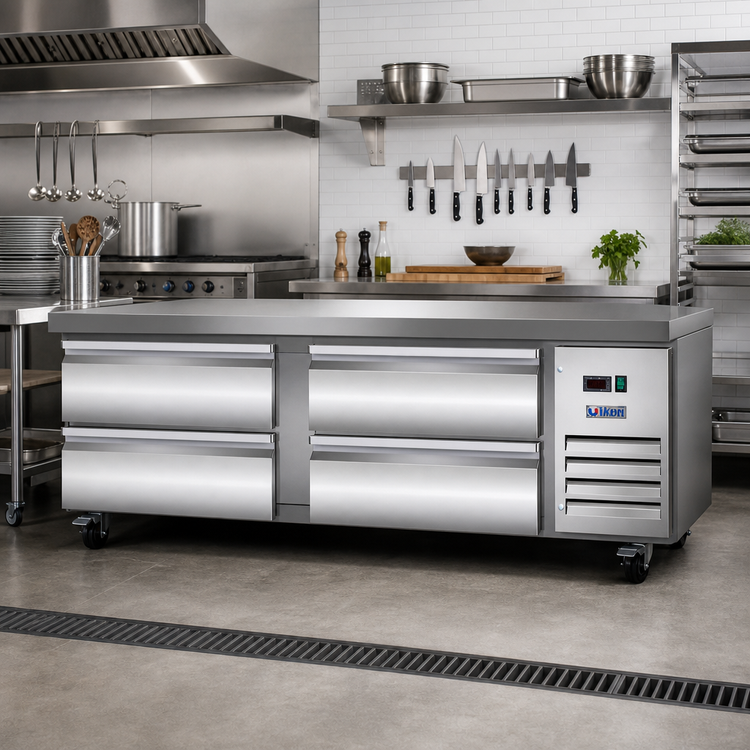

IKON ICBR-74 Chef Base Refrigerator – 74" / 10.8 cu. ft.

4 Drawer • 33-40°F holding temperature • Side-mounted refrigeration

Turn valuable line space into a multitasking powerhouse. The IKON ICBR-74 keeps fresh ingredients safely chilled directly under the cooking equipment it supports—so your team spends less time walking and more time cooking.

Why kitchens love it

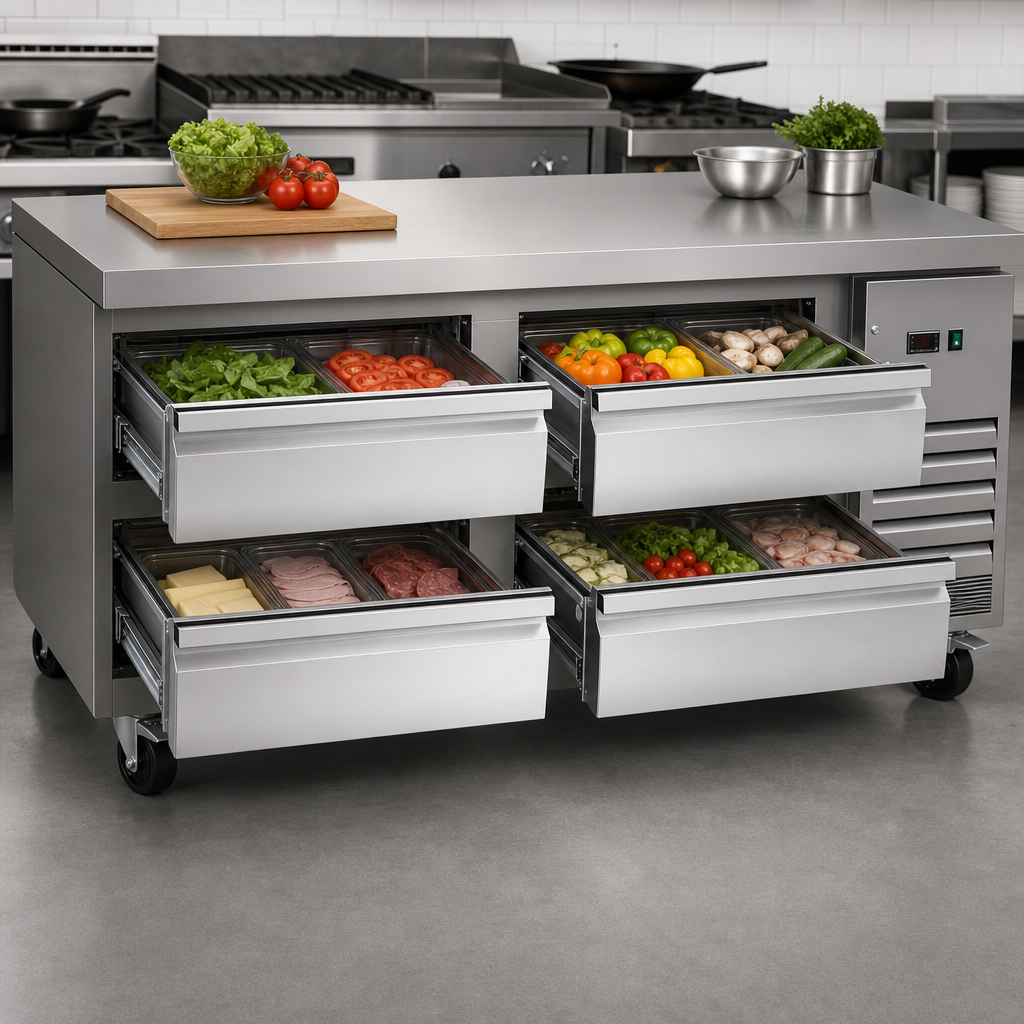

  • Four smooth-glide drawers provide 10.8 cu. ft. of refrigerated storage.
  • Electronic thermostat with bright LED read-out for instant temperature checks.
  • Factory-preset 33-40°F range meets FDA and NSF cold-holding standards.
  • Eco-friendly R-290 refrigerant & CFC-free foam insulation.
  • Automatic defrost and condensate evaporation—no scheduled drain emptying.
  • Heavy-gauge 430 stainless-steel top with raised marine edge contains spills and supports countertop griddles, charbroilers or fryers.
  • Tool-free magnetic gaskets cut cleaning and replacement time.
  • 4" swivel casters (front two locking) make service line re-configurations easy.
  • Certified cETLus & ETL-Sanitation to ANSI/NSF-7 standards (rated 40-90°F ambient).

Technical specifications

Model ICBR-74
Capacity 10.8 cu. ft. (306 L)
Exterior dimensions 74" W × 31.9" D × 26" H
Interior dimensions 52.2" W × 26.8" D × 13.9" H
Drawer count / pan size 4 drawers – fits standard 4" deep hotel pans*
Temperature range 33-40°F (0.5-4°C)
Refrigerant R-290 (Natural HC)
Compressor 1/3 HP, side-mounted, self-contained
Electrical 115 V / 60 Hz / 1-Ph • 2.1 A • 10 ft cord • NEMA 5-15P
Casters 4" swivel, front two locking
Shipping weight 353 lb

*Drawers accept 4" deep pans only; 6" pans will prevent proper closure.

Need to move equipment? The chef base top is designed to hold heavy countertop appliances but always verify combined weight does not exceed manufacturer load ratings.

Best-in-class warranty

  • 2 Years parts & labor coverage
  • Additional 3 Years compressor parts coverage (total 5 years)
  • Nationwide service network – call 888-275-4538 for fast support

Features & Specs

Manufacturer

MVP Group LLC

Brand_name

IKON Refrigeration

Certifications

cETLus, ETL-Sanitation

Height

26.0in

Width

74.0in

Depth

31.9in

Shipping Weight

353.0lbs

Compressor HP

1/3 HP

Drawer Qty

4 drawers

Top Finish

stainless steel top

Exterior Finish

all stainless steel exterior

Width

73" - 84" wide

Refrigeration

self-contained, side mounted

Specifications

IKON Refrigeration Chef Base Refrigerator, 10.8 cu. ft. capacity, 74"W x 31-9/10"D x 26"H, (4) drawers, electronic thermostat, 33° - 40°F temperature range, digital LED temperature display, automatic defrost system, marine edge, aluminum interior with stainless steel floor, stainless steel top, front & sides, side mounted self-contained refrigeration, R290 refrigerant, 4" swivel casters (2) braked, 2.1 amps, 115v/60/1-ph, cord with NEMA 5-15P, 1/3 HP, cETLus, ETL-Sanitation
