Key specifications

Amps
16 Amps
Phase
1-Phase
Dimensions
24.5"W × 25.25"D × 39.0"H
Type
Glasswasher
Style
Door Type
Installation Type
Undercounter
Spec sheet
Jackson WWS SKU: DELTA 5-E

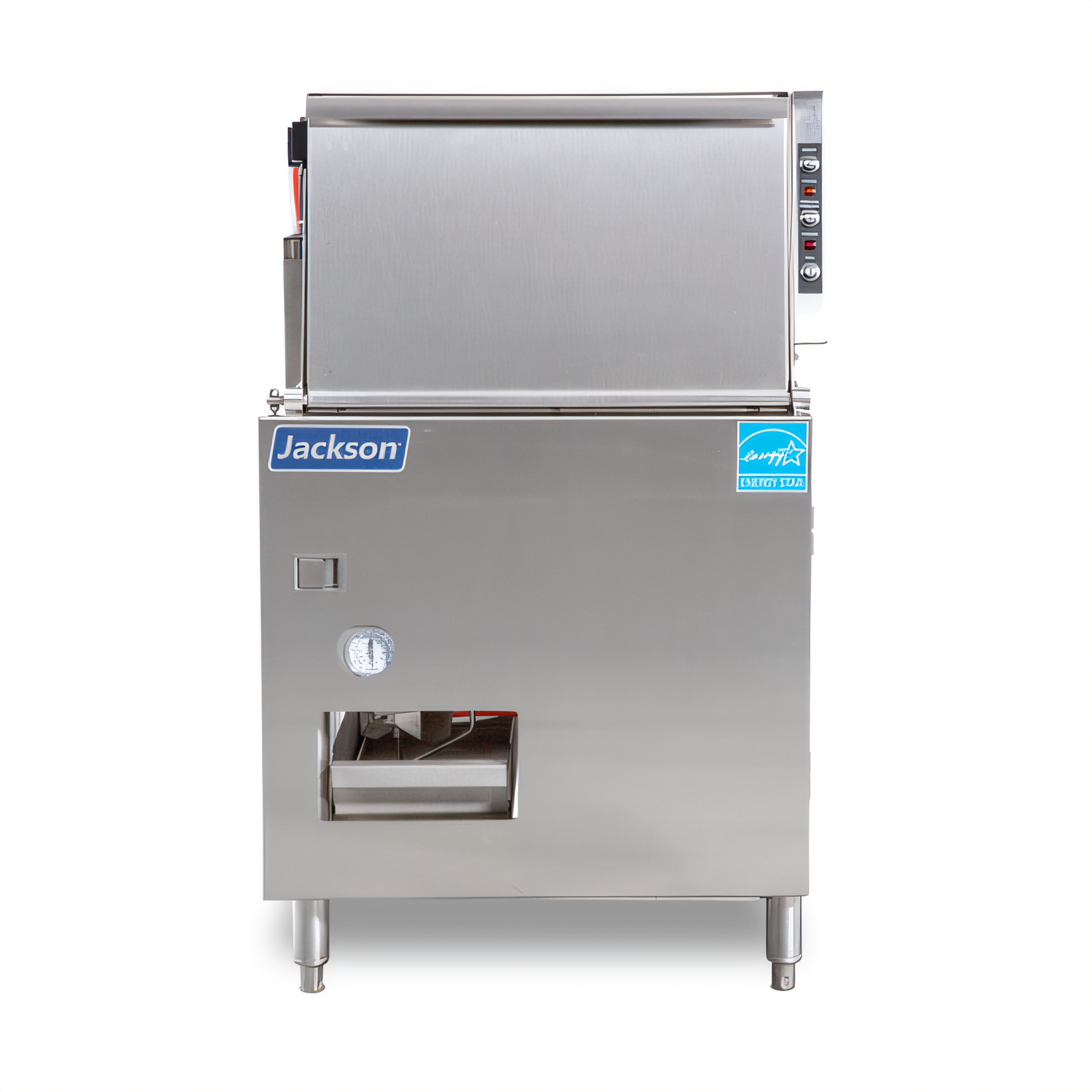

Jackson WWS Delta® DELTA 5-E Underbar Glasswasher/Dishwasher

$7,440.49
/each
Estimated to ship in 4–7 business days Free Shipping
Included: Jackson WWS warranty One-year limited parts and labor warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $688/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Glasswasher
Style Door Type
Installation Type Undercounter
Material Stainless Steel
Energy Efficiency ENERGY STAR
Rack Size 20 in x 20 in
Ware Clearance Height 11.5 in
Sanitizing Method Chemical
Temperature Range 120 °F–140 °F
Controls Push-Button Start; Electronic Timer
Chemical Pump Count 3
Wash Pump Motor 1 HP
Water Consumption 1.15 gal per rack
Wash Tank Capacity 1.2 gal
Water Inlet Connection 1/2 in NPT
Drain Connection 2 in NPT
Drain Type Gravity
Voltage 115 Volts
Amps 16 Amps
Hertz 60 Hz
Phase 1-Phase

Description

The DELTA 5-E is a door-type underbar glasswasher/dishwasher with low-temperature chemical sanitizing and stainless steel construction.

  • Functions as both a glasswasher and dishwasher and accommodates ware up to 11.5 in tall.
  • Includes three built-in chemical dispensing pumps, push-button start, and an electronic timer.
  • Uses a 1 HP stainless steel wash pump motor and a sustaining heating element that maintains the final rinse between 120 °F and 140 °F.
  • Features a built-in waste accumulator, removable screen, gravity drain, and adjustable stainless steel bullet feet.

Overall Dimensions:

24.5"W x 25.25"D x 39.0"H

Product Weight:

230.0 lb

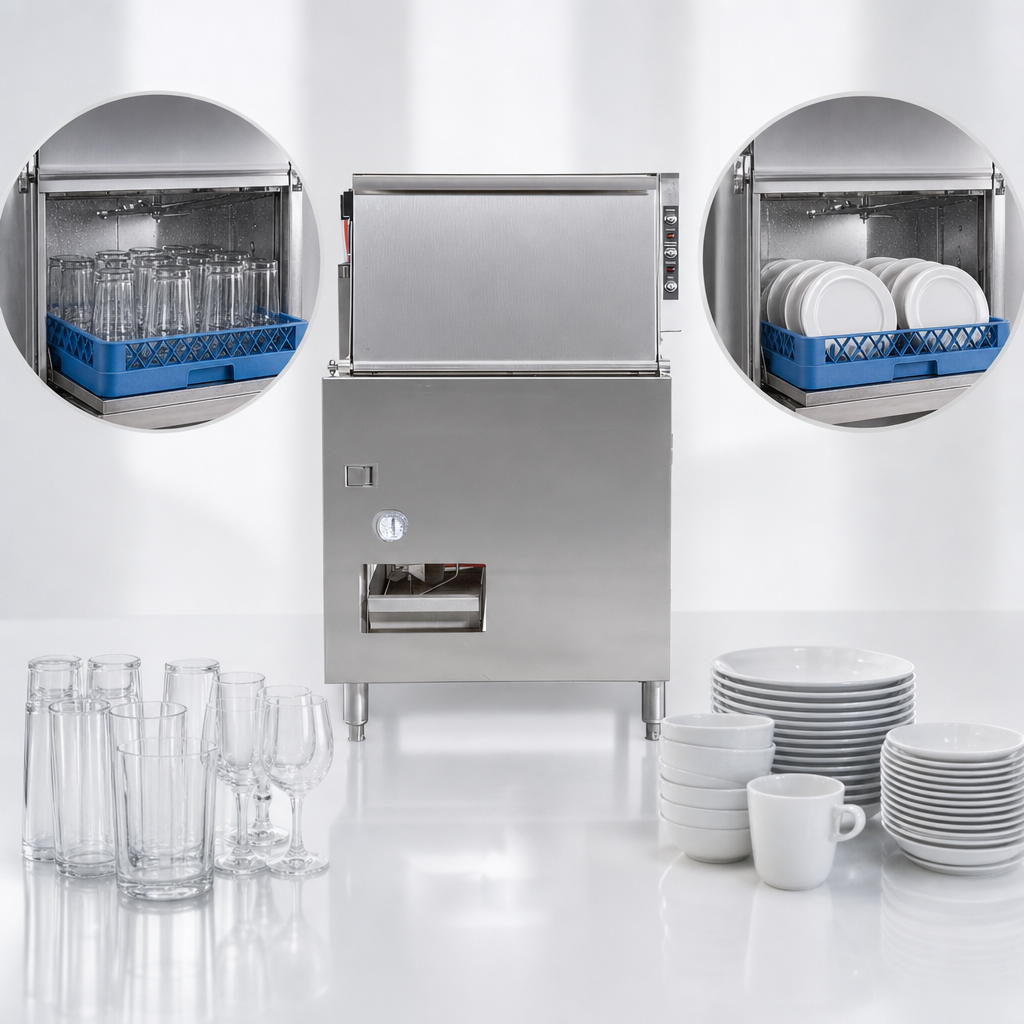

Dual-Purpose Operation

Functions as both a glasswasher and a dishwasher and accommodates ware up to 11.5 in tall.

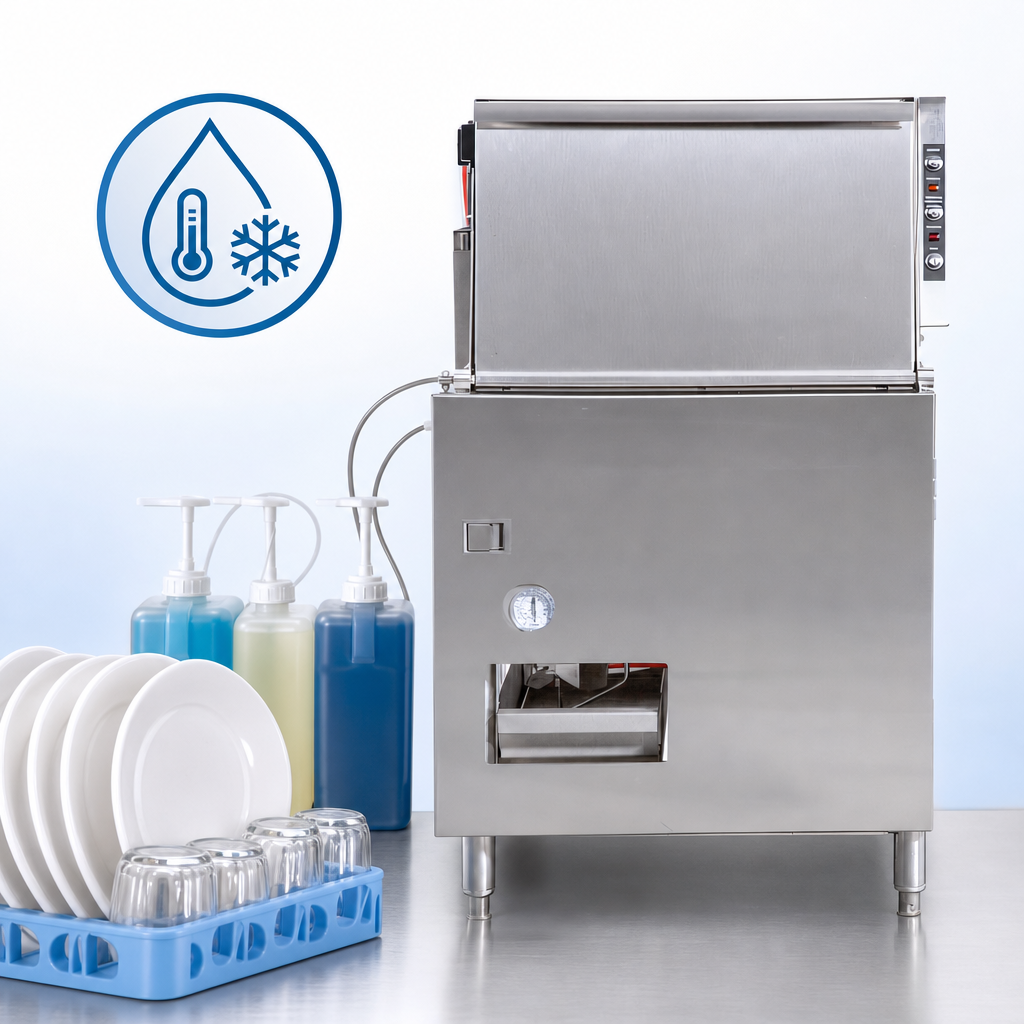

Chemical Sanitizing

Uses low-temperature chemical sanitizing with three built-in pumps for detergent, sanitizer, and rinse aid.

Electronic Controls

Includes push-button start, an electronic timer, and accessible controls.

Wash Pump

Uses a 1 HP stainless steel wash pump motor.

Final-Rinse Heating

A sustaining heating element maintains the final rinse between 120 °F and 140 °F.

Cleaning Access

Includes a built-in waste accumulator, removable screen, removable lower wash-arm end plugs, and removable upper jets.

Drainage

Uses a gravity drain.

Adjustable Feet

Includes adjustable stainless steel bullet feet.

Construction

Constructed of stainless steel.

Frequently Asked Questions

Yes. It functions as both a glasswasher and a dishwasher.
It accommodates a 20 in x 20 in rack.
The unit accommodates ware up to 11.5 in tall.
It requires 115 Volts, 60 Hz, single-phase power and draws 16 Amps.
It uses a gravity drain.
It includes a one-year limited parts and labor warranty. The warranty applies in the United States and Canada and is subject to registration, proper installation and operation, and authorized service conditions.
