Imperial (Middleby)  |  SKU: ICRA-3

Imperial (Middleby) ICRA-3 Wok Ranges

$17,204.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Cutsheet Middleby financial flyer Warranty sheet
Related Searches
Commercial Ranges Ranges Restaurant Equipment Wok Ranges Wok Ranges

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

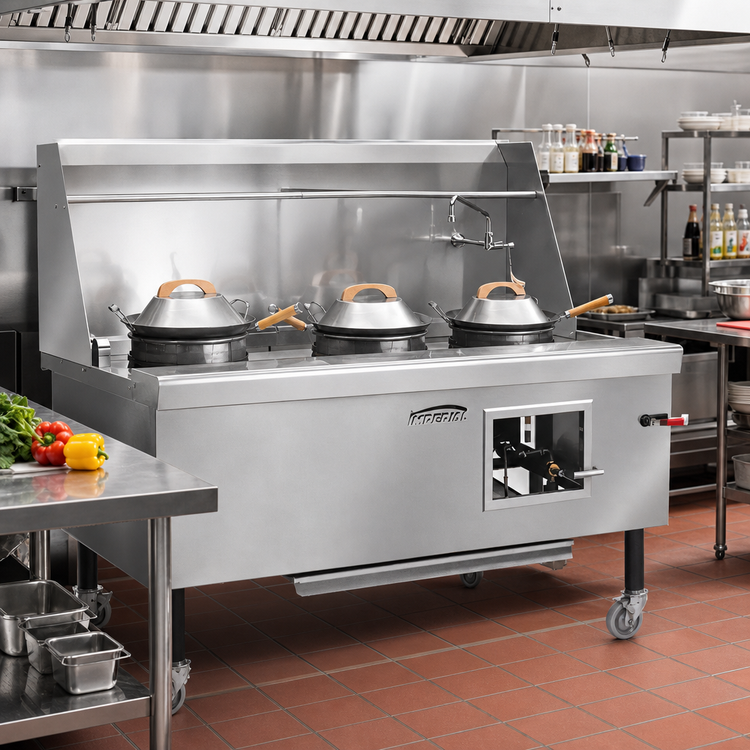

Imperial ICRA-3 84" Gas Wok Range – 3 Burners, 375,000 BTU

Water-cooled top • Built-in drain • Knee-level controls

Give your chefs authentic wok firepower without sacrificing safety, comfort or durability. The Imperial ICRA-3 Chinese range packs three high-output jet burners into an 84-inch, water-cooled deck that stays cooler, cleaner and ready for relentless service.

Why this range stands out

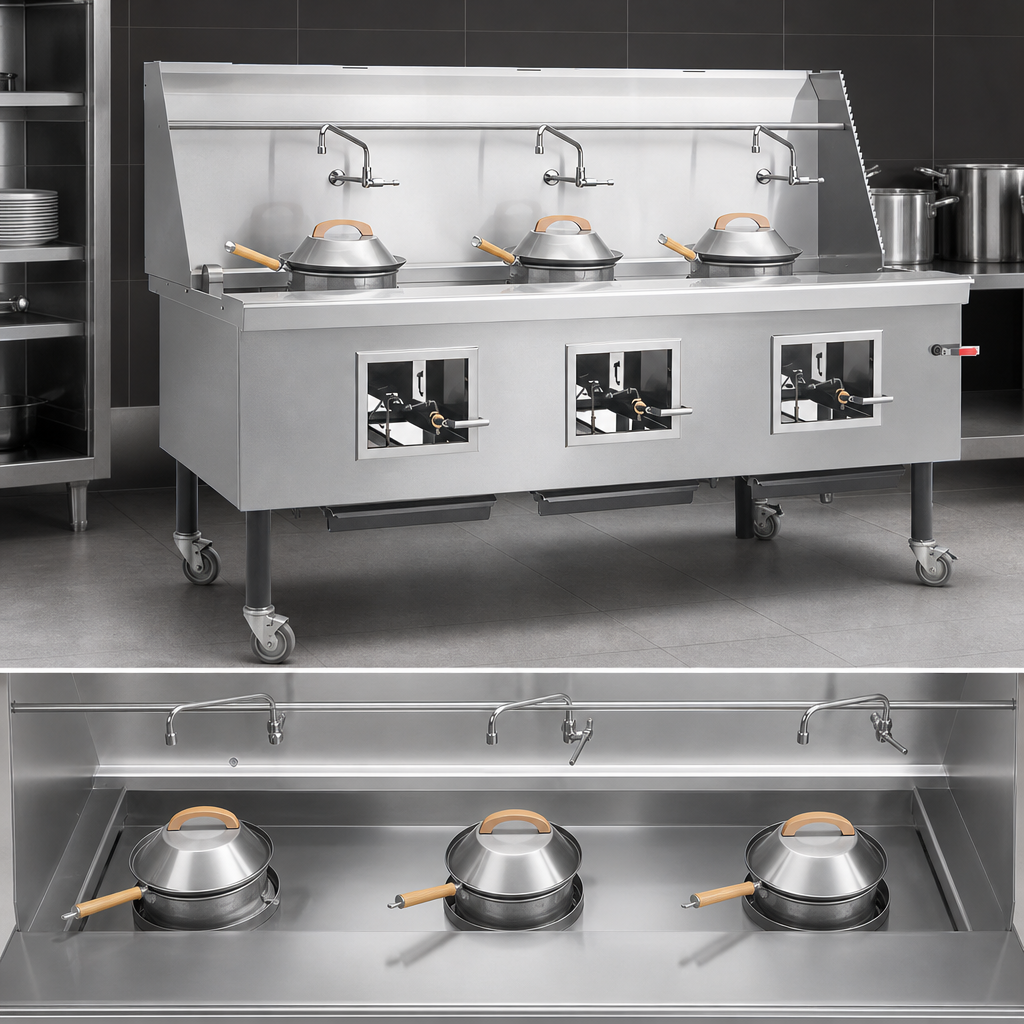

  • 375,000 BTU total: three jet burners (125,000 BTU each) with continuous pilots for instant ignition.

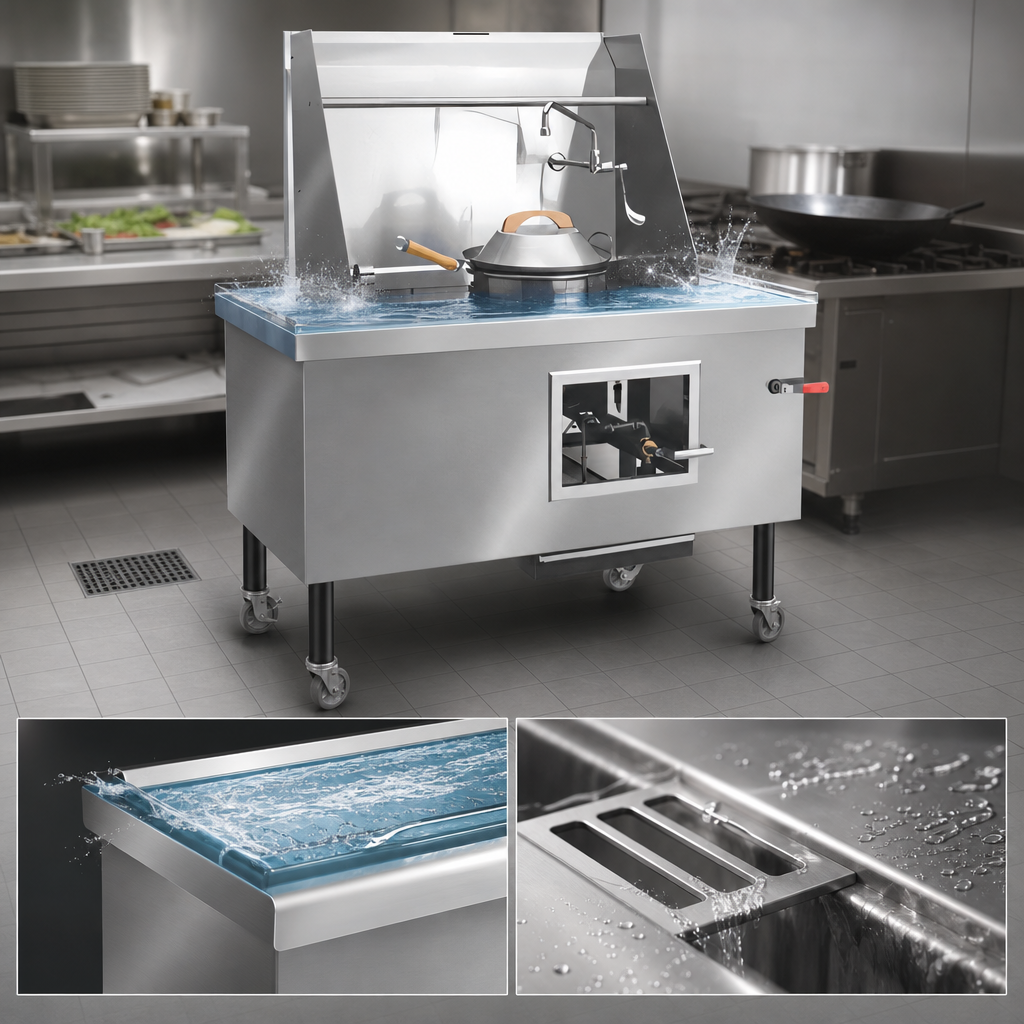

  • Water-cooled top & drain trough: keeps the cooking surface temperature in check and washes away food debris.
  • Chinese swing faucet (manual): quick cold-water access for two wok stations; mounts behind the holes to stay out of the way.
  • Knee-level “L” lever gas valves: adjust flame on the fly while both hands stay on the wok.
  • 24" flue riser with pipe rack: vents heat upward and provides convenient utensil & ladle storage.
  • Stainless steel construction: front, sides, top, high backsplash and 7" landing ledge are all heavy-gauge stainless for easy cleanup and long life.
  • 12-3/4" adjustable legs: set the perfect working height on any non-combustible floor.
  • cETLus & NSF listed; ships with one-year parts & labor warranty.

At-a-glance specs

Model ICRA-3
Total BTU 375,000 BTU/hr (3 × 125,000)
Burner Options 18-tip, 23-tip or anti-clog 18-tip jet burners (125,000 BTU)  |  3-ring burner (110,000 BTU)
32-tip jet (160,000 BTU) available with 20" hole*
Gas Connection 3/4" NPT manifold – 5" W.C. Natural or 10" W.C. LP (specify left or right rear)
Dimensions (W × D × H) 84" × 41" × 33" to cooktop
Flue Riser Height 24"
Ship Weight 800 lb (362 kg)
Certifications cETLus, NSF
Installation note: Unit must stand on legs or casters on a non-combustible floor. Allow 6" (152 mm) clearance from combustible side walls; 0" clearance required at rear.

*Wok hole diameters from 13" to 24" can be specified at no additional charge. Burner style, faucet location, gas inlet side and drain outlet (left, right or front) are all factory-configurable—ask our team for details and lead times.

Need help budgeting? Ask us about flexible equipment financing through Middleby Finance.

Features & Specs

Manufacturer

Imperial (Middleby)

Certifications

NSF, cETLus

Height

33.0in

Width

84.0in

Depth

41.0in

Shipping Weight

800.0lbs

Controls

knee "L" lever

Burner Section Qty

(3)

Depth (front - back)

41"

Flue/Back-Splash Height

24"

Exterior Finish

all stainless steel exterior

Specifications

Wok Range, gas, 84", (3) burners, water cooled top, built-in drain system, Chinese swing faucet, knee "L" lever gas valve handle, 24"H flue riser, stainless steel front, landing ledge, backsplash, & pipe rack, 12-3/4" legs, adjustable feet, 375,000 BTU, cETLus, NSF
