Ice-O-Matic MFI0800R Ice Machines
Description

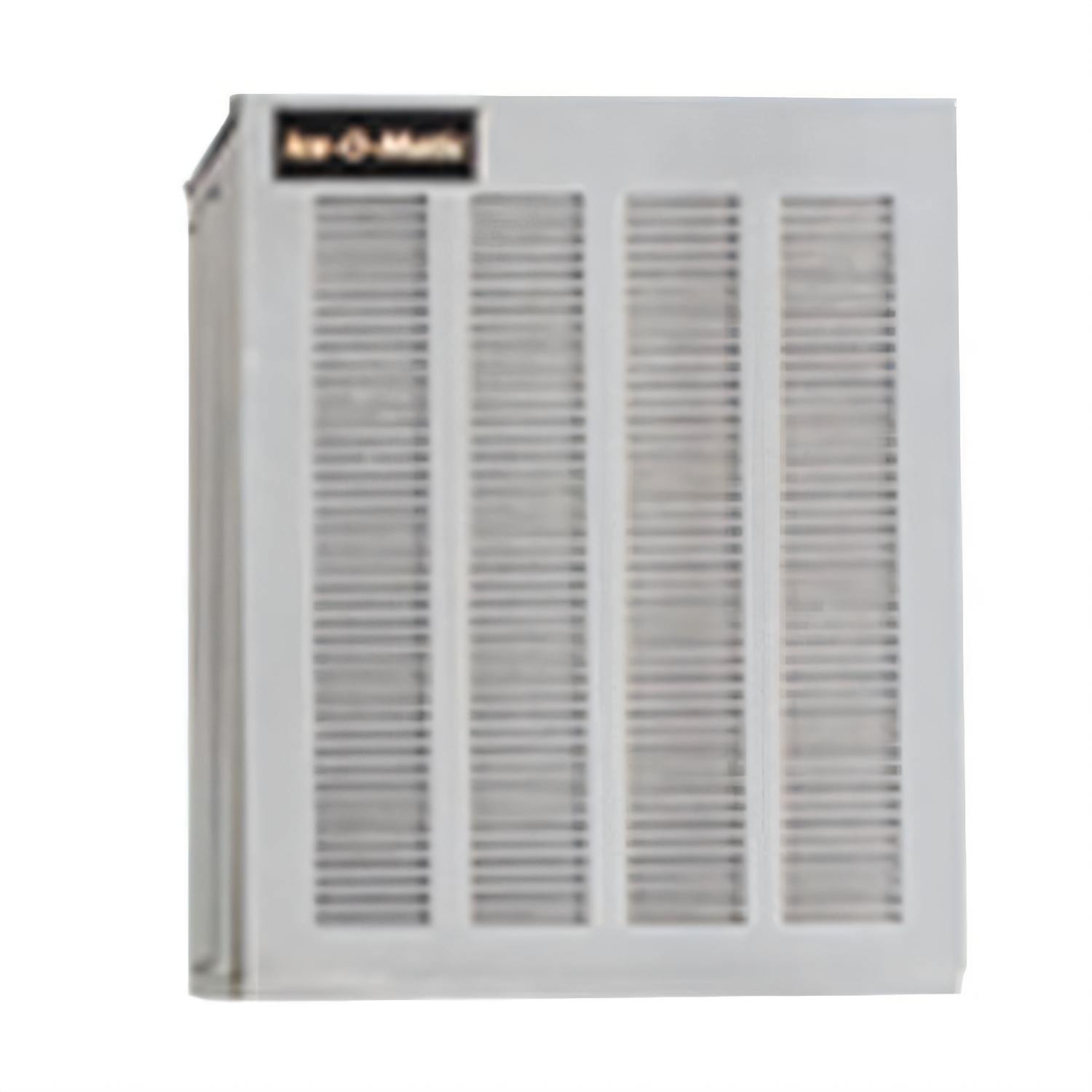

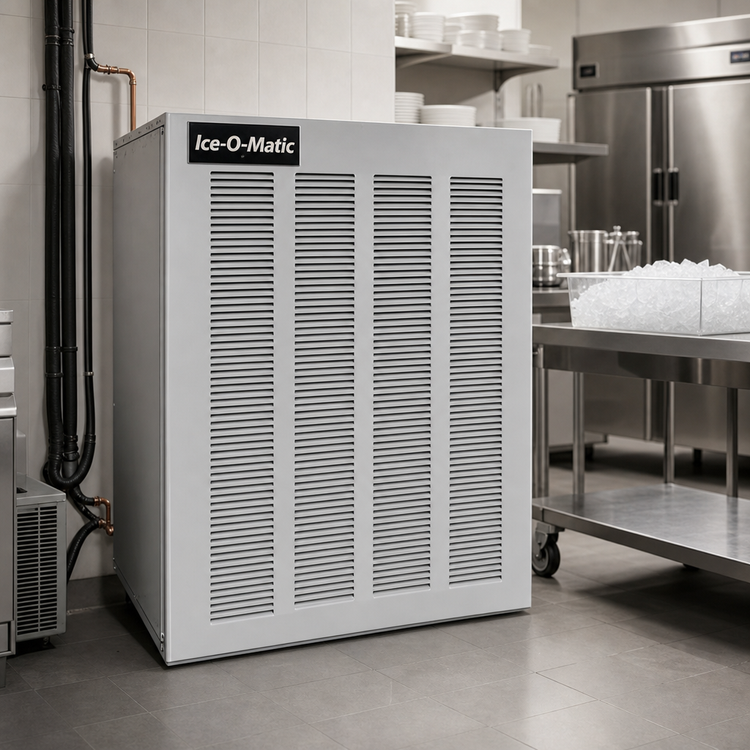

Ice-O-Matic MFI0800R Remote Flake Ice Maker
925 lb / 420 kg daily production • 21 in. (533 mm) wide • Stainless steel finishGet the soft, fast-cooling ice trusted by seafood markets, cocktail lounges and healthcare facilities—without adding extra heat or noise to the kitchen. The Ice-O-Matic MFI0800R pairs a space-saving 21 inch footprint with a high-capacity remote air-cooled condenser (sold separately) to crank out up to 925 lb of moldable flake ice every 24 hours.
Why You’ll Love It

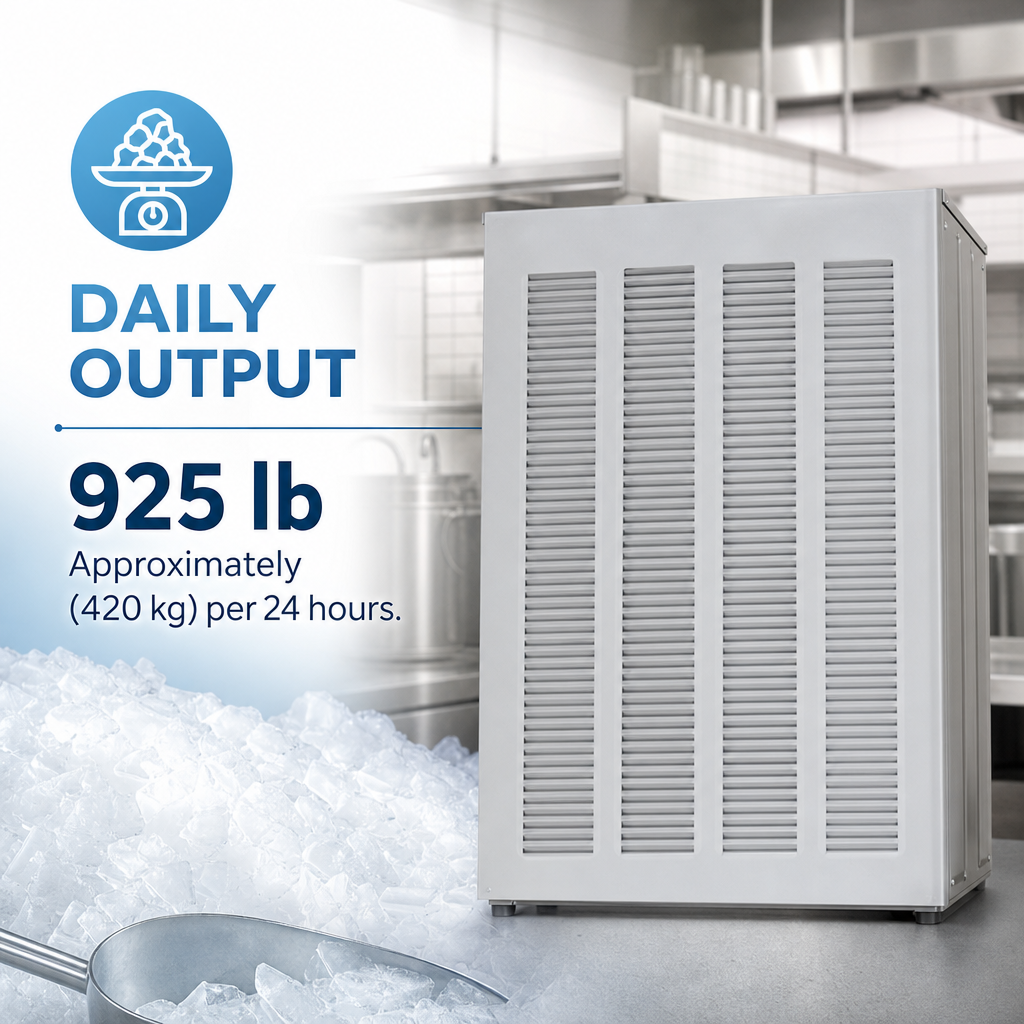

- Big production, small space – 925 lb (420 kg) of flake ice per day in just 21 in. of width.
- Remote condenser keeps things cool & quiet – moves heat and sound outdoors with the RGA0501-HM condenser (required, sold separately).
- SystemSafe™ load monitoring – automatically shuts down before gearbox damage can occur, preventing costly repairs.
- Smart water sensor – eliminates low- or no-water failures and isn’t fooled by poor water quality.
- Built to last – stainless steel evaporator & auger, industrial-grade roller bearings and heavy-duty gearbox for years of trouble-free service.

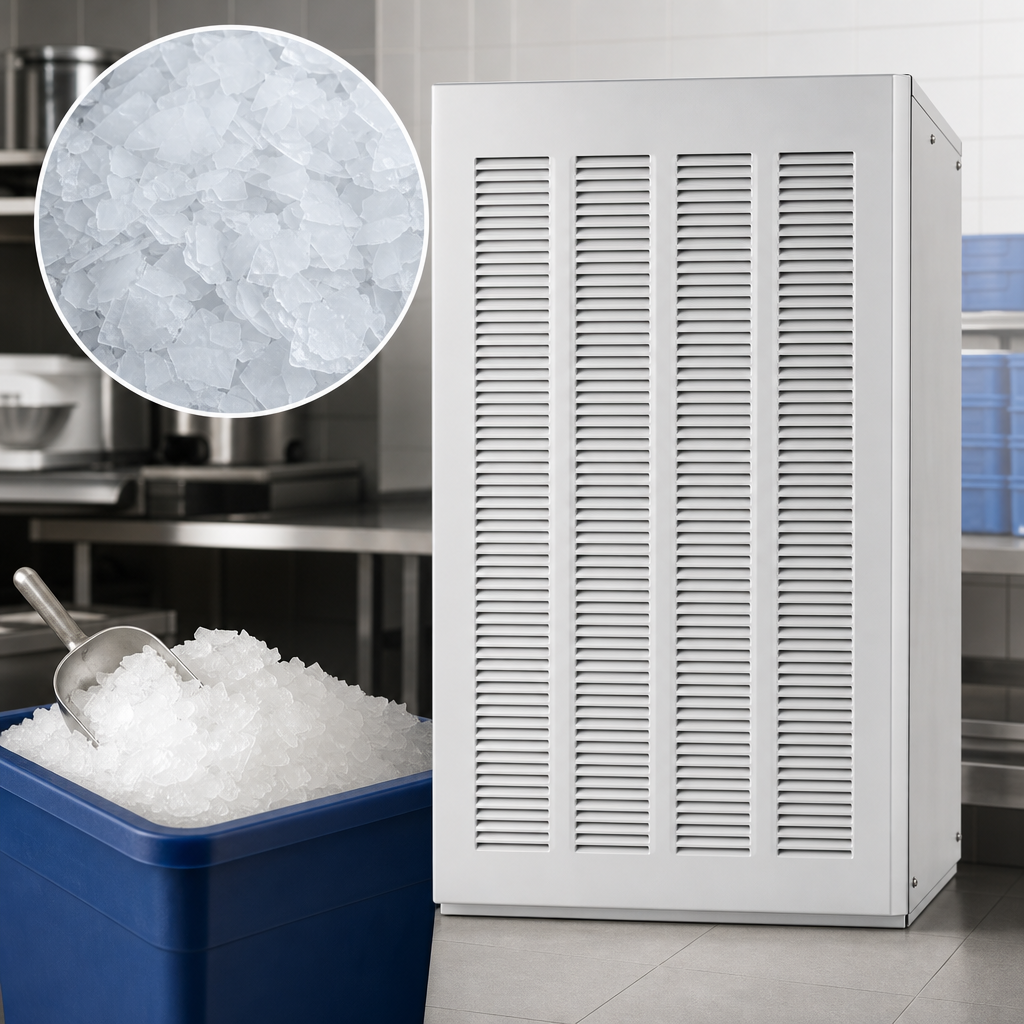

- Food-friendly flake ice – soft, moldable texture perfect for displays, blended drinks and rapid chilling.
- Simple service access – removable front and side panels speed up maintenance.
Technical Specifications
| Ice type | Flake |
|---|---|
| 24-hr production | Up to 925 lb (420 kg) @ 70 °F air / 50 °F water 625 lb (283 kg) @ 90 °F / 70 °F |
| Condenser | Remote air-cooled (RGA0501-HM required, not included) |
| Dimensions (W × D × H) | 21 in. × 24 in. × 27 in. (533 × 610 × 686 mm) |
| Clearance | 6 in. (152 mm) air intake & exhaust |
| Electrical | 115 V / 60 Hz / 1-phase • 22.5 A MCA • 30 A max breaker |
| Energy consumption | 4.3 kWh per 100 lb of ice |
| Water usage | 12 gal (45.4 L) potable water per 100 lb of ice |
| Refrigerant | R404A |
| Operating ranges | 50–110 °F (10–43 °C) ambient • 40–90 °F (4.4–32 °C) water • 20–120 psi (1.4–8.3 bar) |
| Ship weight | ≈ 220 lb (100 kg) |
| Certifications | cULus • NSF • CE |
| Warranty | 3-year parts & labor • 5-year parts on compressor (commercial installations) |

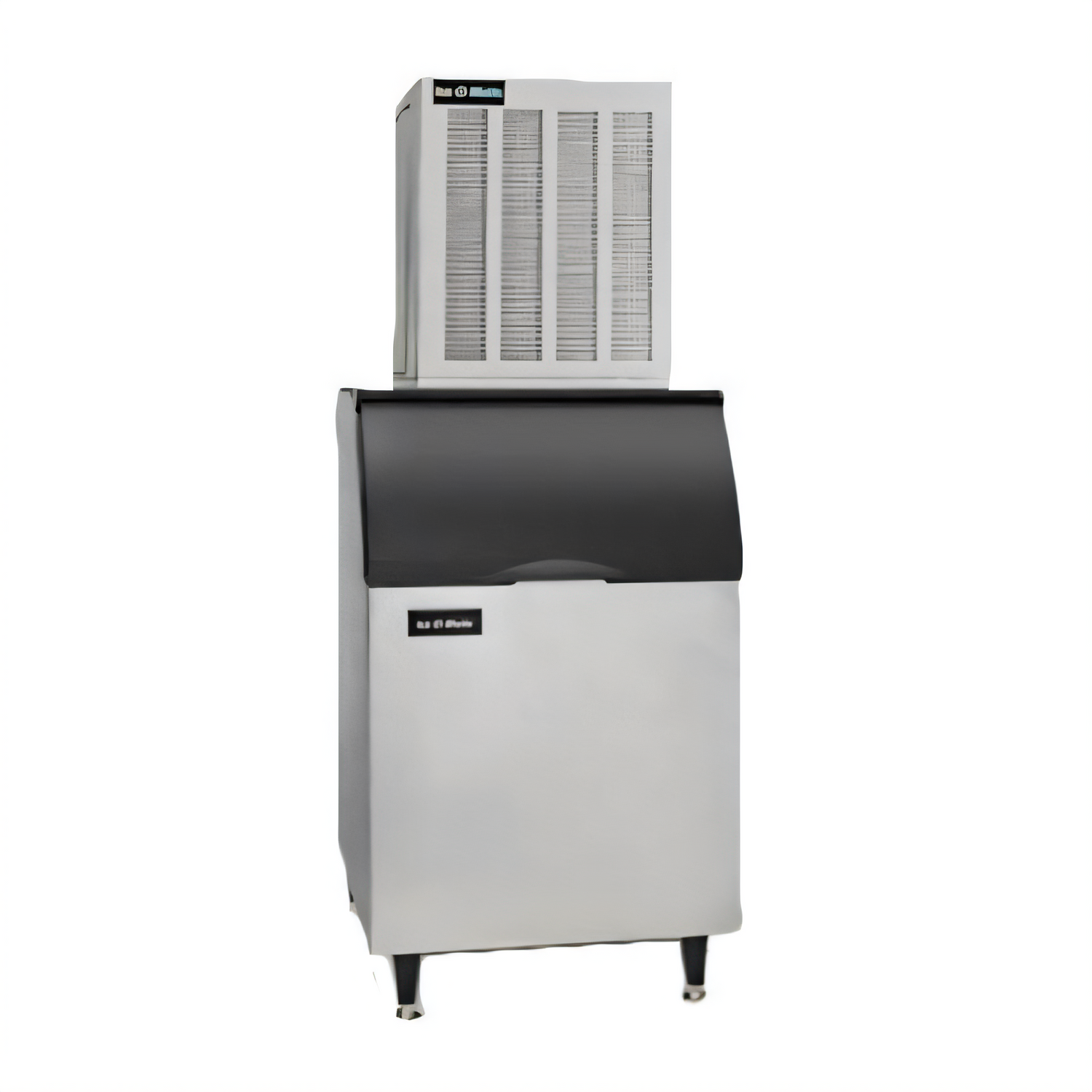

Compatible Ice Storage Bins
- B25, B40, B42, B55 – adapter kit KBT19 or KBT24 may be required
- B700 – kit not required
- B110, B1000 – adapter kit KBT23
Remote condenser, ice storage bin, and water filter are sold separately. Use of an Ice-O-Matic filter system is recommended to extend equipment life and maintain warranty coverage.
