Ice-O-Matic

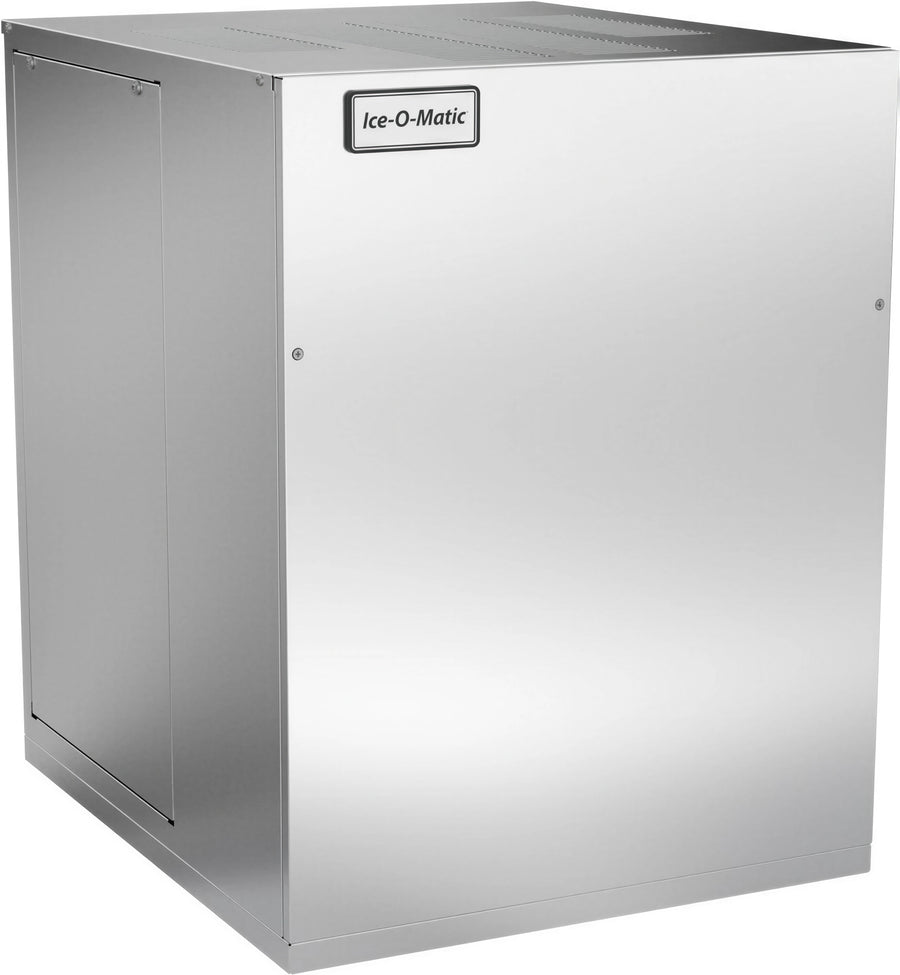

Ice-O-Matic Quartz Ice® HEM1306A90 Nugget Ice Maker, Air-Cooled Self-Contained, 1,000 lb/24 hr, Stainless Finish

SKU: HEM1306A90
$11,173.75
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Ice Makers Cut Resistant Gloves Ice Machines Ice Machines & Handling Ice Makers & Bins Ice Production Equipment Ice-O-Matic Kitchen Knives New Arrivals Refrigeration & Ice Smallwares

The Ice-O-Matic Quartz Ice® HEM1306A90 produces harder, chewable nugget ice with an air-cooled, self-contained refrigeration system. It produces approximately 1,000 lb (454 kg) of ice per 24 hours at 70°F air and 50°F water, or 864 lb (392 kg) at 90°F air and 70°F water.

This model uses R290 refrigerant, features top and side air dual exhaust, and has a stainless finish. Its load monitoring system, water sensor, and built-in non-contact ice detection provide supported operating and shutdown controls.

  • Quartz nugget ice measures 1/2 x 3/4 x 1/2 in.
  • Rugged stainless-steel evaporator assembly.
  • Electrical requirement: 208–230 V, 60 Hz, single phase.

Overall Dimensions:

21.0"W x 24.0"D x 27.0"H

Product Weight:

219.0 lb

Quartz nugget ice

Produces harder, chewable nugget ice measuring 1/2 x 3/4 x 1/2 in.

High production

Produces approximately 1,000 lb (454 kg) per 24 hours at 70°F air and 50°F water, and 864 lb (392 kg) at 90°F air and 70°F water.

Air-cooled refrigeration

Uses an air-cooled, self-contained refrigeration system.

R290 refrigerant

Uses R290 refrigerant.

Dual air exhaust

Provides top and side air dual exhaust.

Load monitoring

The load monitoring system checks gearbox workload and shuts down the system before a problem develops.

Water sensing

The water sensor helps prevent low- or no-water failures and operates in adverse water conditions.

Ice detection

Built-in, non-contact ice detection provides fail-safe automatic shutoff.

Ice type Nugget
Ice dimensions 1/2 x 3/4 x 1/2 in (12.7 x 19.1 x 12.7 mm)
Production per 24 hours 1,000 lb (454 kg) at 70°F air / 50°F water; 864 lb (392 kg) at 90°F air / 70°F water
Cooling Air-cooled
Refrigeration Self-contained
Refrigerant R290
Finish Stainless
Exhaust Top and side air dual exhaust
Electrical requirement 208–230 V / 60 Hz / 1 phase
Minimum circuit ampacity 13.5 A
Maximum breaker size 15 A
Ambient temperature range 50°F (10°C) to 100°F (38°C)
Water temperature range 40°F (4°C) to 100°F (38°C)
Water pressure 20–80 PSIG (1.4–5.5 bar)
Energy efficiency ENERGY STAR®
Ice production at 70°F air / 50°F water 3.4 kWh per 100 lb of ice
Ice production at 90°F air / 70°F water 4.0 kWh per 100 lb of ice

Certifications & Compliance

Certified badge of Energy Star Certified
Energy Star Certified
Certified badge of NSF Certified
NSF Certified

Warranty & Protection

3 years parts and labor on the ice maker; 5 years parts on the compressor.

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download PDF Service parts manual PDF Download PDF Installation manual PDF Download

Frequently Asked Questions

It produces approximately 1,000 lb (454 kg) per 24 hours at 70°F air and 50°F water, or 864 lb (392 kg) at 90°F air and 70°F water.
It makes harder, chewable Quartz nugget ice measuring 1/2 x 3/4 x 1/2 in.
Yes. It has an air-cooled, self-contained refrigeration system with top and side air dual exhaust.
The model uses R290 refrigerant.
The required electrical supply is 208–230 V, 60 Hz, single phase, with a 13.5 A minimum circuit ampacity and 15 A maximum breaker size.
The cutsheet lists 3 years of parts and labor for the ice maker and 5 years of parts coverage for the compressor.
