Hoshizaki Serenity KMS-1402MLJ 30-Inch Remote Air-Cooled Crescent Cube Ice Machine

SKU: KMS-1402MLJ
$7,190.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

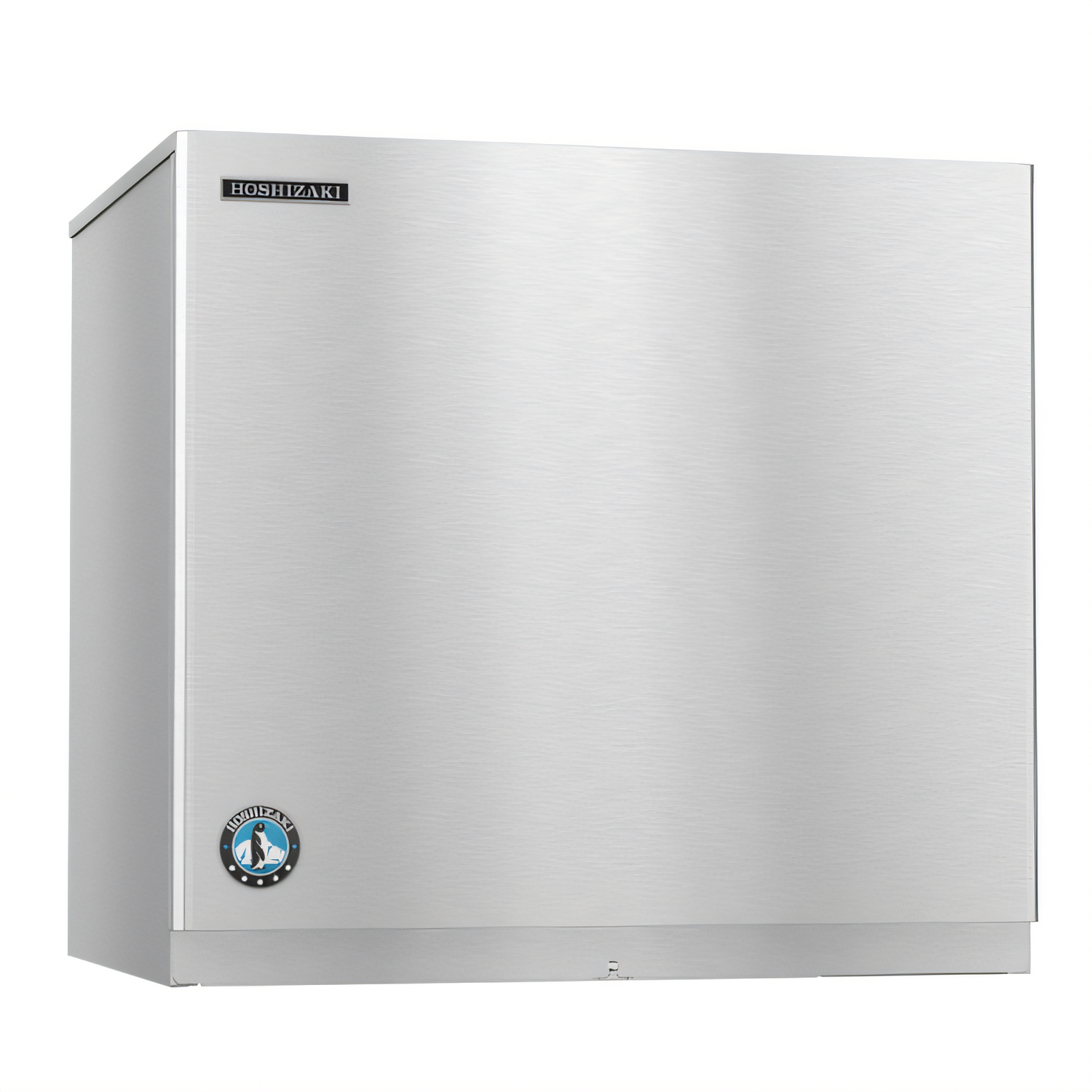

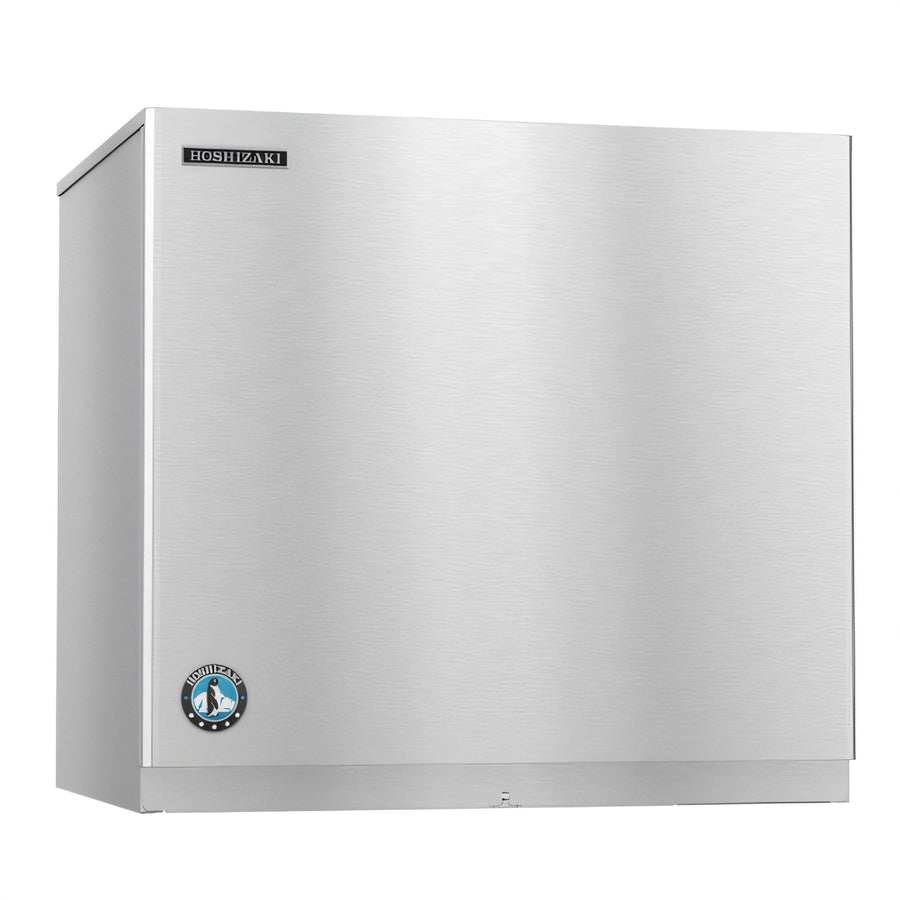

Hoshizaki Serenity KMS-1402MLJ 30-Inch Remote Air-Cooled Crescent Cube Ice Machine

Remote condenser required; stainless steel finish; up to 1,501 lb per 24 hours

A high-capacity remote ice machine that produces crescent cubes while moving heat and noise away from the work area.

  • Produces individual crescent cubes for beverage service and ice storage.
  • Delivers up to 1,501 lb of ice per 24 hours, with AHRI certified output of 1,400/1,325 lb per 24 hours at 90/70.
  • Remote air-cooled design helps keep the kitchen cooler and quieter.
  • Stainless steel exterior and stainless steel evaporator are built for commercial durability.
  • CycleSaver design and EverCheck alert system support efficient operation and easier maintenance.
  • Remote condenser, brazed line sets, and hard-wired electrical service are required and sold separately.
  • Not recommended for side-by-side installation.

Overall Dimensions:

30.0"W x 24.0"D x 28.0"H

Product Weight:

185.0 lb

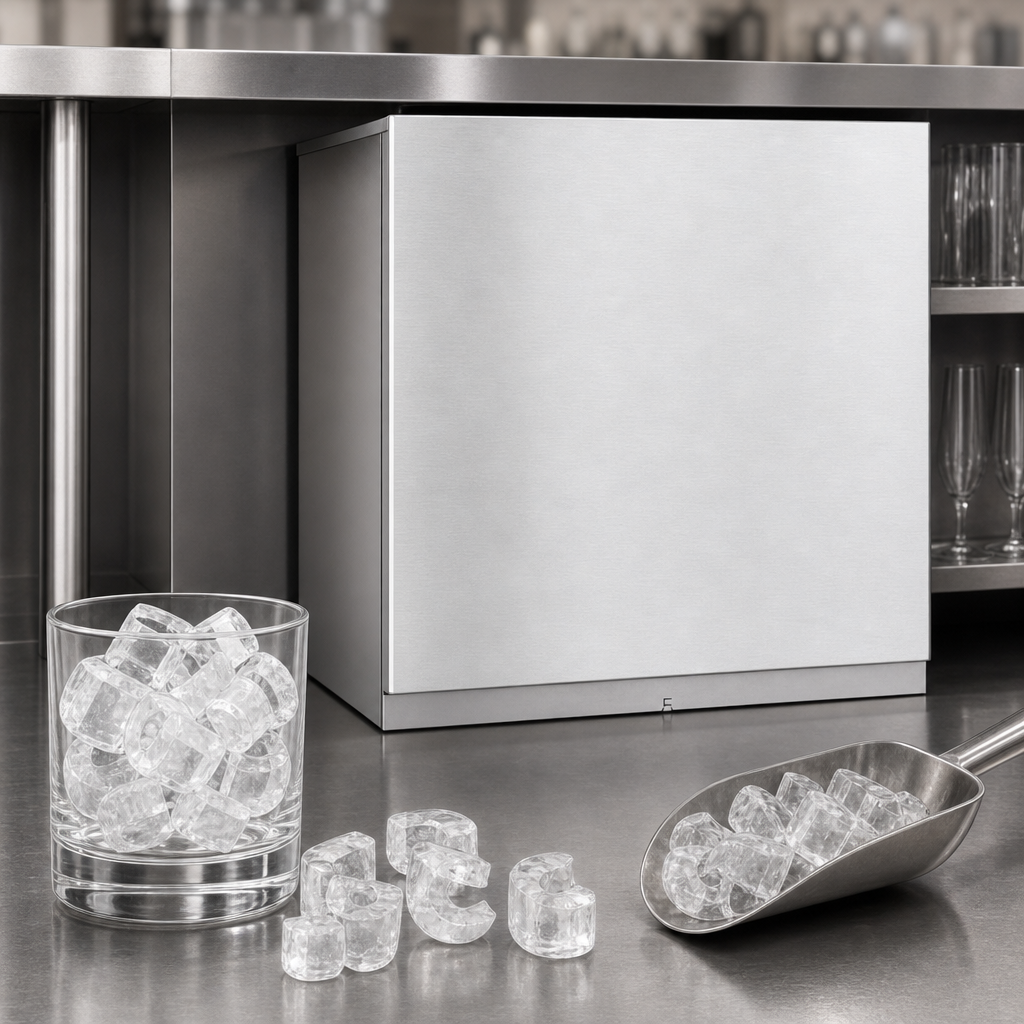

Individual Crescent Cube Production

Produces crescent-shaped cubes for consistent ice service and dispenser use.

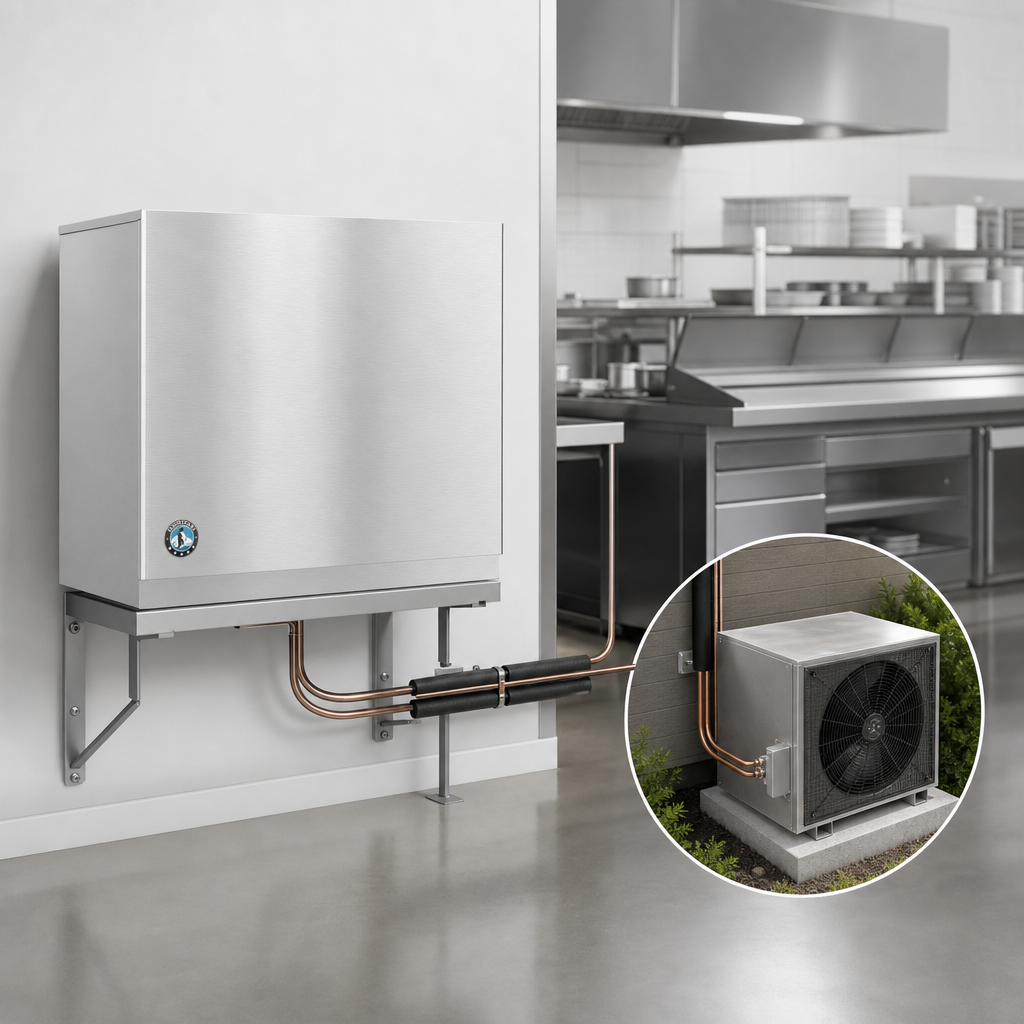

Remote Air-Cooled Operation

Separates heat rejection at the remote condenser to reduce heat and noise at the machine.

Stainless Steel Exterior

Durable stainless steel finish designed to stand up to commercial kitchen use.

Stainless Steel Evaporator

Corrosion-resistant evaporator helps support long-term reliability.

CycleSaver Design

Engineered to improve ice-making efficiency and reduce unnecessary cycling.

EverCheck Alert System

Provides equipment alerts to help with maintenance and service.

R-404A Refrigerant

Uses R-404A refrigerant.

CFC/HFC-Free Foam

Foam insulation is designed without CFC/HFC blowing agents.

Hard-Wired Installation

Power cord is not included; unit must be hard-wired at the site.

Service-Friendly Access

Panels are easily removed and all components are accessible for service, with 6 inches of clearance recommended at the rear, sides, and top.

Separate Refrigeration Components

Remote condenser and brazed line sets are sold separately.

Type Ice Machine
Style Crescent Cube
Condenser Type Air-Cooled
Refrigeration Type Remote
Material Stainless Steel
Finish Stainless Steel
Capacity Up to 1,501 lb per 24 Hours
Refrigerant Type R-404A
Country of Origin USA
Water Connection Required
Water Inlet Size 3/8 Inch Nominal ID Copper Water Tubing or Equivalent
Drain Connection Required
Drain Connection Size 3/4 Inch Nominal ID Hard Pipe or Equivalent
Shipping Width 33.25 Inches
Shipping Depth 33.5 Inches
Shipping Height 34.1 Inches
Shipping Weight 185 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

3-year parts and labor on the entire machine; 5-year parts and labor on the evaporator; 5-year parts on the compressor and air-cooled condenser coil.

Frequently Asked Questions

It produces individual crescent cubes.
No. The remote condenser is sold separately; the document references SRK-15J and SRK-15J3 options.
It produces up to 1,501 lb per 24 hours with SRK-15J, or up to 1,474 lb per 24 hours with SRK-15J3. AHRI certified output is 1,400/1,325 lb per 24 hours at 90°F air / 70°F water.
The unit requires a 3/8-inch nominal ID water supply line and a 3/4-inch nominal ID drain line. Power cord is not included, and the machine must be hard-wired at the site.
Allow 6 inches of clearance at the rear, sides, and top of the ice machine. The remote condenser should have 24 inches of clearance in both the front and rear.
It is not recommended for side-by-side application.
