Hoshizaki KMD-505MWJ Ice Machines
Description

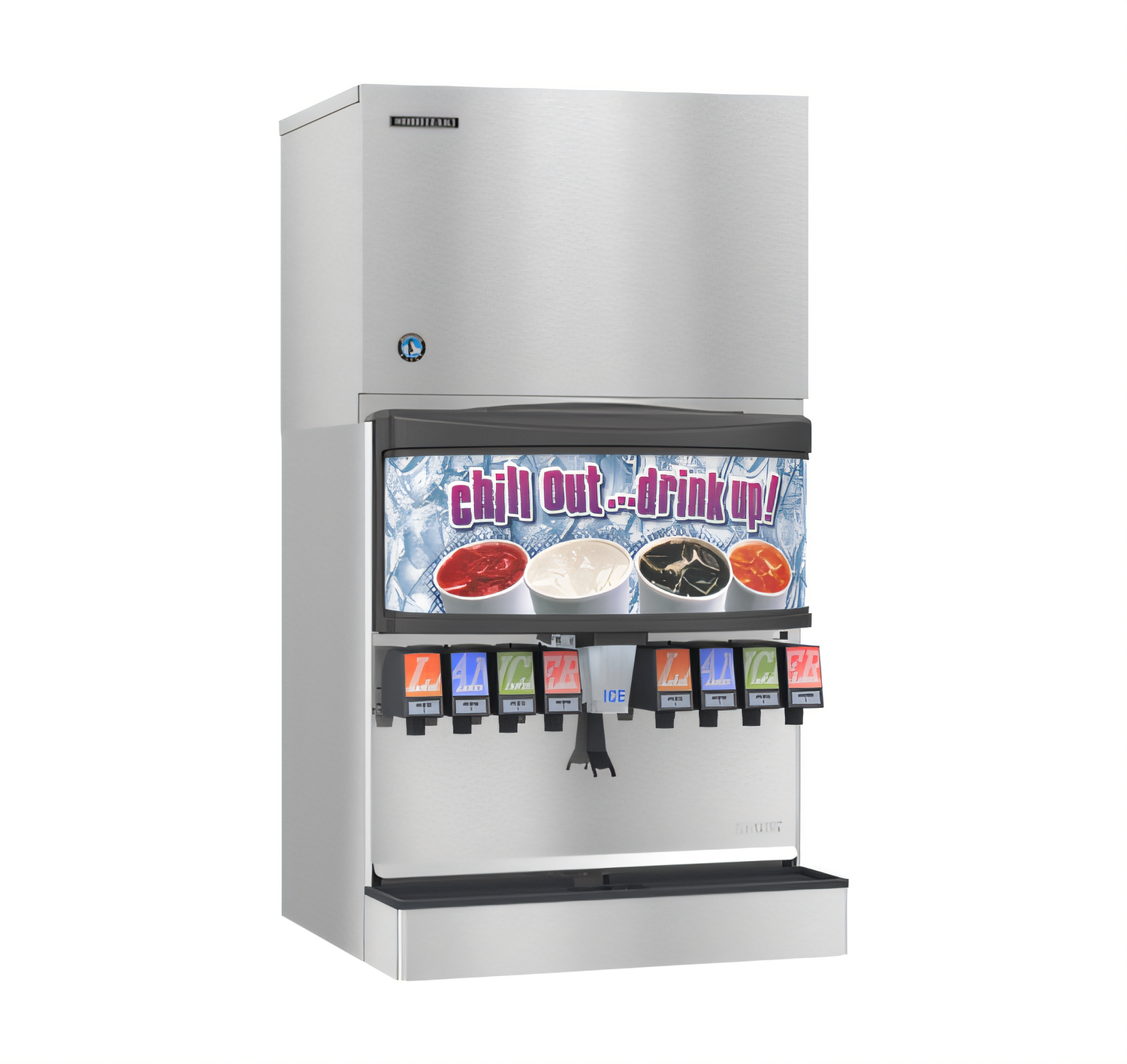

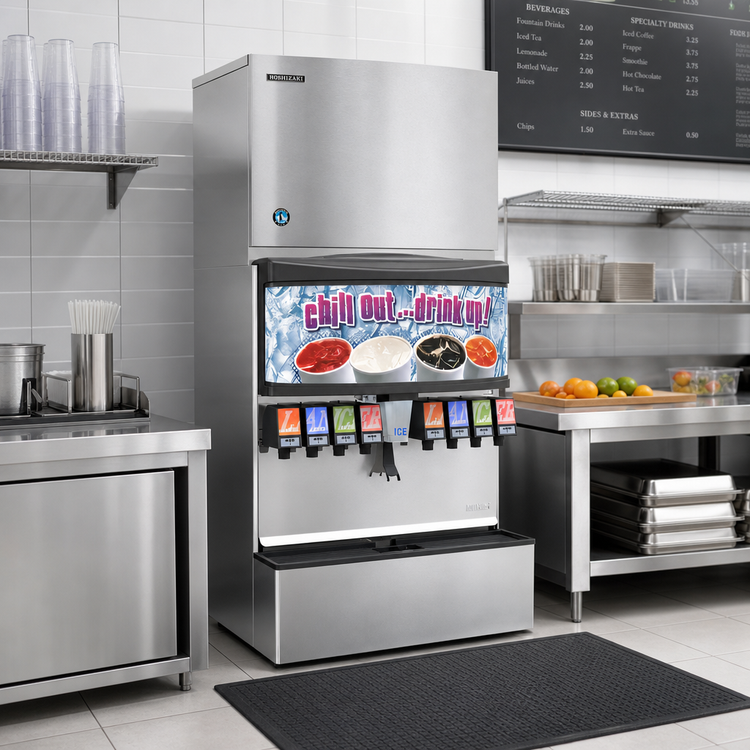

Hoshizaki KMD-505MWJ Modular Crescent Ice Maker – Water-Cooled
KMEdge X Series | 30" W × 24" D × 22" HEngineered for high-volume beverage service, the KMD-505MWJ delivers up to 592 lb of crystal-clear crescent cubes every 24 hours while keeping heat and noise out of the kitchen with its efficient, self-contained water-cooled condenser. Compact, reliable, and easy to maintain—this is the ice maker that keeps drive-thrus, QSRs, and hospitality venues running at peak refreshment.
Why you’ll love it
- High output: 592 lb/24 hr at 70 °F air / 50 °F water (AHRI certified 436 lb at 90 °F/70 °F).

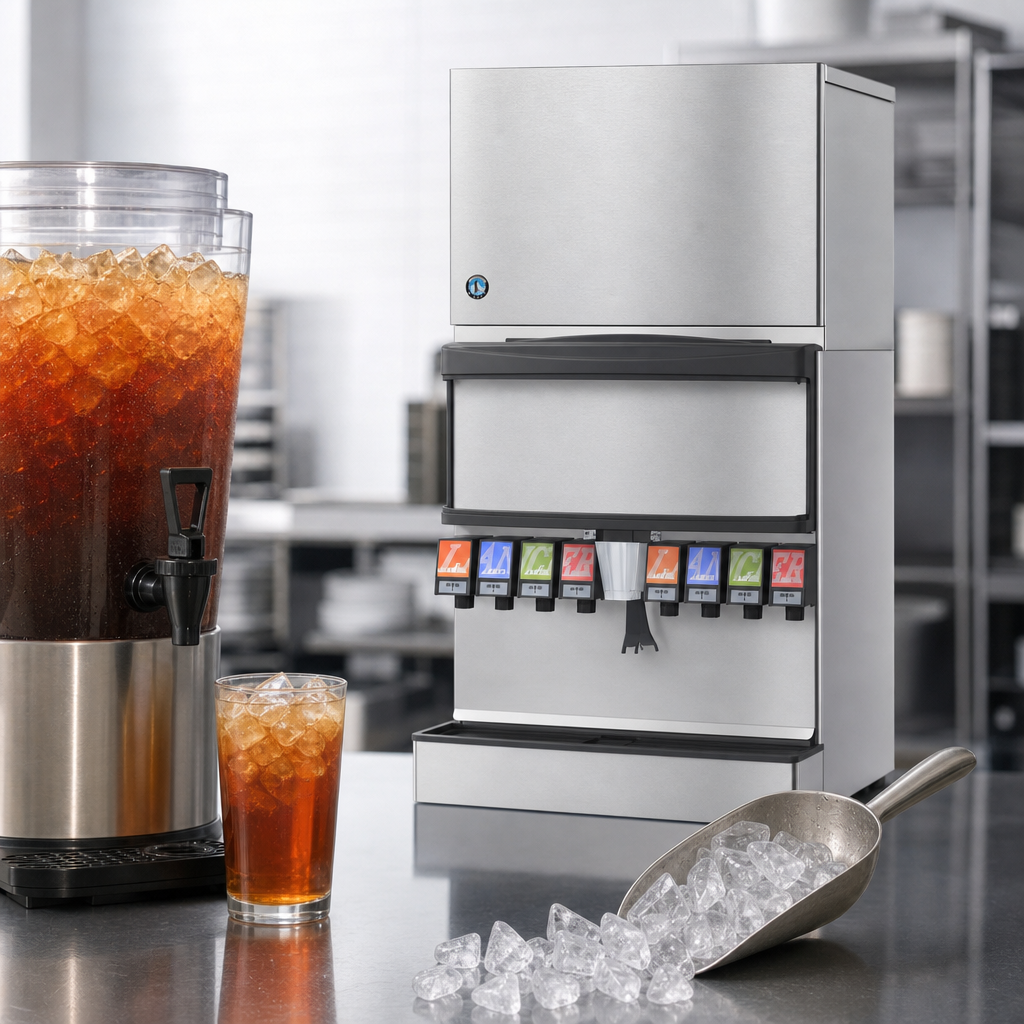

- Signature crescent cubes (1 1⁄8" × 1 1⁄2" × 1⁄2") pour smoothly and resist clumping, perfect for fountain dispensers.

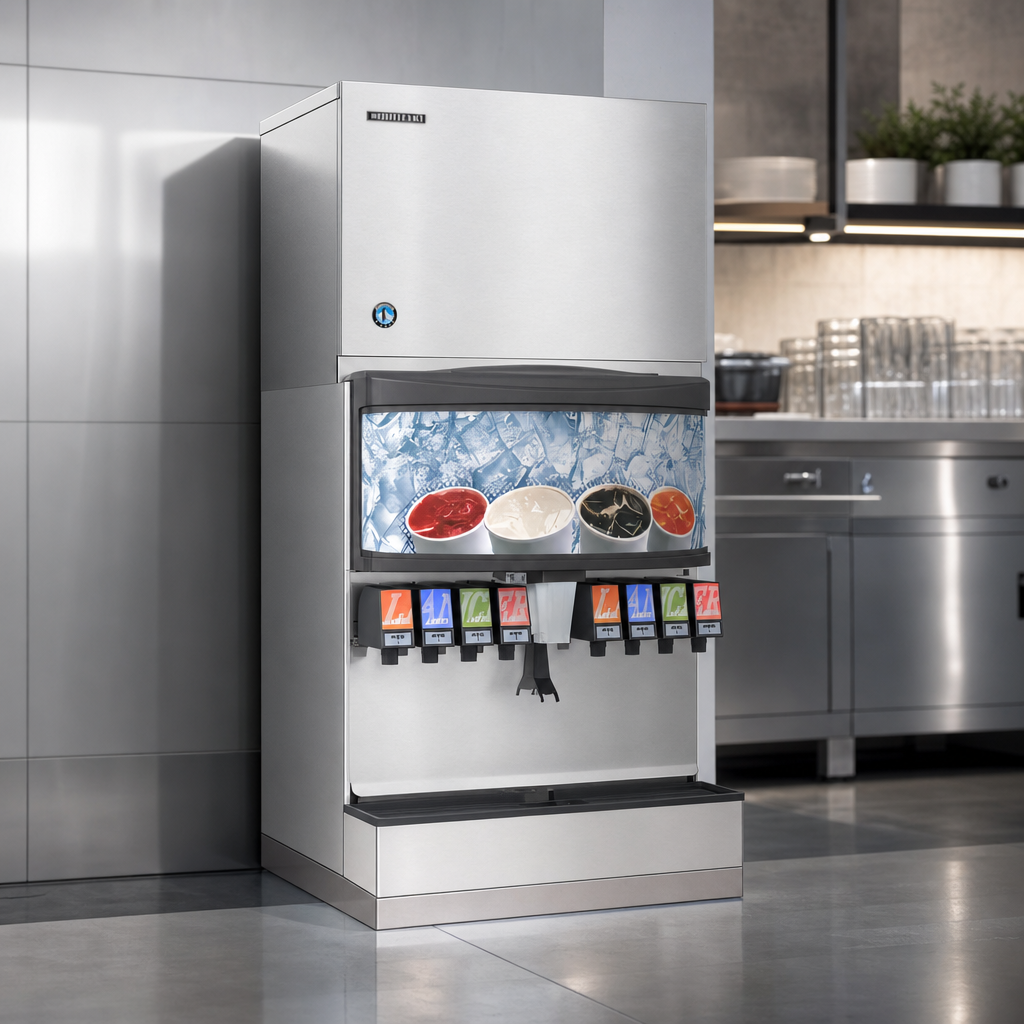

- Water-cooled, self-contained condenser maintains production in hot or poorly ventilated areas.
- One-hour CLEANASSIST™ cycle plus snap-fit components simplify routine sanitation.
- Factory-installed ultrasonic bin control (no mechanical probes) prevents over-production and can be adjusted on-site.
- CycleSaver™ design cuts energy use, while the EverCheck™ alert system pinpoints service needs.
- Long-life stainless-steel double-sided evaporator and reduced moving parts for unmatched reliability.
- Eco-friendly R-404A refrigerant; NSF & UL listed.
- Backed by a 3-year parts & labor warranty (5-year compressor & evaporator coverage).
Performance & utility data
| Ice production (70 °F/50 °F) | 592 lb / 24 hr |
|---|---|
| Ice production (90 °F/70 °F) | 555 lb / 24 hr |
| Energy consumption | 4.15 kWh / 100 lb ice |
| Potable water use | 25.0 gal / 100 lb ice |
| Condenser water use | 178 gal / 100 lb ice |
| Heat rejection | 8,600 BTU/hr |
Specifications
| Model | KMD-505MWJ |
|---|---|
| Ice type | Crescent cube |
| Dimensions (W × D × H) | 30" × 24" × 22" |
| Electrical | 115 V / 60 Hz / 1-ph, 11 A (20 A min. circuit) |
| Refrigerant charge | 15.9 oz R-404A |
| Net / ship weight | 156 lb / 176 lb |
| Operating limits | Ambient 45–100 °F | Water 45–90 °F | Water pressure 10–113 PSI |
| Certifications | NSF, UL |
| Replaces | KMD-460MWJ, KMD-530MWJ, KML-500MWJ |
Compatible bins & dispensers
Ice storage bin or beverage dispenser is required and sold separately.
- B-250SF, B-500SF, B-700SF, B-800SF, B-900SF, B-1150SS, B-1300SS
- BD-500SF beverage dispenser*

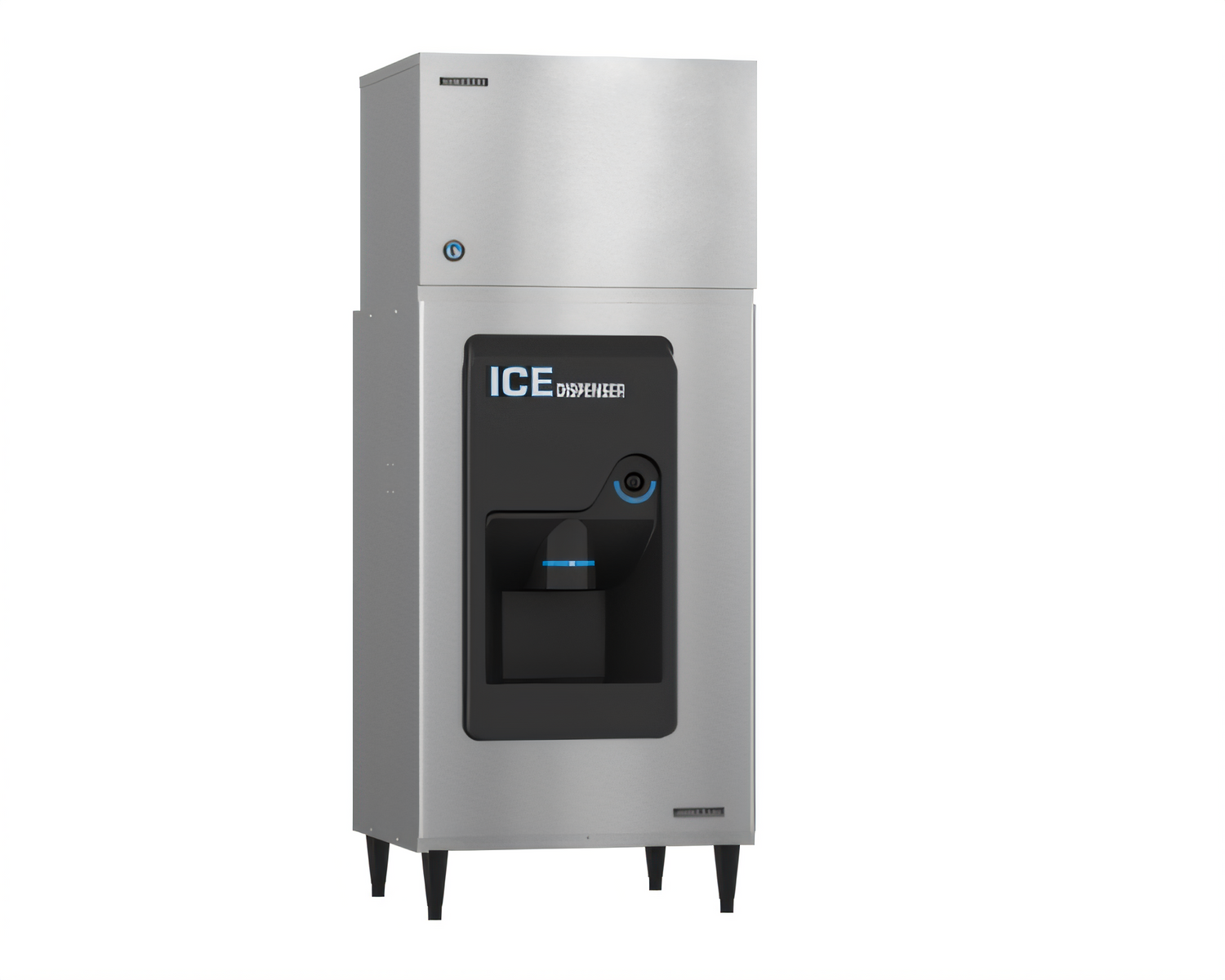

- DB-130H, DB-200H ice & beverage dispensers*
*May require top-mounting kit – see bin spec sheets for details.
Recommended accessories
- HS-2148 Top Kit for DB dispensers
- HS-5562 Remote Monitoring System
- HS-5283 EcO Ice® water filtration
- HS-5734 Side-Breathing Kit (tight installations)
- H9320-51 Single Water Filter Kit
Plumbing connections: ¼" OD copper for potable and condenser water supply (independent lines), ¾" ID drain line. Voltage range 104–127 V.
