Hoshizaki KMD-505MRJZ Ice Machines
Description
Hoshizaki KMD-505MRJZ Remote Air-Cooled Crescent Ice Machine (Head Only)
560 lb Modular Crescent Cuber • 30" Wide • Stainless SteelDeliver a steady supply of crystal-clear crescent ice while keeping heat and noise out of the kitchen. The KMD-505MRJZ pairs with a separately-priced URC-5FZ remote condenser to produce up to 560 lb of ice in 24 hours (440 lb AHRI Certified). Ideal for high-volume beverage service, drive-thrus, hospitality suites, cafeterias, and anywhere a reliable, energy-smart ice solution is required.
Why Choose the KMD-505MRJZ

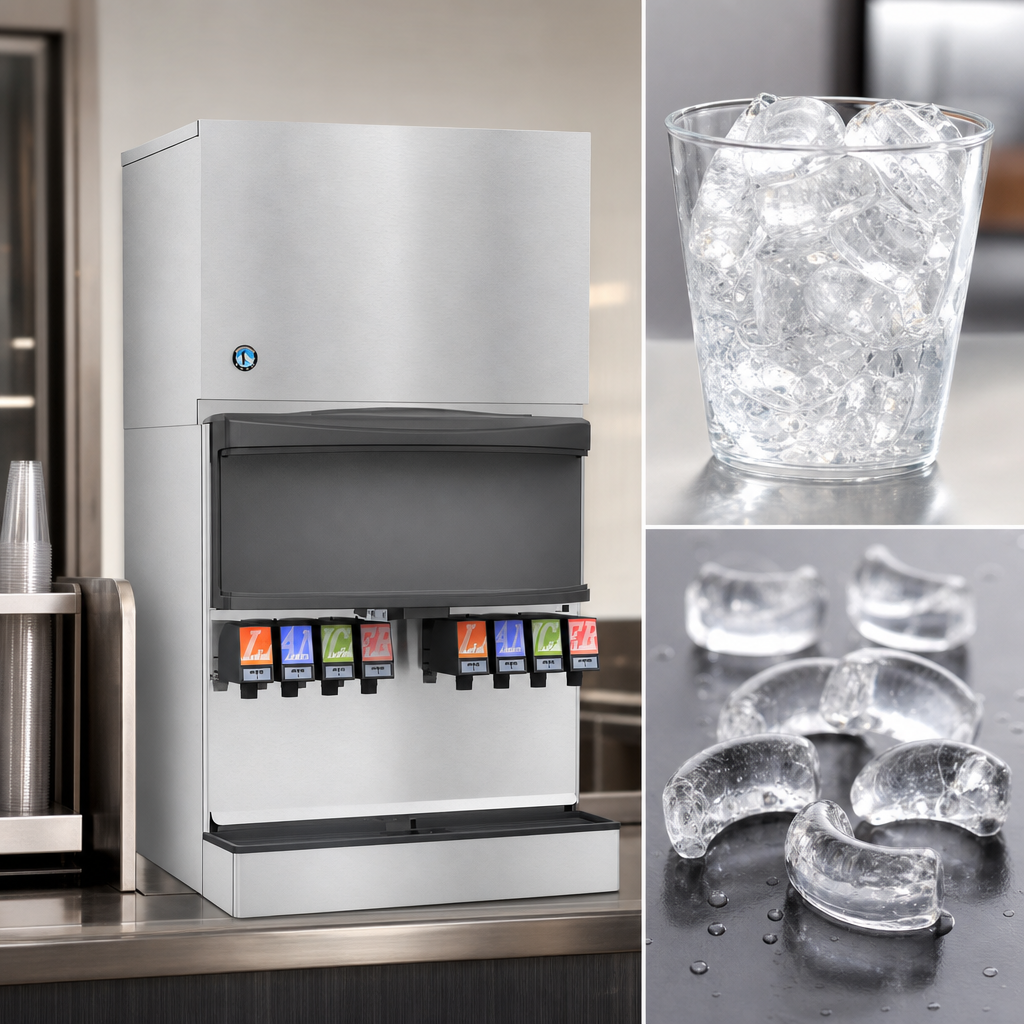

- Produces the signature Hoshizaki crescent cube (½" x 1 1⁄8" x 1 ½") that resists clumping and packs tightly in drinkware.

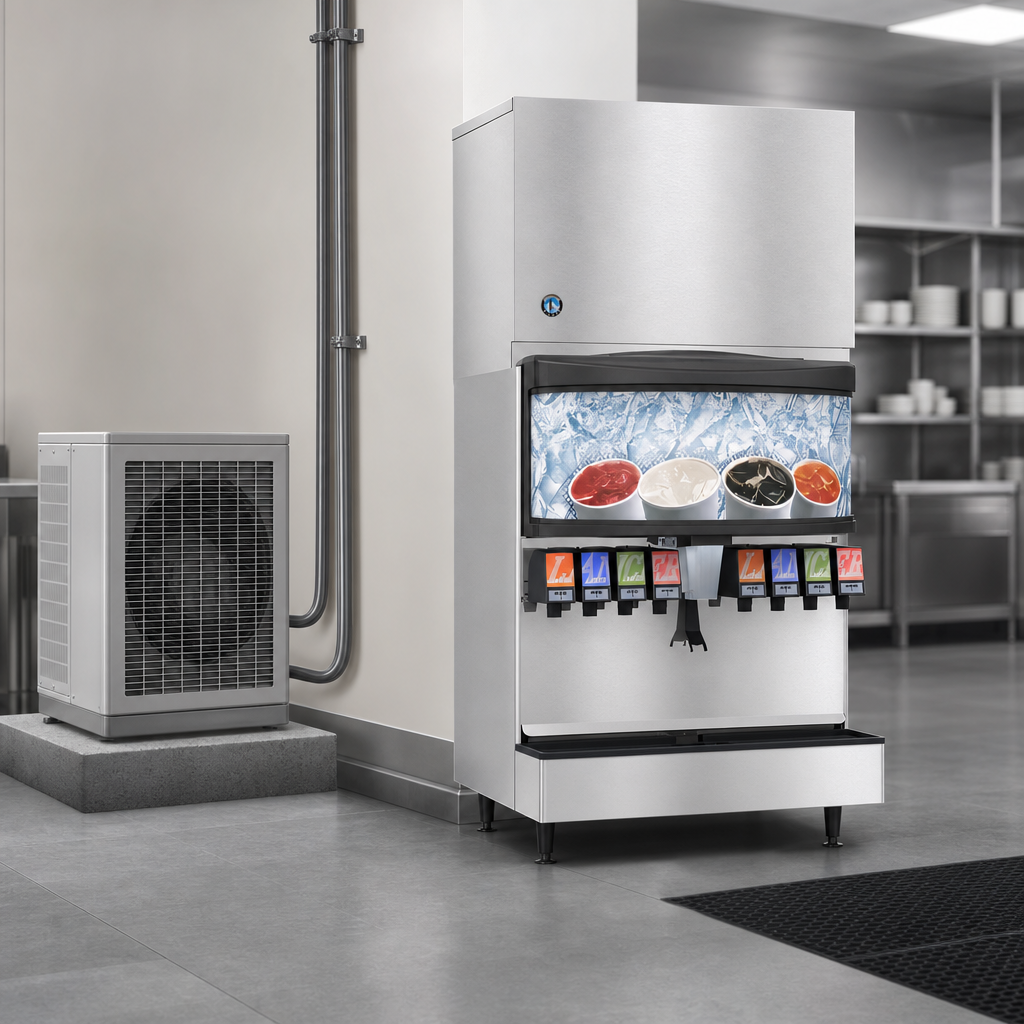

- Remote air-cooled design removes condenser heat & noise from the customer area for a cooler, quieter environment.
- CycleSaver™ technology maximizes ice output per cycle, reducing energy consumption.
- EverCheck™ alert system provides audible & visual diagnostics to minimize downtime.
- CLEANASSIST one-hour automated cleaning cycle simplifies preventive maintenance.
- Factory-installed ultrasonic bin control accurately senses ice levels—no mechanical probes to fail.
- Stainless-steel double-sided evaporator for long-term durability and food-safe performance.
- Snap-fit components and tool-free panels speed up routine service.
- Uses eco-friendly R-404A refrigerant; NSF & UL listed for assured compliance.
- Backed by a 3-Year Parts & Labor / 5-Year Evaporator & Compressor warranty.
Ice Production
| Ambient / Water Temp | Production (lb / 24 hr) |
|---|---|
| 70 °F / 50 °F | 560 lb |
| 90 °F / 70 °F (AHRI Certified) | 440 lb |
Specifications
| Model | KMD-505MRJZ |
|---|---|
| Unit Type | Remote air-cooled ice machine head (condenser sold separately) |
| Ice Style | Crescent cube |
| Exterior | Stainless steel |
| Dimensions (W × D × H) | 30" × 24" × 22" |
| Electrical | 115 V / 60 Hz / 1-ph, 12.4 A (20 A min. circuit) |
| Refrigerant | R-404A |
| Heat Rejection | 7,900 BTU/hr |
| Net / Ship Weight | 156 lb / 176 lb |
| Certifications | NSF, UL |
Installation & Compatible Equipment
- Remote Condenser: URC-5FZ (sold separately) – 25 ft or 35 ft line-set options.
- Pairs with Hoshizaki bins: B-250SF, B-500SF, B-700SF, B-800SF, B-900SF, B-1150SS, B-1300SS, DB-130H, DB-200H, and select beverage dispensers.
- Allow 6" clearance at rear, sides, and top for service access.
- Water supply: ¼" OD copper tubing, 10–113 PSI; Drain: ¾" ID hard pipe.
- Ambient temp range 45–100 °F; incoming water 45–90 °F.
Industry-Leading Warranty
• 3-Year Parts & Labor on the entire machine
• 5-Year Parts & Labor on evaporator
• 5-Year Parts on compressor & remote condenser coil
Replaces legacy model KMD-530MRJZ. Specifications subject to change without notice.
