Hoshizaki  |  SKU: KMD-410MWJ

Hoshizaki KMD-410MWJ Ice Machines

$4,330.00
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Video Cleaning sheets Ice machine brochure Service manual Kmedge cuber flyer Parts manual Warranty Installation & operation Ice maker calculator Flyer
Related Searches
Commercial Ice Makers Hoshizaki Ice Machines Ice Makers & Bins Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

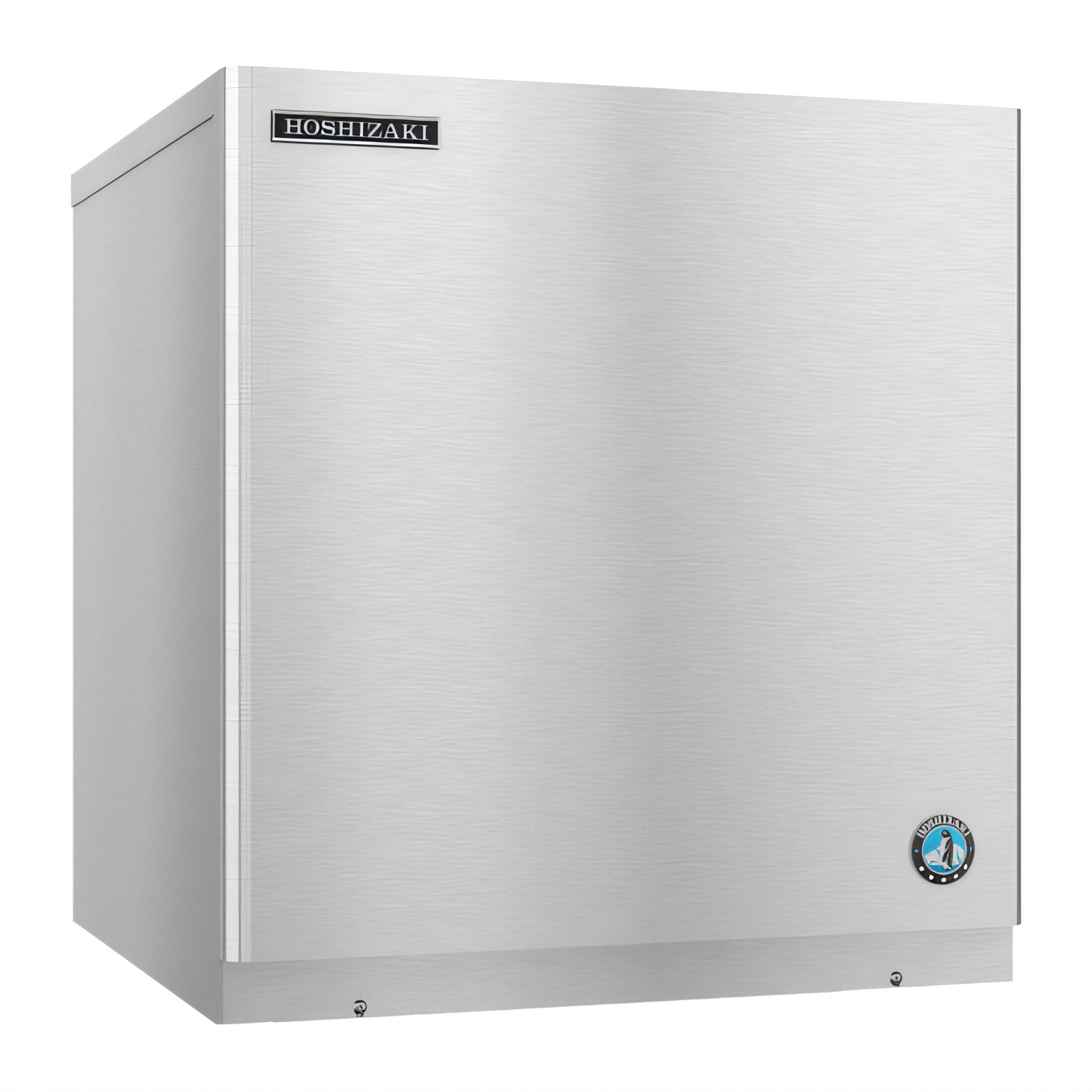

Hoshizaki KMD-410MWJ Modular Crescent Ice Machine

Water-cooled • Self-contained condenser • 22 ¼" wide

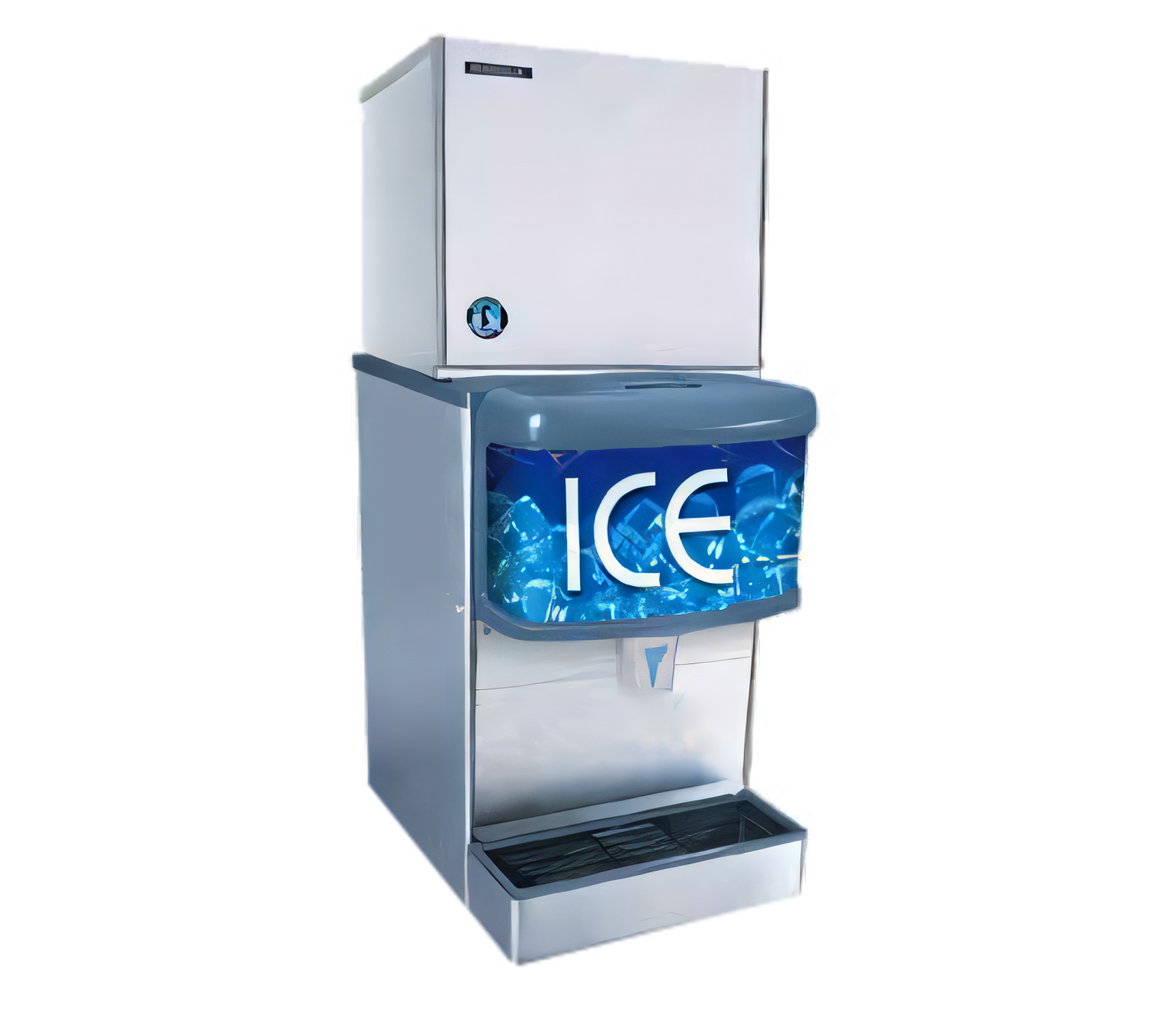

Built to sit neatly on a dispenser or ice bin, the KMD-410MWJ delivers up to 449 lb of crystal-clear crescent ice every 24 hours while running quietly on a water-cooled, self-contained system. A stainless steel exterior, dual-sided evaporator and Hoshizaki’s exclusive CycleSaver™ technology combine for dependable performance, low operating costs and worry-free maintenance.

Why you’ll love it

  • High production, small footprint – only 22 ¼" W x 24 ⅛" D yet pushes out 449 lb/day at 70°/50°F (436 lb AHRI at 90°/70°F).

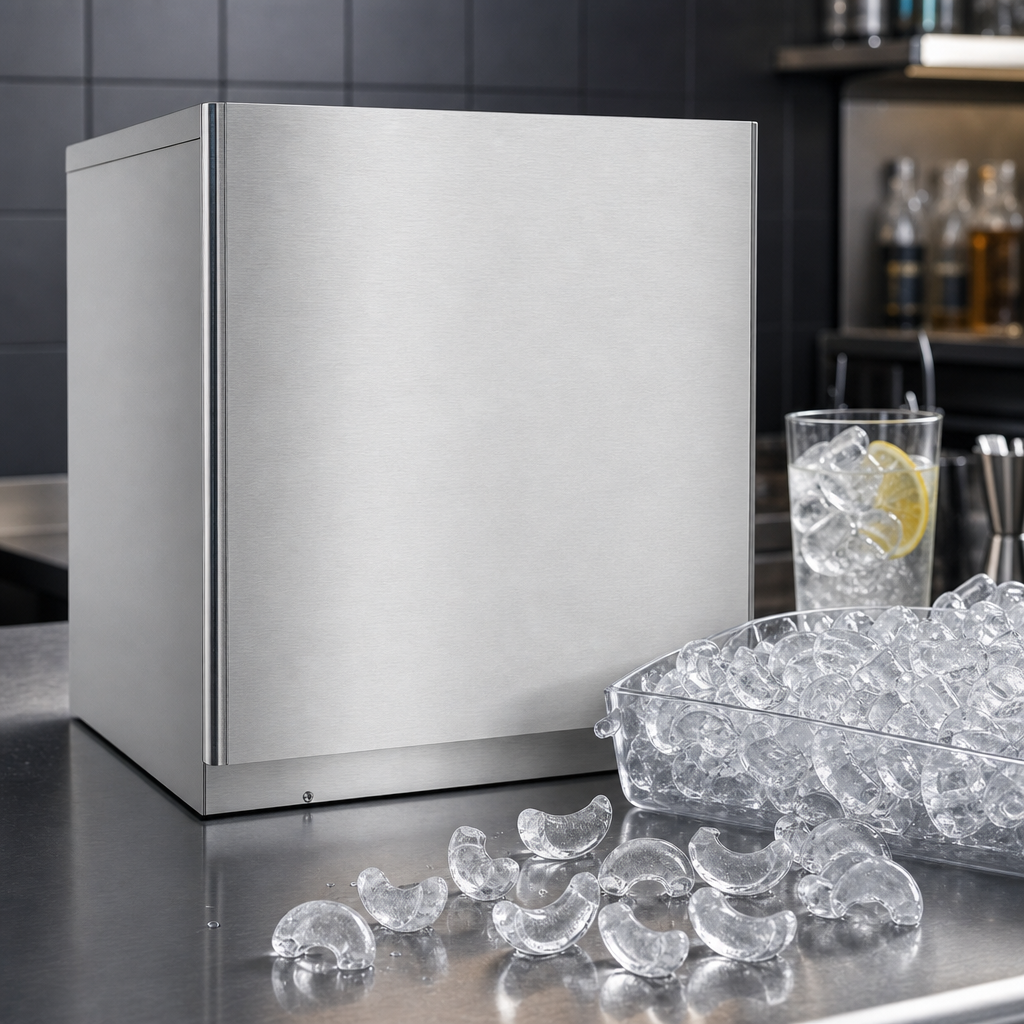

  • Premium crescent cubes – individual, clear cubes (approx. 1 ⅛" × 1 ½" × ½") pack tightly for superior beverage cooling and reduced splash-out.
  • CycleSaver™ design – produces the same ice volume in half the cycles of conventional machines, extending component life.
  • EverCheck™ alert system – audible & visual diagnostics keep you informed and help prevent downtime.
  • Sanitary & service-friendly – stainless steel evaporator, removable panels, and front-in/front-out airflow for quick access.
  • R-404A refrigeration – reliable, field-proven refrigerant paired with a powerful 6.6 A compressor.
  • Industry certifications – NSF, UL, cETLus listed for safety and sanitation.
  • Best-in-class warranty – 3 yr parts & labor on the entire machine, 5 yr parts & labor on the evaporator, 5 yr parts on compressor.

Technical specifications

Ice production (70°/50°F) 449 lb / 24 hr
Ice production (90°/70°F, AHRI) 436 lb / 24 hr
Ice type Crescent cube (KMEdge™)

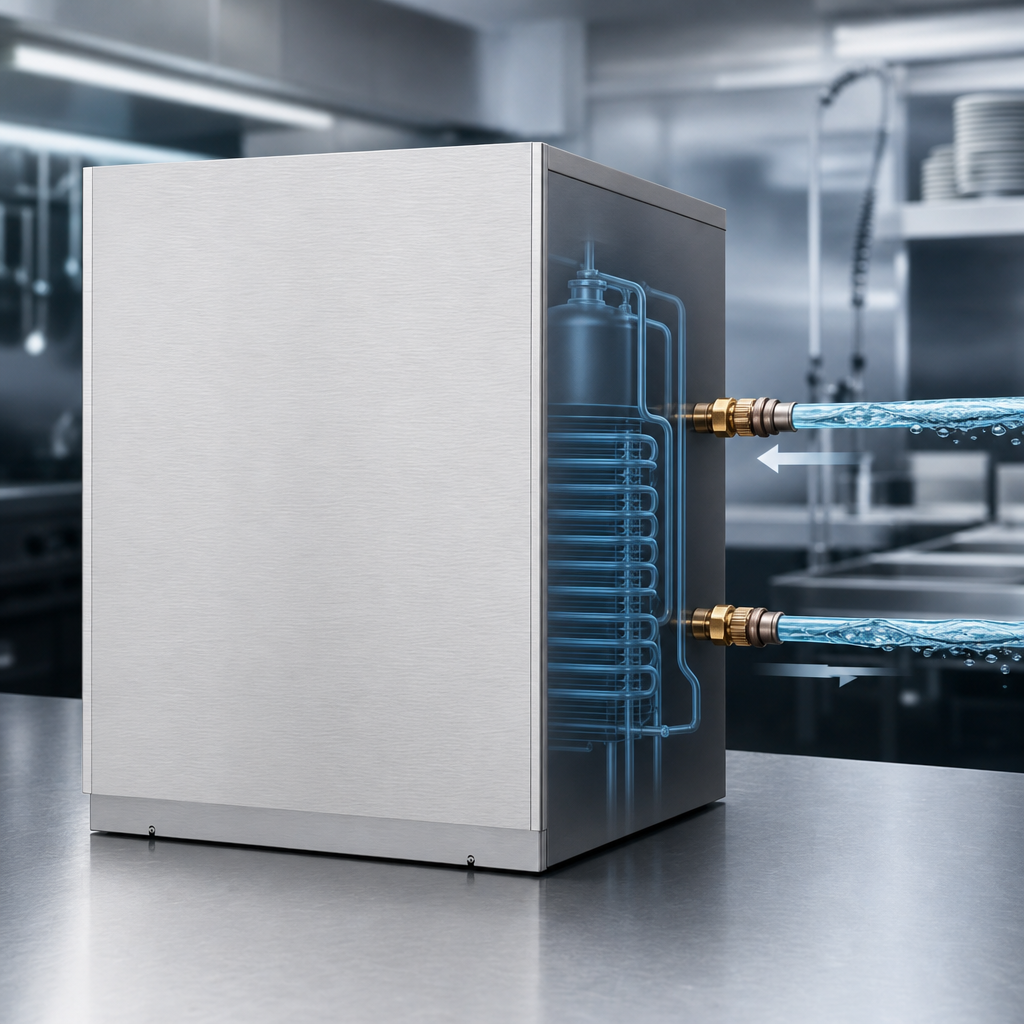

Cooling method Water-cooled, self-contained condenser
Potable water use 22.9 gal / 100 lb ice
Condenser water use 108 gal / 100 lb ice
Dimensions (W × D × H) 22 ¼" × 24 ⅛" × 24"
Electrical 115 V / 60 Hz / 1-ph, 6.6 A, 20 A circuit
Heat rejection 6,300 BTU/hr
Refrigerant charge R-404A, 14.1 oz
Operating limits Ambient 45-90°F • Water 45-90°F • Water pressure 10-113 PSI
Net / Ship weight 128 / 163 lb
Certifications NSF, UL, cETLus

Pair it with

  • Hoshizaki ice bins B-250SF, B-500SF, B-700SF, B-800SF, B-900SF
  • Hoshizaki dispenser kits (top kit required)
  • Factory-recommended inline water filters for optimal ice quality
Maintenance reminder: For peak performance and food safety, clean and sanitize the icemaker at least once per year (more often in hard-water areas). Always follow Hoshizaki’s official cleaning instructions.

Ice bin / dispenser, water filtration system, and power cord are sold separately.

Features & Specs

Manufacturer

Hoshizaki

Certifications

NSF, UL, cETLus, AHRI

Height

24.0in

Width

22.25in

Depth

24.13in

Shipping Weight

128.0lbs

Production per 24 hr

401 - 500 lb = 183 - 227 kg

Refrigeration

self-contained refrigeration

Width (side - side)

20 - 29" wide

Condenser Type

water-cooled

Ice Type

crescent cubes

Specifications

Ice Maker, Cube-Style, 22"W, water-cooled, self-contained condenser, production capacity up to 449 lb/24 hours at 70°50° (436 lb AHRI certified at 90°/70°), stainless steel finish, crescent cube style, R-404A refrigerant, 115v/60/1-ph, 6.6 amps, NSF, cETLus, UL (There will be a 10% surcharge for this model starting July 1, 2025)
