Hoshizaki | SKU:
KM-901MWJ
Hoshizaki KM-901MWJ Ice Machines
$7,195.00
Unit price
/
Unavailable
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Hoshizaki KM-901MWJ Ice Machines is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Hoshizaki KM-901MWJ Ice Machines
$7,195.00
Unit price
/
Unavailable
Description

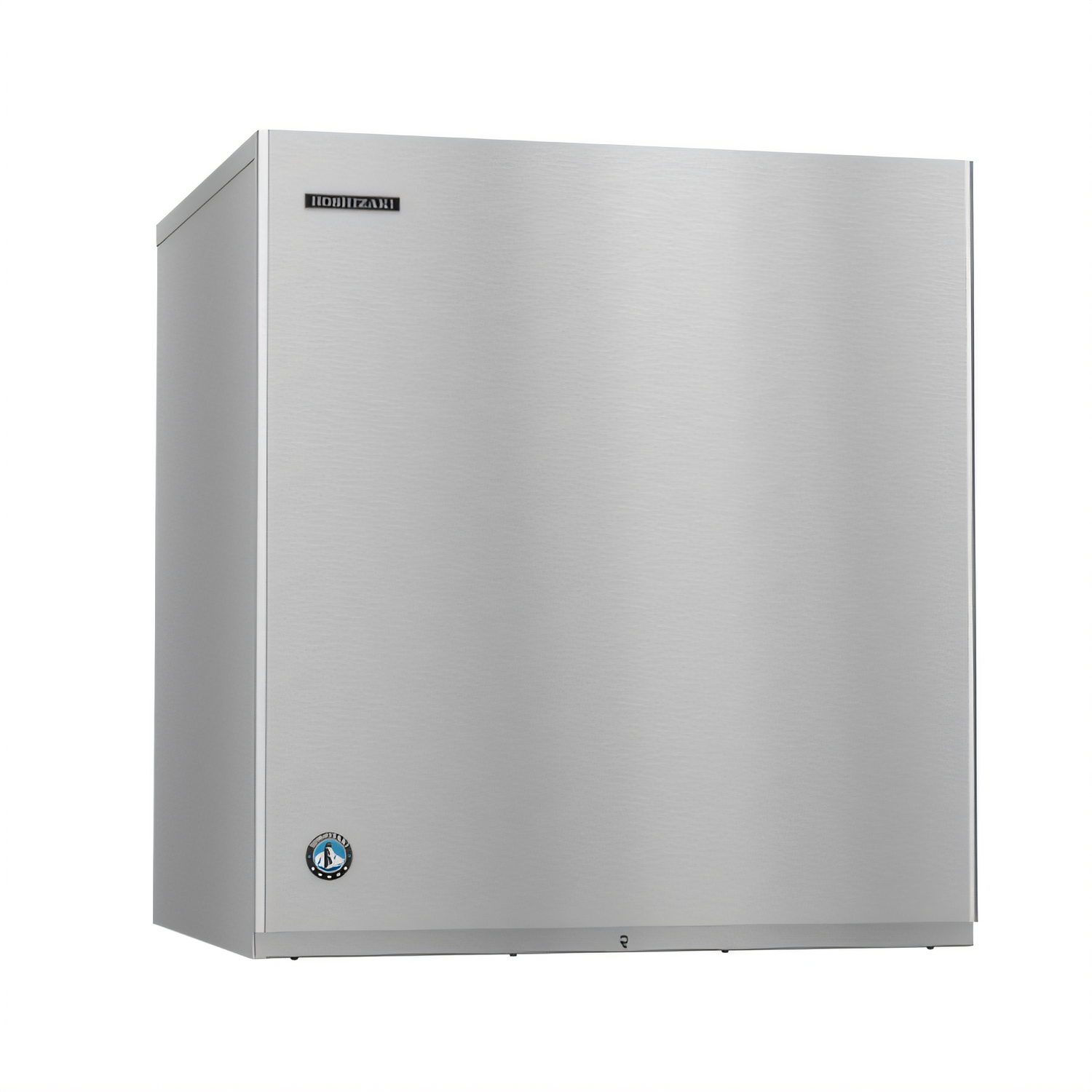

Hoshizaki KM-901MWJ Modular Crescent Ice Machine – Water-Cooled
950 lb/24 hr • 30" Wide • Self-Contained CondenserBuilt for demanding food-service, hospitality and healthcare venues, the KM-901MWJ cranks out up to 950 pounds of Hoshizaki’s signature crescent cubes every day—all while keeping heat and noise out of the kitchen with a self-contained water-cooled condenser.
Why You’ll Love It
- High output: 950 lb at 70 °F air / 50 °F water (870 lb AHRI @ 90 °F/70 °F).
- Water-cooled, self-contained condenser—ideal for hot or low-airflow locations.
- KMEdge dual-sided stainless steel evaporator for efficient heat exchange and crystal-clear ice.
- CycleSaver™ design cuts harvest cycles in half, lowering energy use and wear.
- EverCheck™ control board delivers audible diagnostics for fast troubleshooting.
- Durable stainless steel exterior plus food-zone parts that are easy to clean.

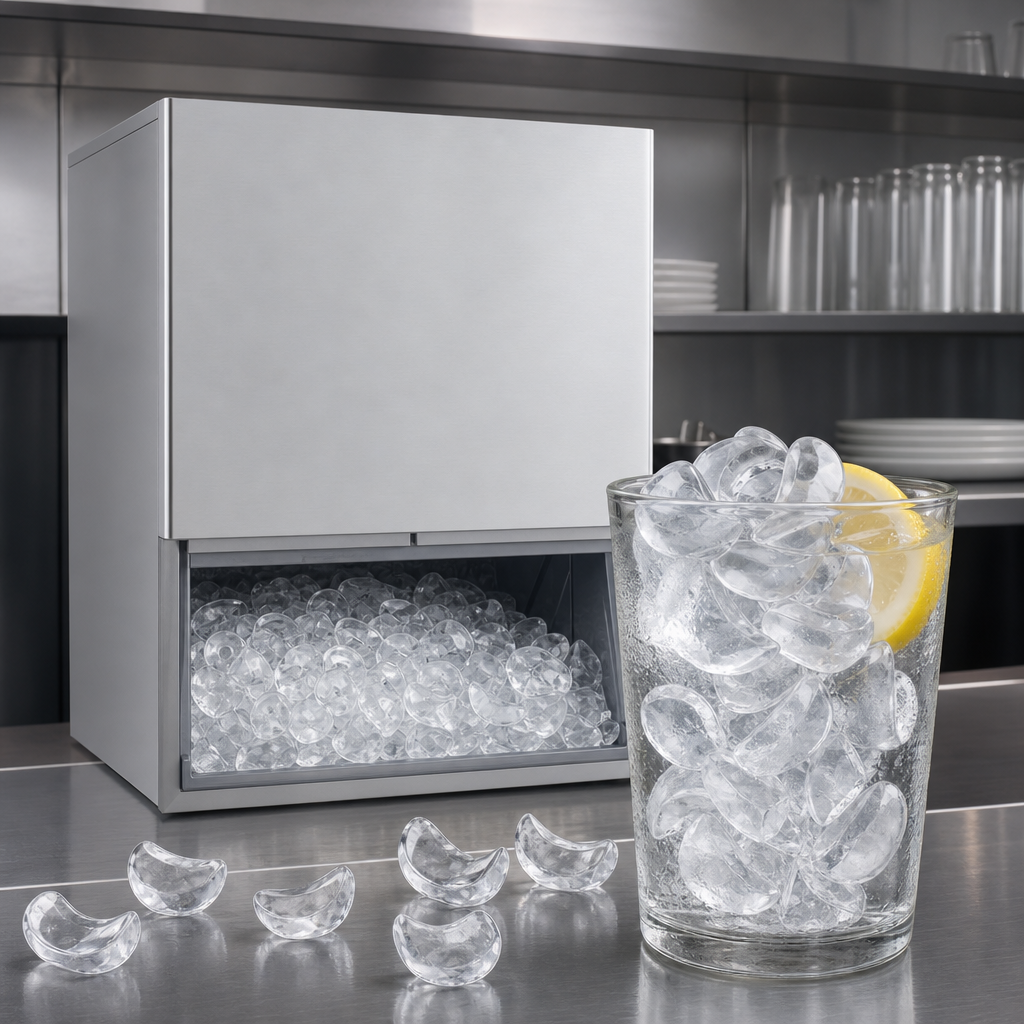

- Individual crescent cubes (1 ⅛" × 1 ½" × ½") improve drink displacement and reduce splashing.

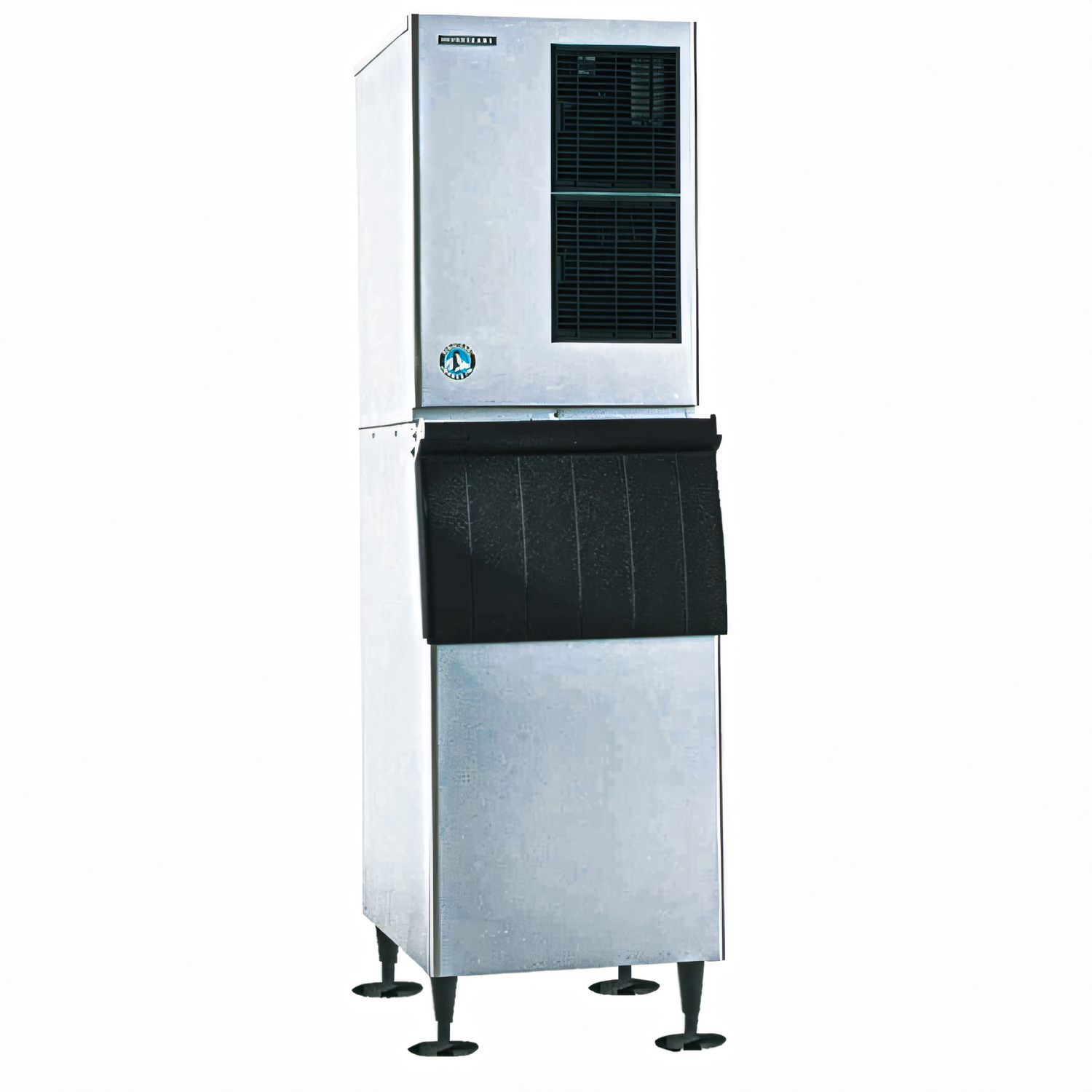

- Pairs with Hoshizaki B-Series bins: B-250SF, B-500SF, B-700SF, B-800SF, B-900SF, B-1150SS, B-1300SS, B-1500SS, B-1650SS (top kits may be required).
- NSF & UL listed for sanitation and safety.
Performance Data
| Daily production | 950 lb @ 70 °F/50 °F 870 lb AHRI @ 90 °F/70 °F |
|---|---|
| Potable water use | 16 gal per 100 lb of ice |
| Condenser water use | 113 gal per 100 lb of ice |
| Energy consumption | 3.6 kWh per 100 lb @ 90 °F/70 °F |
| Heat rejection | 12,700 BTU/hr |
Electrical & Refrigeration
| Voltage | 208-230 V / 60 Hz / 1-phase |
|---|---|
| Running amps | 10.0 A |
| Minimum circuit | 20 A (3-wire including ground) |
| Refrigerant | R-404A, 1 lb 14 oz charge |
Dimensions & Connections
| Overall size (W × D × H) | 30" × 27 3⁄8" × 32 1⁄2" |
|---|---|
| Net / Ship weight | 218 lb / 250 lb |
| Potable water inlet | 3⁄8" O.D. copper (min.) |
| Icemaker drain | 3⁄4" I.D. hard pipe (min.) |
| Condenser water in/out | 1⁄4" O.D. copper (independent lines) |
Operating Limits
- Ambient temperature: 45 °F – 100 °F
- Water temperature: 45 °F – 90 °F
- Water pressure: 10 – 113 PSI
- Voltage range: 187 – 253 V
Best-in-Class Warranty
- 3-year parts & labor on the entire machine
- 5-year parts & labor on the stainless steel evaporator
- 5-year parts on the compressor
Ice storage bin, water filtration and installation materials are sold separately.
Important: This water-cooled model requires
dedicated condenser water supply and drain lines. Verify plumbing
capacity and local code compliance prior to installation.
Features & Specs
Features & Specs
Manufacturer
Hoshizaki
Certifications
NSF, UL, AHRI
Height
32.5in
Width
30.0in
Depth
27.38in
Shipping Weight
255.0lbs
Condenser Type
water-cooled
Refrigeration
self-contained refrigeration
Ice Type
crescent cubes
Width (side - side)
30 - 39" wide
Production per 24 hr
901 - 1000 lb = 409 - 454 kg
Specifications
Ice Maker, Cube-Style, 30"W, water-cooled, self-contained condenser, production capacity up to 950 lb/24 hours at 70°/50° (870 lb AHRI certified at 90°/70°), crescent cube style, stainless steel exterior, R-404A refrigerant, 208-230v/60/1-ph, 10.0 amps, NSF, UL
