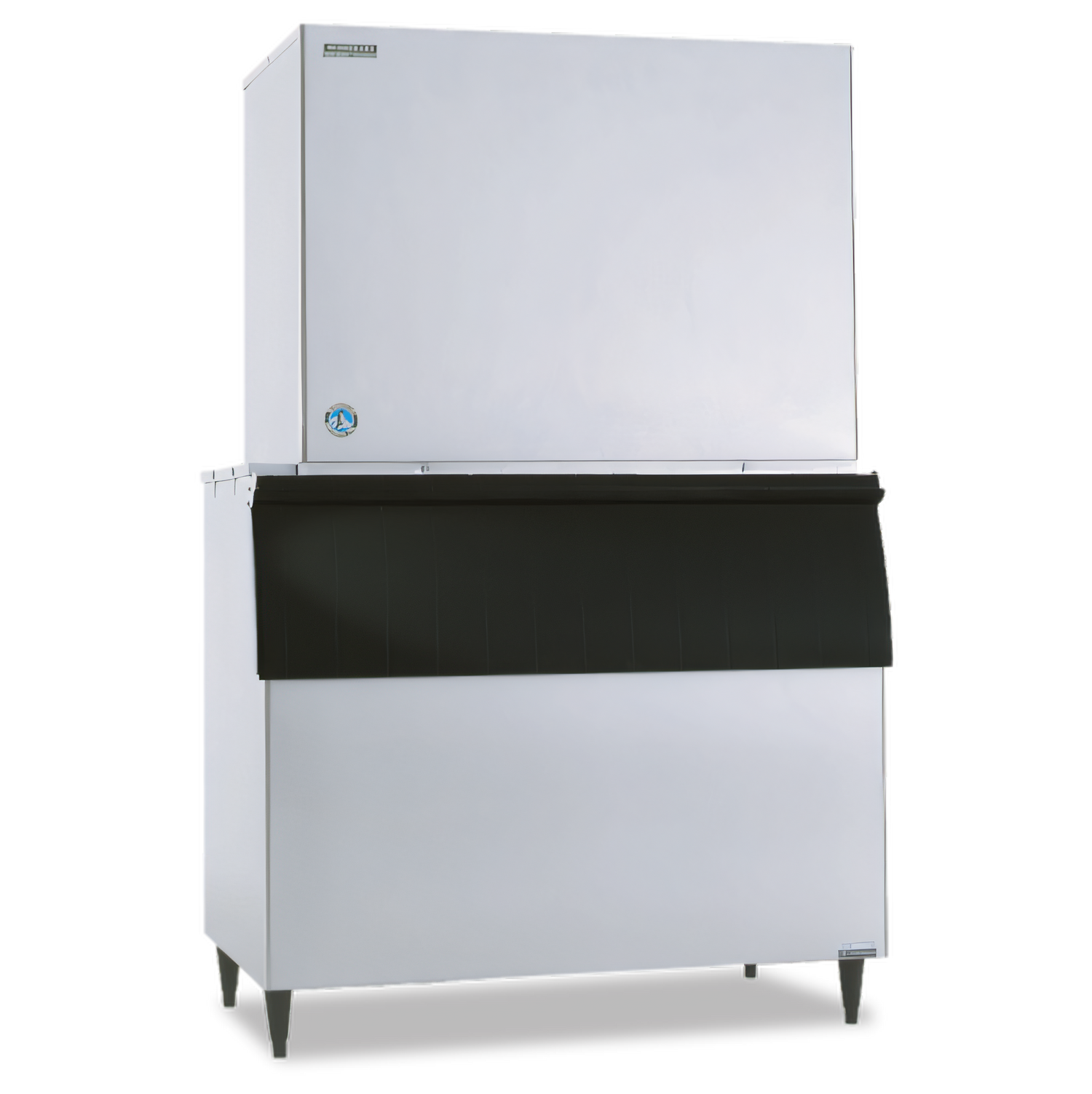

Hoshizaki KM-2600SWJ3 48-Inch Water-Cooled Stackable Crescent Cube Ice Maker

3-Phase, Self-Contained Refrigeration, Up to 2,482 lb per Day

Built for high-volume beverage programs, this stackable crescent cube ice maker delivers up to 2,482 lb of ice per day in a durable stainless steel package.

  • Produces individual crescent cubes at up to 2,482 lb per 24 hours; AHRI certified at 2,480 lb per 24 hours.
  • Water-cooled, self-contained refrigeration helps support reliable ice production.
  • Stackable design can increase output to 5,234 lb per 24 hours in the same floor space.
  • Stainless steel exterior and stainless steel evaporator add durability.
  • Factory-installed ultrasonic bin control, EverCheck alerts, and accessible panels simplify operation and service.

Overall Dimensions:

48.0"W x 27.38"D x 36.44"H

Product Weight:

425.0 lb

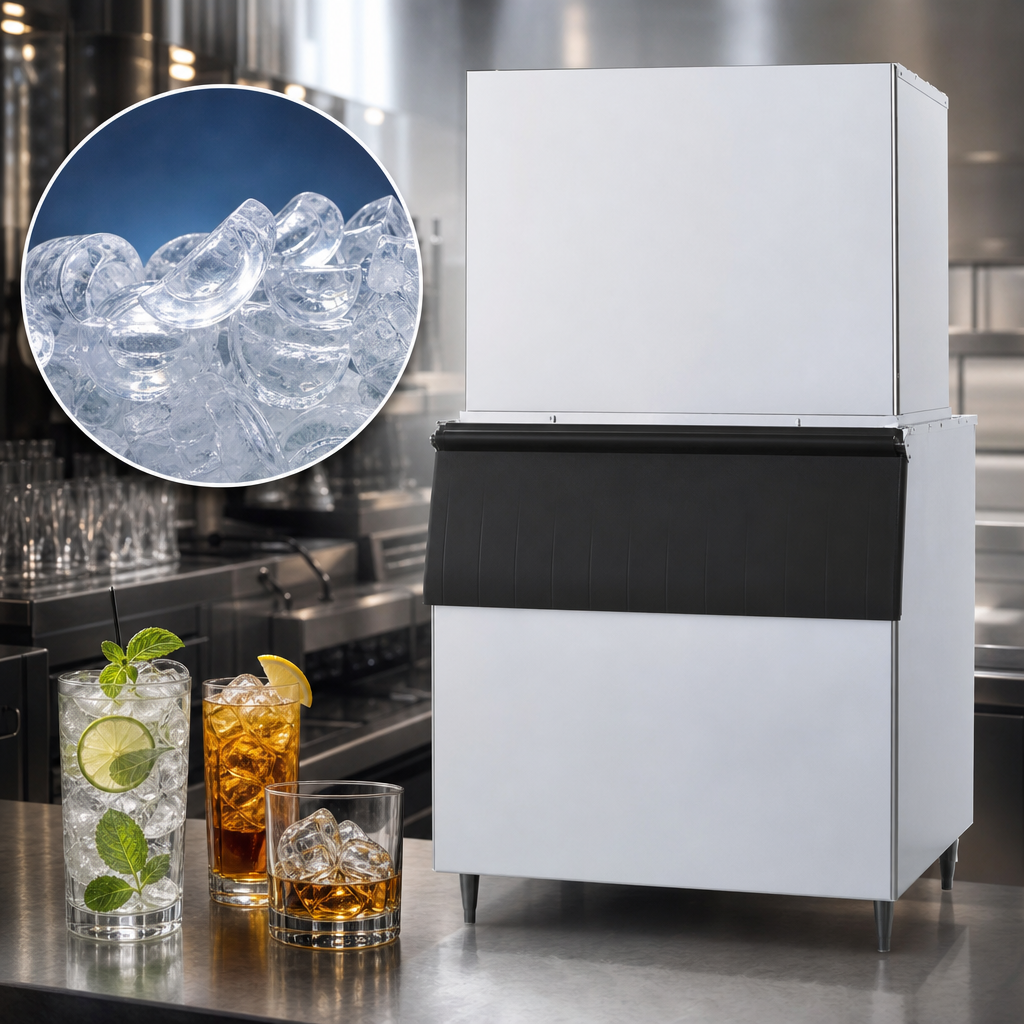

Individual Crescent Cube Production

Produces individual crescent-shaped cubes for versatile beverage service.

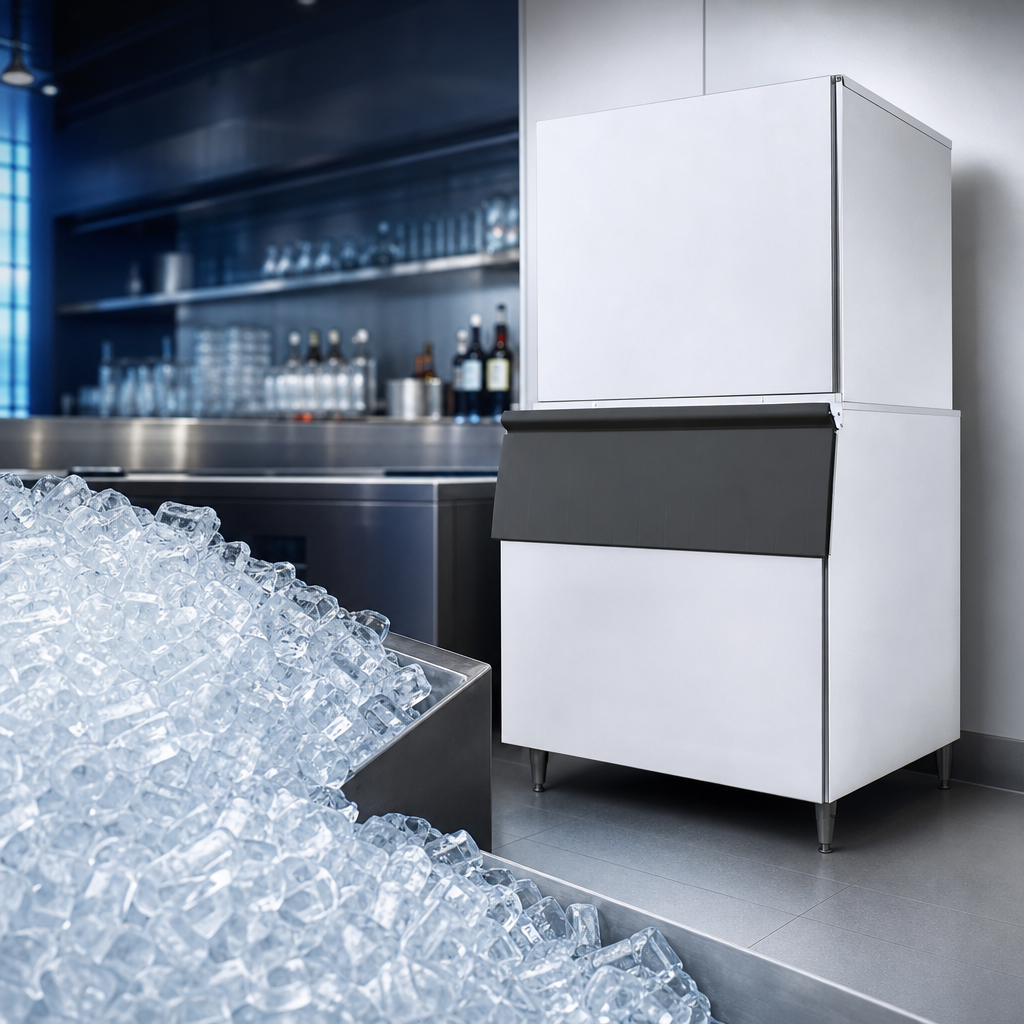

High Production Capacity

Delivers up to 2,482 lb of ice per 24 hours, with AHRI certification at 2,480 lb per 24 hours.

Stackable Modular Design

Can be stacked to boost production to 5,234 lb per 24 hours while using the same floor space.

Water-Cooled Self-Contained Refrigeration

Water-cooled configuration with self-contained refrigeration for dependable installation and performance.

Stainless Steel Construction

Durable stainless steel exterior with a stainless steel evaporator.

CycleSaver Design

CycleSaver technology is designed to support efficient and consistent ice production.

EverCheck Alert System

Built-in alert system helps monitor operation and maintenance needs.

CleanAssist Service Features

Includes factory-installed ultrasonic bin control, a simple one-hour cleaning process, self-diagnostic programming, snap-fit parts, and removable panels for easier service.

R-404A Refrigerant

Uses R-404A refrigerant.

Type Cube-Style Ice Maker
Style Stackable
Refrigeration Type Self-Contained
Condenser Type Water-Cooled
Ice Type Crescent Cubes
Capacity 2,482 Pounds Per 24 Hours
Material Stainless Steel
Finish Stainless Steel
Refrigerant Type R-404A
Voltage 208-230 Volts
Amps 12.8 Amps
Hertz 60 Hz
Phase 3-Phase
Breaker Size 30 Amps
BTU 31,600 BTU/hr
Water Connection Required
Drain Connection Required
Water Inlet Size 3/8 Inch Nominal ID
Drain Connection Size 3/4 Inch Nominal ID
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 48 Inches
Shipping Depth 28 Inches
Shipping Height 37 Inches
Shipping Weight 425 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

3-year parts & labor, plus 5-year parts and 5-year evaporator/compressor coverage as listed.

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Service manual PDF Download PDF Ice maker calculator PDF Download PDF Parts manual PDF Download PDF Tamper proof kit PDF Download PDF Installation & operation PDF Download PDF Kmedge cuber flyer PDF Download PDF Video PDF Download PDF Cleaning sheets PDF Download PDF Ice machine brochure PDF Download PDF Warranty PDF Download PDF Flyer PDF Download

Frequently Asked Questions

It produces individual crescent cubes.
It produces up to 2,482 lb per 24 hours and is AHRI certified at 2,480 lb per 24 hours.
Yes. The stackable design can increase output to 5,234 lb per 24 hours in the same floor space when paired.
It requires 208-230V/60/3 electrical service, draws 12.8 amps, and uses a 30 amp max fuse size.
The document lists B-800, B-900, B-1150SS, B-1300SS, B-1500SS, and B-1650SS bins; a top kit may be required.
Yes. The water-cooled model requires water supply and drain lines, and the condenser uses separate water lines.
