Hoshizaki KM-1601SWJ3 Stackable Crescent Cube Ice Maker, Water-Cooled, 48 Inch Wide, 3-Phase

SKU: KM-1601SWJ3
$10,990.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Ice Makers Hoshizaki Ice Machines Ice Makers & Bins New Arrivals Restaurant Equipment

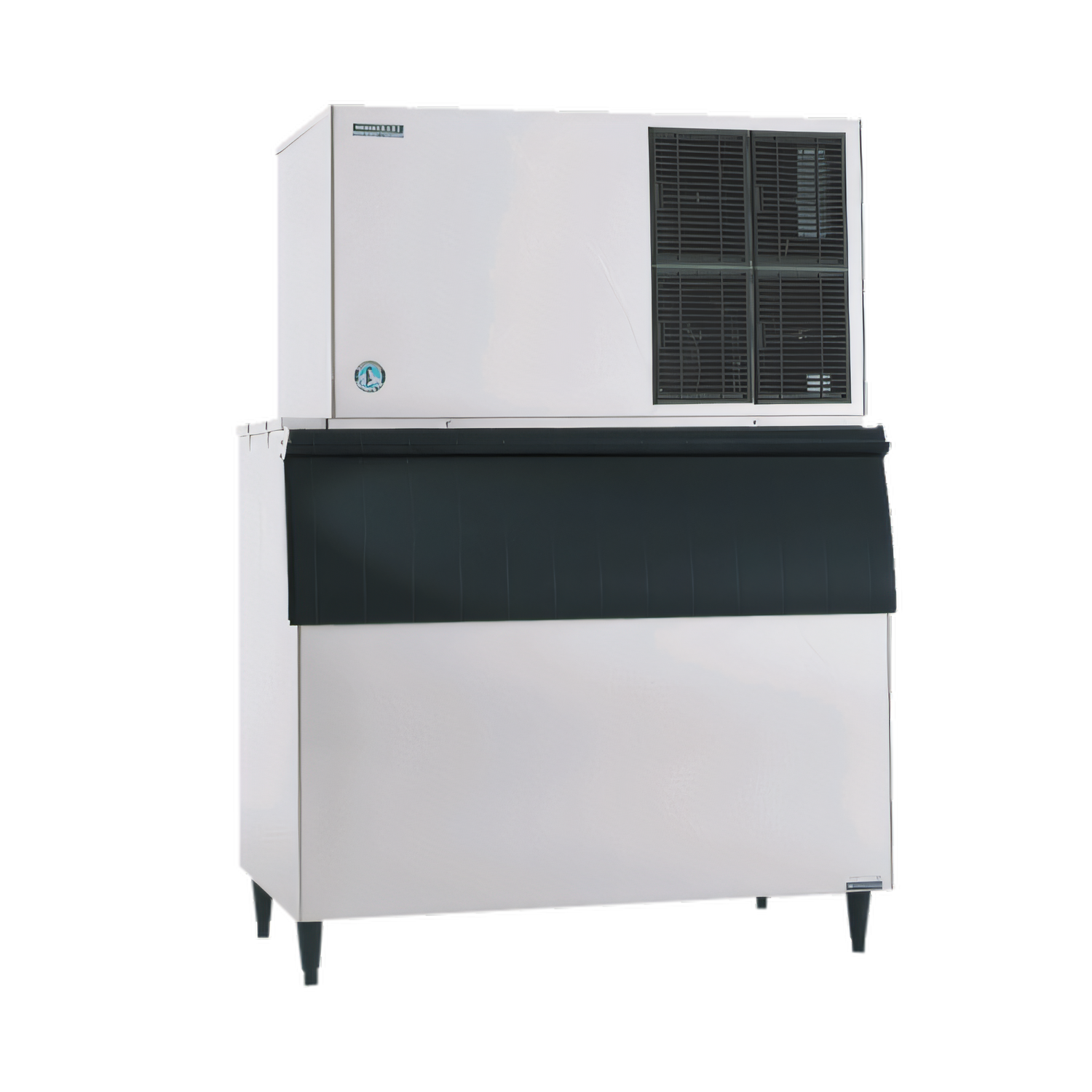

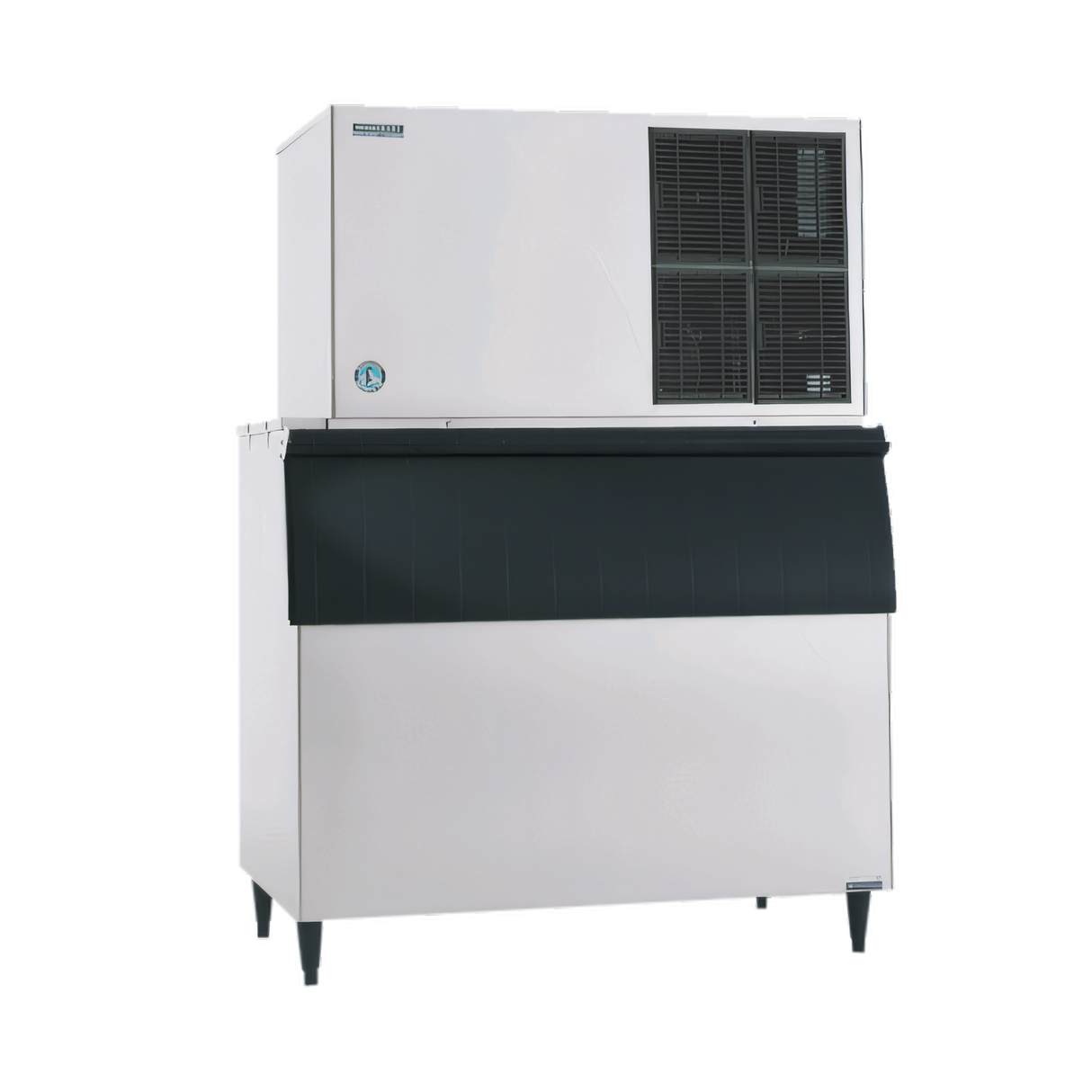

Hoshizaki KM-1601SWJ3 Stackable Crescent Cube Ice Maker, Water-Cooled, 48 Inch Wide, 3-Phase

Self-contained refrigeration, stainless steel exterior, up to 1,671 lb per day

Built for high-volume operations, this stackable crescent cube ice maker delivers up to 1,671 lb of ice per day with water-cooled, self-contained refrigeration.

  • Produces individual crescent cubes for consistent beverage service.
  • Stackable design can double output to 3,342 lb per 24 hours in the same floor space.
  • Water-cooled, self-contained refrigeration supports dependable operation.
  • Durable stainless steel exterior and stainless steel evaporator help stand up to daily use.
  • CycleSaver™ and EverCheck™ features help optimize performance and alert operators.
  • Uses R-404A refrigerant and runs on 208-230V, 60 Hz, 3-phase power.

Overall Dimensions:

48.0"W x 27.38"D x 27.38"H

Product Weight:

345.0 lb

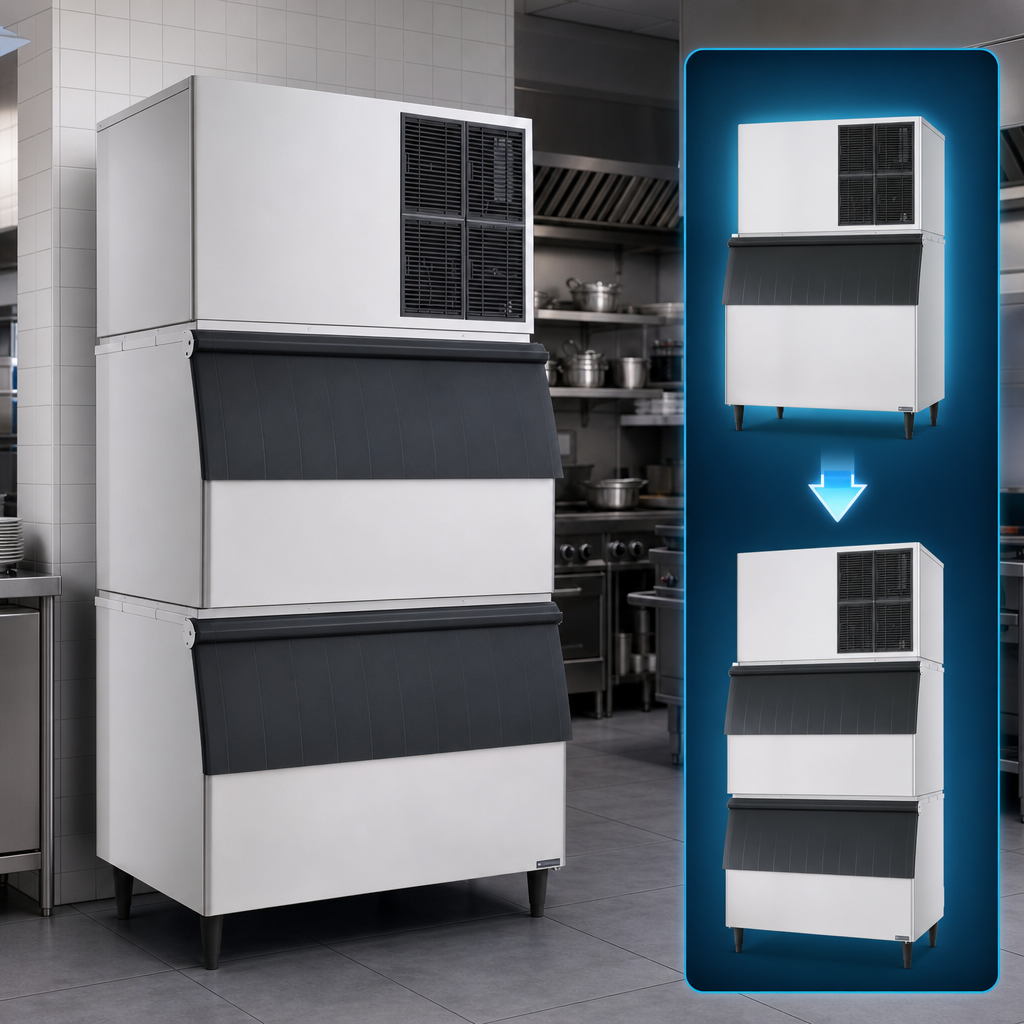

Stackable Design

Can be stacked to increase production to 3,342 lb per 24 hours in the same floor space.

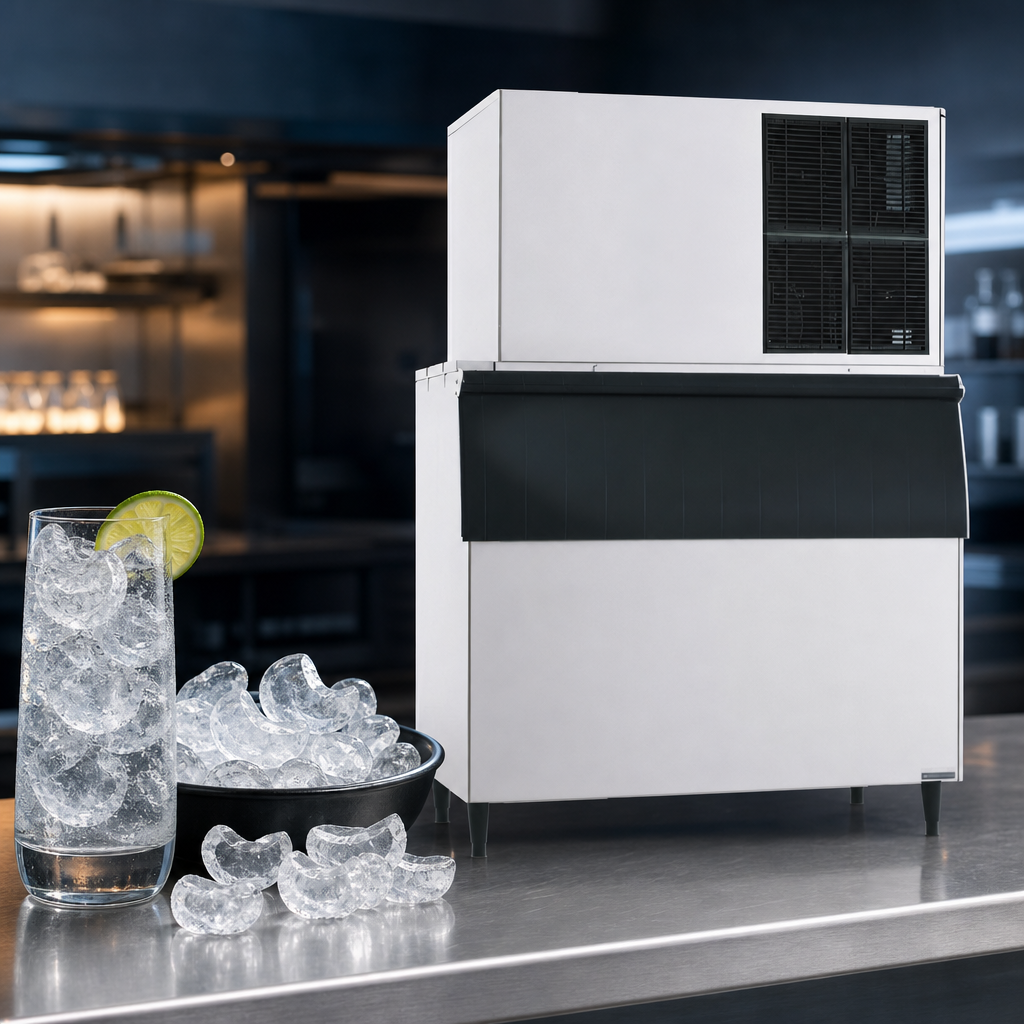

Crescent Cube Production

Makes individual crescent-shaped cubes for reliable dispensing and drink presentation.

Water-Cooled, Self-Contained Refrigeration

Integrated refrigeration system with a water-cooled condenser for a simplified installation profile.

Stainless Steel Construction

Durable stainless steel exterior and stainless steel evaporator help resist wear in busy kitchens.

CycleSaver™ Design

Designed to help reduce unnecessary cycling and support efficient operation.

EverCheck™ Alert System

Provides alerts to help operators monitor the machine and respond to service needs.

R-404A Refrigerant

Uses R-404A refrigerant.

High Daily Output

Produces up to 1,671 lb per 24 hours at 70°/50°; 1,660 lb AHRI certified at 90°/70°.

Type Ice Maker
Style Stackable
Ice Type Crescent Cube
Condenser Type Water-Cooled
Refrigeration Type Self-Contained
Material Stainless Steel
Refrigerant Type R-404A
Production per 24 Hours 1,671 lb
Voltage 208-230 Volts
Amps 8.8 Amps
Hertz 60 Hz
Phase 3-Phase
Country of Origin USA
Shipping Width 51 3/4 Inches
Shipping Depth 33 Inches
Shipping Height 33.5 Inches
Shipping Weight 345 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

3 years parts and labor on the ice maker; 5 years parts on the evaporator and compressor.

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Cleaning sheets PDF Download PDF Video PDF Download PDF Ice maker calculator PDF Download PDF Flyer PDF Download PDF Service manual PDF Download PDF Installation & operation PDF Download PDF Tamper proof kit PDF Download PDF Warranty PDF Download PDF Parts manual PDF Download PDF Kmedge cuber flyer PDF Download PDF Ice machine brochure PDF Download

Frequently Asked Questions

It produces individual crescent cubes.
Yes. It is stackable and can produce up to 3,342 lb per 24 hours in the same floor space when stacked.
The unit requires 208-230V, 60 Hz, 3-phase power and draws 8.8 amps.
The document lists B-800, B-900, B-1150SS, B-1300SS, B-1500SS, and B-1650SS. A top kit may be required.
It uses R-404A refrigerant and has a water-cooled condenser with self-contained refrigeration.
Factory warranty coverage is 3 years parts and labor on the ice maker, with 5 years parts on the evaporator and compressor.
