Customize Hoshizaki Model no. KM-1601SWJ

Configuration
Accessories
Review
0 selected · total
$10,920.00
Hoshizaki

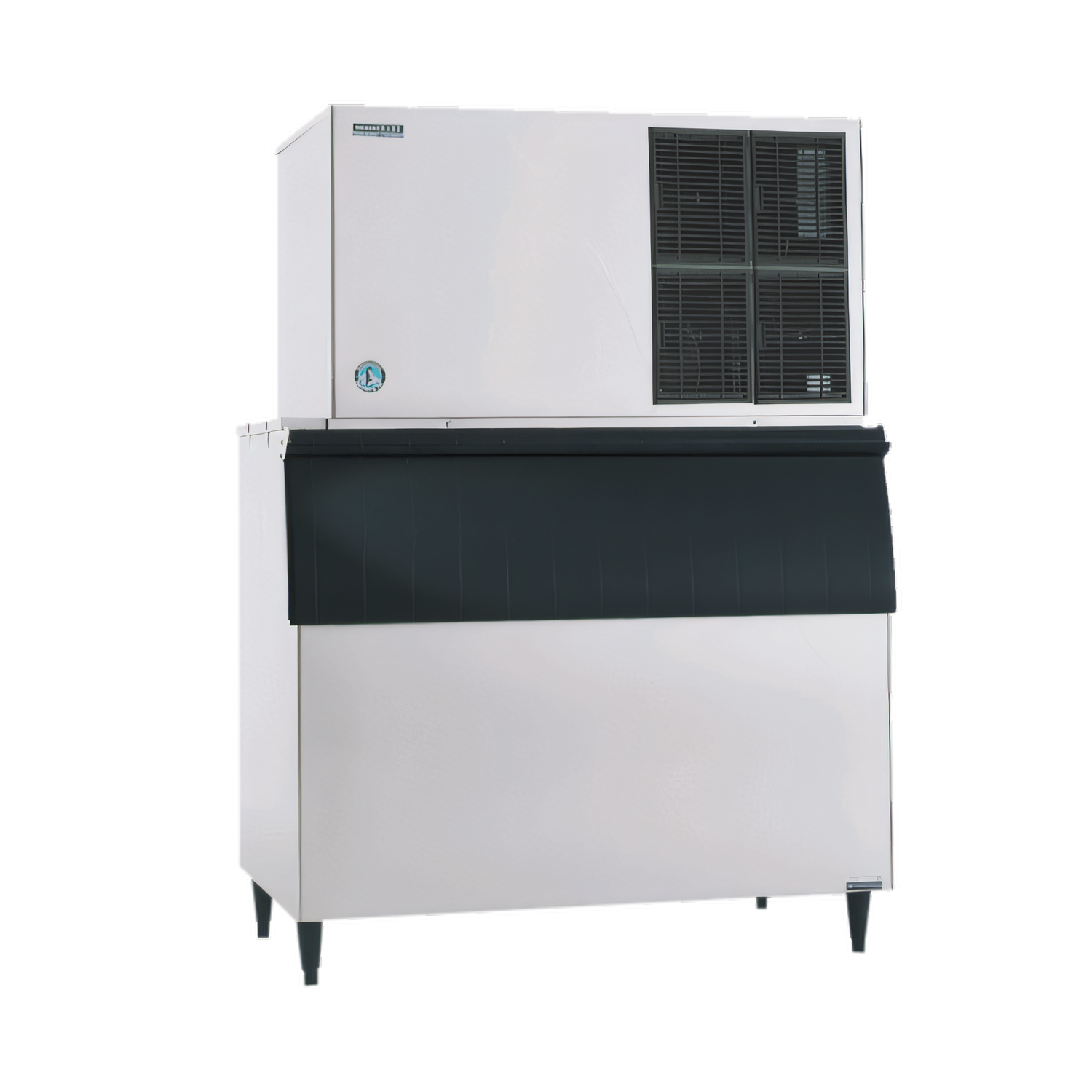

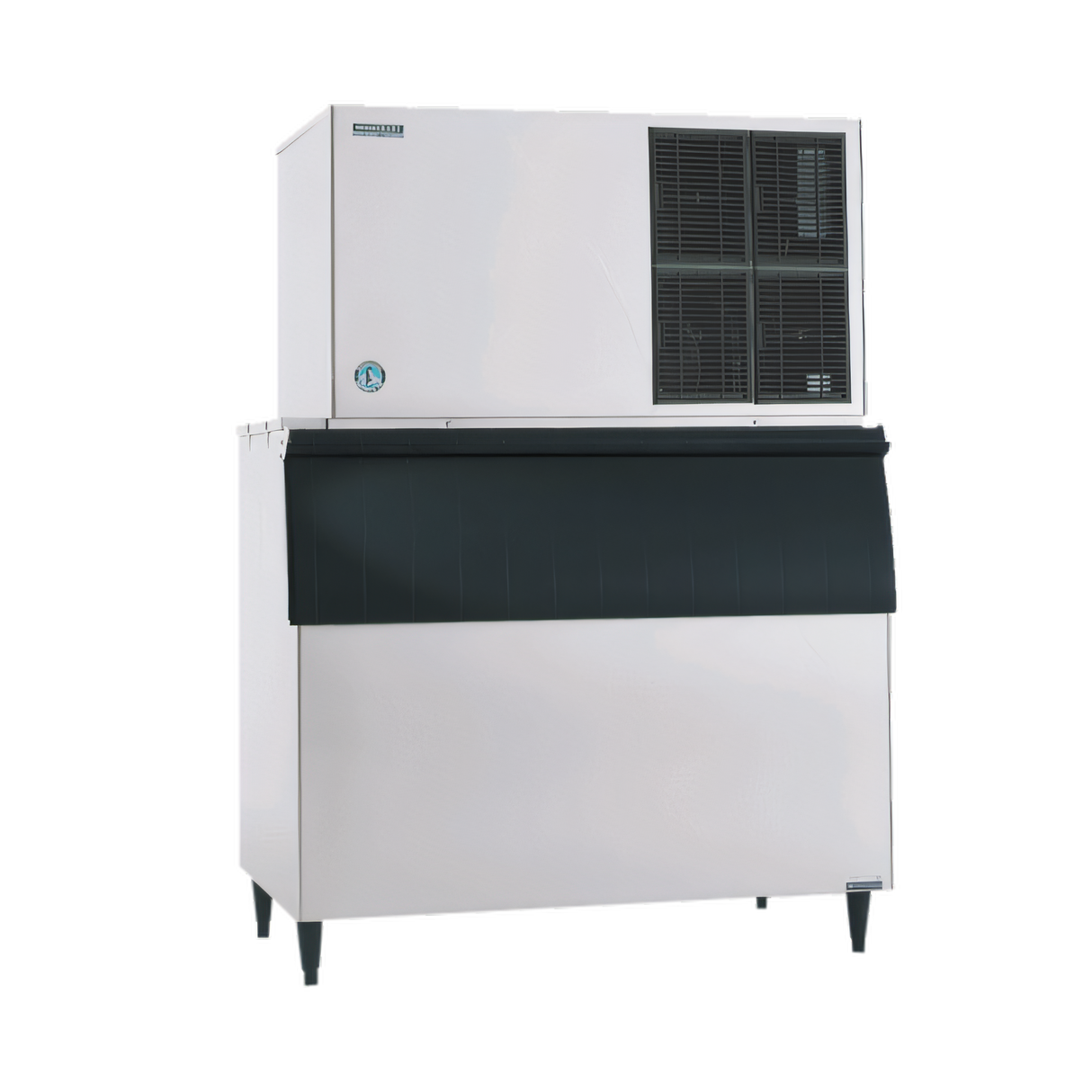

Hoshizaki KM-1601SWJ Stackable Water-Cooled Crescent Cube Ice Maker, 1,660 lb/24 Hr, 48 in. Wide, Self-Contained

SKU: KM-1601SWJ
$10,920.00
/each Configurable
Free Shipping
Alternative products
KM-1601SWJ Current product Current
KM-1601SAJ Loading live product details…
KM-1601SRJZ Loading live product details…
KM-1601SAJ3 Loading live product details…
KM-1601SWJ3 Loading live product details…
KM-1601SRJZ3 Loading live product details…
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Refrigeration, Freezing & Ice Reach-In Refrigerators & Freezers Undercounter, Worktop & Countertop Refrigeration Refrigerated Prep Tables & Cold Food Stations Merchandising & Display Refrigeration Bar, Beverage & Wine Cooling Walk-In Coolers & Freezers Chest, Glass-Door & Specialty Freezers Blast Chillers & Specialty Cooling Frozen Dessert & Ice Cream Equipment

Hoshizaki KM-1601SWJ Stackable Water-Cooled Crescent Cube Ice Maker, 48 Inch Wide, Self-Contained

1,660 lb/24 Hr Output, 208-230V 1-Phase, Stainless Steel Exterior

Built for high-volume operations, this stackable water-cooled crescent cube ice maker delivers up to 1,660 lb. of ice per day in the same 48-inch footprint.

  • Produces individual crescent cube ice for reliable beverage service and dispensing.
  • Delivers up to 1,660 lb. of ice per 24 hours; AHRI certified at 1,650 lb. per 24 hours.
  • Stackable design can increase total output to 3,342 lb. per 24 hours in the same floor space.
  • Water-cooled, self-contained refrigeration helps support dependable performance.
  • Stainless steel exterior and stainless steel evaporator add durability for commercial use.
  • EverCheck™ alert system helps notify operators when service is needed.
  • Uses R-404A refrigerant and runs on 208-230V, 60 Hz, 1-phase power.

Overall Dimensions:

48.0"W x 27.38"D x 27.38"H

Product Weight:

335.0 lb

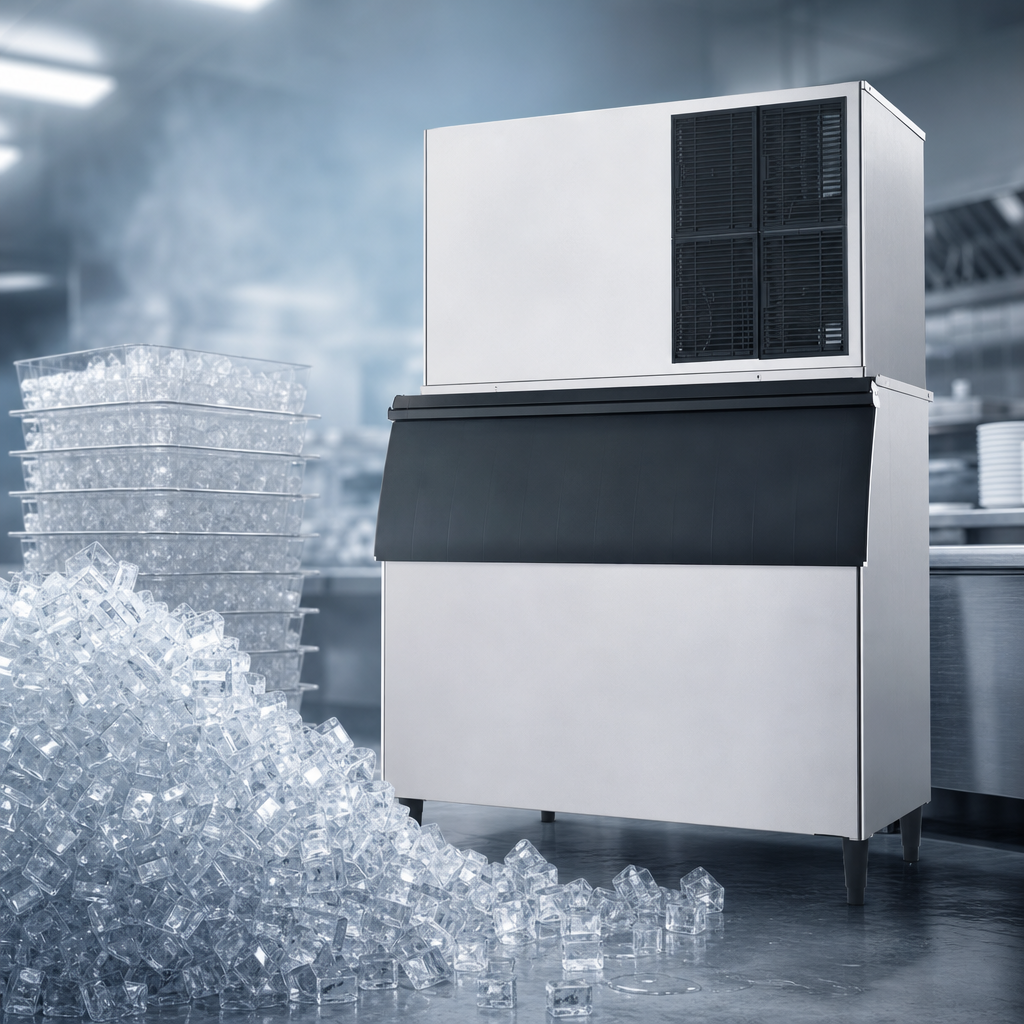

High Ice Production

Produces up to 1,660 lb. of ice per 24 hours, with 1,650 lb. AHRI certified output at 90°/70°.

High Ice Production

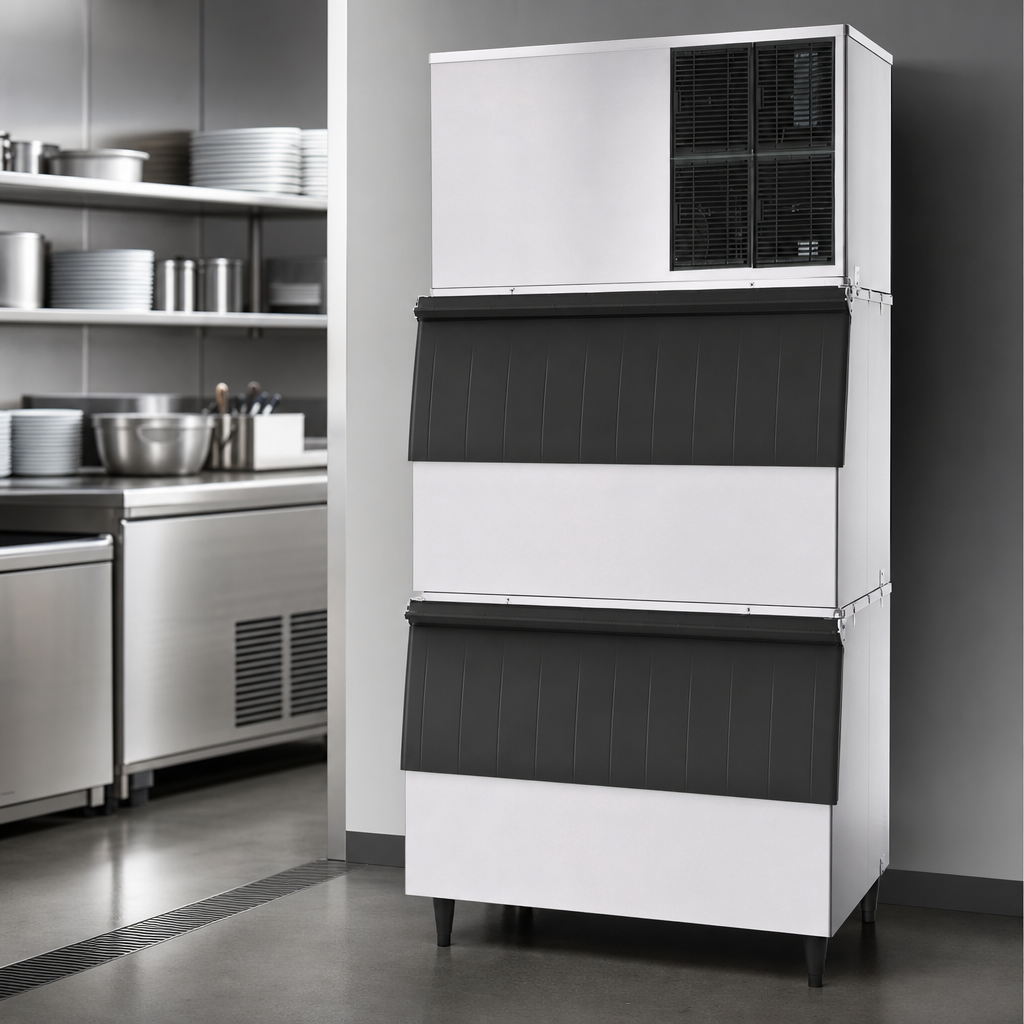

Stackable Design

Can be stacked to deliver up to 3,342 lb. of ice per 24 hours in the same floor space.

Stackable Design

Individual Crescent Cube Ice

Makes individual crescent cubes for consistent ice output.

Water-Cooled, Self-Contained Condenser

Built with a water-cooled, self-contained refrigeration system.

Stainless Steel Exterior

Durable stainless steel cabinet designed for demanding commercial environments.

Stainless Steel Evaporator

Stainless steel evaporator supports long-term durability.

EverCheck™ Alert System

Provides alert notifications to help monitor machine status and service needs.

CycleSaver™ Design

Efficiency-focused design intended to help reduce unnecessary cycling.

R-404A Refrigerant

Uses R-404A refrigerant.

Capacity 1,660 lb. per 24 Hours
Type Cube-Style Ice Maker
Style Stackable
Refrigeration Type Self-Contained
Condenser Type Water-Cooled
Ice Type Crescent Cube
Material Stainless Steel
Refrigerant Type R-404A
Voltage 208-230 Volts
Amps 13.6 Amps
Hertz 60 Hz
Phase 1-Phase
Selling Unit Each
Units Per Case 1
Width 51 3/4 Inches
Depth 33 Inches
Height 33 1/2 Inches
Weight 335 lb.

Warranty & Protection

3-year parts and labor on the ice maker; 5-year parts on the evaporator and compressor.

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Service manual PDF Download PDF Tamper proof kit PDF Download PDF Warranty PDF Download PDF Flyer PDF Download PDF Ice machine brochure PDF Download PDF Video PDF Download PDF Cleaning sheets PDF Download PDF Parts manual PDF Download PDF Kmedge cuber flyer PDF Download PDF Ice maker calculator PDF Download PDF Installation & operation PDF Download

Frequently Asked Questions

It produces individual crescent cubes.
Yes. It is stackable and can reach 3,342 lb. of ice production per 24 hours in the same floor space when stacked.
It is a water-cooled model with self-contained refrigeration.
It requires 208-230V, 60 Hz, single-phase power and draws 13.6 amps.
B-800, B-900, B-1150SS, B-1300SS, B-1500SS, and B-1650SS. A top kit may be required.
It uses R-404A refrigerant.

Need Help Deciding?

Our equipment specialists can help you match specs to your kitchen layout, electrical capacity, and menu requirements.

Talk to a Specialist
or call (888) 307-5030
