Hoshizaki KM-1601SRJZ3 Remote Air-Cooled Stackable Crescent Cube Ice Maker, 48 Inch Wide, 3-Phase

SKU: KM-1601SRJZ3
$10,840.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Ice Makers Hoshizaki Ice Machines Ice Makers & Bins New Arrivals Restaurant Equipment

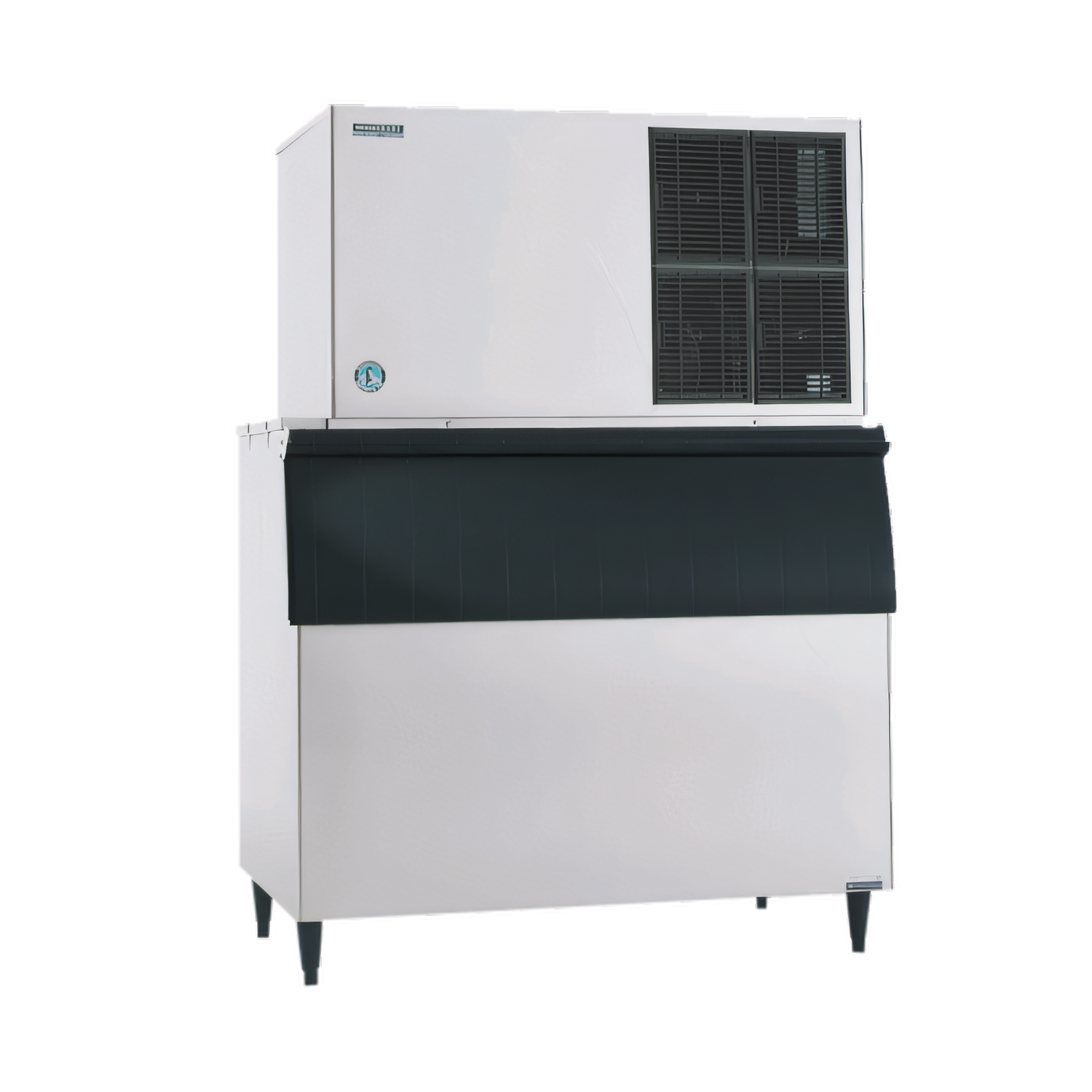

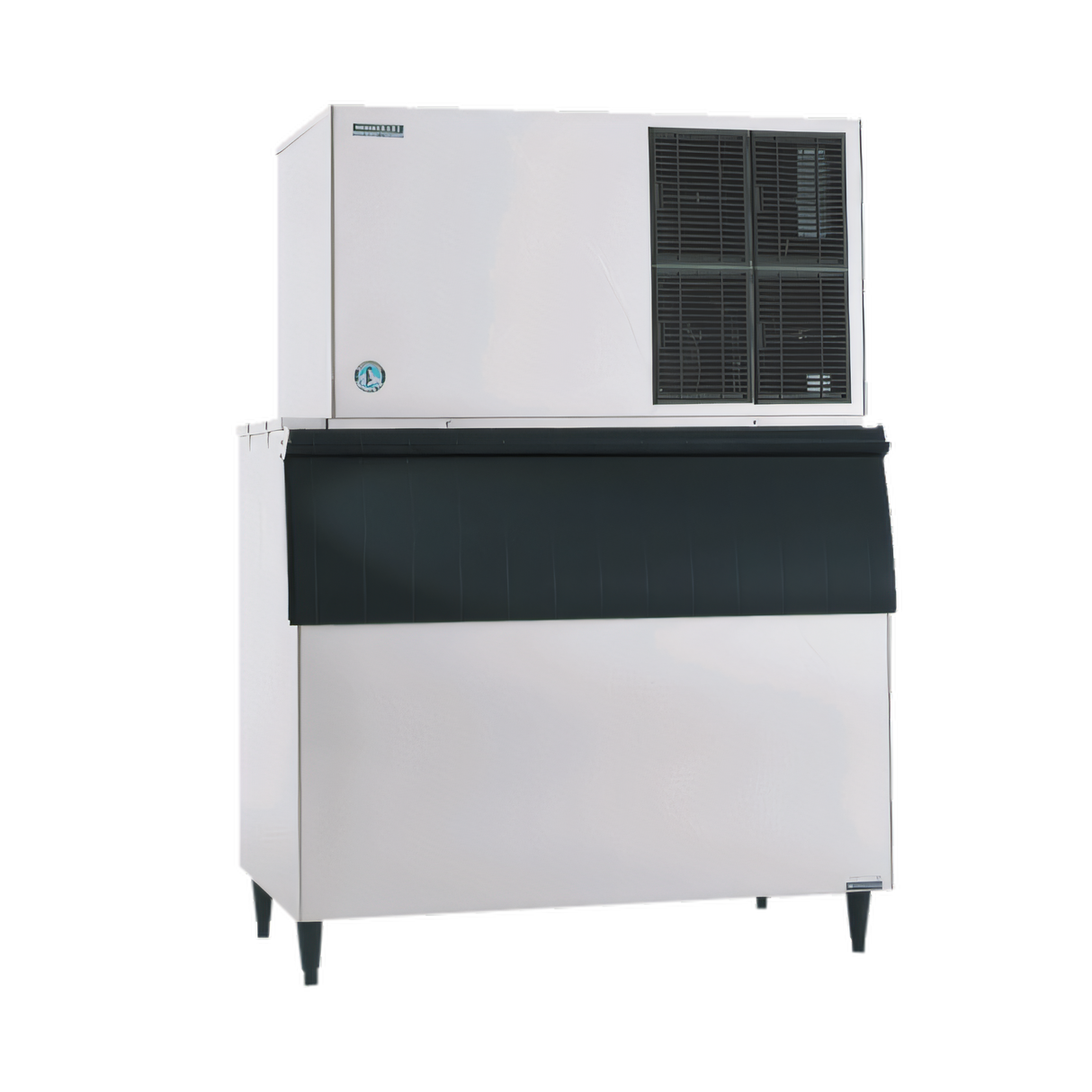

Hoshizaki KM-1601SRJZ3 Remote Air-Cooled Stackable Crescent Cube Ice Maker, 48 Inch Wide, 3-Phase

Up to 1,635 lb/day, stainless steel, ENERGY STAR

High-volume crescent cube production with remote air-cooled operation, stackable capacity, and durable stainless steel construction for demanding foodservice applications.

  • Produces up to 1,635 lb of ice per 24 hours; AHRI certified at 1,600 lb per 24 hours.
  • Remote air-cooled design with condenser sold separately; Z models should be paired with Z model remote condensers.
  • Makes individual crescent cubes with a stainless steel evaporator and stainless steel exterior.
  • Stackable design can double output to 3,342 lb per 24 hours in the same floor space.
  • Includes H-GUARD Plus antimicrobial protection, CycleSaver™ design, and EverCheck™ alert system.
  • Operates on 208-230V, 60 Hz, 3-phase power at 12.8 amps and is ENERGY STAR rated.

Overall Dimensions:

48.0"W x 27.38"D x 27.38"H

Product Weight:

335.0 lb

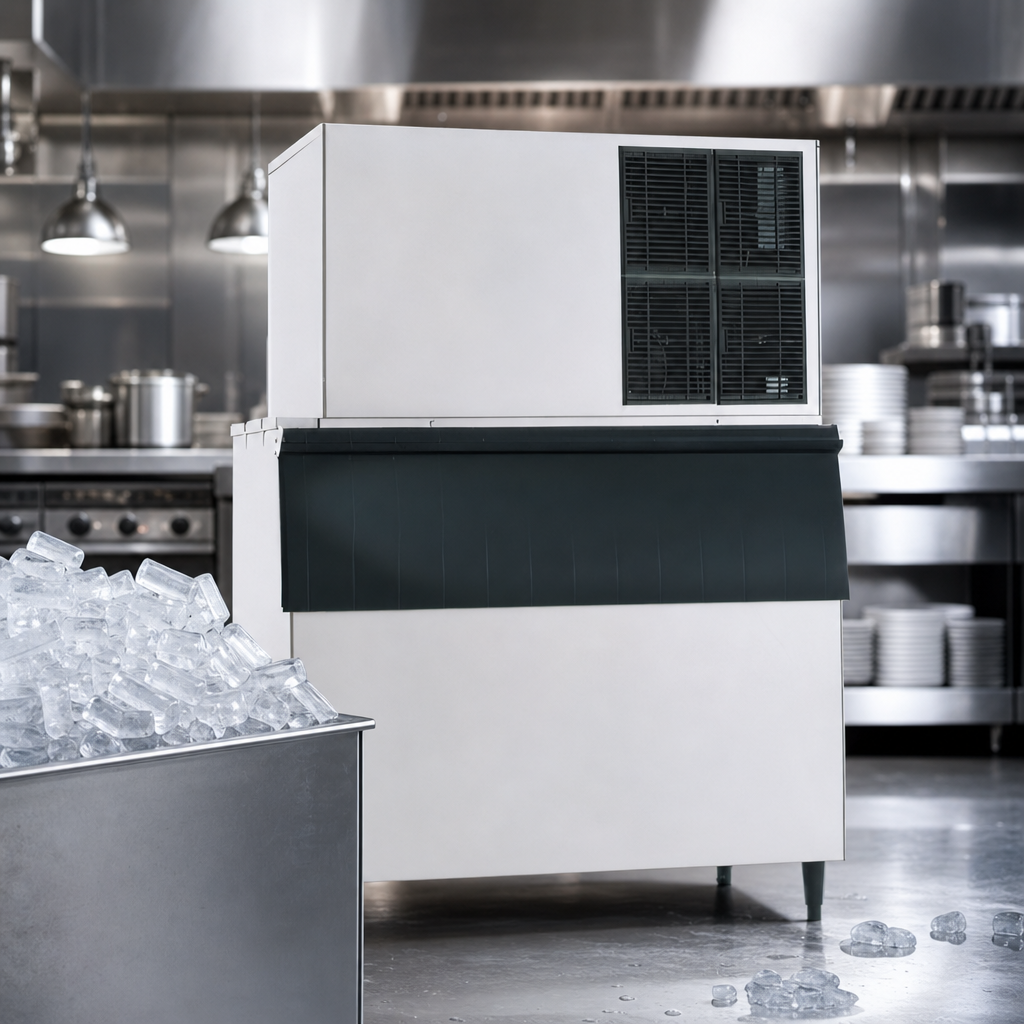

High Ice Production

Produces up to 1,635 lb of crescent cube ice per 24 hours for high-demand operations.

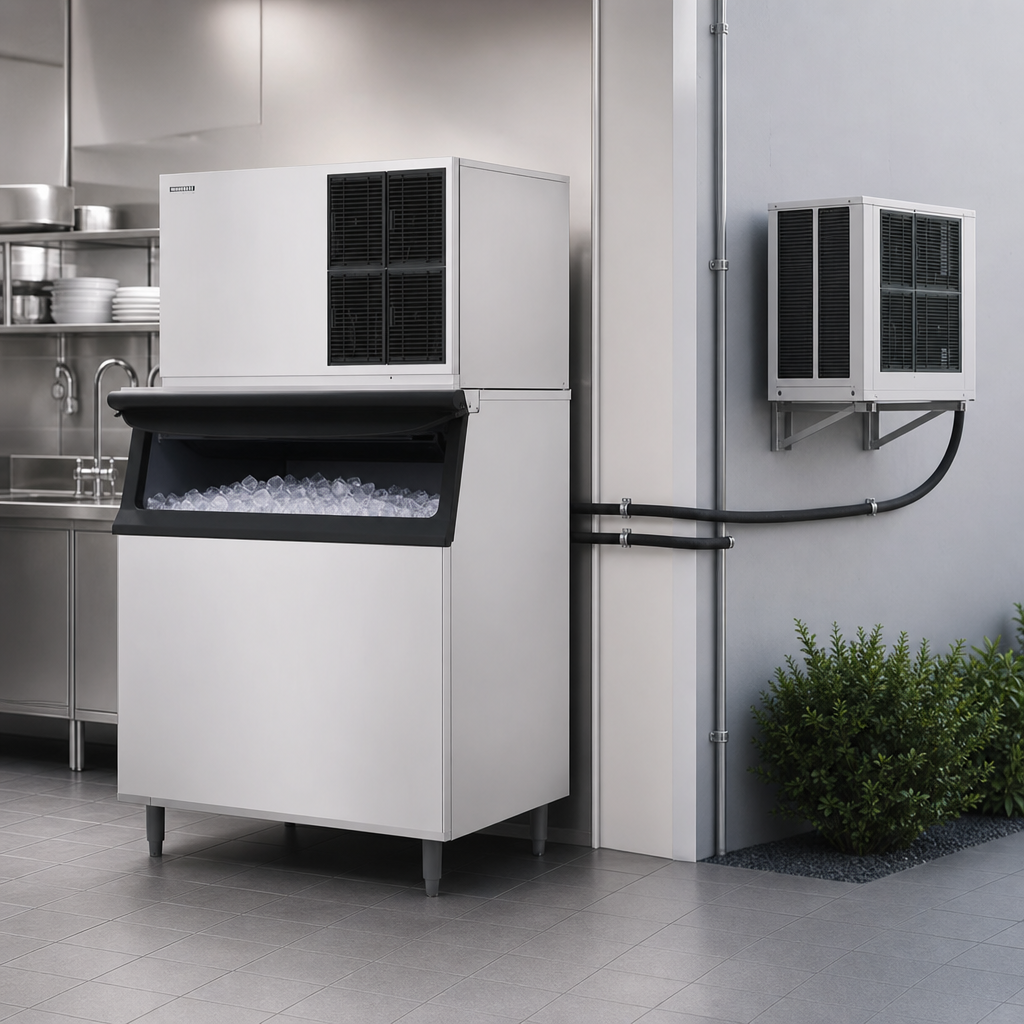

Remote Air-Cooled Design

Uses a remote condenser that is priced separately, helping keep heat and noise away from the ice machine body.

Individual Crescent Cubes

Produces individual crescent-shaped cubes suited for a wide range of beverage service needs.

Stackable Construction

Stackable design allows two units to produce up to 3,342 lb per 24 hours in the same floor space.

Stainless Steel Construction

Features a stainless steel evaporator and durable stainless steel exterior for long-term use.

H-GUARD Plus Antimicrobial Protection

Protected with H-GUARD Plus antimicrobial agent for added sanitation support.

CycleSaver™ Design

Designed to support efficient ice production operation.

EverCheck™ Alert System

Built-in alert system helps monitor machine status and potential service needs.

R-404A Refrigerant

Uses R-404A refrigerant.

Type Ice Maker
Style Crescent Cube
Capacity 1,635 lb per 24 hours
Refrigeration Type Remote
Material Stainless Steel
Finish Stainless Steel
Refrigerant Type R-404A
Voltage 208-230 Volts
Amps 12.8 Amps
Hertz 60 Hz
Phase 3-Phase
Selling Unit Each
Units Per Case 1
Country of Origin USA

Certifications & Compliance

Certified badge of Energy Star Certified
Energy Star Certified
Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Ice maker calculator PDF Download PDF Cleaning sheets PDF Download PDF Kmedge cuber flyer PDF Download PDF Ice machine brochure PDF Download

Frequently Asked Questions

It makes individual crescent cubes.
No. This is a remote air-cooled model and the condenser is priced separately.
It produces up to 1,635 lb per 24 hours at 70°/50°, and it is AHRI certified at 1,600 lb per 24 hours at 90°/70°.
It requires 208-230V, 60 Hz, 3-phase power and draws 12.8 amps.
It is available on B-800, B-900, B-1150SS, B-1300SS, B-1500SS, and B-1650SS bins; a top kit may be required.
Yes. The stackable design allows two units to produce up to 3,342 lb per 24 hours in the same floor space.
