Hoshizaki KM-1601SRJZ Ice Machines
Description

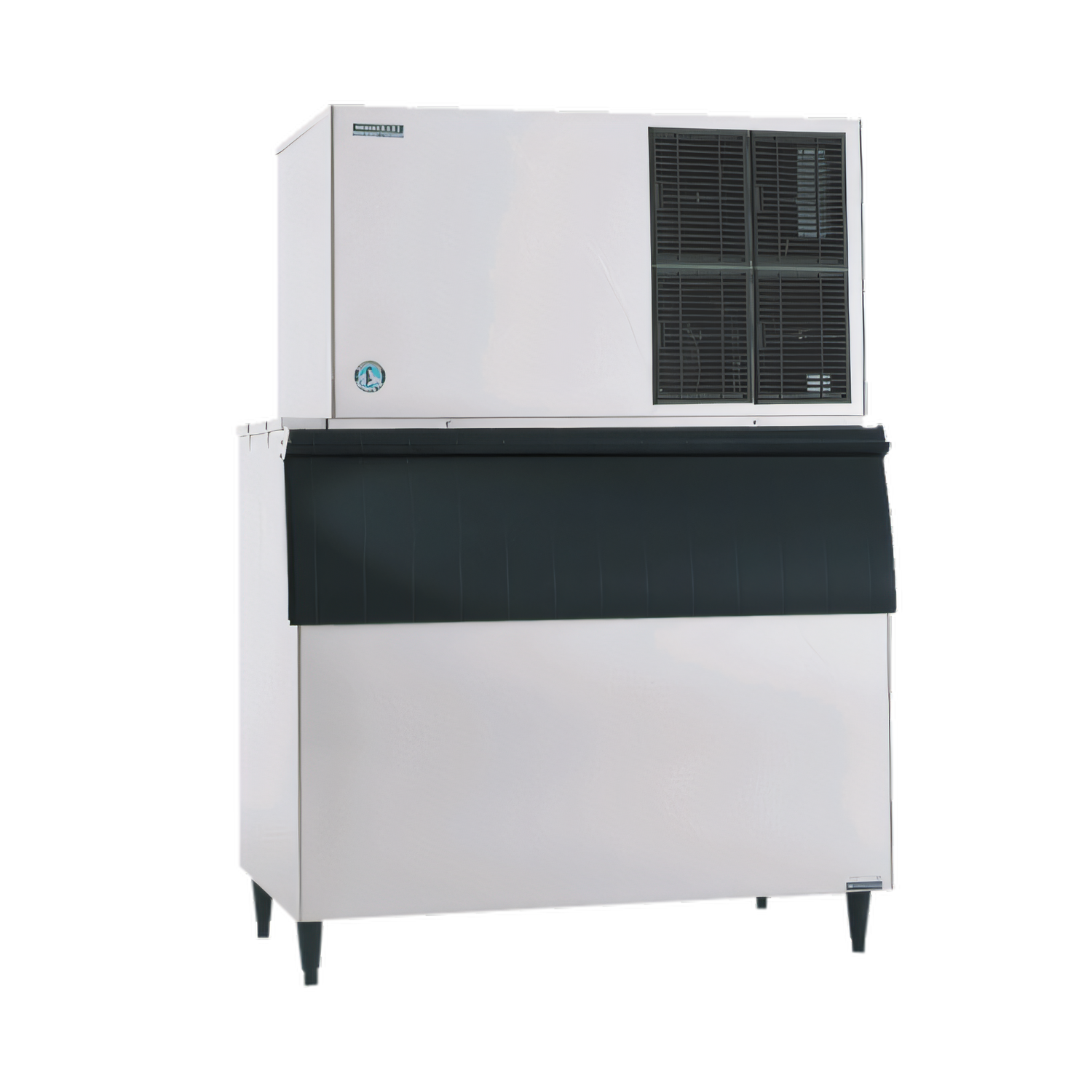

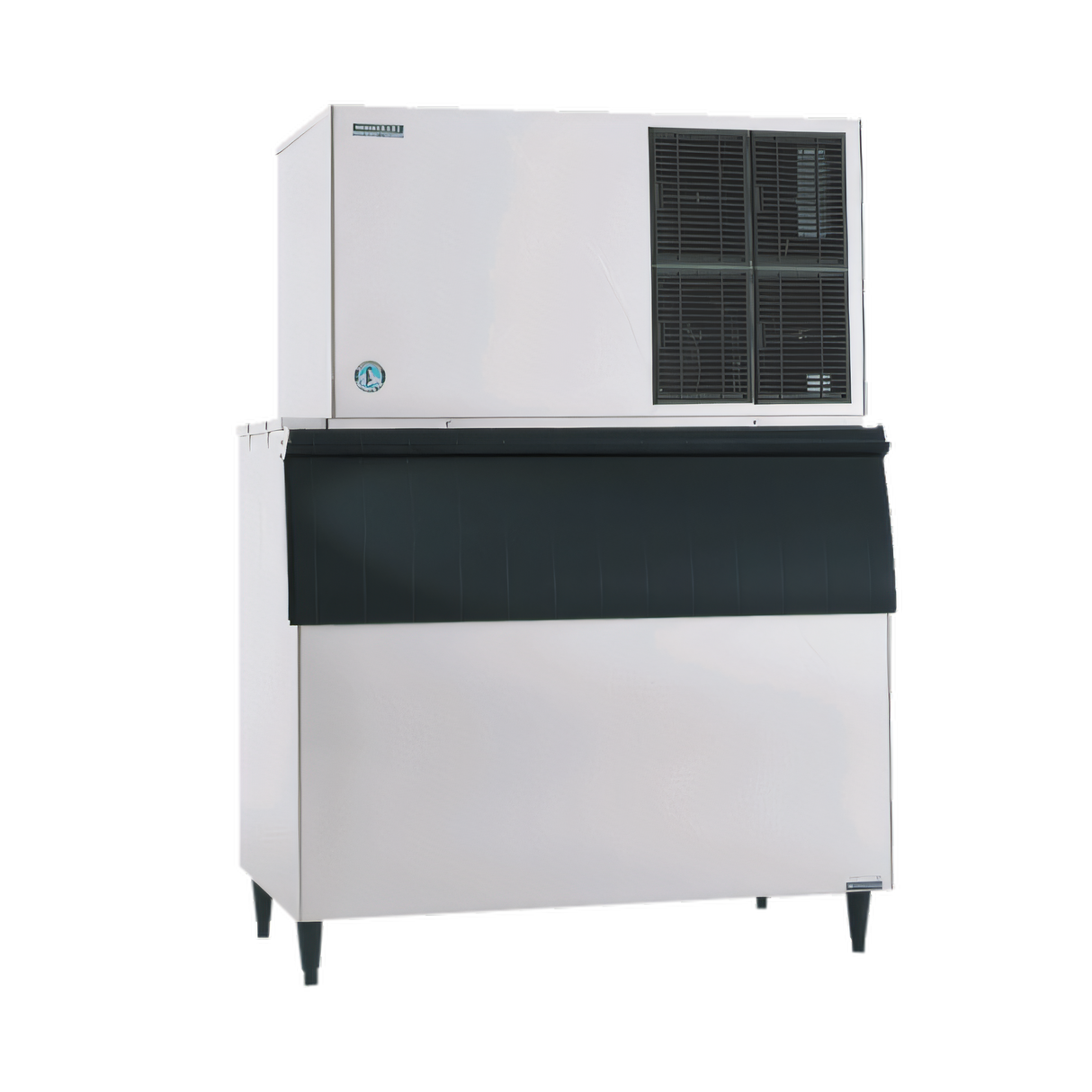

Hoshizaki KM-1601SRJZ Remote Air-Cooled Ice Machine
48" stackable crescent cuber – up to 1,640 lb of ice every 24 hrBuild big-league volume without big-league heat or noise. The KM-1601SRJZ produces crystal-clear KMEdge™ crescent cubes while its condenser sits outside the kitchen (URC-22FZ remote, sold separately). With legendary Hoshizaki reliability, stainless construction and smart energy-saving tech, this modular head is a powerhouse for high-demand restaurants, hotels, supermarkets and healthcare facilities.
Key benefits
- 1,640 lb production at 70 °F air / 50 °F water (1,600 lb AHRI at 90 °F / 70 °F)

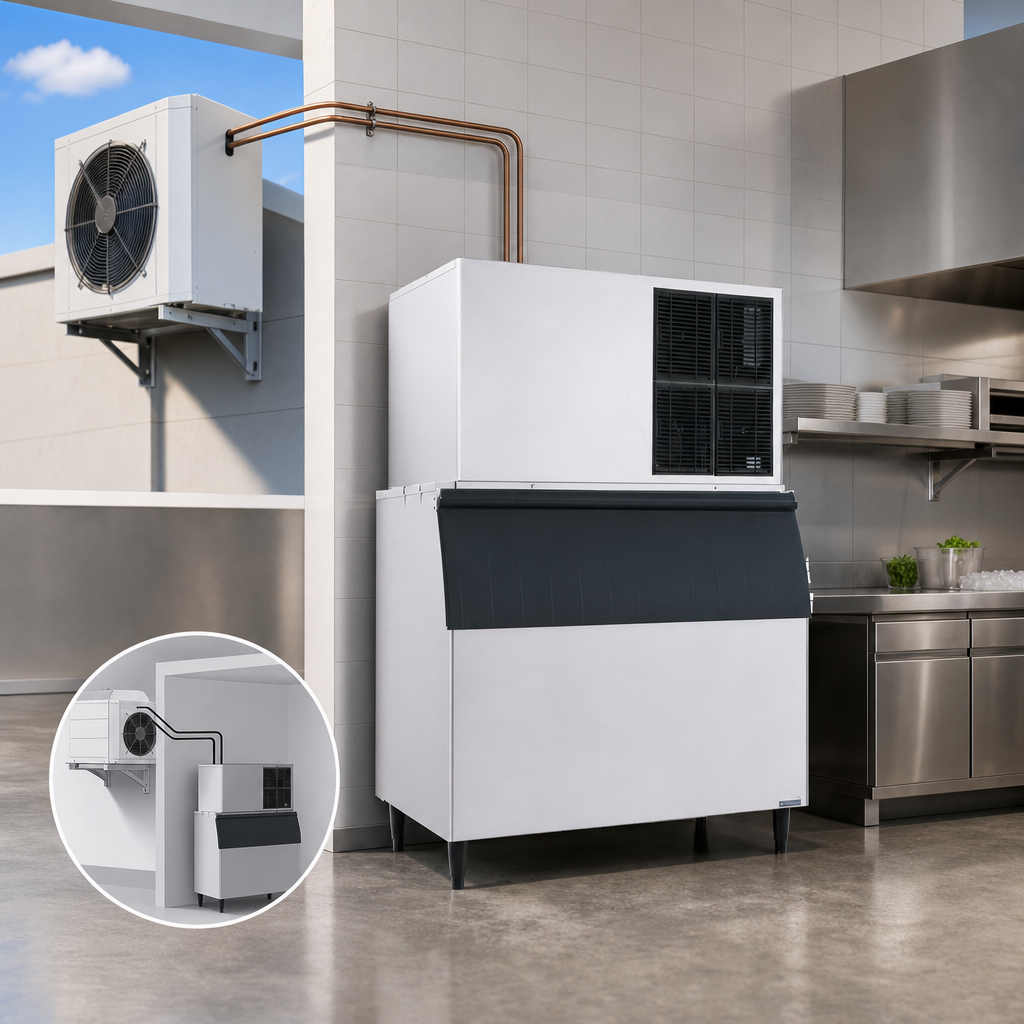

- Remote air-cooled design keeps heat & sound out of the customer zone
- CycleSaver™ technology – same ice, half the cycles, longer component life
- EverCheck™ diagnostics alert staff before problems become downtime
- H-GUARD Plus antimicrobial agent molded into key components for ongoing sanitation
- Stainless steel exterior & stainless steel dual-sided evaporator for unmatched durability
- Stack two units for up to 3,342 lb of daily ice on the same 48" footprint
- NSF & UL certified, R-404A refrigerant, ENERGY STAR® listed
Specifications
| Model | KM-1601SRJZ (remote air-cooled, 1-phase) |
|---|---|

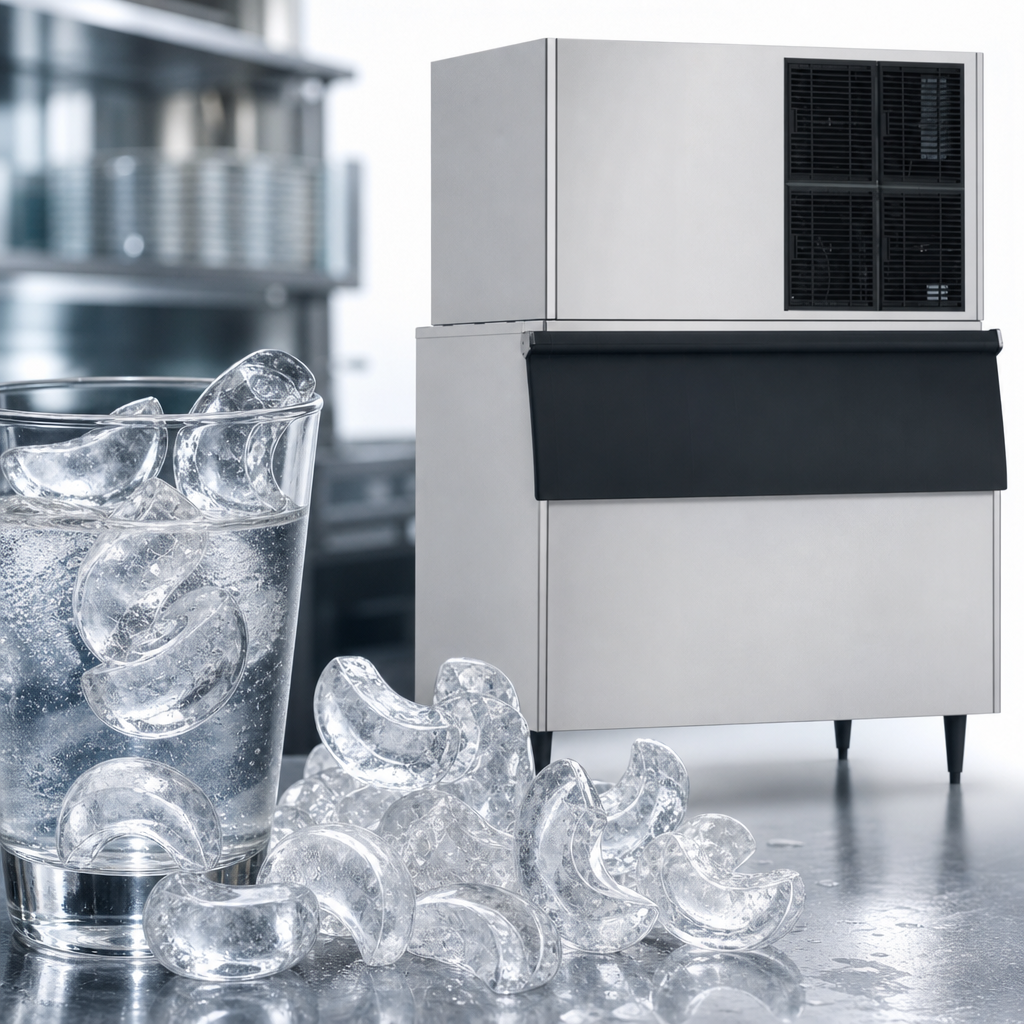

| Ice type | Individual crescent cubes (1 1/8" × 1 1/2" × 1 1/2"*) |
| Production @ 70 °F/50 °F | 1,640 lb / 24 hr |
| AHRI production @ 90 °F/70 °F | 1,600 lb / 24 hr |
| Water usage | 17.6 gal per 100 lb ice |
| Energy usage | 3.96 kWh per 100 lb ice |
| Heat rejection | 21,200 BTU/hr |
| Electrical | 208-230 V / 60 Hz / 1-phase, 15.9 A |
| Refrigerant | R-404A |
| Dimensions (W × D × H) | 48" × 27 3/8" × 27 3/8" |
| Minimum clearances | 9" left, right, rear & top |
| Operating limits | Ambient 45–100 °F | Water 45–90 °F | Water pressure 10–113 psi |
| Net / ship weight | 300 lb / 315 lb† |
| Certifications | NSF, UL, ENERGY STAR |
| Warranty‡ | 3-yr parts & labor, 5-yr compressor & evaporator |
*Approximate cube size • †Includes remote condenser charge • ‡U.S./Canada/Puerto Rico
Compatible bins & accessories
- Ice storage bins: B-800, B-900, B-1150SS, B-1300SS, B-1500SS, B-1650SS (top kit may be required)
- Remote condenser: URC-22FZ (required, sold separately)
- Brazed line sets: 25' HS-5323, 35' HS-5324, 55' HS-5325
- Hoshizaki water filtration systems for optimum ice clarity and machine life
Simple, proactive maintenance
- Removable air filters and service panels for fast access
- EverCheck™ control board provides audible alerts & diagnostic codes
- Annual cleaning & sanitizing recommended (see manual or cleaning sheet)
Upgrade your high-volume ice program with the trusted performance of Hoshizaki. Add the KM-1601SRJZ to cart today or chat with our equipment team for bin and condenser bundles that ship fast!
