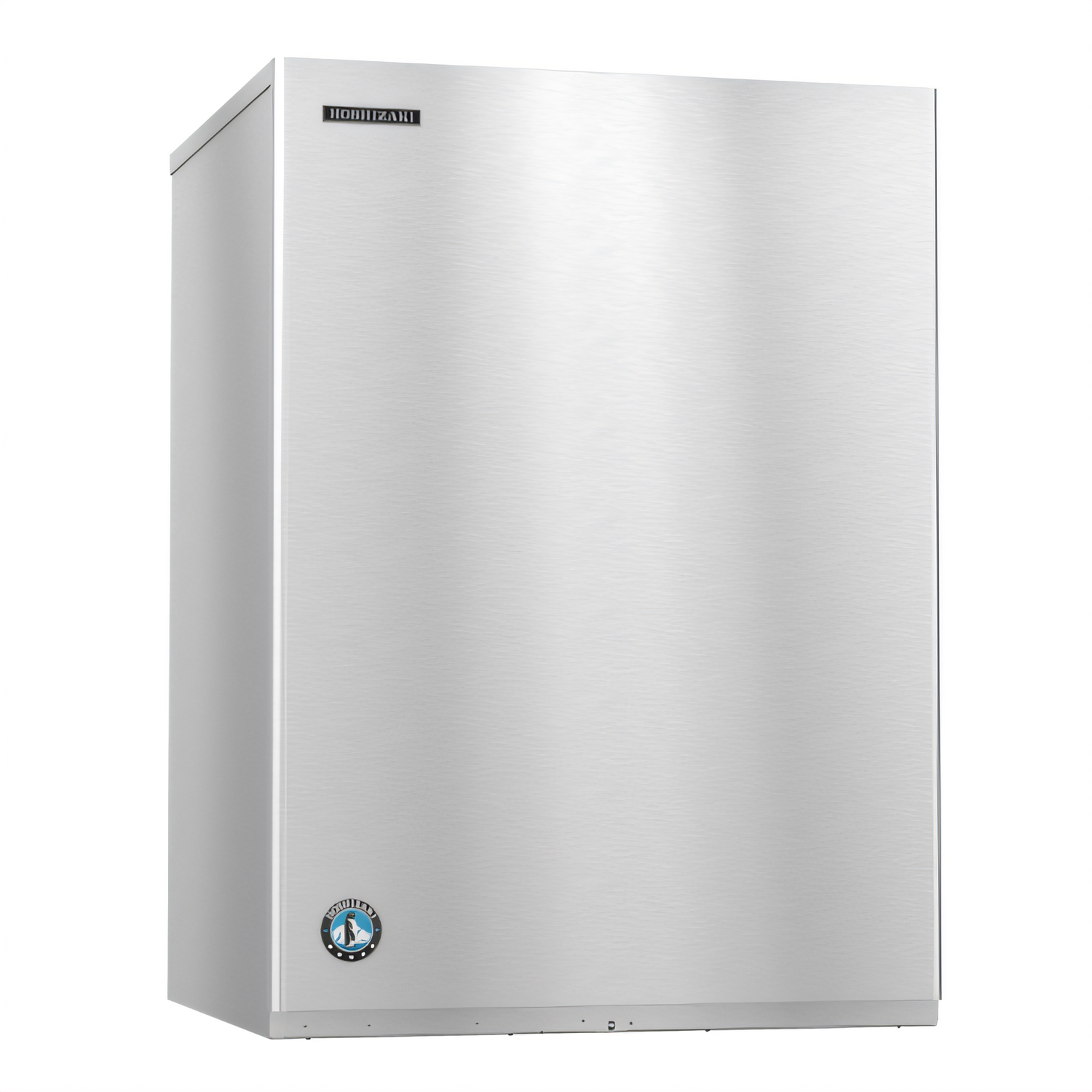

Hoshizaki High-Capacity Modular Crescent Cuber Ice Maker Head, 30 Inch Wide, Remote Air-Cooled, 1-Phase

Up to 1,594 lb/24 hr, stainless steel finish, matching Z-model remote condenser required

Built for high-volume operations, this modular crescent cuber delivers up to 1,594 lb of ice per day and pairs with a matching Z-model remote condenser.

  • Produces up to 1,594 lb of crescent ice per 24 hours at 70°F/50°F; AHRI certified at 1,550 lb per 24 hours at 90°F/70°F.
  • Remote air-cooled head design keeps the condenser separate for flexible installation.
  • Stainless steel exterior and stainless steel evaporator support durability in demanding kitchens.
  • CycleSaver design helps optimize ice-making efficiency.
  • EverCheck alert system helps monitor machine status and service needs.
  • Runs on 208-230V single-phase power, uses R-404A refrigerant, and fits multiple Hoshizaki storage bins.

Overall Dimensions:

30.0"W x 27.38"D x 41.62"H

Product Weight:

316.0 lb

High Production Capacity

Produces up to 1,594 lb of crescent ice per 24 hours at 70°F/50°F; AHRI certified at 1,550 lb per 24 hours at 90°F/70°F.

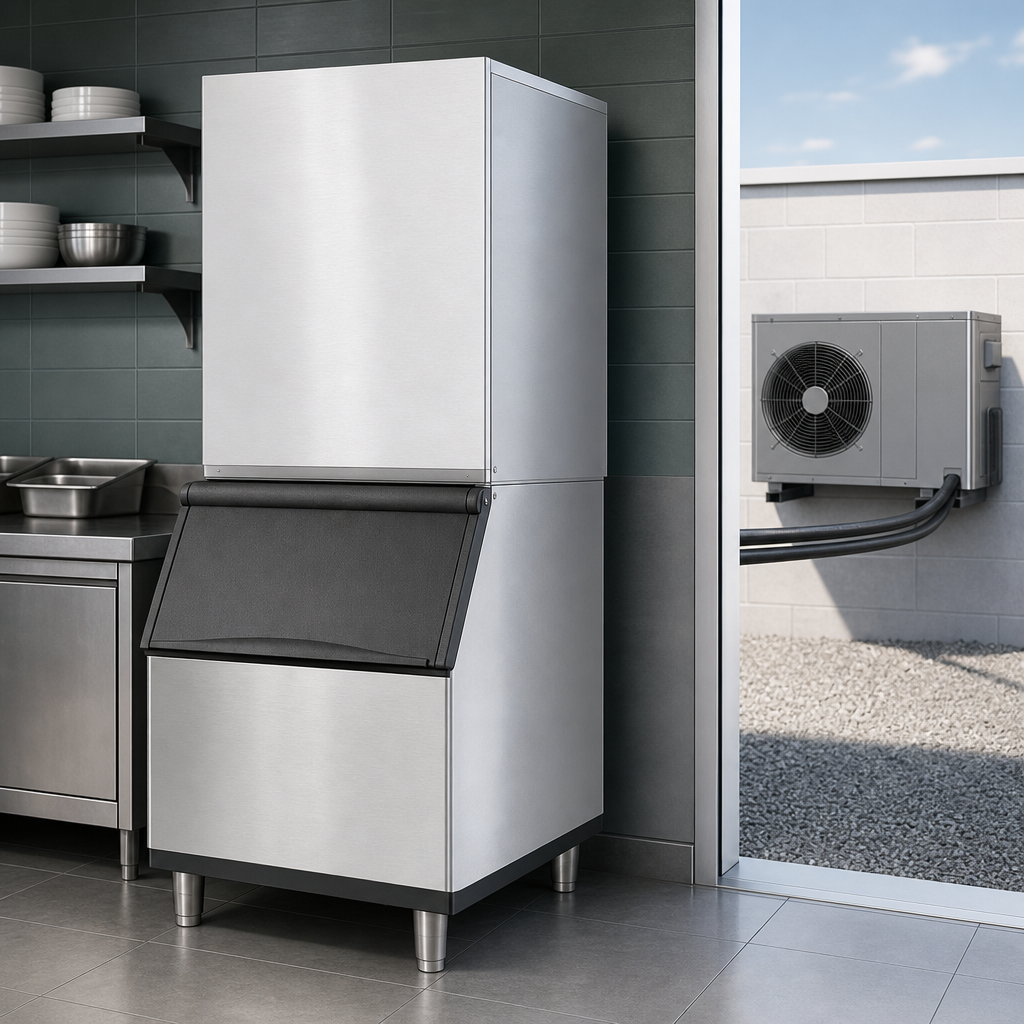

Remote Air-Cooled Design

The ice maker head is designed for use with a separately sold remote condenser for flexible installation.

Matching Z-Model Condenser Required

Z-model ice machines must be paired with a matching Z-model remote condenser.

Shared Power to Remote Condenser

Voltage supply for the remote condenser is provided from the ice maker, so no additional circuit is required.

Individual Crescent Cubes

Produces individual crescent cubes for consistent, easy-to-handle ice.

Stainless Steel Construction

Features a durable stainless steel exterior and stainless steel evaporator.

CycleSaver Technology

CycleSaver design helps improve ice-making efficiency.

EverCheck Alert System

Built-in alert system helps monitor machine status and service needs.

R-404A Refrigerant

Uses R-404A refrigerant.

Type Ice Maker Head
Style Modular Crescent Cuber
Capacity 1,594 lb per 24 Hours
Material Stainless Steel
Finish Stainless Steel
Refrigeration Type Remote Air-Cooled
Refrigerant Type R-404A
BTU 24,300 BTU/hr
Voltage 208-230 Volts
Amps 15.9 Amps
Hertz 60 Hz
Phase 1-Phase
Water Connection Required
Drain Connection Required
Water Inlet Size 1/2 Inch FPT
Drain Connection Size 3/4 Inch FPT
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 30 Inches
Shipping Depth 28 Inches
Shipping Height 42 Inches
Shipping Weight 316 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

3-year parts and labor on the entire machine; 5-year parts and labor on the evaporator; 5-year parts on the compressor and air-cooled condenser coil.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

No. The remote condenser is sold separately, and this Z-model ice maker must be paired with a matching Z-model remote condenser.
It produces up to 1,594 lb of crescent ice per 24 hours at 70°F/50°F, and it is AHRI certified at 1,550 lb per 24 hours at 90°F/70°F.
It makes individual crescent cubes.
It requires 208-230V, 60 Hz, single-phase power and draws 15.9 amps.
No. The voltage supply for the remote condenser is supplied from the ice maker, so no additional circuit is required.
If neutral is not available, transformer kit HS-5030 is required.
