Hoshizaki KM-1301SWJ Ice Machines
Description

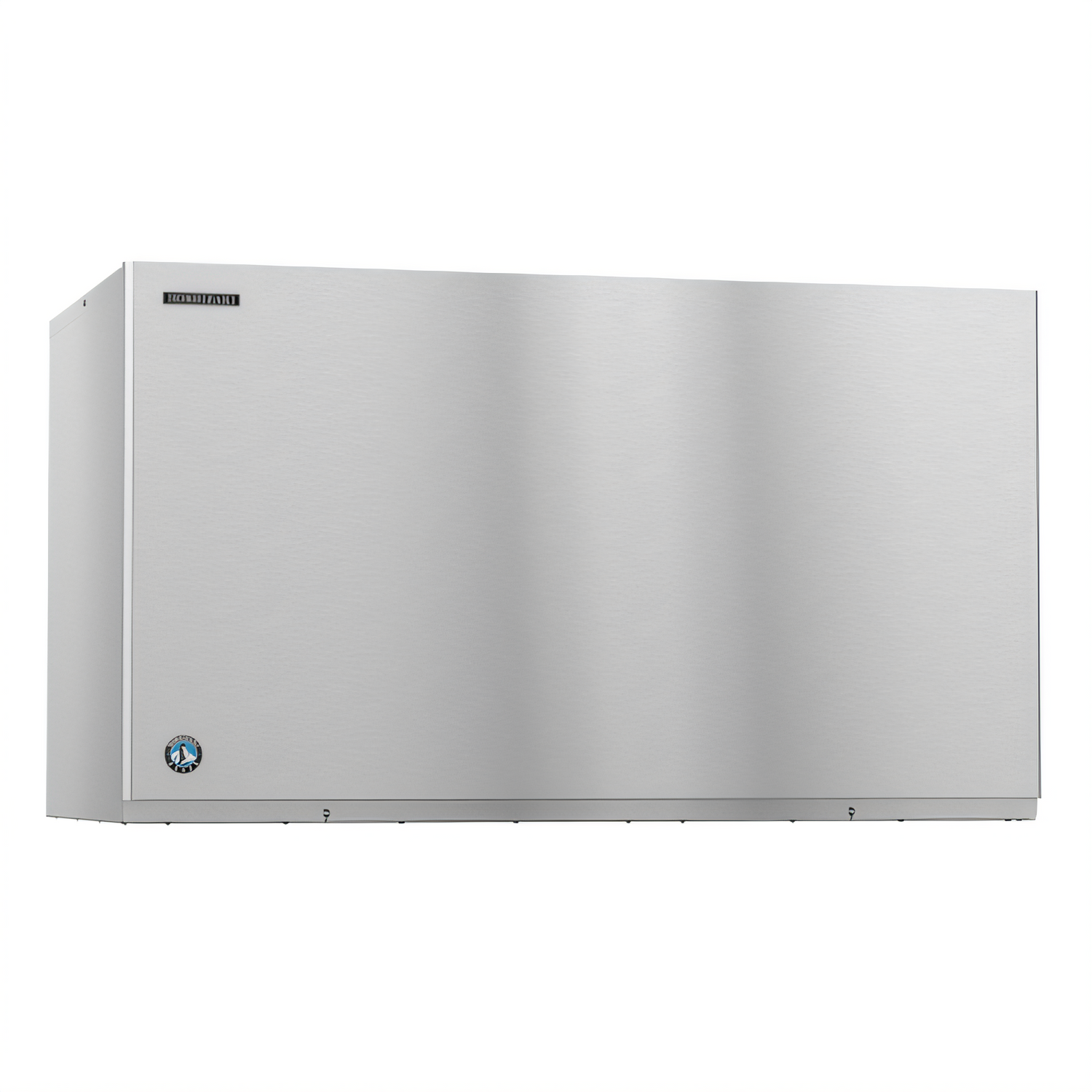

Hoshizaki KM-1301SWJ Water-Cooled Crescent Ice Maker – 1,247 lb/Day
48" stackable cuber | self-contained condenser | 208-230 V / 1-phase | NSF & ULBuilt for extreme-volume applications that can’t afford extra heat or noise, the KM-1301SWJ produces up to 1,247 lb of crystal-clear crescent ice every 24 hours (1,230 lb AHRI @ 90°/70°) while keeping the workspace cool with a self-contained water-cooled condenser. Pair it with a Hoshizaki B-series ice bin and you’re ready to power through the busiest rushes in restaurants, hotels, arenas and more.
Key Benefits
- Produces hard, individual crescent cubes—no clumping, better drink displacement, less splash.
- Water-cooled design removes heat outdoors, ideal for tight or high-ambient kitchens.
- Dual-sided stainless steel evaporator maximizes heat exchange for faster harvest cycles and longer life.
- CycleSaver™ technology makes the same ice in roughly half the cycles of comparable machines.
- EverCheck™ control board provides audible diagnostics to minimize downtime.
- Stackable—add a second KM-1301 unit for nearly 2,500 lb/day in the same footprint.
- All-stainless exterior stands up to heavy commercial use and wipes clean quickly.
- Uses eco-friendly R-404A refrigerant and carries NSF, UL & AHRI listings.
Performance & Utilities
| Ice type | Crescent cube (approx. 1 1/8" × 1 1/2" × 1/2") |
|---|---|
| Production @ 70° F air / 50° F water | 1,247 lb / 24 hr |
| Production @ 90° F air / 70° F water (AHRI) | 1,230 lb / 24 hr |
| Energy use | 3.76 kWh per 100 lb of ice |
| Potable water | 21 gal per 100 lb of ice |
| Condenser water | 89 gal per 100 lb of ice (90°/70°) |
| Heat rejection | 20,900 BTU/hr |
| Refrigerant | R-404A (charge 2 lb 2.4 oz) |
Electrical & Mechanical
| Voltage | 208-230 V / 60 Hz / 1-phase |
|---|---|
| Running amps | 8.2 A |
| Minimum circuit / fuse | 20 A |
| Dimensions (W × D × H) | 48" × 27 3/8" × 27 3/8" |
| Net / ship weight | 295 lb / 335 lb |
| Shipping crate | 51.75" × 33" × 33" (32.61 ft³) |
Compatible Storage Bins (sold separately)
- B-800 • B-900
- B-1150SS • B-1300SS
- B-1500SS • B-1650SS (top kit may be required)
Installation Parameters
- Ambient temperature: 45 – 100 °F
- Water temperature: 45 – 90 °F
- Water pressure: 10 – 113 PSI
- Voltage range: 187 – 253 V
- Potable water in: 3/8" line | Drain: 3/4" gravity
- Condenser water in/out: 3/8" lines (independent of ice water supply)
- Allow 6" rear, side & top clearance for service.
Factory Warranty
- 3-year parts & labor on the entire machine
- 5-year parts & labor on the evaporator
- 5-year parts on the compressor
Specifications taken from Hoshizaki KM-1301SWJ cutsheet (07/02/24) and subject to change without notice.
