Hoshizaki KM-1301SRJZ3 Ice Machines
Description

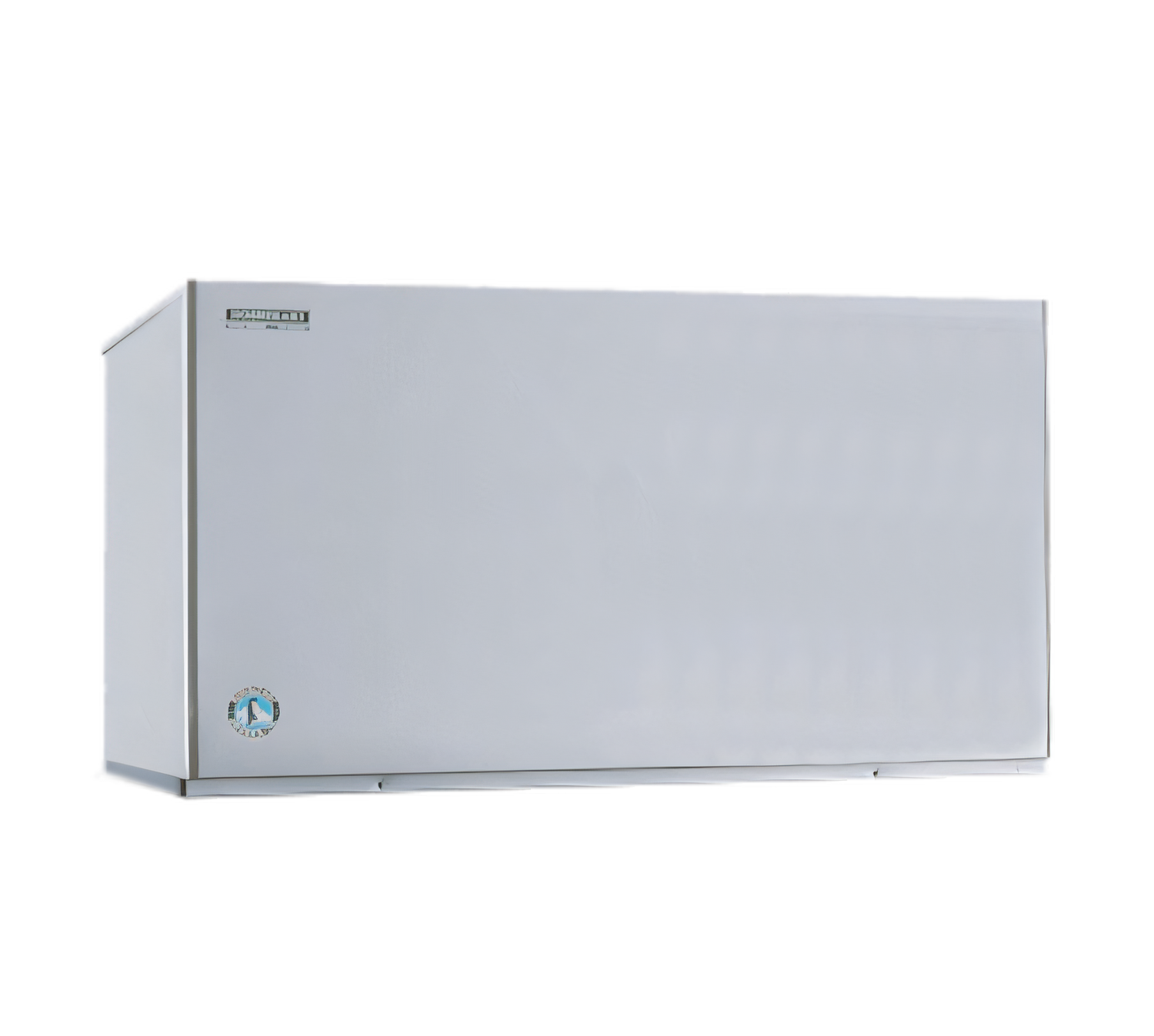

Hoshizaki KM-1301SRJZ3 Remote Air-Cooled Stackable Ice Cuber
48" wide | up to 1,433 lb/day | ENERGY STAR® certifiedWhen your operation can’t afford to run out of ice, the KM-1301SRJZ3 delivers. This remote air-cooled cuber pairs Hoshizaki’s KMEdge™ crescent technology with a space-saving “Serenity” condenser (sold separately) to crank out well over a half-ton of crystal-clear ice every 24 hours—all while keeping heat and noise outside the kitchen.
Key Advantages
- 1,433 lb/24 hr at 70 °F/50 °F (1,330 lb AHRI at 90 °F/70 °F).

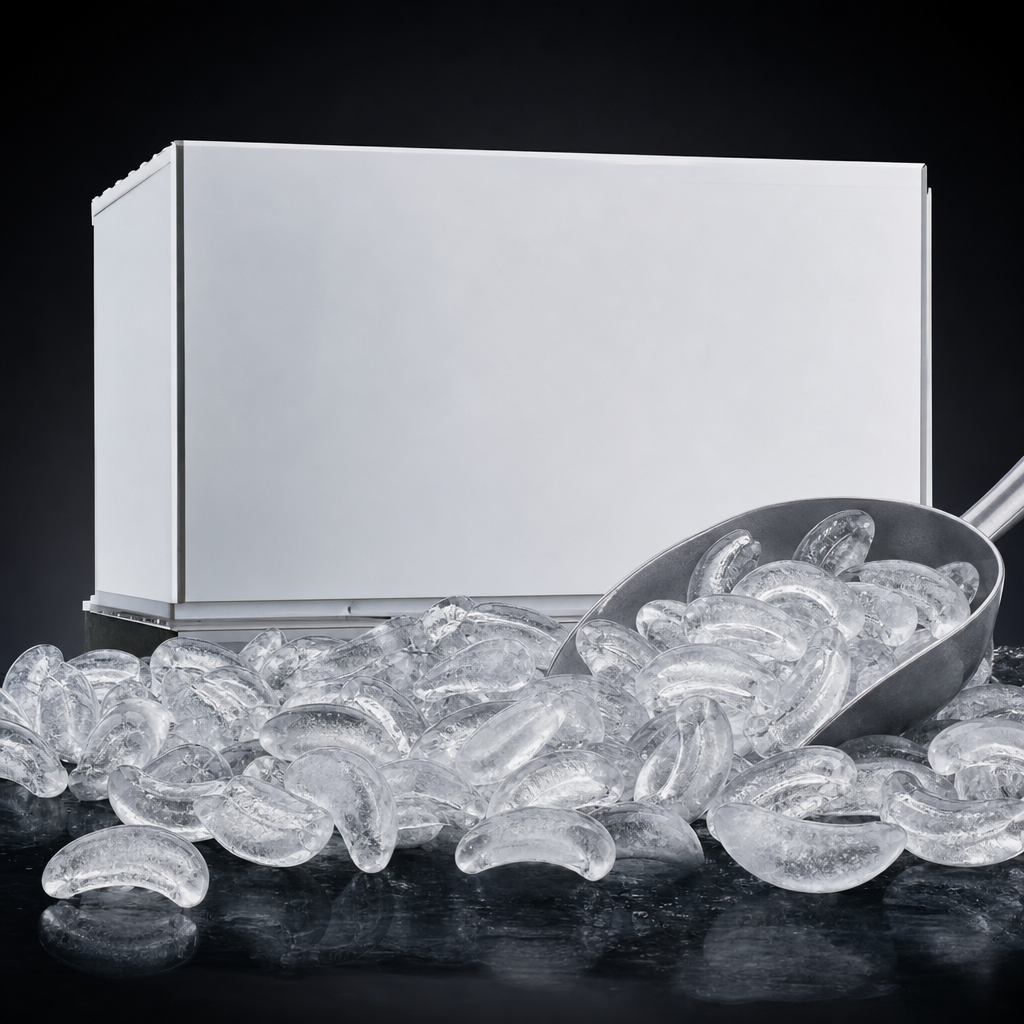

- Crescent cubes (≈ 1-1/8" × 1-1/2" × 1/2") stack tightly, displace more liquid and melt slowly.

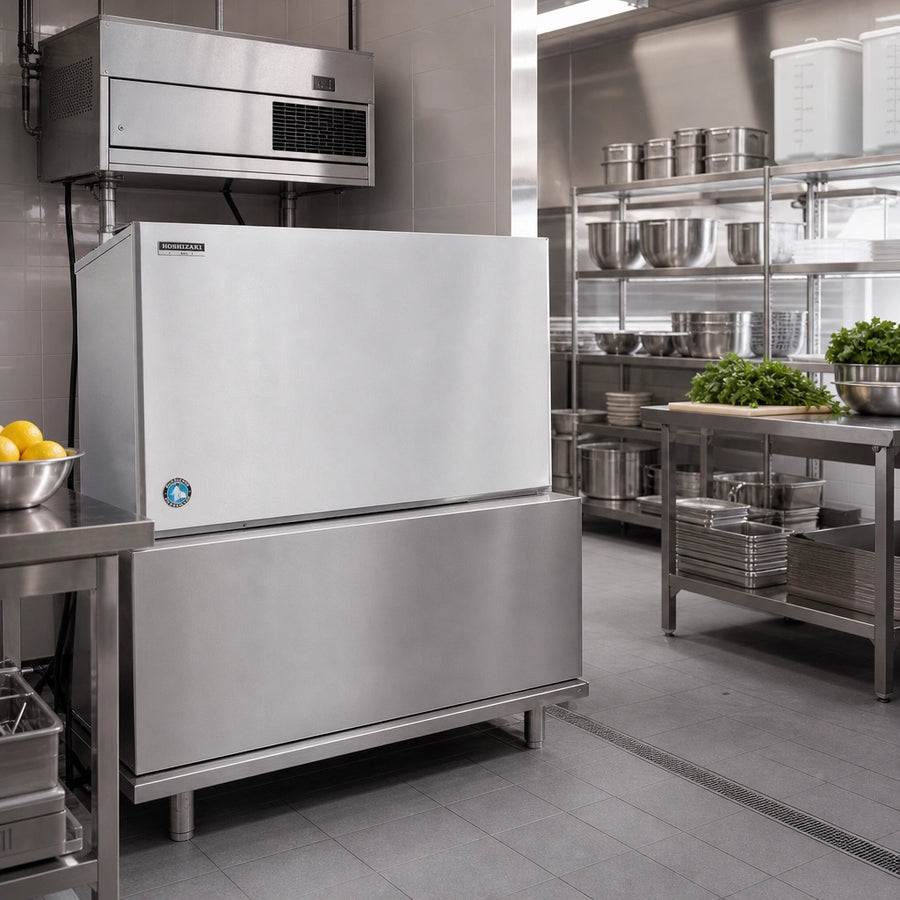

- Remote condenser keeps the kitchen cooler & quieter—ideal for customer-facing areas.
- Stackable: place two units on one bin for up to 2,866 lb/day in the same footprint.
- CycleSaver™ design cuts the number of harvest cycles in half for greater longevity.
- Dual-sided stainless steel evaporator maximises heat exchange and resists corrosion.
- H-GUARD Plus antimicrobial agent is built into key components to inhibit microbes.
- EverCheck™ alert system provides audible & visual service diagnostics
- Durable all-stainless exterior cleans easily and stands up to heavy commercial use.
- ENERGY STAR®, NSF & UL listed for efficiency, sanitation and safety.
Performance Data
| Ice production (70 °F air / 50 °F water) | 1,433 lb / 24 hr |
|---|---|
| Ice production (90 °F air / 70 °F water, AHRI) | 1,330 lb / 24 hr |
| Potable water usage | 14 gal / 100 lb of ice |
| Energy consumption | 3.83 kWh / 100 lb of ice |
| Heat rejection | 18,800 BTU/hr |
| Refrigerant | R-404A |
Electrical & Dimensions
| Voltage | 208-230 V / 60 Hz / 3-phase |
|---|---|
| Running amps | ≈ 10.7 A (20 A minimum circuit) |
| Unit size (W × D × H) | 48" × 27 3⁄8" × 27 3⁄8" |
| Shipping weight | ≈ 335 lb |
Installation Notes
- Pair only with URC-14FZ “Z-series” remote condenser and pre-charged line set (both sold separately).
- Clearance: 6" on rear, sides and top for service and air circulation.
- Water: 45–90 °F, 10–113 psi. • Ambient: 45–100 °F. • Voltage range: 187–253 V.
Warranty: 3 yr parts & labor on entire machine • 5 yr parts & labor on evaporator • 5 yr parts on compressor & condenser coil (U.S. & Canada).
