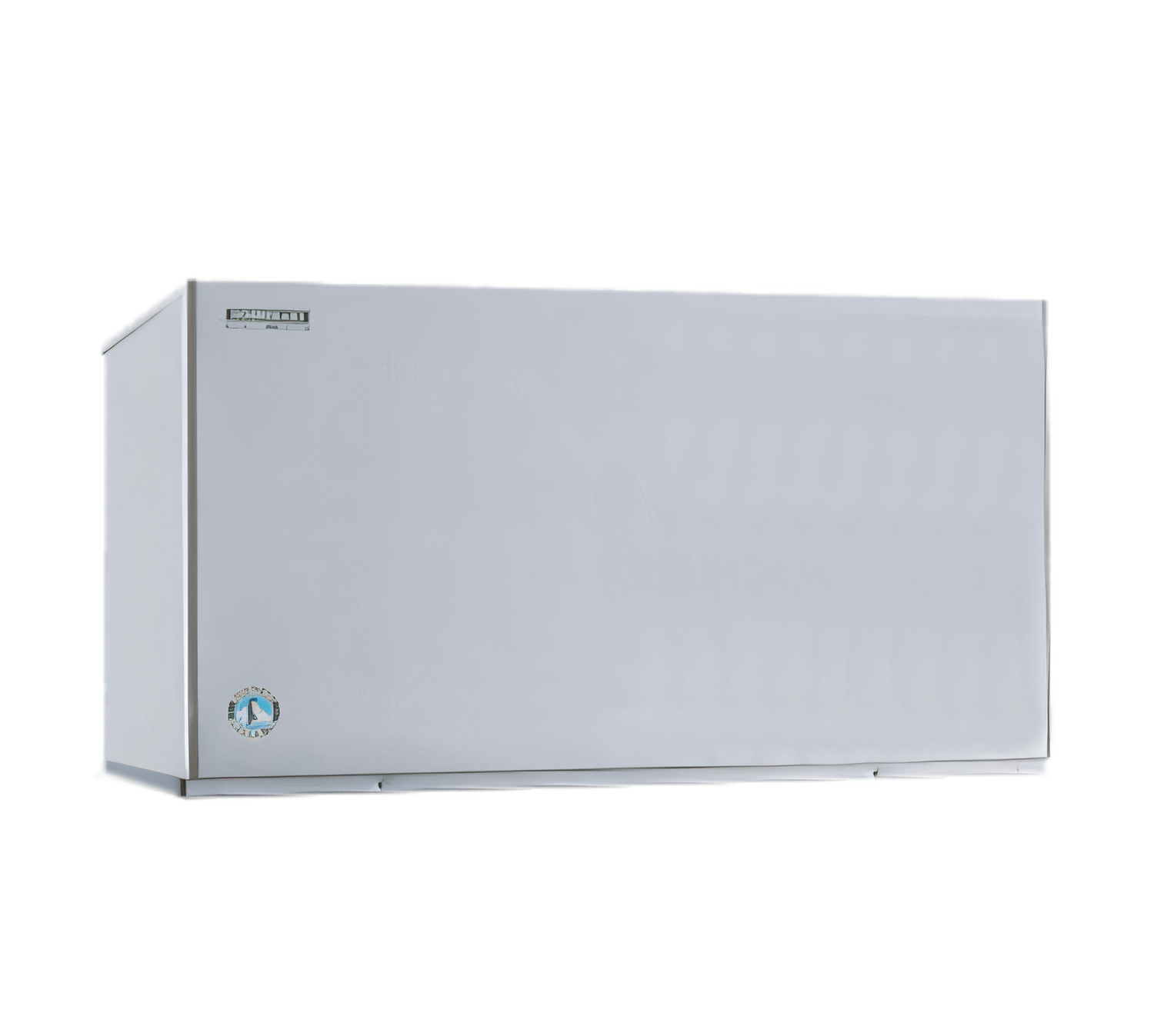

Hoshizaki KM-1301SRJZ 48-Inch Stackable Remote Air-Cooled Crescent Cube Ice Maker

Stainless Steel Finish; Remote Condenser Sold Separately

A high-output modular ice maker that produces crescent cubes and is designed to pair with a matching remote condenser for flexible installation.

  • Produces individual crescent cubes with up to 1,400 lb of ice per 24 hours; AHRI certified at 1,260 lb per 24 hours.
  • Remote air-cooled design uses a separate condenser, which is sold separately and must match the Z model.
  • Stackable construction can deliver up to 2,866 lb per 24 hours in the same floor space.
  • Stainless steel exterior and stainless steel evaporator support long-lasting durability.
  • CycleSaver™ design, EverCheck™ alerts, and H-GUARD Plus antimicrobial protection help support efficiency and maintenance.
  • Operates on 208-230V, 60 Hz, single-phase power with R-404A refrigerant.

Overall Dimensions:

48.0"W x 27.38"D x 27.38"H

Product Weight:

415.0 lb

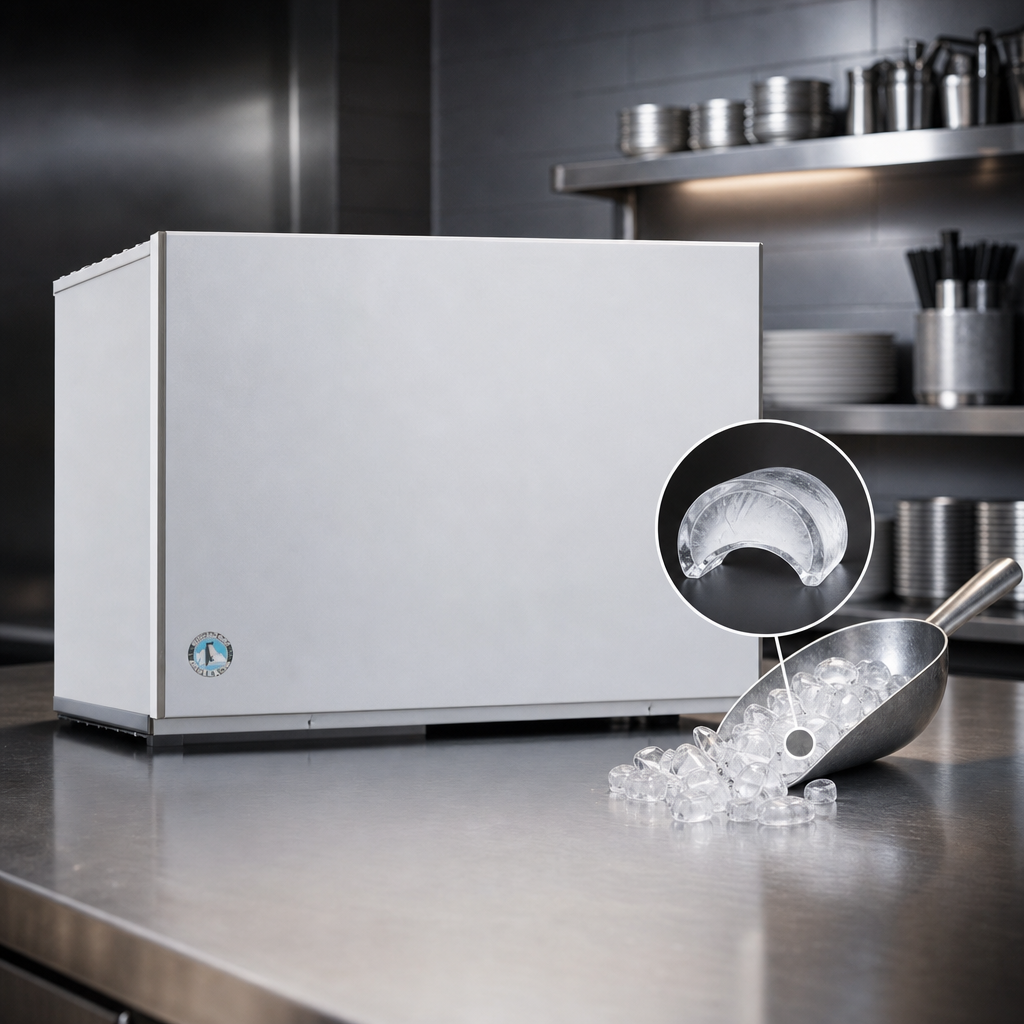

Individual Crescent Cube Production

Produces crescent-shaped cubes for consistent ice service and dispensing.

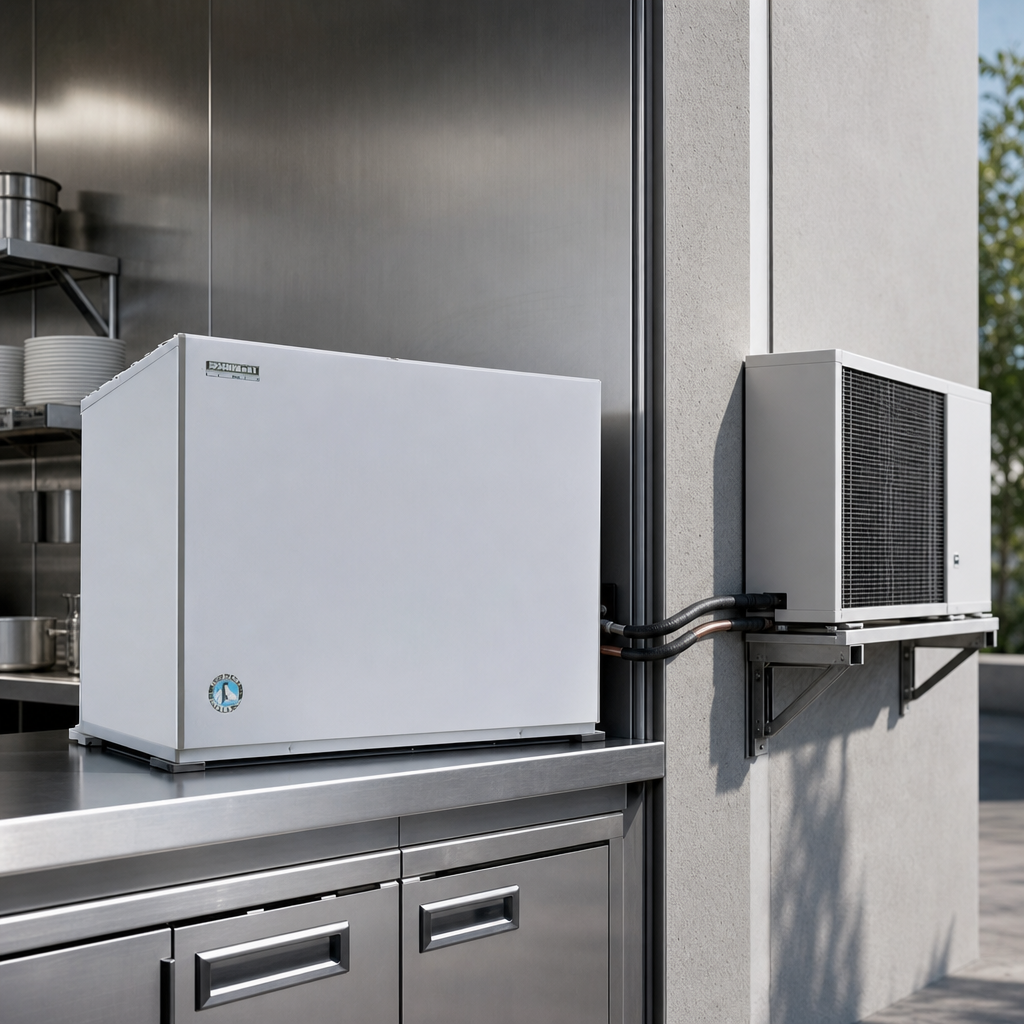

Remote Condenser Configuration

Uses a separate remote air-cooled condenser; the condenser is sold separately and should be matched with the Z model.

Stackable Design

Can be stacked to increase capacity to 2,866 lb of ice per 24 hours in the same footprint.

Stainless Steel Construction

Durable stainless steel exterior and stainless steel evaporator help resist wear in demanding kitchens.

CycleSaver™ Design

Supports efficient operation through optimized cycling.

EverCheck™ Alert System

Provides alerts to help monitor machine status and maintenance needs.

H-GUARD Plus Antimicrobial Protection

Protected surfaces include H-GUARD Plus antimicrobial agent for added hygiene support.

Service-Friendly Access

Panels are easily removed and components are accessible to simplify service and maintenance.

Type Ice Maker
Style Cube-Style
Installation Type Floor Model
Refrigeration Type Remote Air-Cooled
Refrigerant Type R-404A
Capacity 1,400 lb per 24 Hours
Material Stainless Steel
Finish Stainless Steel
Voltage 208-230 Volts
Amps 13.5 Amps
Hertz 60 Hz
Phase 1-Phase
BTU 18,900 BTU/hr
Water Connection Required
Drain Connection Required
Water Inlet Size 1/2 Inch FPT
Drain Connection Size 3/4 Inch NPT
Country of Origin USA
Shipping Weight 335 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

3-year parts and labor on the entire machine; 5-year parts and labor on the evaporator; 5-year parts on the compressor and air-cooled condenser coil.

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Ice maker calculator PDF Download PDF Kmedge cuber flyer PDF Download PDF Ice machine brochure PDF Download PDF Cleaning sheets PDF Download

Frequently Asked Questions

No. The remote condenser is sold separately, and the document lists the URC-14FZ for use with KM-1301SRJZ.
It produces individual crescent cubes.
Up to 1,400 lb per 24 hours at 70°/50°F, with 1,260 lb per 24 hours AHRI certified at 90°/70°F.
Yes. The stackable design allows up to 2,866 lb of ice production per 24 hours in the same floor space.
It operates on 208-230V, 60 Hz, single-phase power.
The document lists B-800, B-900, B-1150SS, B-1300SS, B-1500SS, and B-1650SS bins; a top kit may be required.
