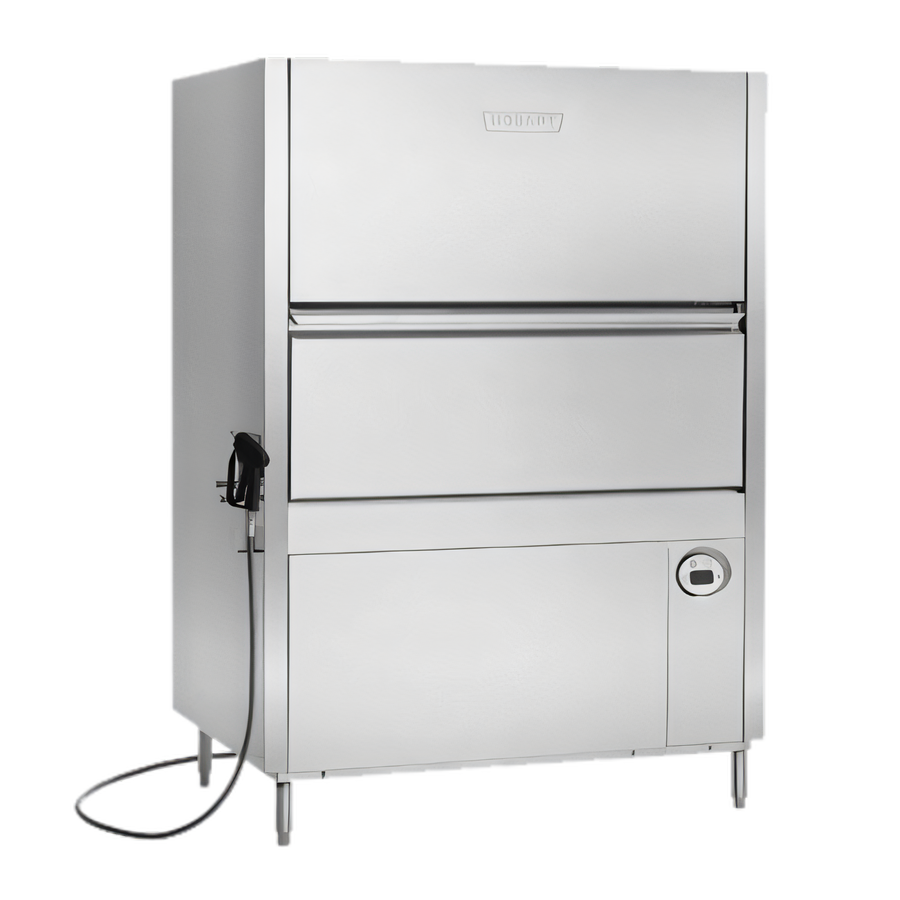

Hobart PW20 Pot, Pan & Utensil Washer

Front-Loading Split Door | 20-Pan Capacity | 480 V / 60 Hz / 3-Phase

The Hobart PW20 is purpose-built to blast through the toughest baked-on food soil while slashing water, energy and labour costs. Its cavernous chamber swallows up to twenty full-size sheet pans—or even a 140 qt mixing bowl—yet uses only 2.35 gallons of fresh water per cycle. With a built-in 70 °F-rise Sense-A-Temp™ booster, split-door loading and intuitive digital controls, the PW20 is the high-performance, ENERGY STAR® solution for bakeries, hotels, commissaries and institutional kitchens.

Key Advantages
  • High throughput: up to 20 racks/hour with adjustable 2, 4 or 6-minute cycles.
  • Industry-leading efficiency—just 2.35 gal of water per cycle.
  • Built-in Sense-A-Temp™ booster heater delivers a 180 °F sanitizing rinse without an external booster.
  • Front-loading split door accepts (20) sheet pans or a 140 qt bowl for ergonomic loading.
  • Over/under, anti-clogging rotating wash & rinse arms ensure full-coverage cleaning.
  • Delime notification & cycle plus advanced service diagnostics reduce downtime.
  • Microcomputer controls with real-time temperature readout for consistent results.
  • 16-gauge stainless tank, corrosion-resistant pump and pumped drain for long service life.
  • ENERGY STAR®, NSF, BISSC & cULus certified.
Included with Every Unit
  • (2) Tray racks (10 pans each)
  • (2) Flat grids
  • (1) Flat bottom rack
  • 12' pre-rinse spray hose
  • Factory-installed drain pump & vent-fan control wiring
Technical Specifications
Model PW20
Capacity 20 full-size (18" × 26") sheet pans or one 140 qt mixing bowl
Wash Cycle Options 2, 4 or 6 minutes
Racks per Hour 20 / 12 / 8 (respectively)
Water Use 2.35 gal per cycle | 47 gal per hour max
Wash / Rinse Temps 150 °F wash | 180 °F final rinse
Booster Heater Sense-A-Temp™ 16.4 kW, 70 °F rise (built-in)
Pumps 4 HP wash | 0.33 HP rinse
Electrical 480 V / 60 Hz / 3-Phase, 35 A (single-point connection)
Overall Dimensions* 55 5⁄8" W × 37 3⁄16" D × 91 7⁄8" H (door up)
Door Opening 49.61" W × 33.79" H
Rack Size 48.8" W × 27.615" D × 4.813" H
Tank Capacity 34 gal
Shipping Weight Approx. 705 lb
Certifications ENERGY STAR®, NSF, BISSC, cULus

*Allow 6" clearance on both sides for service access.

Looking for optional accessories such as a pressure regulator, drain-water tempering kit or additional racks? Contact us for factory-approved options.

Electrical & Plumbing Notice: The PW20 operates on 480 V / 3-phase power and requires hard-wiring by a licensed electrician. Professional plumbing is also required for hot water, drain and optional cold-water tempering connections. Install per local codes and Hobart specifications.

Overall Dimensions:

58.26"W x 37.2"D x 78.6"H

Product Weight:

705.0 lb
Manufacturer Hobart
Brand name Warewash
Certifications ["NSF", "cULus", "ENERGY STAR"]
Height 78.6in
Width 58.26in
Depth 37.2in
Shipping Weight 705.0lbs
Racks single
Load Design front
Rack Capacity approximately (20) racks/hour
Spray arms over/under rotating
Construction stainless steel
Energy Efficiency ENERGY STAR®
Specifications Pot/Pan/Utensil Washer, front loading with split door design, 480v/60/3, (20) pan capacity, over/under rotating arms, 2/4/6 minute adjustable timer, up to (20) racks/hour, includes: (2) flat grids, (2) tray racks & (1) flat bottom rack, pre-rinse spray hose, Delime Notification with Cycle, sanitizing with Sense-A-Temp™ 70° booster rise, vent fan control, drain pump, stainless steel construction, cULus, BISSC Certified, NSF, ENERGY STAR®

Certifications & Compliance

Certified badge of Energy Star Certified
Energy Star Certified
Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Terms & conditions PDF Download PDF Service terms & conditions PDF Download
