Hatco GRCDH-3P Glo-Ray® Hot Food Displays
Hatco GRCDH-3P Glo-Ray® Hot Food Displays is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Hatco GRCDH-3P Glo-Ray® Hot Food Displays
Description

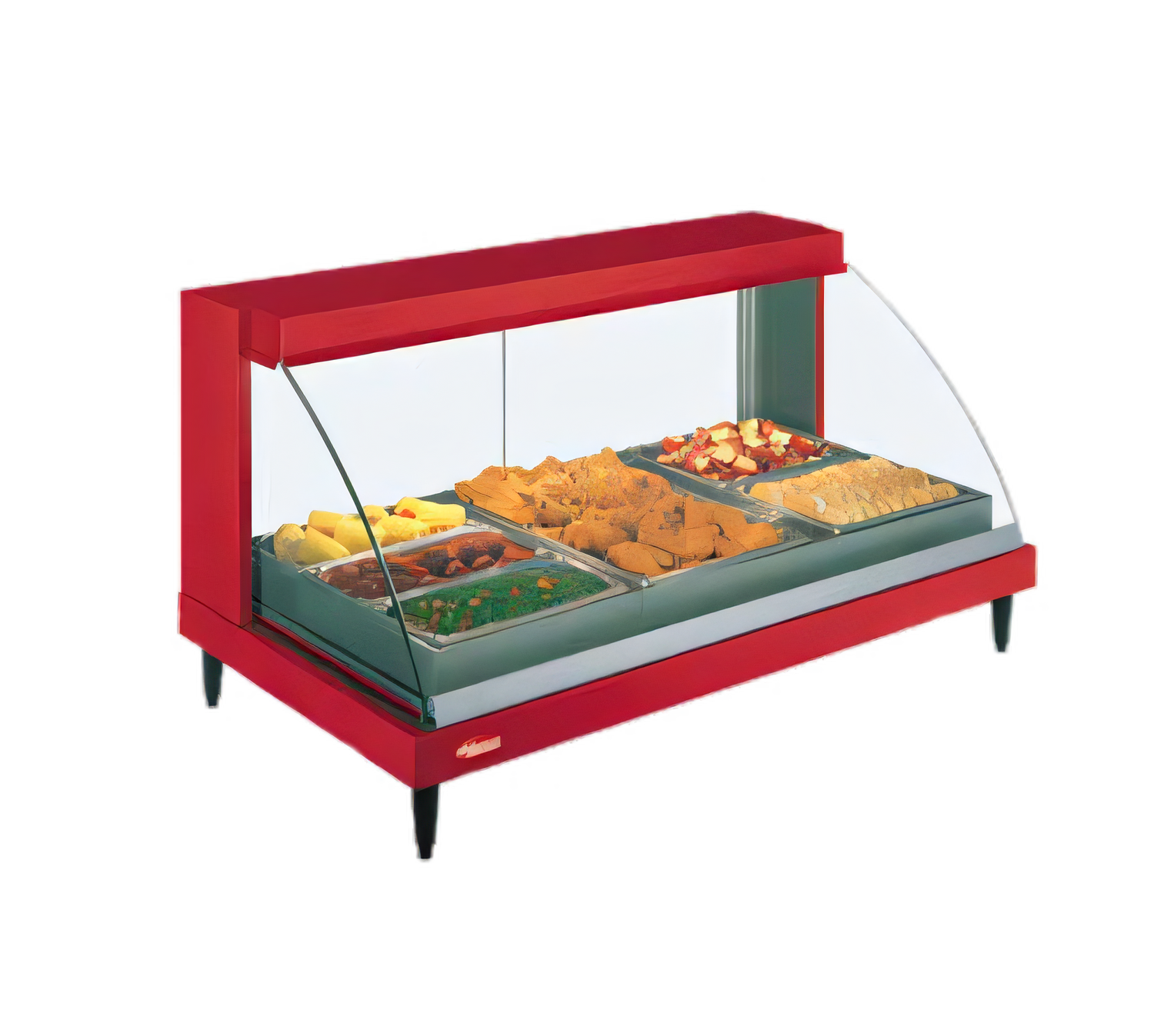

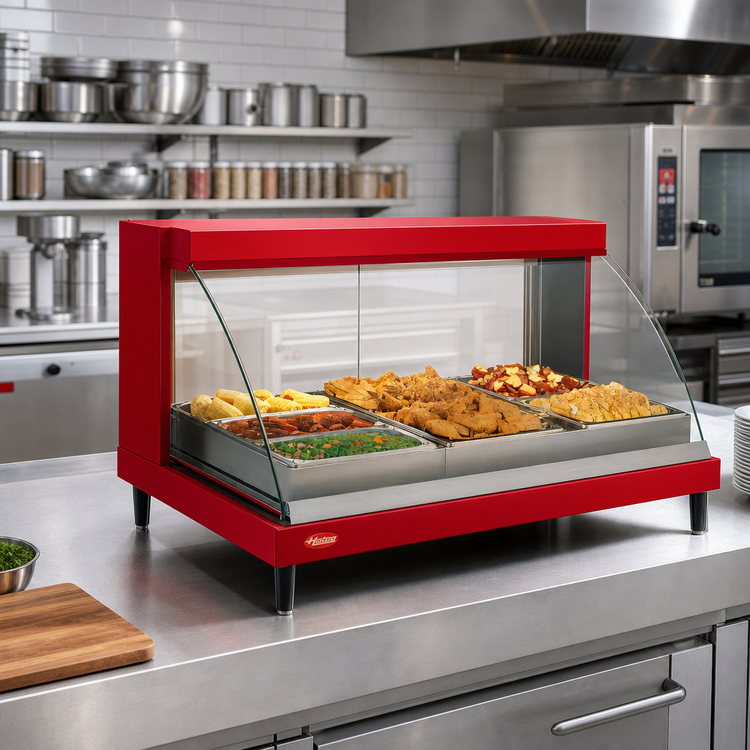

Glo-Ray® Designer Heated Display Case with Humidity – 3-Pan, Single Shelf
Hatco Model GRCDH-3P | 1255 W • 120 V • CountertopGive customers a crystal-clear view of your hottest menu items while you lock in moisture, flavor, and food-safe temperatures. Hatco’s curved-glass Glo-Ray® Designer Series couples pre-focused infrared top heat with a humidified heated base, so fried chicken, breakfast sandwiches, pizza slices, and other grab-and-go favorites stay “just-made” delicious for hours.
Why you’ll love it

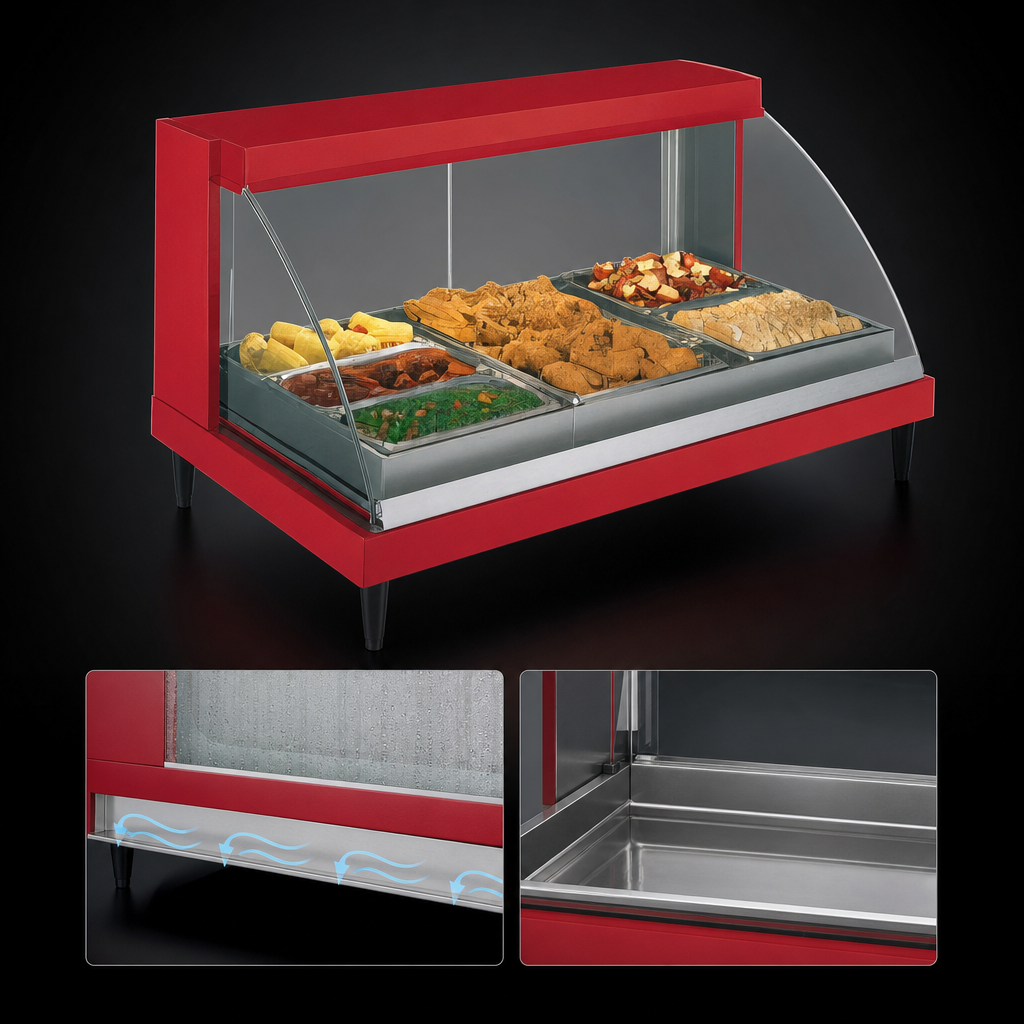

- Built-in humidity control (10–30 %) on the heated shelf prevents product shrinkage and keeps foods from drying out.
- Pre-focused infrared top heat directs energy to the outer edges—exactly where heat loss is greatest.
- Thermostatically-controlled base adjusts from 100 °F – 200 °F (38 °C – 93 °C) for precise holding.

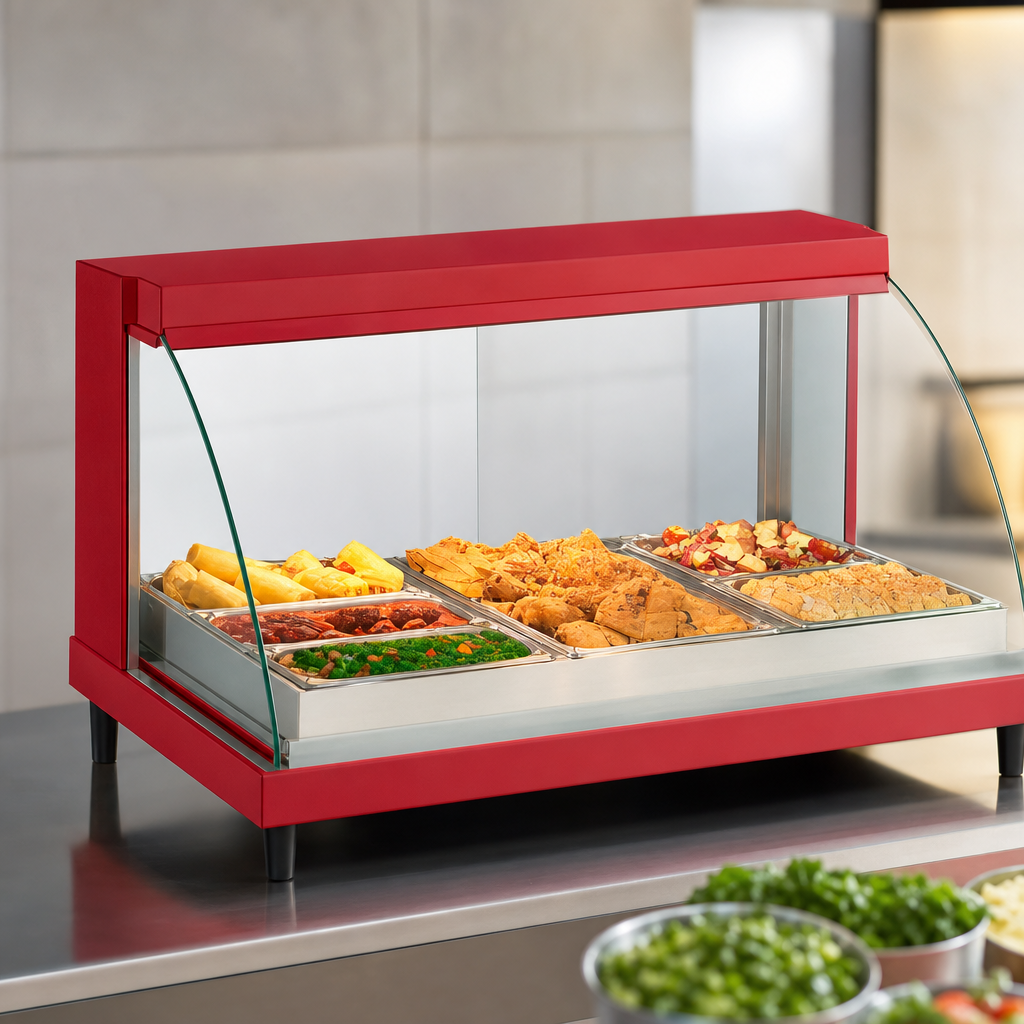

- High-visibility merchandising with curved tempered glass and three shatter-resistant incandescent display lights.
- Easy cleaning & access—the front glass panel hinges forward and the stainless-steel interior wipes down fast.
- Countertop ready with 4" (102 mm) adjustable legs and a factory-installed 6 ft cord & NEMA 5-15P plug.
- Customizable designer colors available at time of order to match your brand décor.
- cULus & UL EPH Classified for sanitation; Made in the USA.
Perfect for
- QSR & fast-casual front counters
- Convenience stores & travel plazas
- Cafeterias & corporate dining
- Stadium, arena & concession stands
Technical specifications
| Capacity | 3 full-size 12" × 20" steam-table pans (2.5" D recommended) |
|---|---|
| Shelf configuration | Single heated shelf with humidity, infrared top heat |
| Temperature range | 100 °F – 200 °F (38 °C – 93 °C) |
| Adjustable humidity | 10 % – 30 % RH (water pan on shelf) |
| Display lighting | 3 shatter-resistant incandescent bulbs |
| Exterior / Interior | Designer powder-coat (exterior), stainless steel (food zone) |
| Overall dimensions | 45.53" W × 26" D × 24" H (1156 × 660 × 610 mm, incl. legs) |
| Usable heated surface | 43" W × 21" D (1092 × 533 mm) |
| Electrical | 120 V, 1-phase, 10.5 A, 1255 W, NEMA 5-15P plug |
| Ship weight | ≈ 156 lb (71 kg) |
| Certifications | cULus, UL EPH Classified |
| Country of origin | USA |
Water supplied to the humidity pan must be softened to ≤ 3.0 gpg (0.75 g/L). Mineral build-up from untreated water is not covered by warranty.
