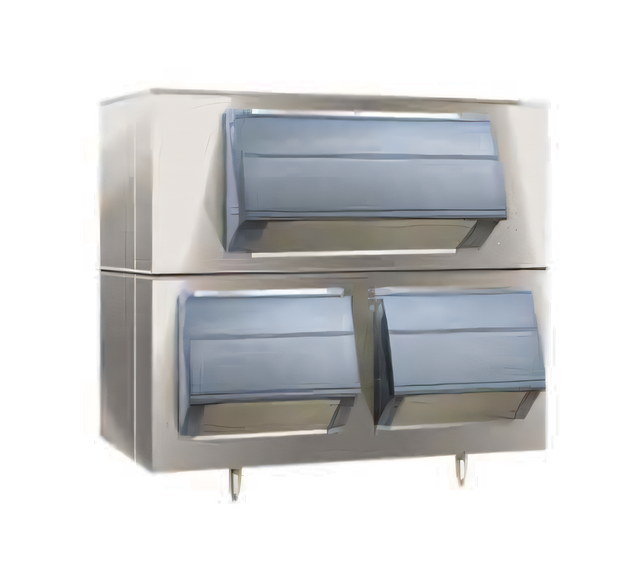

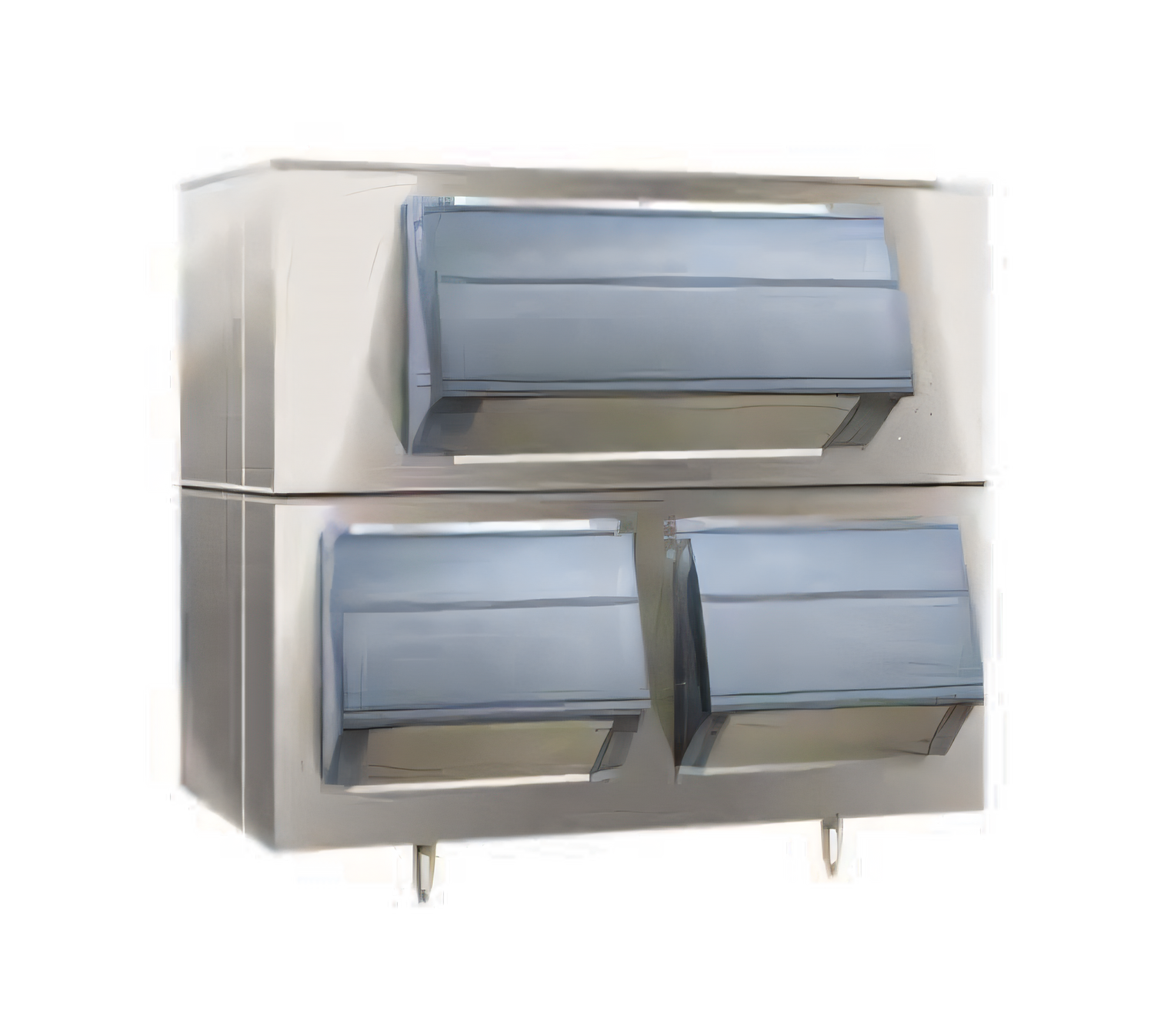

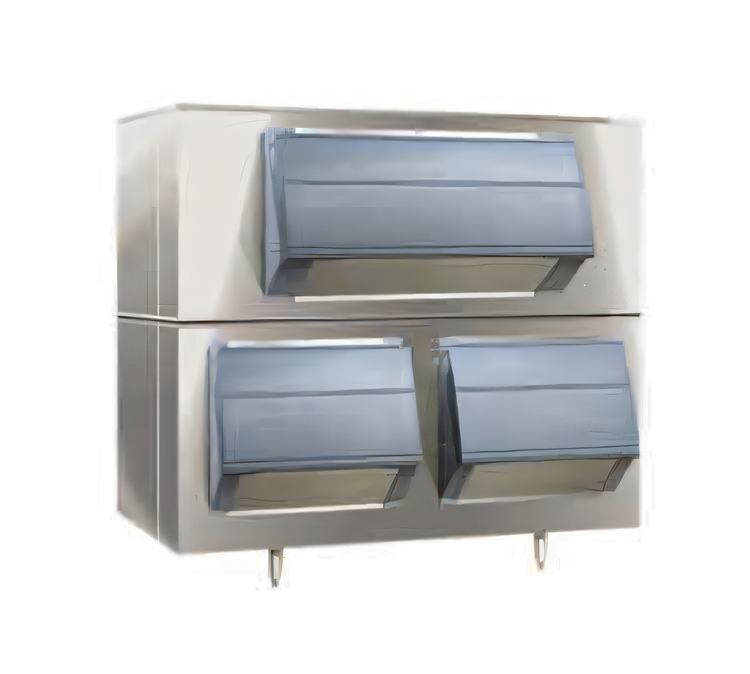

SmartGATE SG3900-72 Upright Double Door Ice Storage Bin, 3940 lb Capacity
SmartGATE SG3900-72 Upright Double Door Ice Storage Bin, 3940 lb Capacity
72-Inch Wide, Stainless Steel Exterior, Polyethylene Liner
Experience superior hygiene and efficiency in ice management with the SmartGATE SG3900-72 ice storage bin, designed for safer, more sanitary, and controlled ice access.
- Industry-exclusive SmartGATE ice shield controls ice flow, reducing spills and limiting contact for enhanced sanitation.
- Robust construction with a full stainless steel exterior and a corrosion-resistant polyethylene bin liner ensures long-lasting durability.
- Features heavy-duty PowerHinge™ doors that stay open, allowing for easy one-hand operation without door catches.
- Compatible with various ice types, including cube, flake, and Chewblet ice, offering versatile usage.
- Designed for easy installation with a removable front door assembly to fit through narrow doorways.
- Includes a custom-cut stainless steel top ready for your specific ice machine and an 82 oz plastic ice scoop.

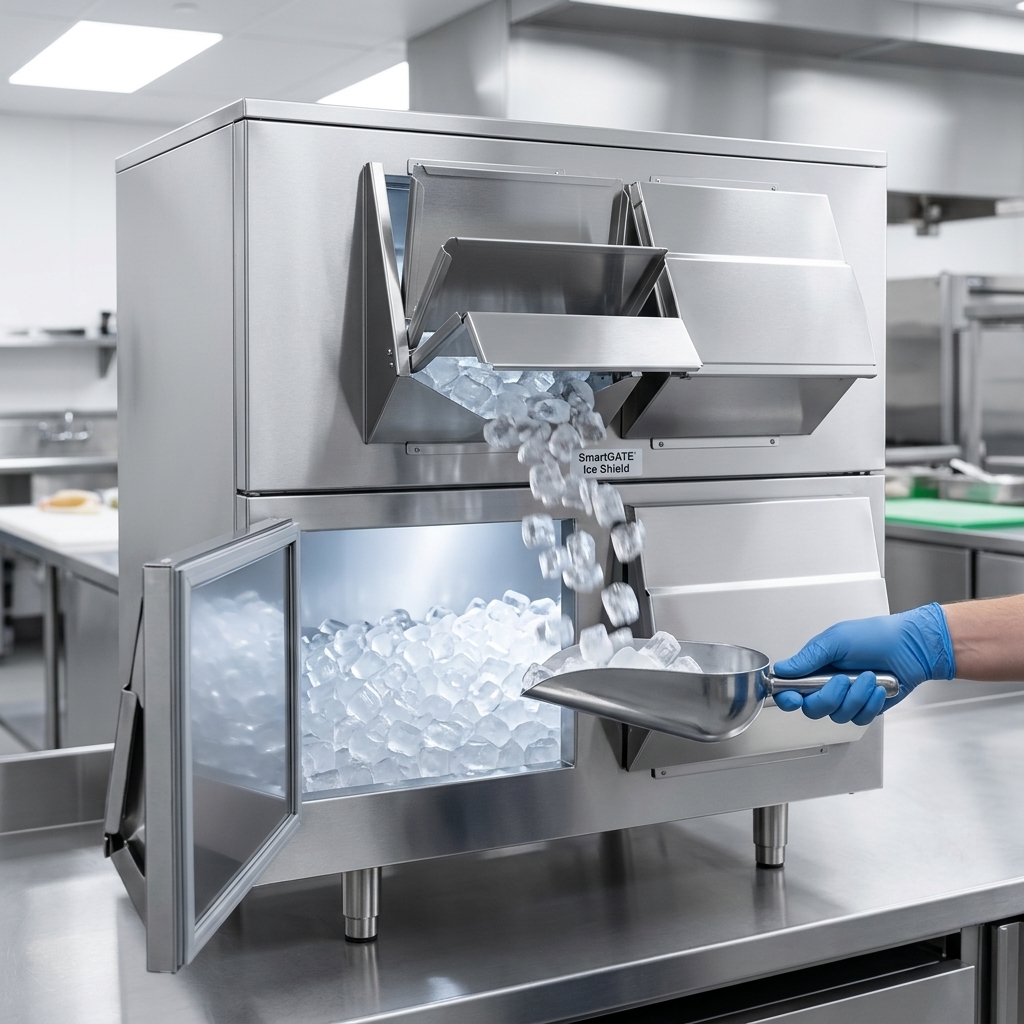

SmartGATE Ice Shield
An industry-exclusive feature that controls the flow of ice, significantly reducing spills and limiting contact with ice for improved hygiene. It locks in three positions and returns easily to the full down position, even when the bin is full, providing better access to safely loosen congealed ice.

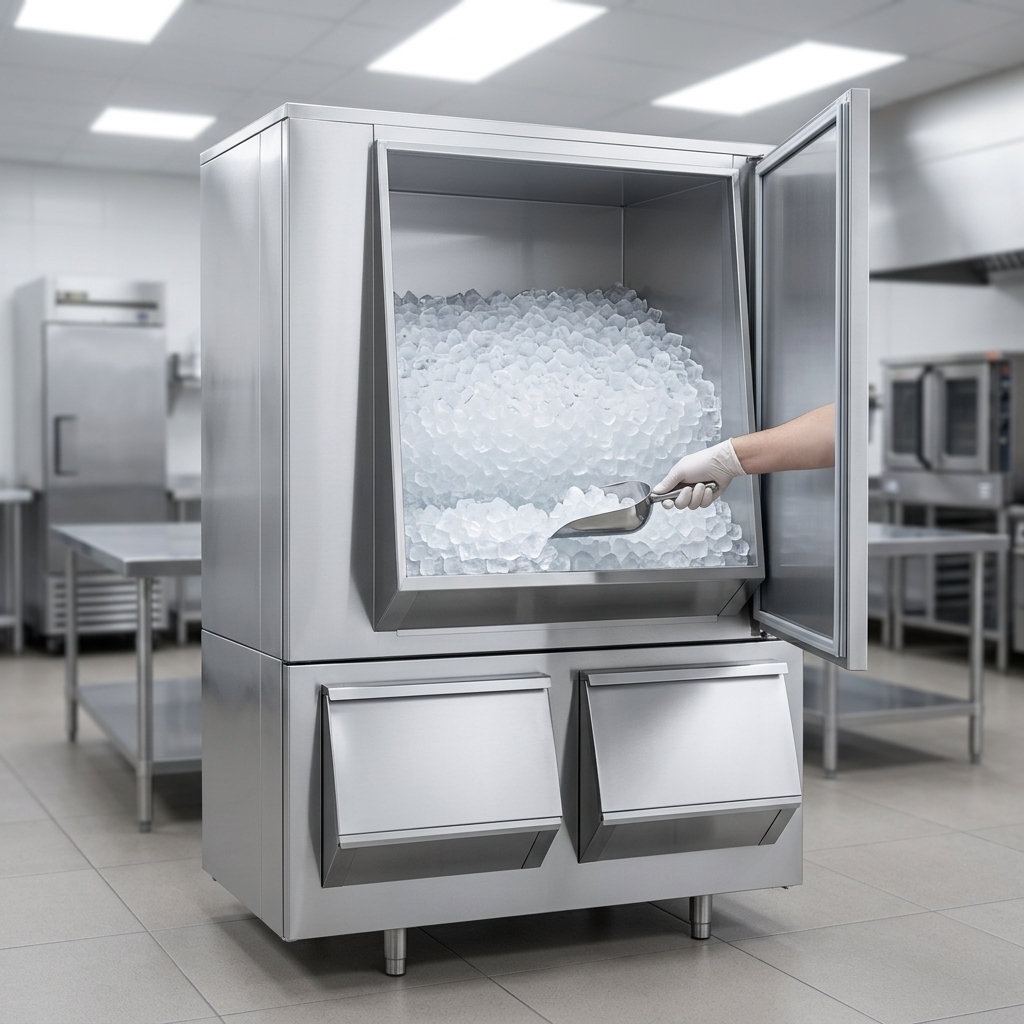

First-Ice-In, First-Ice-Out Design
Ensures that the oldest ice is dispensed first, promoting fresher ice for your customers and operations.

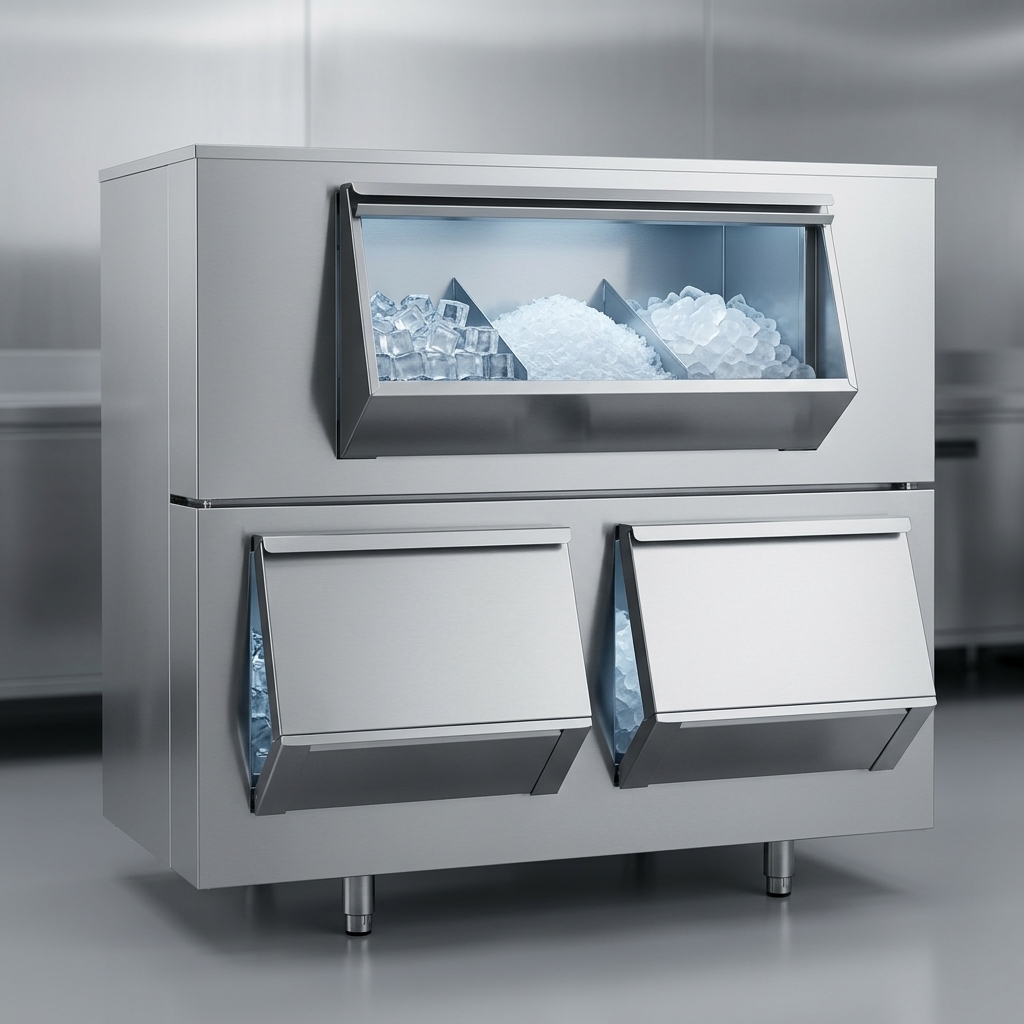

Broad Ice Compatibility
Designed to be compatible with cube ice, flake ice, and customer-preferred Chewblet ice, offering flexibility for various ice needs.
Durable Stainless Steel Exterior
The entire bin cabinet features a full stainless steel exterior, providing robust protection and a professional appearance that stands up to demanding commercial environments.
Corrosion-Resistant Polyethylene Bin Liner
The interior liner is made from a high-quality polyethylene material, which resists corrosion and ensures a long lifespan for the bin's internal components.
Heavy-Duty PowerHinge™ Doors
Equipped with heavy-duty 'stay-open' PowerHinge™ door hinges, allowing for easy one-hand opening and closing without the need for door catches. The molded-in gasket never needs to be replaced, simplifying maintenance.
Easy Installation
The bin comes assembled, requiring only the legs to be screwed in. The front door assembly can be easily removed to facilitate installation through standard doorways, saving time and labor.
Custom-Cut Stainless Steel Top
Includes a stainless steel top that is custom-cut to perfectly fit your ice machine, ensuring a seamless and efficient ice production setup.
Adjustable Legs
The bin is supported by 6.00-inch legs that are adjustable up to 7.25 inches, allowing for precise leveling and height adjustment.
CARB Compliant Insulation
Features CARB compliant non-HFC foam insulation, bonded to the shell and liner for added structural strength and energy efficiency.
Specifications
| Capacity | 3940 lb |
|---|---|
| Cubic Volume | 125.10 cu ft |
| Material | Stainless Steel |
| Interior Finish | Polyethylene |
| Installation Type | Floor Model (With Adjustable Legs) |
| Style | Upright Double Door |
| Ice Compatibility | Cube, Flake, Chewblet |
| Drain Connection Size | 1.00" FPT |
| Bin Sill Height | 19.00 Inches |
| Required Door Access | 44.00 Inches |
| Country of Origin | USA |
| Selling Unit | Each |
| Units Per Case | 1 |
| Shipping Width | 72.0 Inches |
| Shipping Depth | 48.0 Inches |
| Shipping Height | 82.0 Inches |
| Shipping Weight | 835.0 lb |
Overall Dimensions:
72.0"W x 48.0"D x 81.5"HProduct Weight:
835.0 lbCertifications & Compliance
Warranty & Protection
5 years parts and labor on cabinet exterior
