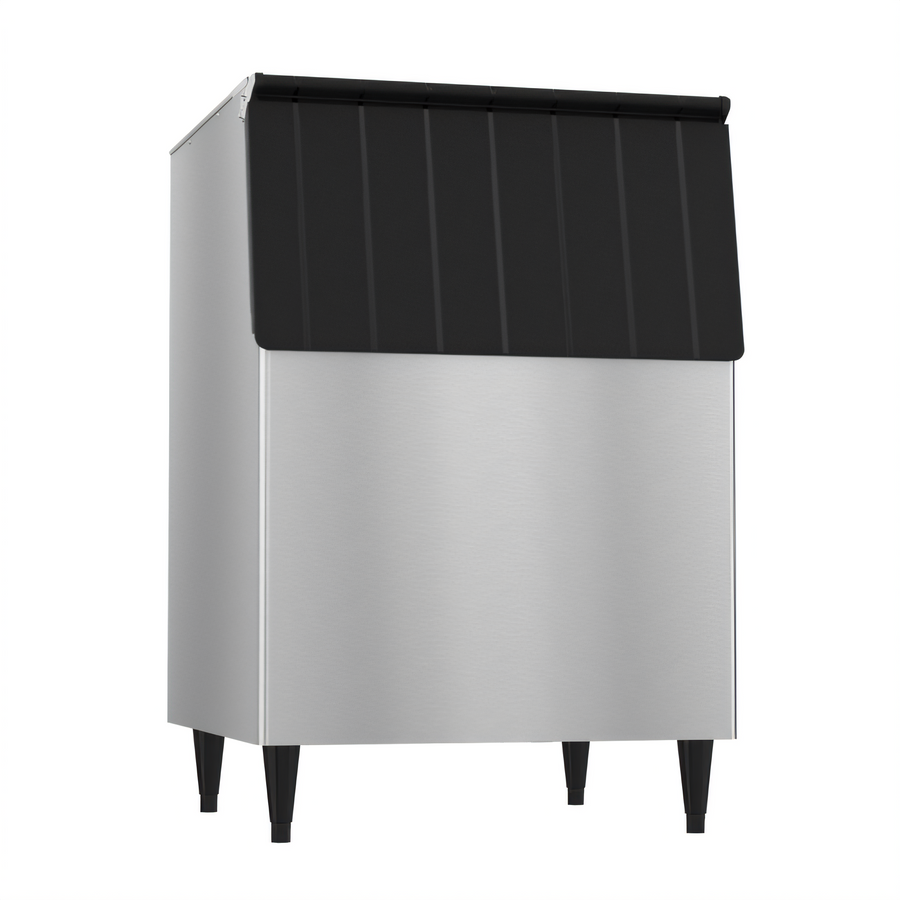

Hoshizaki B-500SF 500-lb Ice Storage Bin
30″ stainless-steel bin with top-hinged door | H-GUARD Plus antimicrobial protectionBuilt for busy bars, restaurants, and institutions, the Hoshizaki B-500SF keeps up to 500 lb of ice sanitary, cold, and ready to scoop. Pair it with any 30″ Hoshizaki modular ice maker for a compact, high-capacity solution that looks as good as it performs.
Key features & benefits
- 500 lb application storage capacity—ideal companion for most 30″ Hoshizaki ice heads.
- Top-hinged, front-opening door stays open for hassle-free one-handed scooping.
- Durable stainless-steel exterior resists corrosion and dents for a long-lasting, professional appearance.
- Seamless polyethylene liner is easy to wipe clean and is protected by H-GUARD Plus Antimicrobial Agent to inhibit bacterial growth.
- Foamed-in-place polyurethane insulation in every wall and the base preserves ice longer and reduces energy loss.
- Includes four 6″ painted, adjustable legs for quick leveling on uneven floors.
- Side-by-side or stacked installation ready—perfect for expanding operations.
- ETL & ETL-Sanitation listed to meet health-code requirements right out of the box.
Compatible 30″ Hoshizaki ice machines
The B-500SF accepts most 30″ modular ice makers with no top kit required, including:
- KM-901M, KM-1100M, KM-1340M, KM-1601M crescent-cube makers
- KMD-355M, KMD-505M, KMD-705M flake/nugget makers
- KMD-530M, KMD-860M cubers
- IM-500S square-cube maker
Need to mate a narrower ice head? 4″–22″ ABS top kits are available.
Specifications
| Model | B-500SF |
|---|---|
| Ice storage capacity | 500 lb (226.8 kg) |
| Exterior dimensions (W × D × H) | 30″ × 32.3″ × 46″ (height includes 6″ legs) |
| Interior dimensions (W × D × H) | 27″ × 27.7″ × 37.6″ |
| Cubic volume | 16.33 ft³ |
| Drain connection | ¾″ FPT (rear) |
| Shipping weight | 140 lb |
| Certifications | ETL & ETL-Sanitation |
| Warranty | 3-year parts & labor (units produced Jan 2012 & later) 2-year parts & labor (prior to Jan 2012) |
What’s in the box
- Hoshizaki B-500SF ice storage bin
- (4) 6″ painted, adjustable legs
- Installation & user manual
Popular accessories (sold separately)
- ABS top kits: 4″, 8″, 14″, and 22″ heights
- Bin flanged legs for under-counter anchoring
- Seismic or anchored leg kits for code-compliant installs
- Stainless-steel cover/separator to protect stored ice while idle
Capacity based on 30 lb / ft³ average ice density. Ice maker heads and scoop sold separately.
Please note: This item is Scratch & Dent — Open-box/returned item. Fully tested, all parts included, repackaged for resale. Final sale. Limited warranty.
Quantities are limited on scratch and dent items. To ensure your item is still available, please call us before ordering.
