Follett Products, LLC (Middleby) Maestro Plus D414AT Top-Mount Air-Cooled Self-Contained Nugget Ice Machine, 425 lb/24 hr

SKU: D414AT
$6,696.00
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

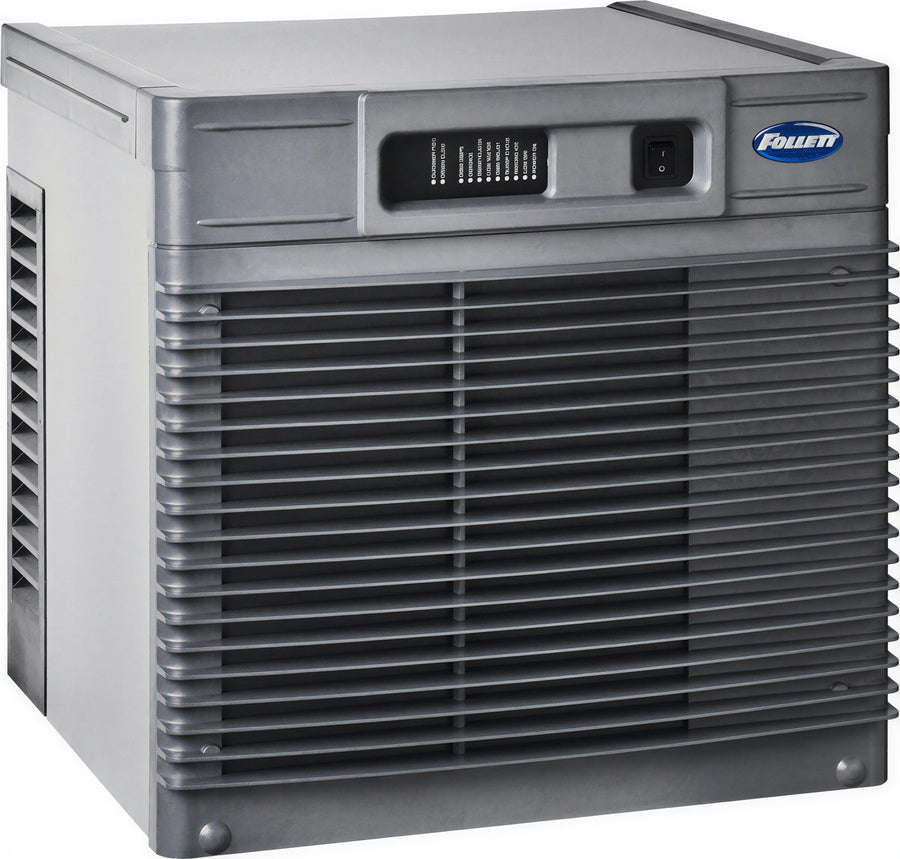

The Follett Maestro Plus D414AT is an air-cooled, self-contained ice machine for top-mount installations. It produces up to 425 lb (193 kg) of Chewblet nugget ice in 24 hours.

  • Operates at 115 V/60 Hz/1 phase with a 15 amp circuit requirement.
  • Uses R290 refrigerant.
  • Features a stainless steel evaporator, auger and top bearing.
  • Automatic self-flushing helps remove impurities from the ice machine.
  • An LED control board provides at-a-glance machine status.
  • For indoor use only.

Overall Dimensions:

22.7"W x 24.25"D x 21.25"H

Product Weight:

170.0 lb

Top-mount installation

Designed for top-mount installations and fits on 22 in wide dispensers or bins.

Chewblet nugget ice

Produces Chewblet nugget ice.

Ice production

Produces up to 425 lb (193 kg) of ice per 24 hours at 70°F air and 50°F water.

Air-cooled self-contained refrigeration

Uses an air-cooled condenser with self-contained refrigeration.

Electrical operation

Operates at 115 V/60 Hz/1 phase, with a 7.2 amp draw, 15 amp circuit requirement and NEMA 5-15 plug.

Stainless steel ice-making components

Includes a stainless steel evaporator, auger and top bearing.

Automatic self-flushing

Automatic self-flushing removes impurities from the ice machine.

LED control board

Provides at-a-glance machine status.

Maintenance and sanitation

Cleaning and sanitizing of the entire machine takes less than 1 hour.

Quiet ice production

Operates without noisy harvest cycles.

Related Searches

Best Sellers Commercial Ice Makers Cut Resistant Gloves Follett Products, LLC (Middleby) Ice Machines Ice Machines & Handling Ice Makers & Bins Ice Production Equipment Kitchen Knives New Arrivals Refrigeration & Ice Smallwares
Ice type Chewblet nugget ice
Condenser Air-cooled
Refrigeration Self-contained
Rated ice production 425 lb (193 kg) per 24 hours at 70°F air and 50°F water
Ice production at 90°F air and 70°F water 340 lb (154 kg) per 24 hours
Electrical 115 V/60 Hz/1 phase
Current draw 7.2 A
Required circuit 15 A
Power cord and plug 7 ft cord with NEMA 5-15 plug
Refrigerant R290, 3.49 oz (99 g)
Water inlet 3/8 in FPT
Drain 3/4 in MPT
Operating air temperature 50–100°F (10–38°C)
Operating water temperature 45–90°F (7–32°C)
Potable water pressure 10–70 psi (69–483 kPa)
Energy consumption 5.4 kWh per 100 lb (45.4 kg) of ice at 90°F air and 70°F water
Heat rejection 5,000 BTU/hr (1,260 kcal/hr)
Water consumption 12.0 gal (45.4 L) of potable water per 100 lb (45.4 kg) of ice; 12.5 gal (47.3 L) at standard flush setting
Service clearance 12 in (30.5 cm) above, with no front obstructions
Approximate net weight 150 lb (68 kg)
Approximate shipping weight 170 lb (77 kg)
Installation environment Indoor use only

Certifications & Compliance

Certified badge of Energy Star Certified
Energy Star Certified
Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

3 years parts and labor; 5 years compressor parts.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The D414AT produces Chewblet nugget ice.
It produces up to 425 lb (193 kg) per 24 hours at 70°F air and 50°F water. Production is 340 lb (154 kg) per 24 hours at 90°F air and 70°F water.
The machine is 22.70 in wide, 24.25 in deep and 21.25 in high.
The D414AT requires 115 V/60 Hz/1 phase service, draws 7.2 amps and requires a 15 amp circuit. It has a 7 ft cord with a NEMA 5-15 plug.
Yes. It has an air-cooled condenser and self-contained refrigeration.
The water inlet is 3/8 in FPT and the drain is 3/4 in MPT.
No. The product is specified for indoor use only.
The warranty is 3 years for parts and labor, with 5 years for compressor parts.
