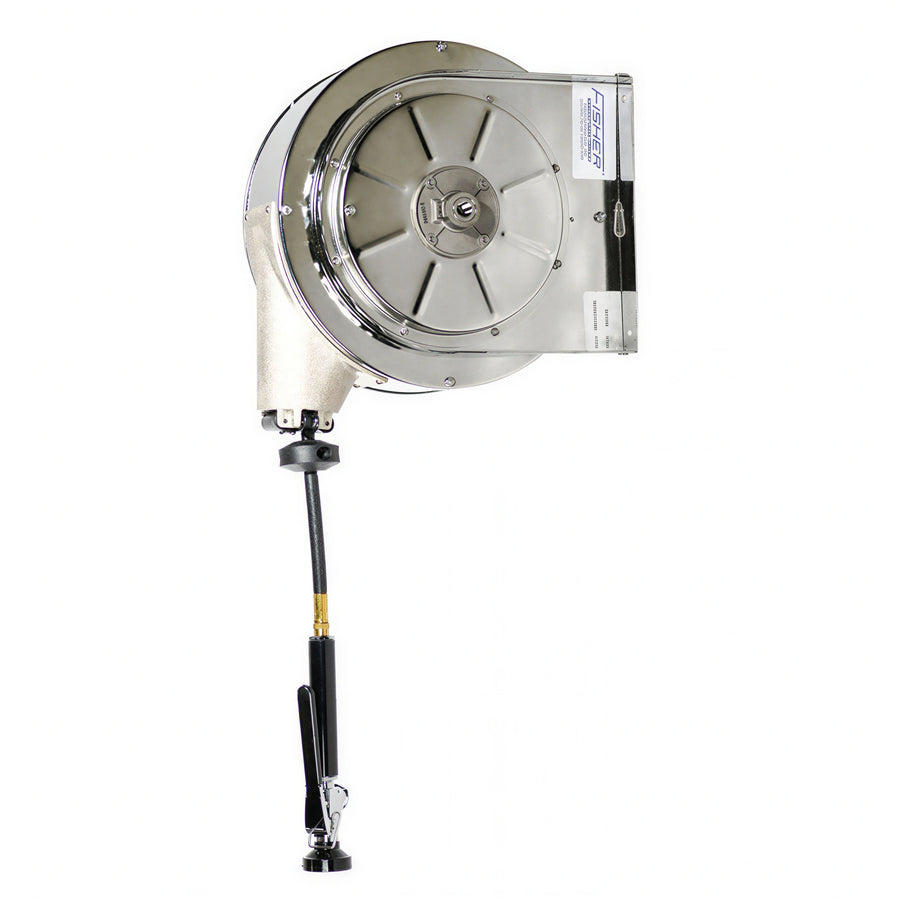

Play manufacturer video for Fisher 75221 Wall-Mounted Enclosed Stainless Steel Hose Reel Assembly with 30-ft HoseFisher 75221 Wall-Mounted Enclosed Stainless Steel Hose Reel Assembly with 30-ft Hose
SKU: 75221
$2,654.64
Free Shipping
The Fisher 75221 is a wall-mounted hose reel assembly with an enclosed stainless steel reel and a 30-foot, 3/8-inch ID, 3-ply hose.
- Self-locking reel with adjustable ball stop
- Includes a 2.65 gpm spray valve
- Features an 18-inch inlet hose with a 1/2-inch NPT female connection
- Rated for up to 200 psi working pressure and 160°F water temperature
Overall Dimensions:
7.0"W x 14.38"DProduct Weight:
34.0 lbEnclosed stainless steel reel
The reel uses an enclosed design with a stainless steel finish.
Wall mounting
The assembly is designed for wall mounting.
30-ft hose
Includes a 30-foot hose with a 3/8-inch inside diameter and 3-ply construction.
Self-locking operation
The reel is self-locking.
Adjustable ball stop
The hose includes an adjustable ball stop.
Spray valve
The assembly includes a 2.65 gpm spray valve.
Pressure and temperature limits
The specified limits are 200 psi working pressure and 160°F water temperature.
Inlet hose
Includes an 18-inch inlet hose with a 1/2-inch NPT female connection.
Product Type
Hose reel assembly
Mount
Wall
Casing
Enclosed
Hose Reel Finish
Stainless steel
Hose Length
30 ft
Hose Inside Diameter
3/8 in
Hose Construction
3-ply
Spray Valve Flow Rate
2.65 gpm
Reel Lock
Self-locking
Ball Stop
Adjustable
Working Pressure
200 psi
Maximum Water Temperature
160°F
Inlet Hose Length
18 in
Inlet Connection
1/2 in NPT female
Documents
Frequently Asked Questions
Yes. The 75221 is a wall-mounted hose reel assembly.
The included hose is 30 feet long.
It uses an enclosed stainless steel reel with self-locking operation.
The spray valve is rated at 2.65 gpm.
The specified limits are 200 psi working pressure and 160°F water temperature.
