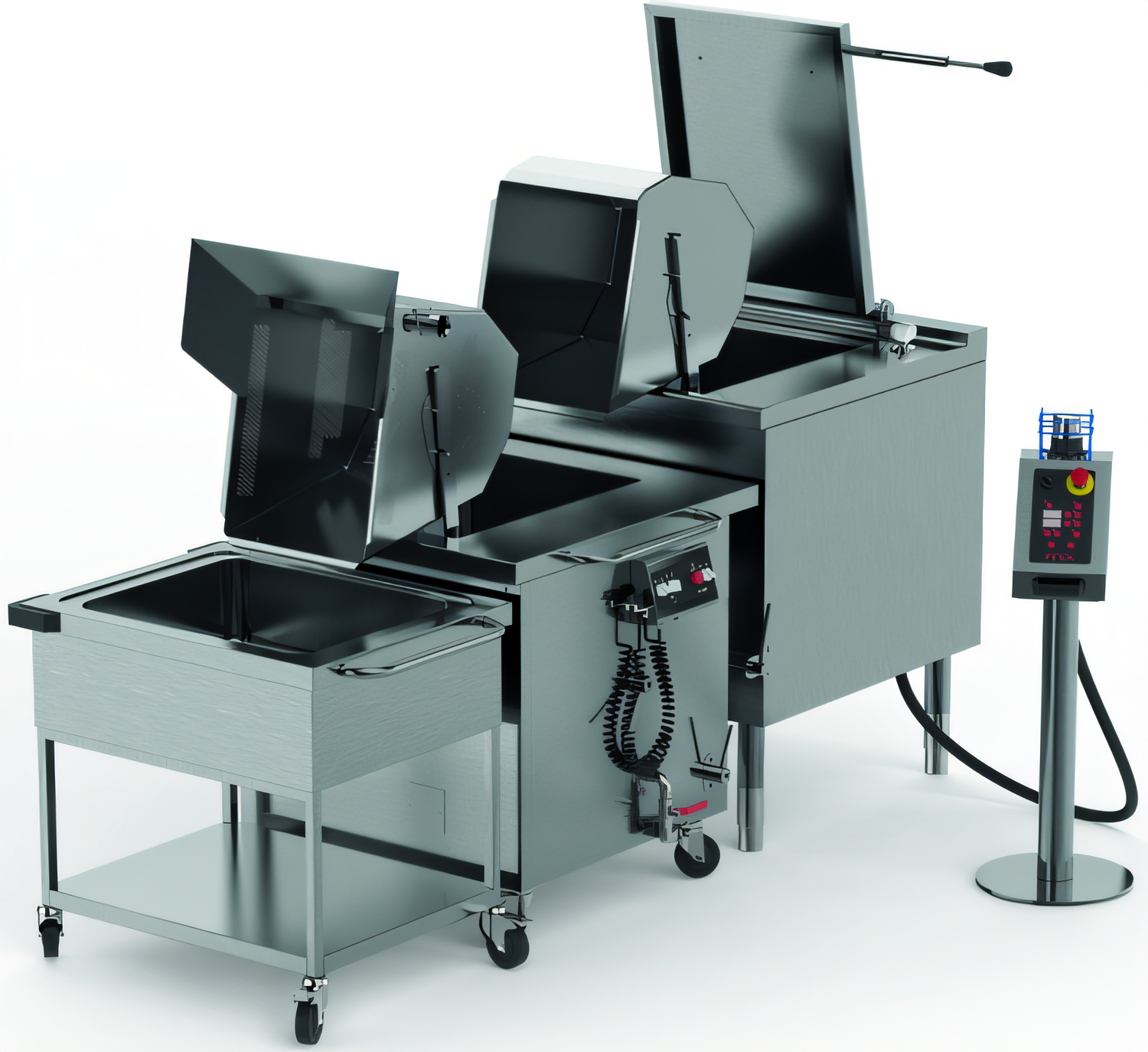

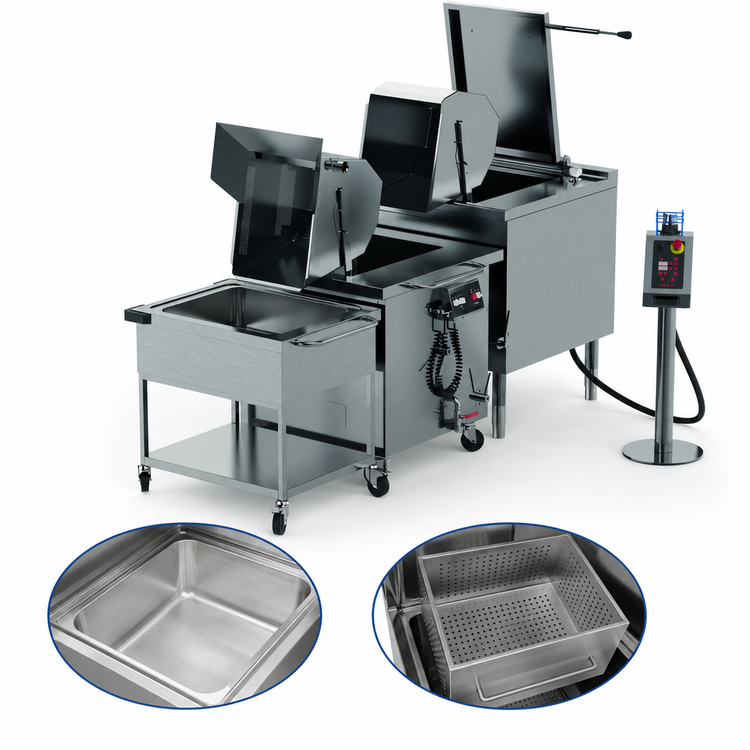

Firex ULPCE1-64 64 Gallon Electric Cook & Blanche Multicooker with Chilling Vat
Firex ULPCE1-64 64 Gallon Electric Cook & Blanche Multicooker with Chilling Vat
Single Basin, Programmable Touch Screen Controls, Floor Model
This electric cook & blanch multicooker streamlines high-volume food preparation with automated cooking, blanching, and chilling capabilities in one integrated system.
- Large 64-gallon capacity ideal for high-volume commercial kitchens.
- Automated cooking and blanching with precise programmable electronic controls and a 7-inch touch screen.
- Integrated system includes an automatic cooker and a mobile chilling vat for efficient workflow.
- Durable AISI 304 and AISI 316 stainless steel construction ensures longevity and hygiene.
- Features automatic basket lifting, water filling, and starch skimming for ease of use.
- IPX5 protection level for enhanced safety and cleaning convenience.
Overall Dimensions:

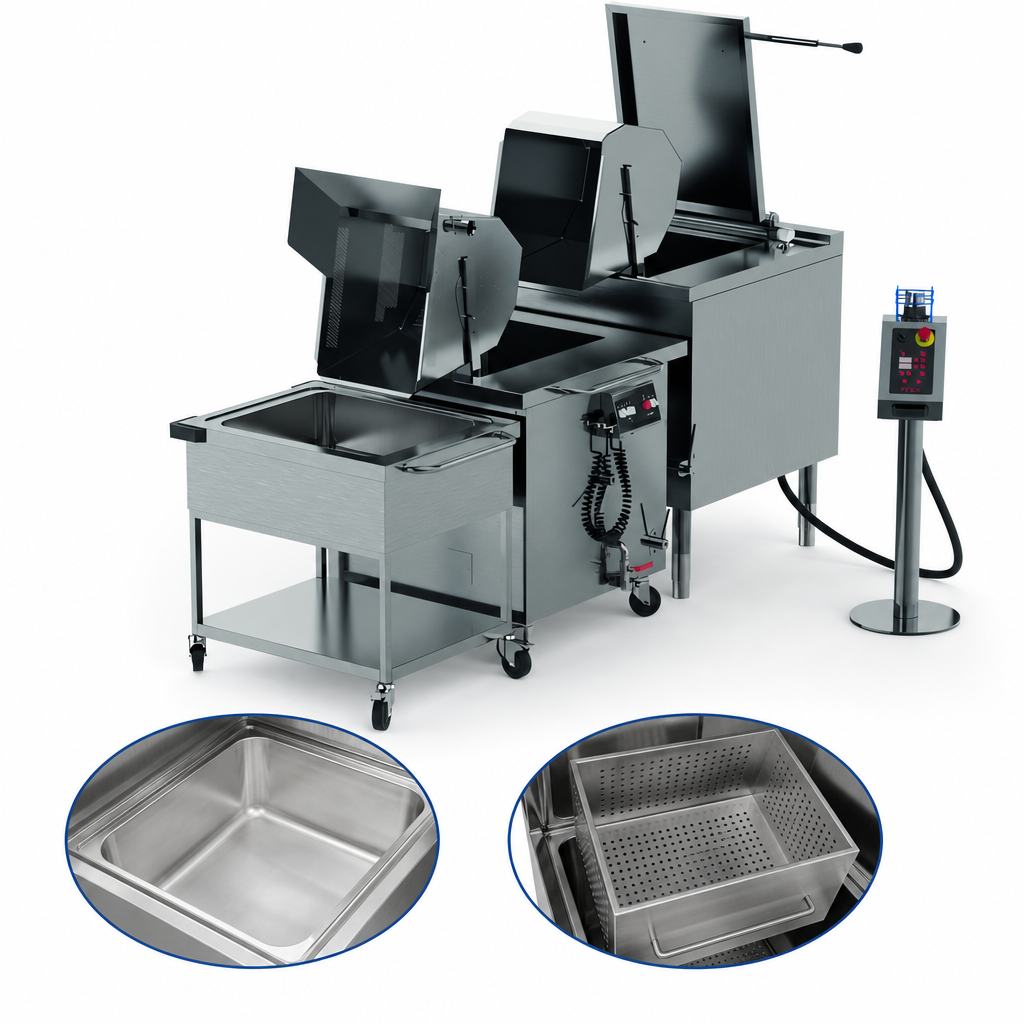

47.24"W x 35.43"D x 35.43"HCooking Vessel Construction
The cooking vessel is made of AISI 316 stainless steel (30/10 thickness) with a perforated basket in AISI 316 (15/10 thickness) featuring electric tilting.

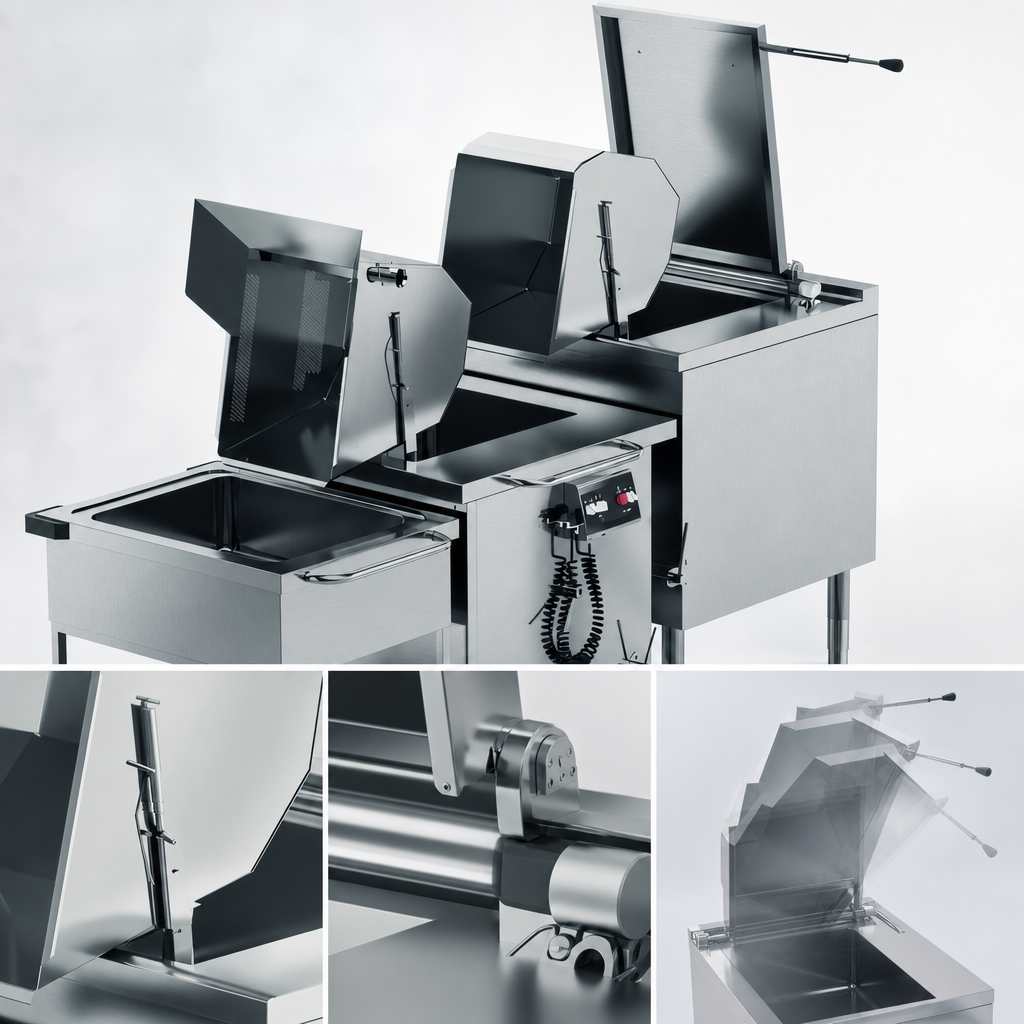

Balanced Hinged Lid
Constructed from AISI 304 stainless steel (10/10 thickness) for durability and ease of use.
Robust Supporting Structure
A sturdy supporting structure in AISI 304 stainless steel (20-30/10 thickness) ensures stability, with heat insulation provided by thick glass fiber panels.
Fine Satin Finish Exterior
The outer cover is crafted from AISI 304 stainless steel with a fine satin finish (10/10 thickness) for a professional appearance.
Adjustable Feet
Features AISI 304 stainless steel adjustable feet to ensure precise leveling on any surface.
IPX5 Protection Level
Offers excellent protection against water jets, making it suitable for demanding commercial kitchen environments and easy to clean.
Advanced Heating System
Heating is achieved by aluminum casted elements directly contacting the vessel bottom, electronically controlled with automatic activation 2°C before setpoint and interruption for low water level.
Automatic Basket Operations
Baskets lift and tilt automatically (even with the lid closed), stopping in a dripping position, and are easily removable for cleaning.
Automatic Water Management
Includes automatic filling and refilling of water in the vat, an overflow device, and a system to facilitate starch skimming.
Front Discharge Valve
Equipped with a 2-inch stainless steel front discharge valve featuring an insulating handle for safe and convenient draining.
Multifunctional Touch Screen Control
Electronic control is managed via a resistive 7-inch touch screen with a user-friendly interface for setting cooking parameters, programming cycles, and displaying operational status.
USB Connectivity
A USB connection allows for downloading HACCP data, updating software, and loading custom cooking programs.
MODBUS Communication Protocol
The machine can be interrogated using the MODBUS communication protocol over an RS485 serial interface for advanced integration.
Power Economizer Connection
Includes a dedicated connection for integration with a power economizer system.
Multiple Cooking Modes
Offers selection of two different cooking modes with options for working temperature setting or min./max. heating, along with 'Manual' and 'Program' modes.
Delayed Cooking Setting
Allows for setting delayed cooking cycles with specific date, time, and programming.
Comprehensive Safety System
Includes an emergency button, automatic heating interruption for insufficient water in the vat, and blocking of heating in case of overtemperature of heating elements.
Mobile Chilling Vat Design
The mobile chilling tank and perforated basket are made of AISI 316 stainless steel, mounted on pivoting wheels (two with brakes) for easy mobility.
Forced Water Agitation in Chilling Vat
Features forced water activation via a dedicated pump, which operates only when baskets are in working position, with adjustable flow regulation.
Chilling Vat Water Management
Includes a ball valve for filling and recirculating water, an overflow device, and a 2-inch discharge valve with an insulating handle for the chilling vat.
Insulated Trolley Construction
The included insulated trolley is entirely made of AISI 304 stainless steel with pressed, rayed-edge insulated basins and a drain equipped with a ball wash-out valve.
GN Container Compatibility (Trolley)
The insulated trolley dimensions are suitable for GN 1/1 h.200 containers.
