Key specifications

Amps
20.8 Amps
Phase
1-Phase
Dimensions
79.0"W × 30.0"D × 34.0"H
Type
Hot Food Table
Style
Open Base
Installation Type
Floor Model
Spec sheet
Eagle Group SKU: SWT5-240

Eagle Group SWT5-240 5-Pan Open-Base Hot Food Table

$4,965.10
/each
Estimated to ship in 3–6 business days
Number of Compartments
Electrical
Undershelf mounting
Cutting board material
Feet
Flex-Master overshelf kit
Factory Add-Ons
Included: Eagle Group warranty 12 months from the date of shipment from the factory or 6 months from the date first placed into service, whichever comes first

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $459/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Hot Food Table
Style Open Base
Installation Type Floor Model
Material Stainless Steel
Finish Stainless Steel
Well Type Open Well
Pan Capacity 5 Pans
Pan Size 12 in x 20 in
Water Pan Material Stainless Steel
Controls Thermostatic
Water Fill System AutoFill
Voltage 240 Volts
Amps 20.8 Amps
Watts 5 kW
Hertz 60 Hz
Phase 1-Phase
Wiring Field Wired

Description

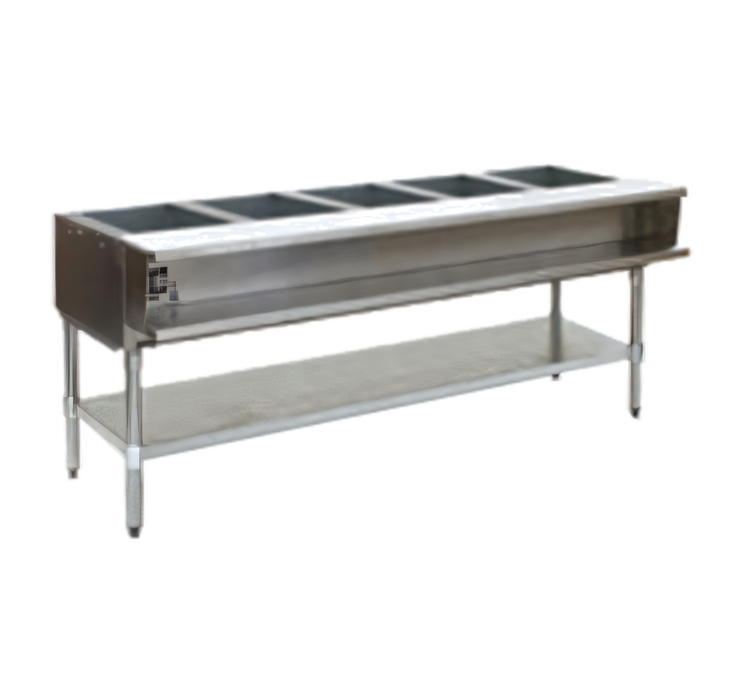

The Eagle Group SWT5-240 is an electric water bath hot food table with five open wells sized to accommodate 12 in x 20 in steam table pans.

It features an AutoFill water system, automatic low-water cutoff with manual reset, a stainless steel water pan, stainless steel top and enclosure, an 8 in polyethylene cutting board, stainless steel plate shelf, stainless steel legs and undershelf, and adjustable feet.

  • Electrical: 240 Volts, 5,000 watts, 20.8 amps, 60 Hz, 1-phase
  • Dimensions: 79 in W x 30 in D x 34 in H
  • Installation: Field wiring terminates in a junction box and requires connection by others.

Overall Dimensions:

79.0"W x 30.0"D x 34.0"H

Product Weight:

269.0 lb

Five Open Wells

The top has five openings sized to accommodate 12 in x 20 in steam table pans.

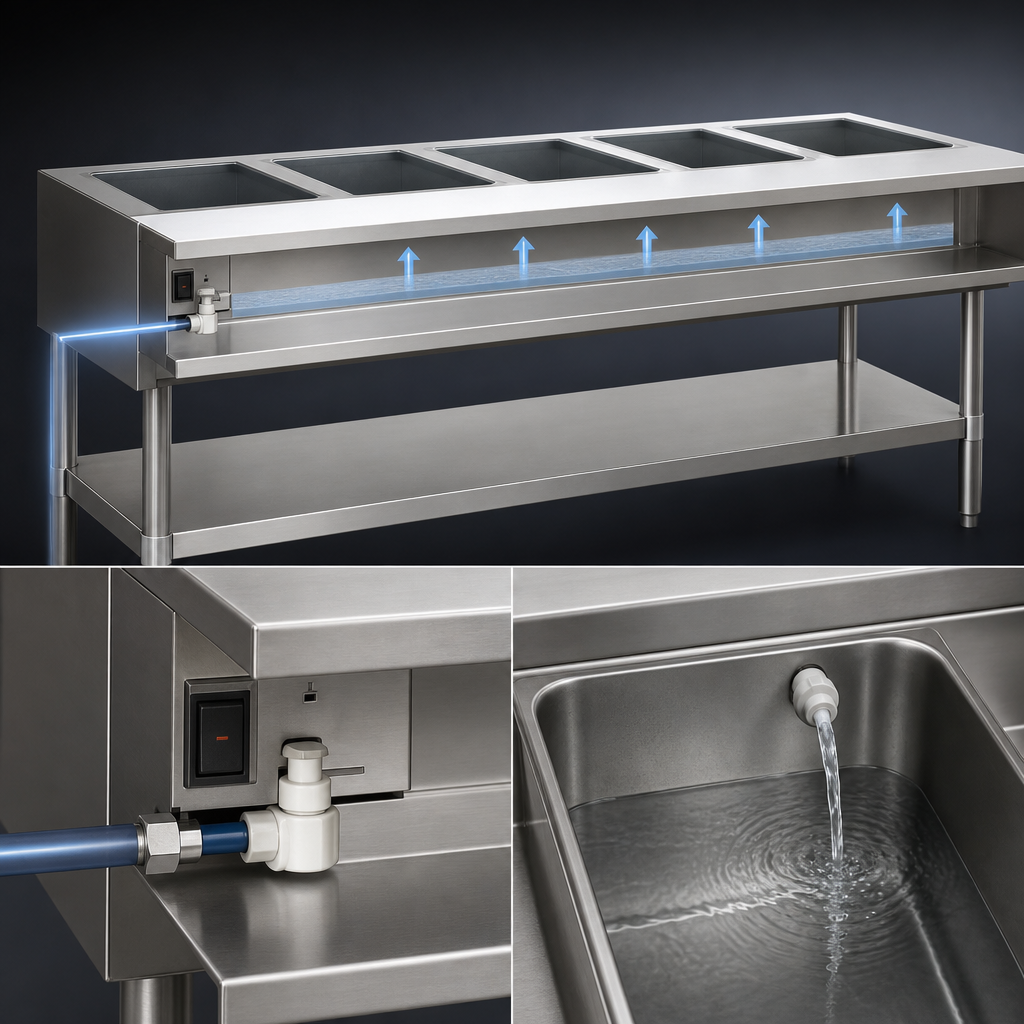

AutoFill Water System

The AutoFill system maintains the proper water level in all wells when connected to a continuous flowing hot water source.

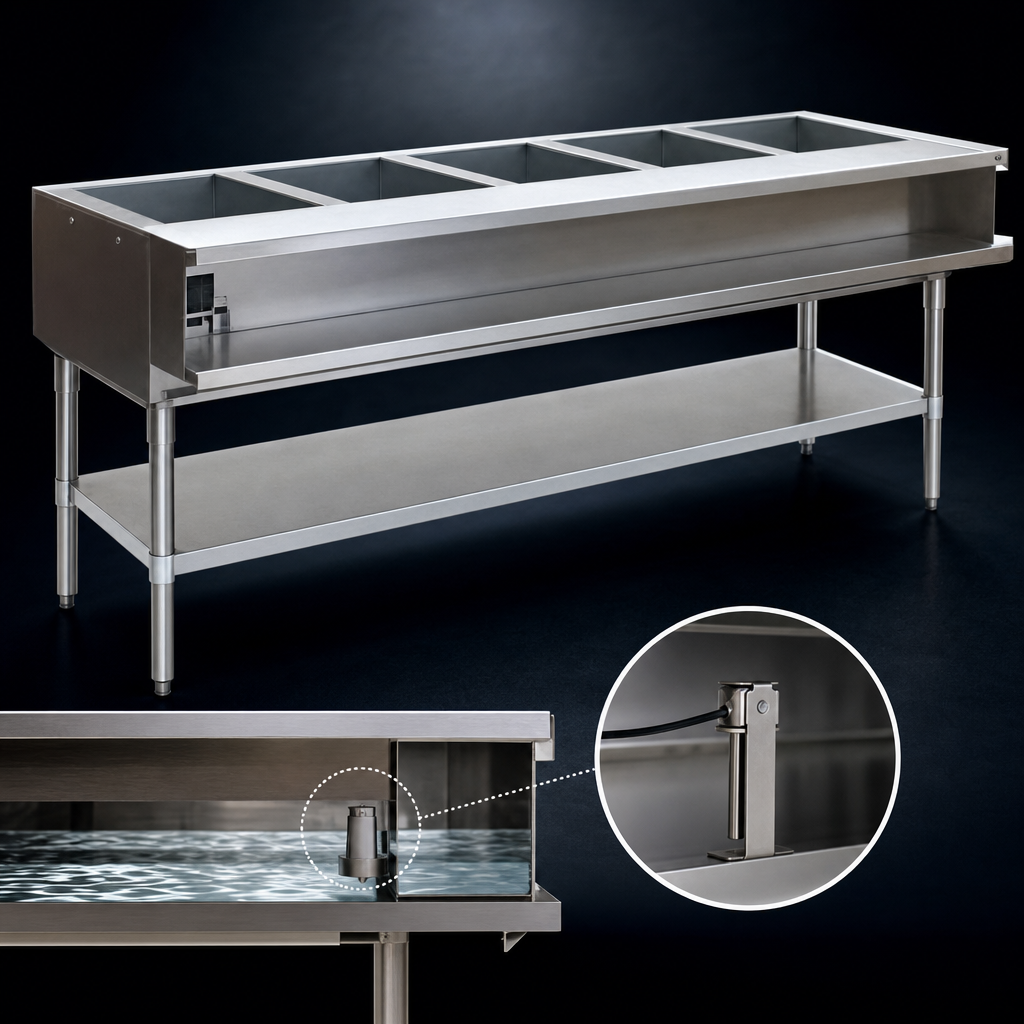

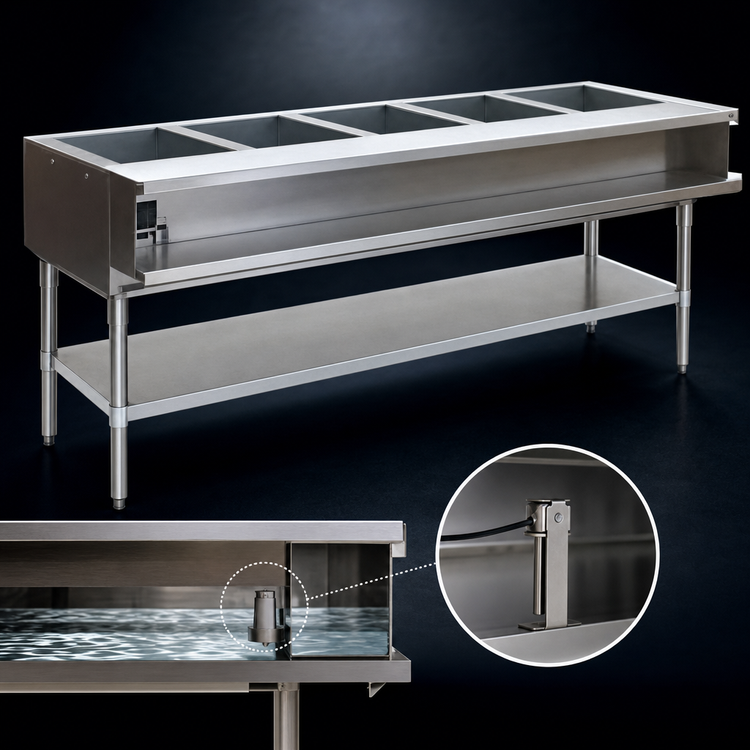

Low-Water Cutoff

Automatic low-water protection includes a built-in manual reset button.

Electric Water Bath Heating

A 5,000-watt immersion heater provides electric water-bath heating with thermostatic temperature control.

Stainless Steel Construction

The water pan, top, enclosure, legs, undershelf, and plate shelf are specified in stainless steel.

Work and Service Surfaces

An 8 in polyethylene cutting board and stainless steel plate shelf are provided.

Adjustable Feet

The stainless steel legs are fitted with adjustable feet.

Field-Wired Connection

Wiring terminates in a junction box and requires field wiring.

Frequently Asked Questions

It has five open wells.
Each opening is sized to accommodate a 12 in x 20 in steam table pan.
The unit is rated at 240 Volts, 5,000 watts, 20.8 amps, 60 Hz, and 1-phase, with field wiring required.
Yes. Its AutoFill system maintains the proper water level in all wells when connected to a continuous flowing hot water source.
The unit measures 79 in wide, 30 in deep, and 34 in high, with a listed weight of 269 lb.
