Key specifications

Amps
12.5 Amps
Phase
3-Phase
Dimensions
81.5"W × 30.5"D × 34.0"H
Type
Hot Food Table
Style
Mobile Open Base
Installation Type
Floor Model
Spec sheet
Eagle Group SKU: SPDHT5-208-3

Eagle Group SPDHT5-208-3 Mobile 5-Pan Dry Well Food Table

$3,176.03
/each
Estimated to ship in 3–6 business days
Electrical
Wells
Overshelf kit
Factory Add-Ons
Spillage pans
Included: Eagle Group warranty 12 months from the date of shipment from the factory or 6 months from the date first placed into service, whichever comes first

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $294/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Hot Food Table
Style Mobile Open Base
Installation Type Floor Model
Material 430 Stainless Steel
Finish Polished
Pan Capacity 5 Pans
Pan Size 12 in. x 20 in.
Well Type Dry Well
Controls Infinite
Voltage 208 Volts
Amps 12.5 Amps
Watts 3.75 kW
Hertz 60 Hz
Phase 3-Phase
Plug Type NEMA 15-20P
Cord Length 6 Feet
Well Depth 8 Inches
Cutting Board Material Polyethylene
Caster Diameter 4 Inches

Description

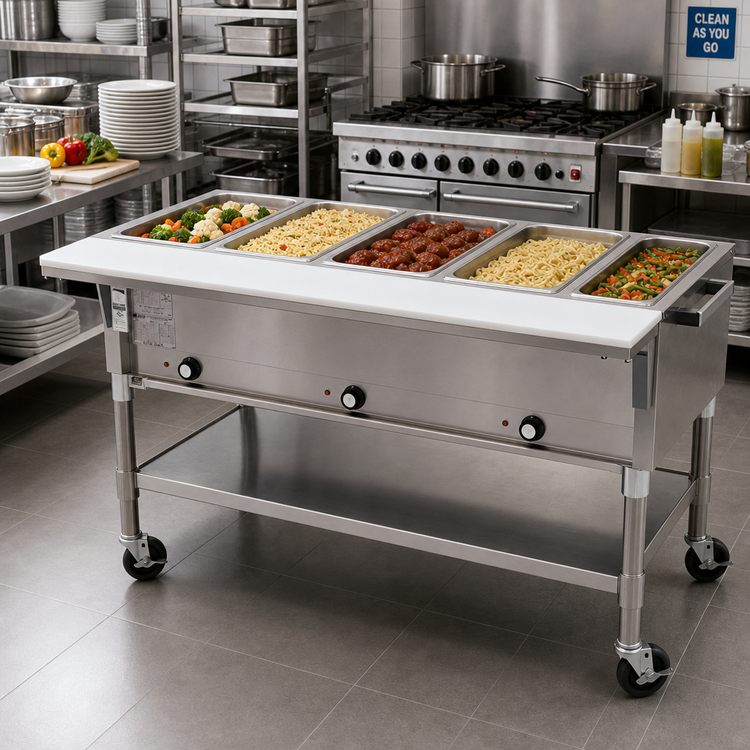

The Eagle Group SPDHT5-208-3 is a mobile electric hot food table with an open base and five 12-inch x 20-inch dry wells. It features a 430 stainless steel top and body, stainless steel adjustable undershelf and tubular legs, and individual infinite controls.

  • Five 8-inch-deep dry wells with 12-inch x 20-inch openings
  • 8-inch polyethylene cutting board mounted on drop brackets
  • Push bar and four 4-inch casters for mobility
  • 208 Volts, 3-Phase, 60 Hz electrical service with 3.75 kW output, 12.5 Amps, cord, and NEMA 15-20P plug

Use note: This unit is designed to operate dry and to maintain preheated foods at proper temperatures when used according to the operating instructions. It is not designed for cooking or heating refrigerated or frozen foods.

Overall Dimensions:

81.5"W x 30.5"D x 34.0"H

Product Weight:

244.0 lb

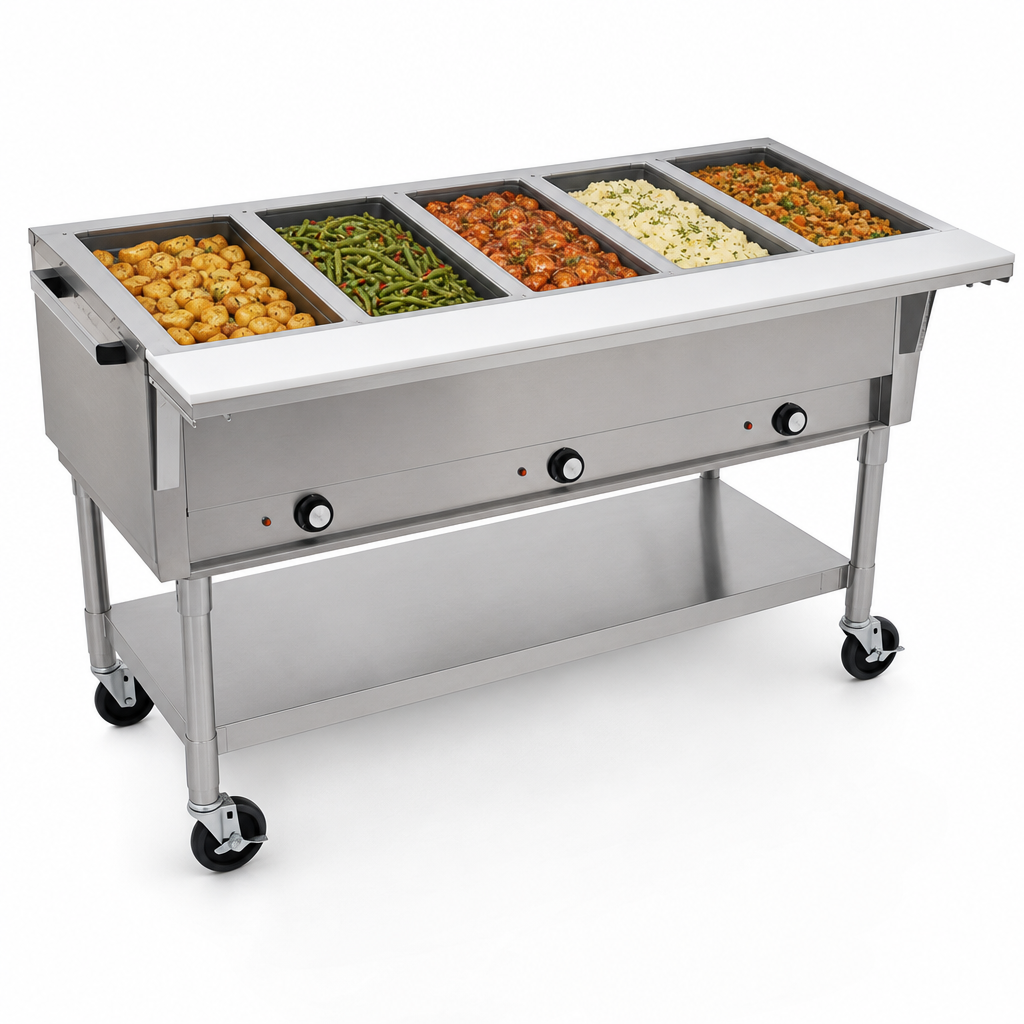

Five Dry Wells

Includes five 8-inch-deep dry wells with 12-inch x 20-inch openings.

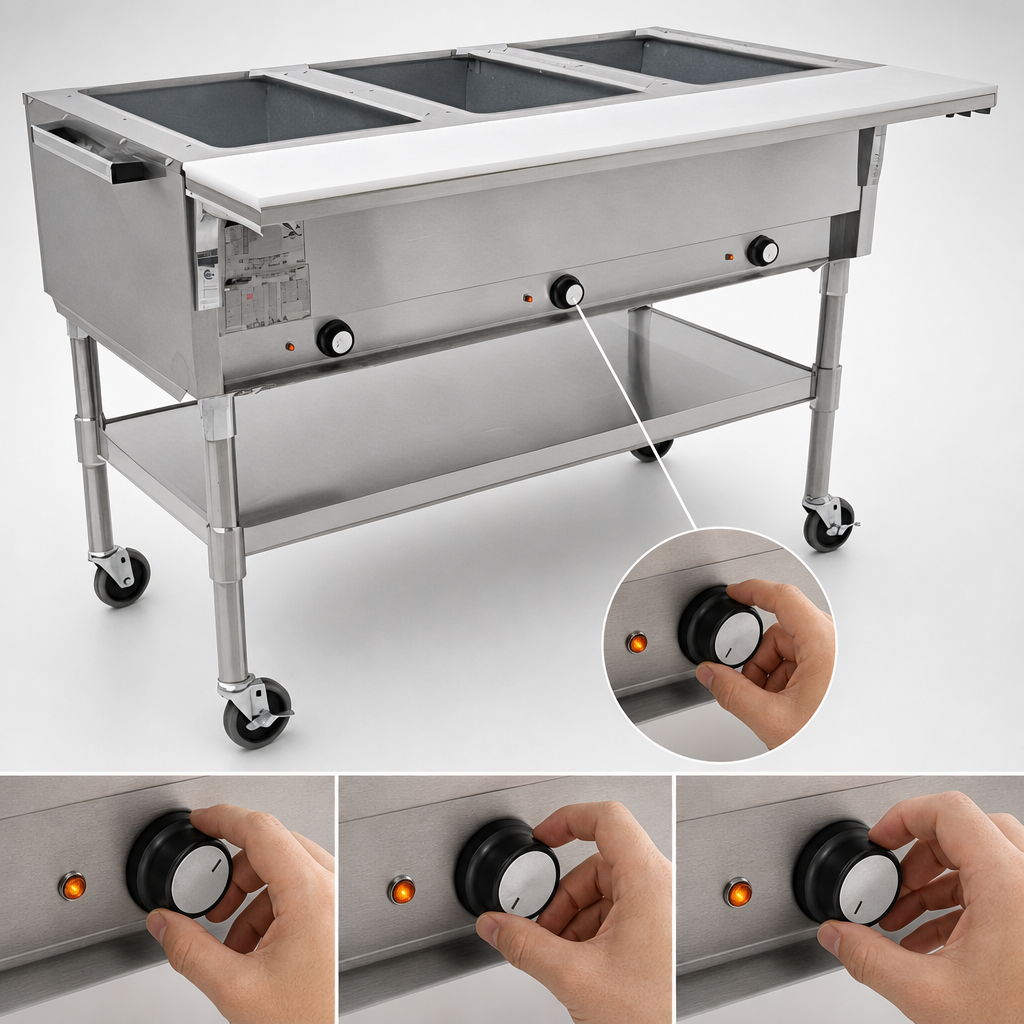

Infinite Controls

Individual infinite controls provide high and low selections plus eight other temperature settings.

Stainless Steel Construction

The top and body are made of 430 stainless steel, with stainless steel tubular legs and an adjustable undershelf.

Mobile Design

A push bar and four 4-inch casters support movement of the table.

Polyethylene Cutting Board

An 8-inch polyethylene cutting board is mounted on drop brackets.

Three-Phase Electrical Service

The unit uses 208 Volts, 3-Phase, 60 Hz power and is rated at 3.75 kW and 12.5 Amps.

Frequently Asked Questions

It has five dry wells sized for 12-inch x 20-inch pans.
It is rated for 208 Volts, 3-Phase, 60 Hz, and 12.5 Amps, with a NEMA 15-20P plug.
It has individual infinite controls with high and low selections plus eight other temperature settings.
The table is 81.5 inches wide, 30.5 inches deep, and 34 inches high.
The specification sheet states that these units are designed to operate dry.
