Key specifications
- Amps
- 9.5 Amps
- Phase
- 3-Phase
- Dimensions
- 66.0"W × 30.5"D × 34.0"H
- Type
- Hot Food Table
- Style
- Mobile Open Base
- Installation Type
- Floor Model
Eagle Group PDHT4-208-3 66-Inch Mobile 4-Well Hot Food Table
- 120 V · 1-phase · 16.6 A
- 208 V · 1-phase · 14.4 A
- 208 V · 3-phase · 9.5 A
- 240 V · 1-phase · 12.5 A
- 240 V · 3-phase · 8.3 A
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description

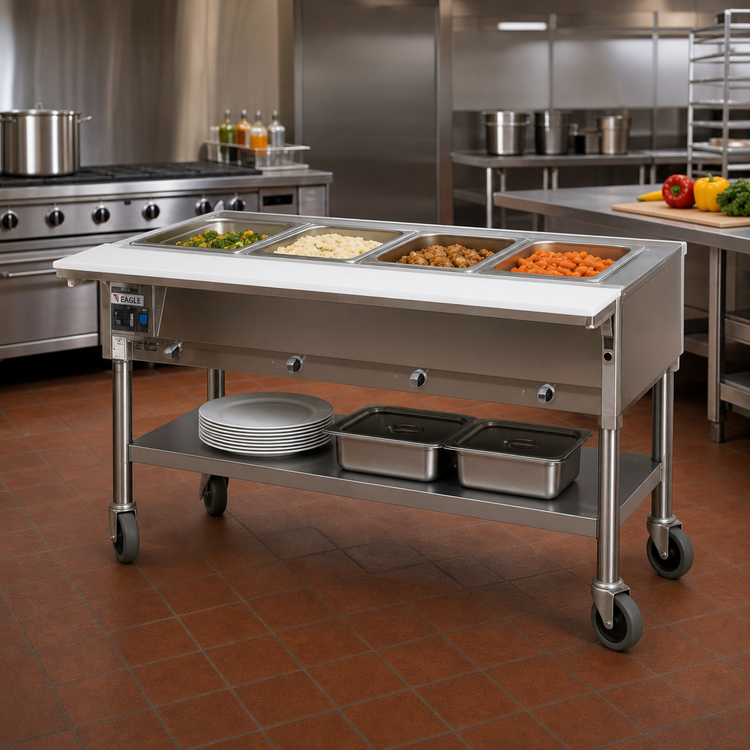

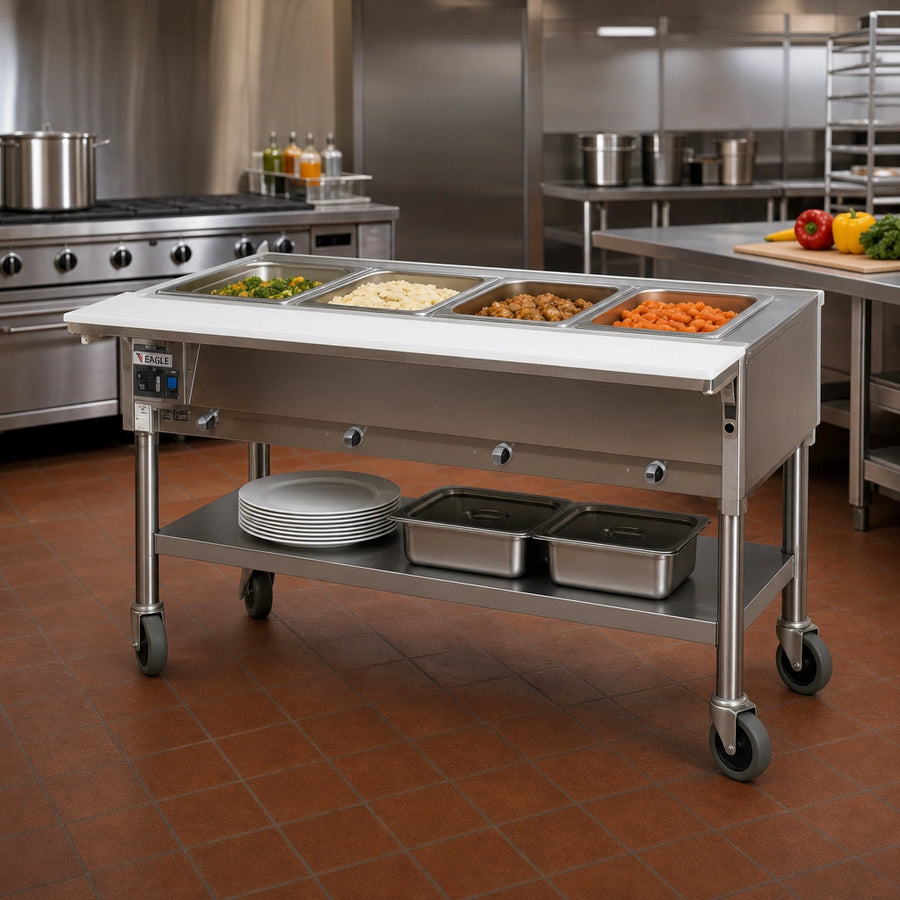

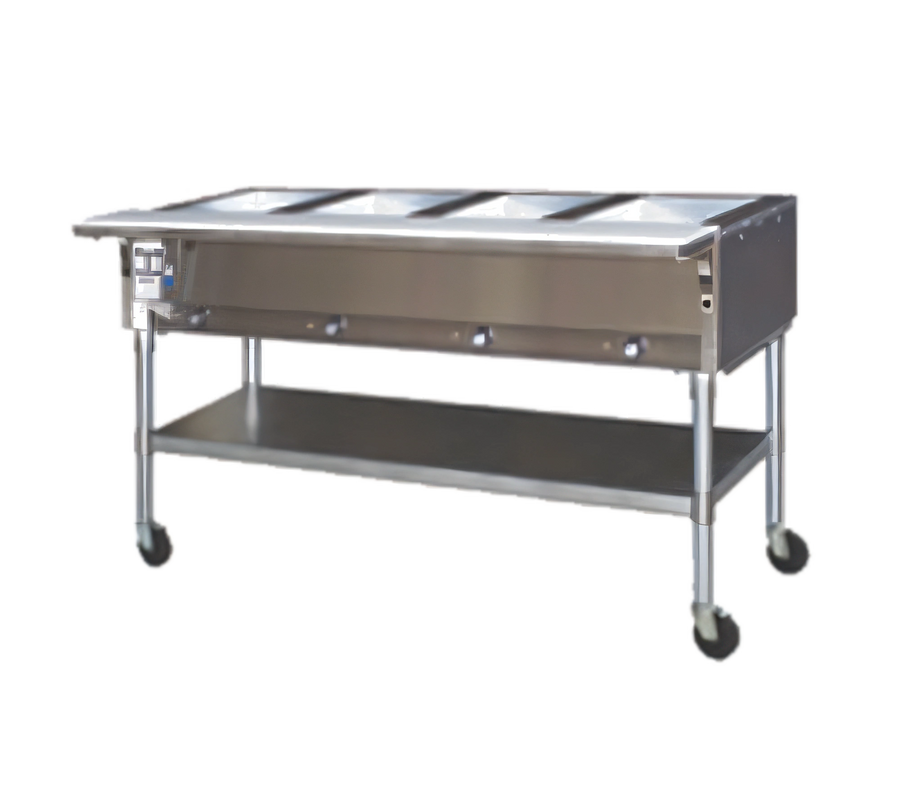

Mobile four-well holding: The Eagle Group PDHT4-208-3 is an electric hot food table with four 12 x 20-inch dry wells, an open base, and a 66-inch width.
- Stainless steel construction: The top and body are made of 430 stainless steel.
- Individual controls: Infinite controls provide high, low, and eight additional temperature settings for each compartment.
- Cutting board: An 8-inch-deep polyethylene cutting board is mounted on drop brackets.
- Mobility: The table has a push bar and four 4-inch casters.
- Base: The galvanized adjustable undershelf and tubular legs provide an open-base design.
The unit is designed to maintain preheated foods at proper temperatures and is not designed for cooking or heating refrigerated or frozen foods.
Overall Dimensions:
66.0"W x 30.5"D x 34.0"HProduct Weight:

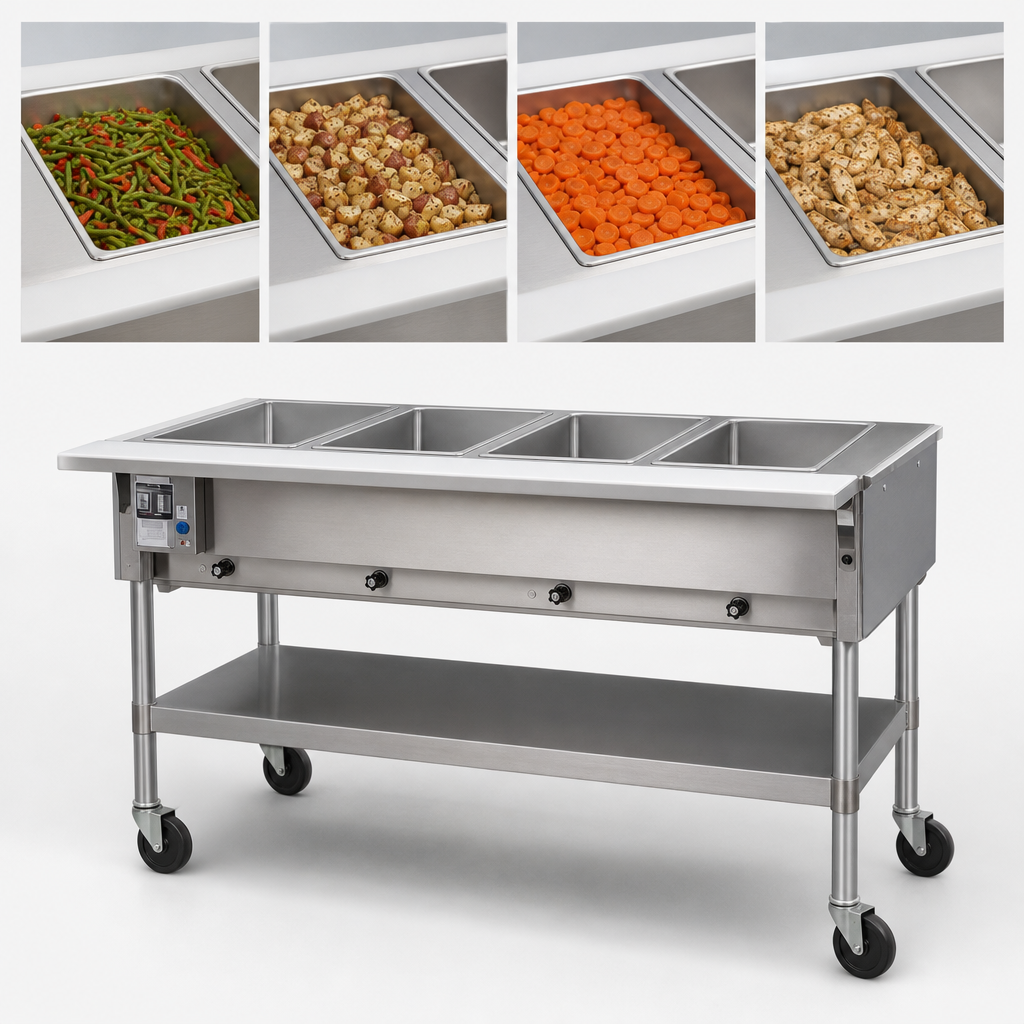

201.0 lbFour Dry Wells
Provides four 12 x 20-inch dry wells.

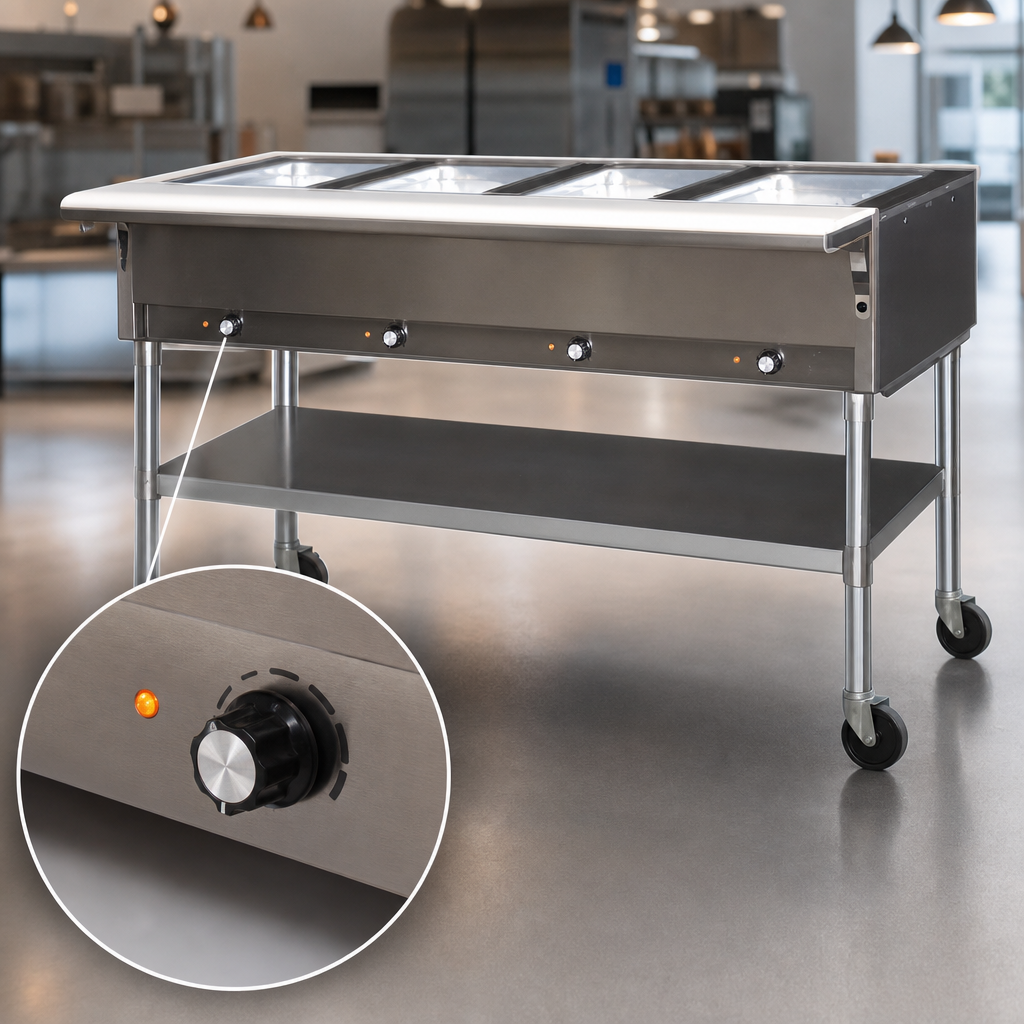

Individual Infinite Controls
Each compartment has an individual infinite control with high and low settings plus eight other temperature settings.
430 Stainless Steel Construction
The top and body are constructed of 430 stainless steel.
Open Base and Mobility
The unit has an open base, galvanized adjustable undershelf, tubular legs, a push bar, and four 4-inch casters.
Polyethylene Cutting Board
Includes an 8-inch-deep polyethylene cutting board mounted on drop brackets.
Insulated Heating Compartments
Each heating compartment is 8 inches deep, galvanized, and insulated on all four sides and the bottom.
Dry Holding Operation
Designed to maintain preheated foods at proper temperatures; it is not designed for cooking or heating refrigerated or frozen foods.
Three-Phase Electrical Configuration
Operates at 208 Volts, 60 Hz, 3-Phase, with 3.0 kW, 9.5 Amps, and a NEMA 15-20P plug.
