Key specifications

Amps
10.8 Amps
Phase
3-Phase
Dimensions
94.5"W × 30.5"D × 34.5"H
Type
Hot Food Table
Style
Open Base
Installation Type
Floor Model
Spec sheet
Eagle Group SKU: HT6OB-240-3

Eagle Group Spec-Master HT6OB-240-3 6-Pan Open Well Hot Table

$5,365.57
/each
Estimated to ship in 3–6 business days
Number of Compartments
Electrical
Heater wattage
Cutting board material
Overshelf kit
Factory Add-Ons
Spillage pans
Included: Eagle Group warranty Eagle warrants hot food tables for 12 months from the date of shipment from the factory or 6 months from the date first placed into service, whichever comes first

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $496/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Hot Food Table
Style Open Base
Installation Type Floor Model
Material 430 Stainless Steel
Finish Stainless Steel
Compartments 6
Pan Size 12 x 20 Inches
Pan Capacity 6 Pans
Well Type Open Well
Operation Wet or Dry
Top Gauge 22 Gauge
Body Gauge 20 Gauge
Cutting Board Material Polyethylene
Cutting Board Size 8 x 1/2 Inches
Controls Thermostatic Controls; Master Toggle Switch
Electrical Connection Junction Box
Voltage 240 Volts
Watts 4.5 kW
Amps 10.8 Amps
Hertz 60 Hz
Phase 3-Phase

Description

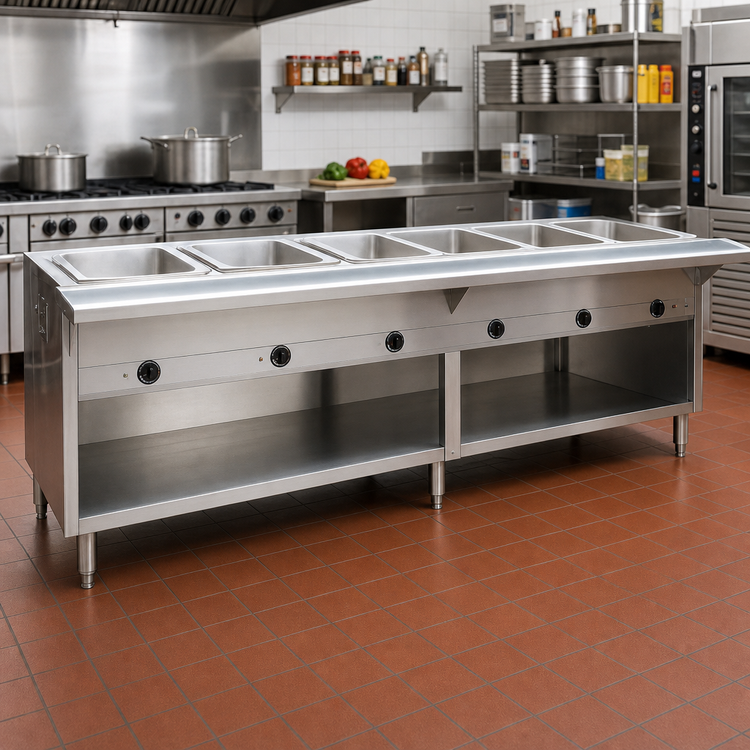

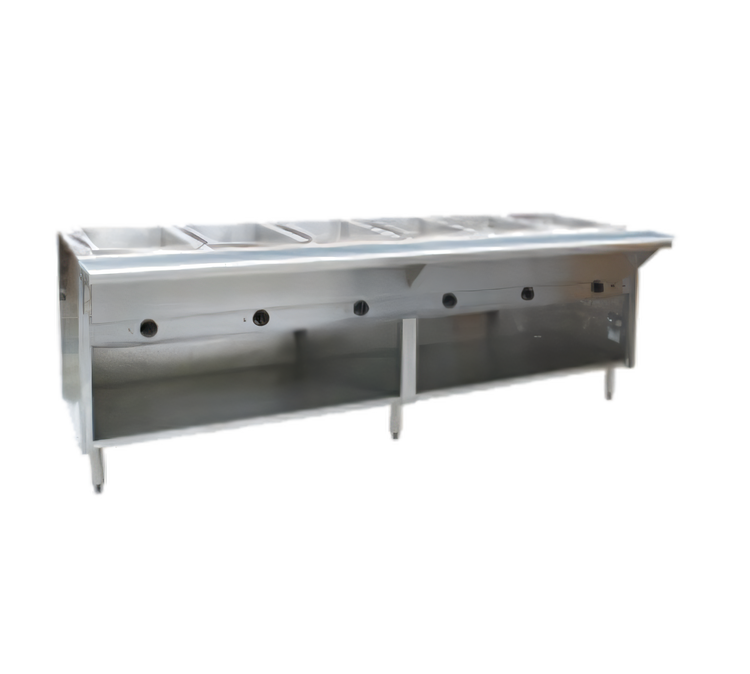

The Eagle Group Spec-Master HT6OB-240-3 is an electric hot food table with an open base and six 12 x 20 inch wells. Individual thermostatic controls are located in a recessed panel, with a master toggle switch and indicator light.

It has a 430 stainless steel top and body, an 8-inch-wide by 1/2-inch-thick polyethylene cutting board, and a junction box for field wiring. The unit is rated at 4.5 kW, 240 Volts, 60 Hz, three-phase, and 10.8 Amps.

Overall dimensions are 94.5 in W x 30.5 in D x 34.5 in H.

Overall Dimensions:

94.5"W x 30.5"D x 34.5"H

Product Weight:

379.0 lb

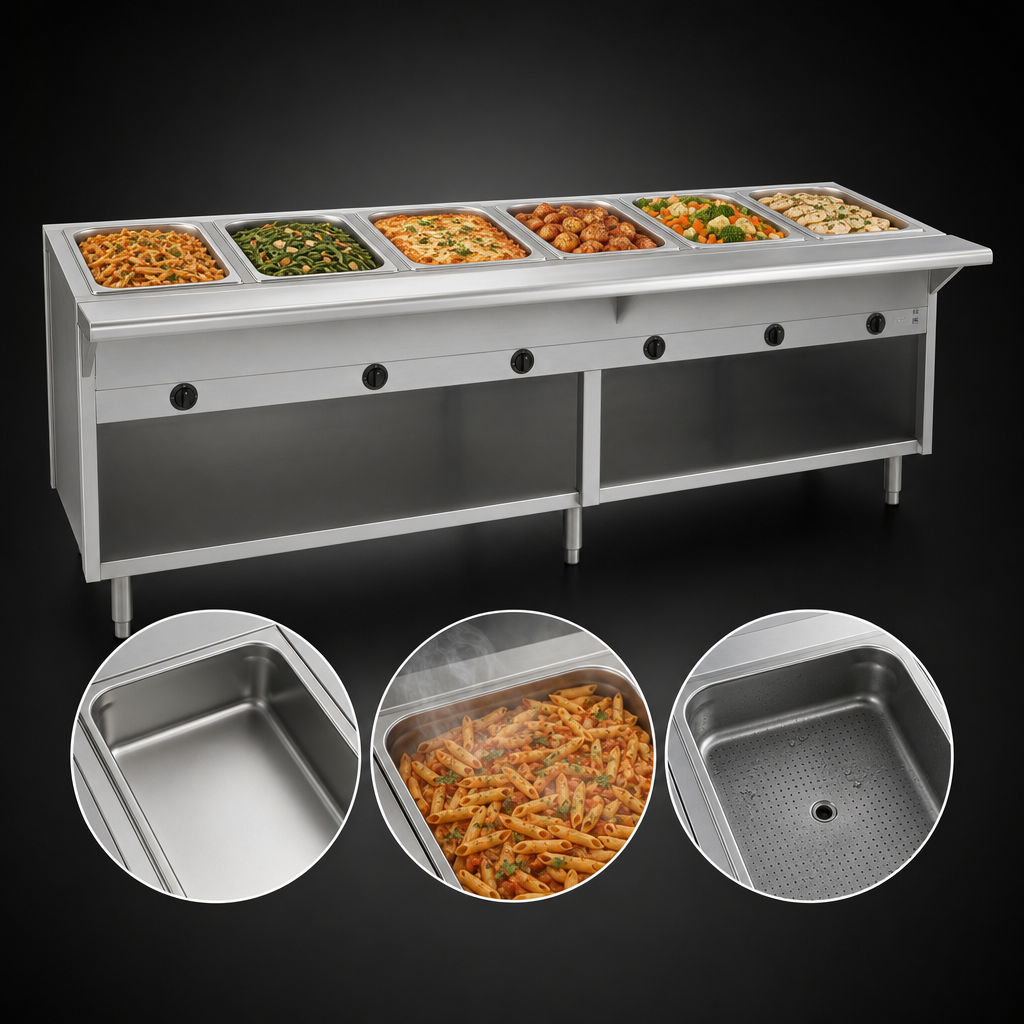

Six 12 x 20 Inch Wells

The table has six wells specified for 12 x 20 inch pans.

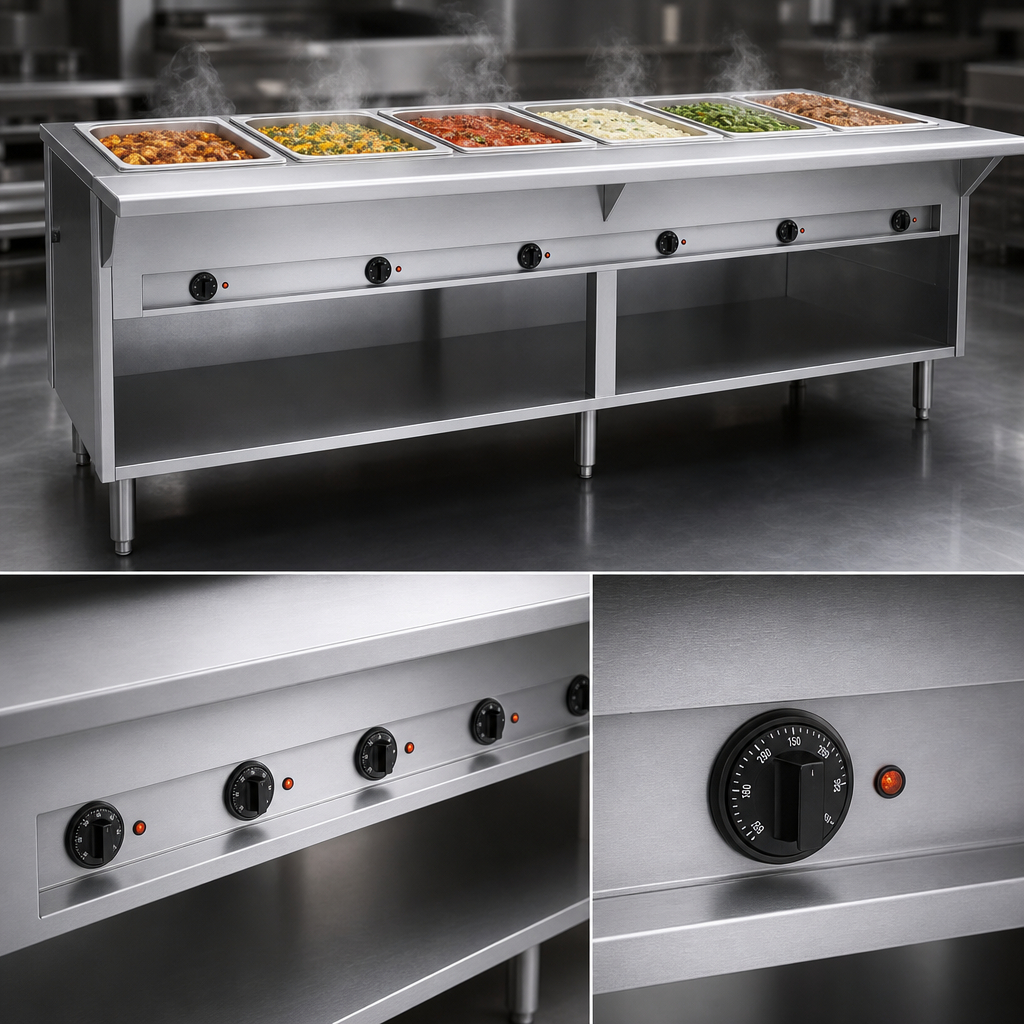

Thermostatic Controls

Individual thermostatic controls are located in a recessed control panel.

Open Base

The stationary table uses an open base design.

Stainless Steel Construction

The top and body are constructed of type 430 stainless steel.

Polyethylene Cutting Board

An 8-inch-wide by 1/2-inch-thick polyethylene cutting board is provided.

Master Toggle Switch

A master toggle switch and indicator light are included.

Field-Wiring Junction Box

Electrical wiring terminates at a junction box for field wiring.

Adjustable Feet

The stainless steel tubular legs have adjustable feet.

Frequently Asked Questions

It has six 12 x 20 inch wells.
The unit is rated at 240 Volts, 60 Hz, three-phase, 4.5 kW, and 10.8 Amps. It uses a junction box for field wiring.
It has individual thermostatic controls in a recessed panel, plus a master toggle switch with an indicator light.
No. This model has an open base.
The dimensions are 94.5 inches wide, 30.5 inches deep, and 34.5 inches high.
Yes. It is furnished with an 8-inch-wide by 1/2-inch-thick polyethylene cutting board.
The authoritative specifications identify the six wells as wet or dry.
