Key specifications

Phase
3-Phase
Dimensions
63.5"W × 32.25"D × 34.5"H
Type
Hot Food Table
Style
Open Base
Installation Type
Floor Model
Material
430 Stainless Steel
Spec sheet
Eagle Group SKU: HT4OB-240-X

Eagle Group Spec-Master HT4OB-240-X 4-Well Hot Food Table

$3,705.35
/each
Estimated to ship in 3–6 business days
Electrical
Width
Heater wattage
Cutting board
Overshelf kit
Factory Add-Ons
Spillage pans
Included: Eagle Group warranty Limited warranty for 12 months from factory shipment or 6 months from the date first placed into service, whichever comes first

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $343/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Hot Food Table
Style Open Base
Installation Type Floor Model
Material 430 Stainless Steel
Finish Stainless Steel
Configuration Stationary
Well Type Open Well
Pan Size 12 x 20 Inches
Pan Capacity 4 Pans
Overall Width 63.5 Inches
Overall Depth 32.25 Inches
Overall Height 34.5 Inches
Working Height 34 Inches
Top Gauge 22 Gauge
Body Gauge 20 Gauge
Cutting Board Material Polyethylene
Cutting Board Width 8 Inches
Cutting Board Thickness 0.5 Inches
Leg Material Stainless Steel
Leg Diameter 1.625 Inches
Leg Height 7.5 Inches
Feet Type Adjustable Plastic Feet
Watts 3 kW
Voltage 240 Volts
Hertz 60 Hz
Phase 3-Phase
Controls Thermostatic Controls
Switch Type Master Toggle Switch
Wiring Field Wiring

Description

The Eagle Group Spec-Master HT4OB-240-X is an electric hot food table with four 12 x 20-inch open wells specified for wet or dry operation. It has a 63.5-inch-wide 430 stainless steel top and body, an open base, and a polyethylene cutting board.

Thermostatic controls are set in a recessed panel, with a master toggle switch and indicator light. The 3 kW unit is rated at 240 volts, 60 Hz, and 3-phase, and includes a junction box for field wiring.

  • Four open 12 x 20-inch wells
  • 22-gauge 430 stainless steel top and 20-gauge 430 stainless steel body
  • 8-inch-wide, 0.5-inch-thick polyethylene cutting board
  • Stainless steel tubular legs with adjustable plastic feet

Overall Dimensions:

63.5"W x 32.25"D x 34.5"H

Product Weight:

289.0 lb

Four Open Wells

Includes four 12 x 20-inch open wells specified for wet or dry operation.

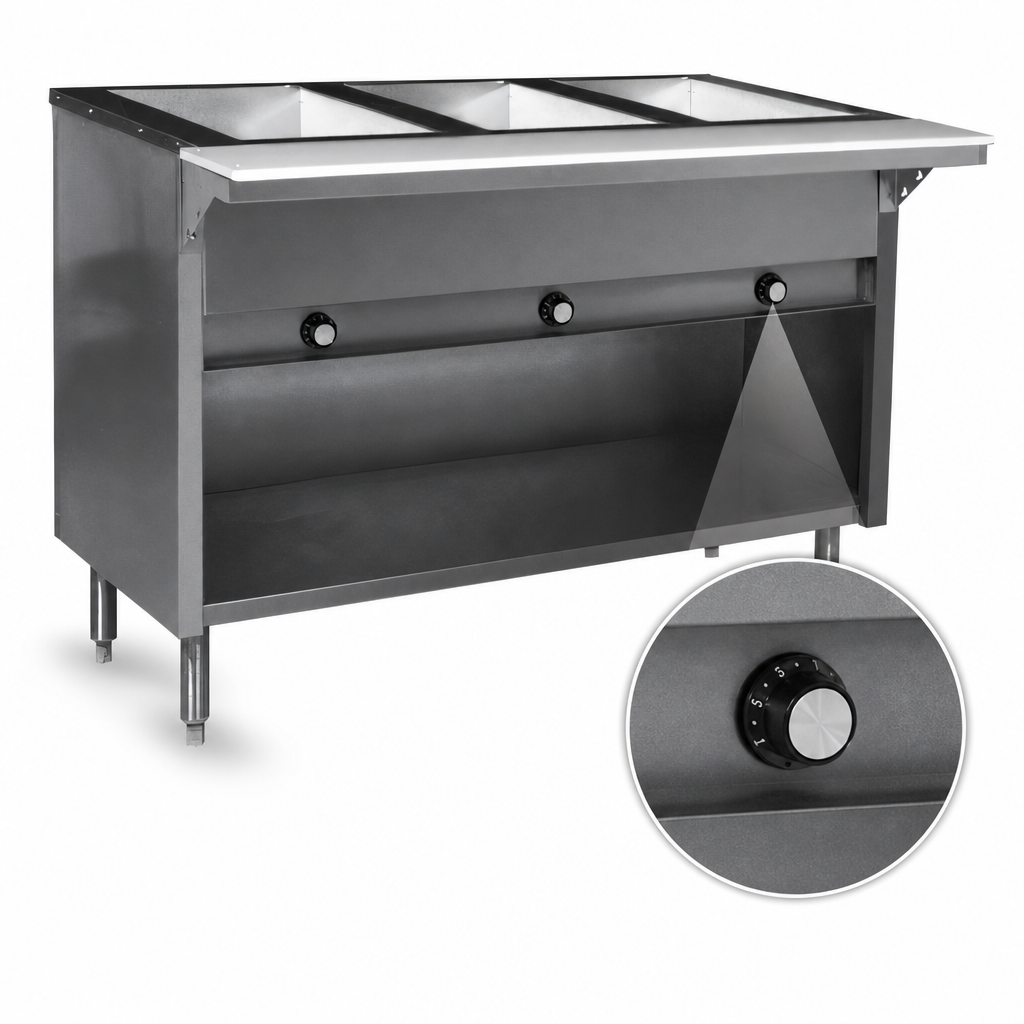

Thermostatic Controls

Thermostatic controls are located in a recessed panel.

Open Base

The hot food table has an open-base design.

Stainless Steel Construction

The top is 22-gauge 430 stainless steel and the body is 20-gauge 430 stainless steel.

Field Wiring Junction Box

Wiring terminates at a junction box for field wiring.

Polyethylene Cutting Board

Includes an 8-inch-wide, 0.5-inch-thick polyethylene cutting board.

Master Toggle Switch

The unit has a master toggle switch with an indicator light.

Frequently Asked Questions

It has four open 12 x 20-inch wells.
It is rated at 3 kW, 240 Volts, 60 Hz, and 3-Phase.
Yes. This model has an open-base design.
Yes. It includes an 8-inch-wide, 0.5-inch-thick polyethylene cutting board.
The product specifications identify the wells as wet or dry. The supporting specification sheet states that wet operation requires a spillage pan.
