Key specifications
- Amps
- 5.4 Amps
- Phase
- 3-Phase
- Dimensions
- 48.0"W × 32.25"D × 34.5"H
- Type
- Hot Food Table
- Style
- Open Base
- Installation Type
- Floor Model
Eagle Group Spec-Master HT3OB-240-3 3-Pan Hot Food Table
- Enclosed Base with Sliding Doors
- Partially Enclosed Base
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description

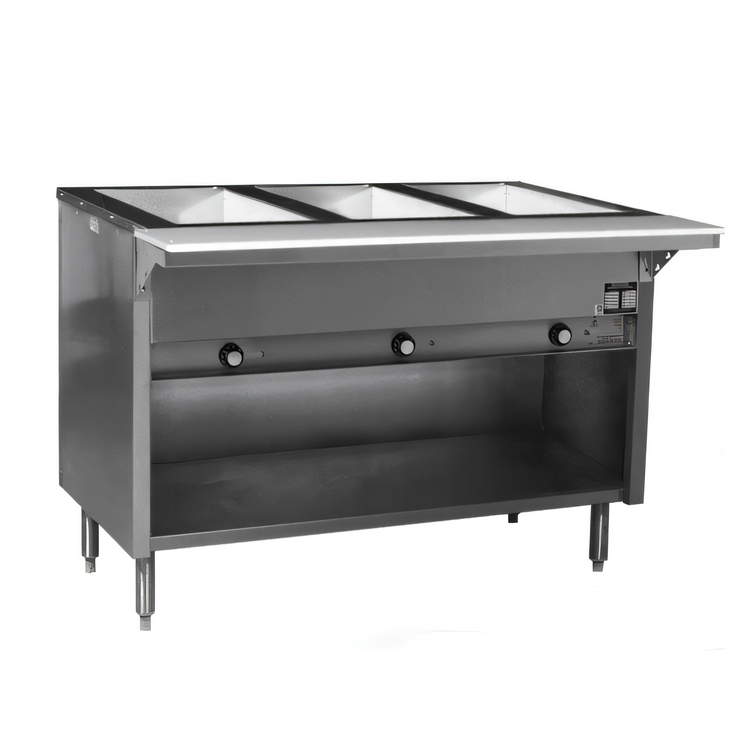

The Spec-Master HT3OB-240-3 is an electric hot food table with a 48-inch stainless steel top and body, three 12 x 20 in wells specified for wet or dry use, and an open base.
- Individual thermostatic controls are located in a recessed control panel.
- The top is 22-gauge 430 stainless steel and the body is 20-gauge 430 stainless steel.
- Electrical configuration is 2.25 kW, 240 Volts, 60 Hz, 3-Phase, with a junction box for field wiring.
- Includes an 8 in polyethylene cutting board with 1/2 in thickness.
- Stainless steel tubular legs measure 1-5/8 in diameter by 7-1/2 in high and have adjustable plastic feet.
- A master toggle switch includes an indicator light.
Overall Dimensions:
48.0"W x 32.25"D x 34.5"HProduct Weight:

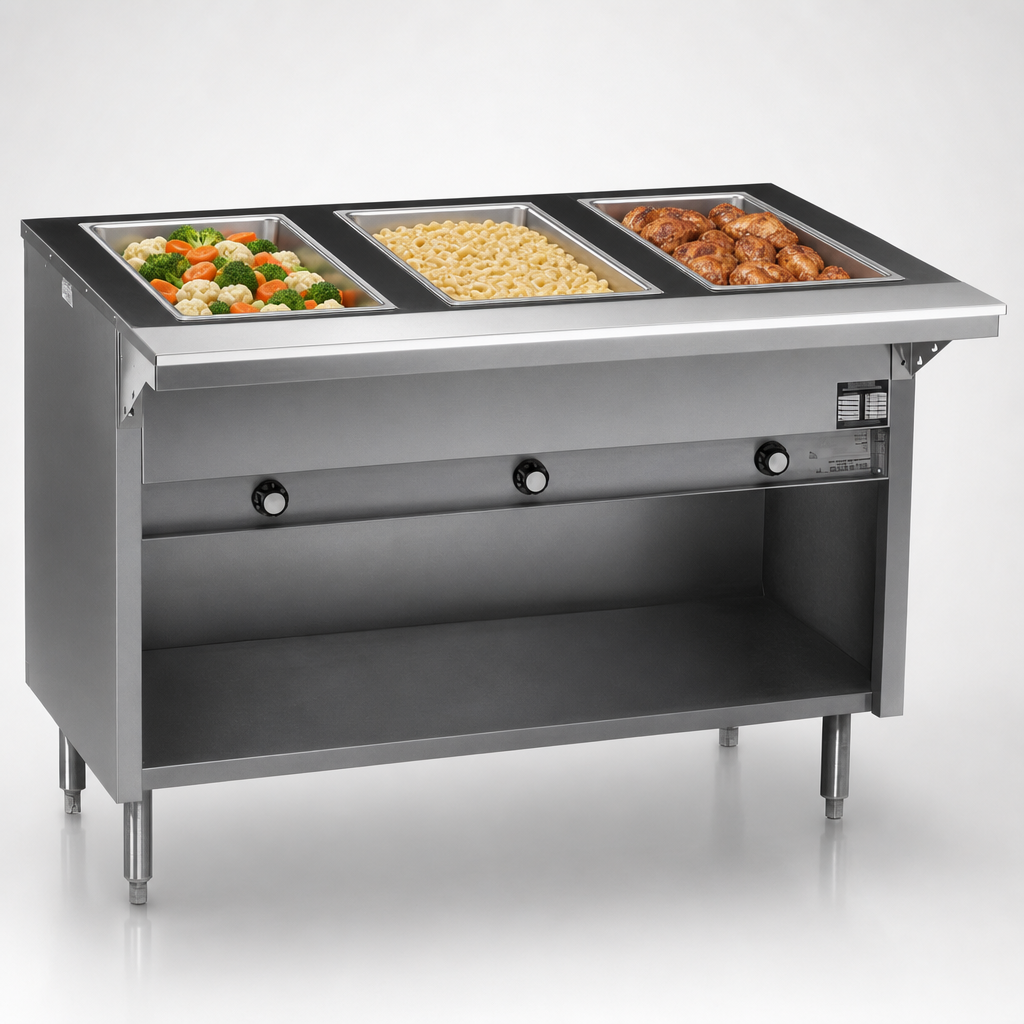

240.0 lbThree Wet or Dry Wells
The table has three 12 x 20 in wells specified for wet or dry use.

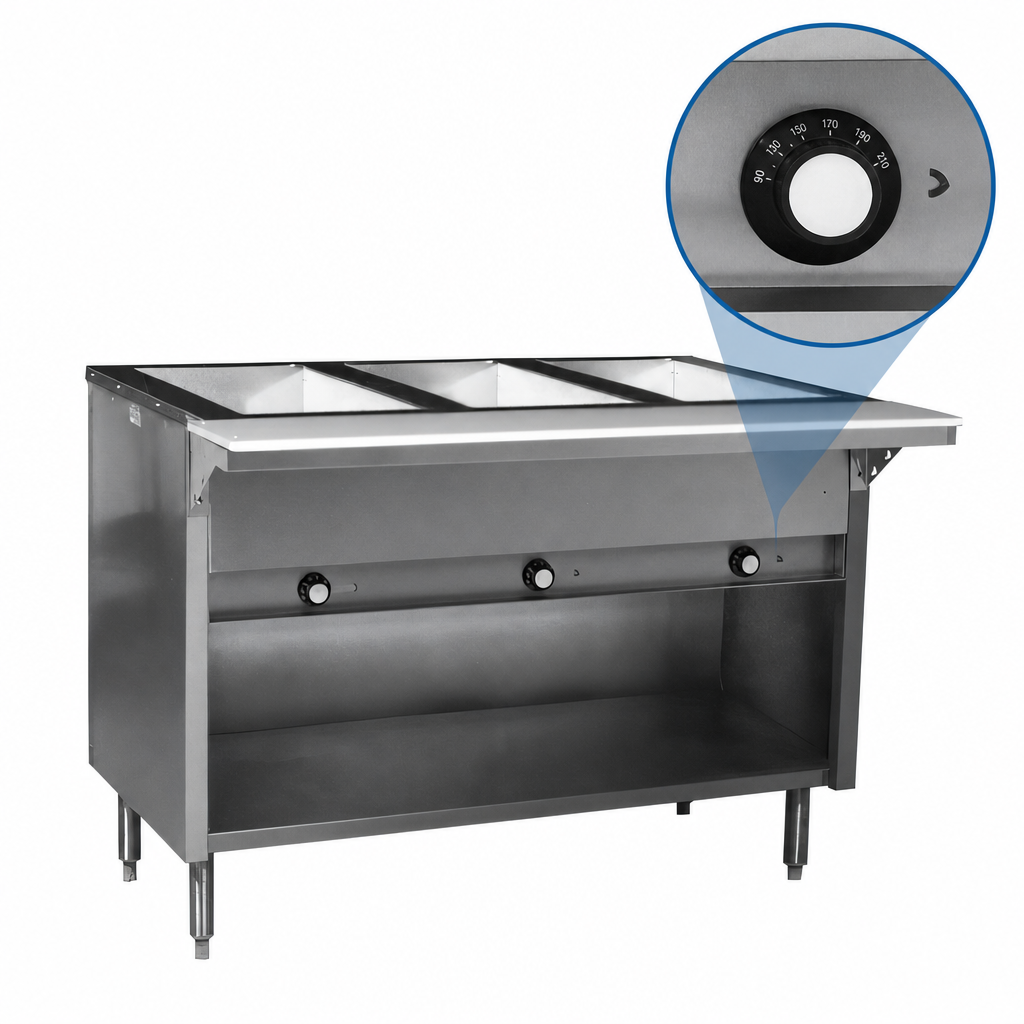

Thermostatic Controls
Individual thermostatic controls are positioned in a recessed control panel.
430 Stainless Steel Construction
The top is 22-gauge 430 stainless steel and the body is 20-gauge 430 stainless steel.
Open Base
The open base uses stainless steel tubular legs with adjustable plastic feet.
Field-Wiring Junction Box
A junction box is provided for field wiring.
Polyethylene Cutting Board
The table has an 8 in polyethylene cutting board with 1/2 in thickness.
Master Toggle Switch
The master toggle switch has an indicator light.
Frequently Asked Questions
This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.
The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.
- Count every piece against the delivery receipt.
- Check every side for crushed corners, torn wrap, punctures, water stains or a tipped unit.
- Photograph the freight on the truck before it’s moved.
- If you see any damage, even cosmetic, write “DAMAGED” and what you see on the receipt before you sign.
Your shipping email has the exact instructions for your order. Questions at the door? Call us at (888) 307-5030.
Keep all the packaging, photograph the damage and the packaging, and tell us within 5 business days of delivery. Reply to your shipping email with the photos or call (888) 307-5030.
If the driver won’t wait while you inspect, write “Received – pending inspection. Driver would not wait.” with the date and time on the receipt, then inspect right away and report any damage within 24 hours.
Book your installer only after the carrier gives you a firm delivery appointment. Freight dates can move, and installer trips lost to a late truck aren’t reimbursable.
