Eagle Group F1916-12 Floor Mounted Mop Sink with 20 x 16 x 12-Inch Bowl, 304 Stainless Steel

SKU: F1916-12
$1,136.16
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Plumbing Supplies Commercial Sinks Eagle Group Mop Sinks Mop Sinks New Arrivals Restaurant Equipment Sinks & Handwashing Stations

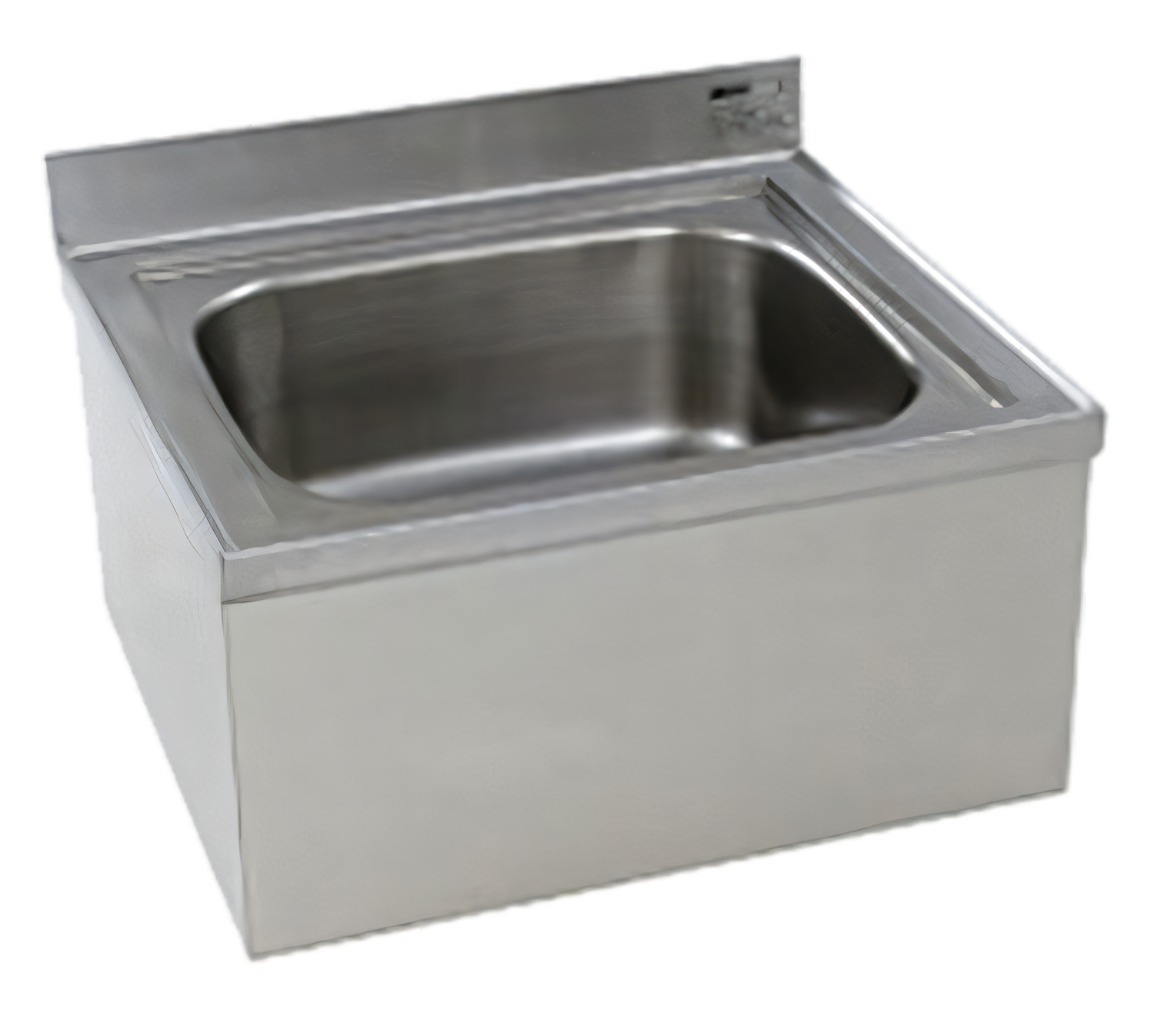

Eagle Group F1916-12 Floor Mounted Mop Sink with 20 x 16 x 12-Inch Bowl, 304 Stainless Steel

24-5/8 x 21-1/2 x 19-1/2-inch overall size, 16-gauge top, full skirt

A heavy-duty floor-mounted mop sink with a deep 304 stainless steel bowl, splash-reducing V edge, and sanitary full-skirt design for demanding cleanup areas.

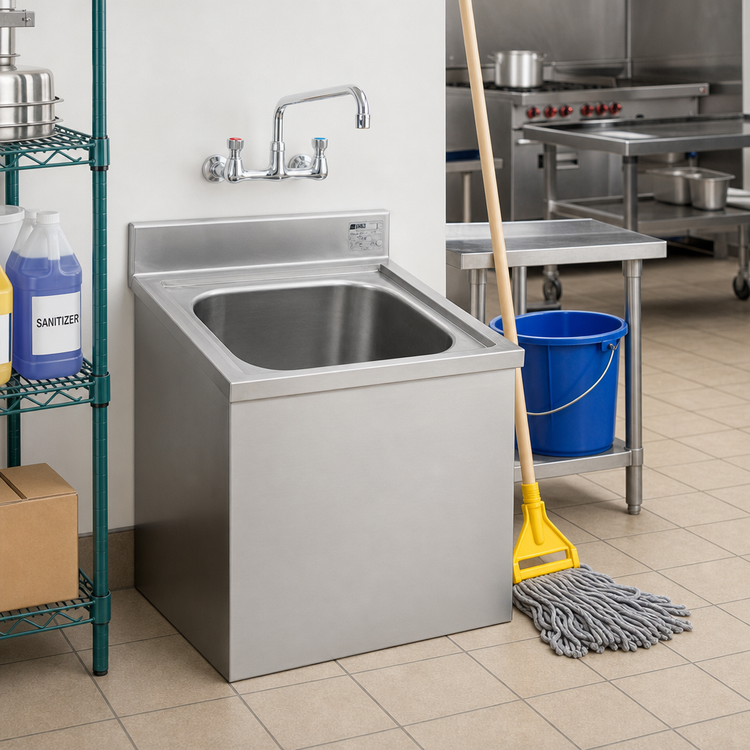

  • Floor-mounted mop sink designed for institutional and commercial janitorial use.
  • 20 x 16-inch bowl with 12-inch depth provides generous capacity for mop cleanup tasks.
  • 304 stainless steel construction and 16-gauge top support durability and corrosion resistance.
  • Anti-splash V edge and full skirt help contain water and promote a cleaner installation.
  • Includes a 2-inch NPS drain with removable stainless steel flat strainer plate.
  • 1/2-inch IPS hot and cold water supply connections are provided; wall-mount faucets are optional.

Overall Dimensions:

24.63"W x 21.5"D x 19.5"H

Product Weight:

53.0 lb

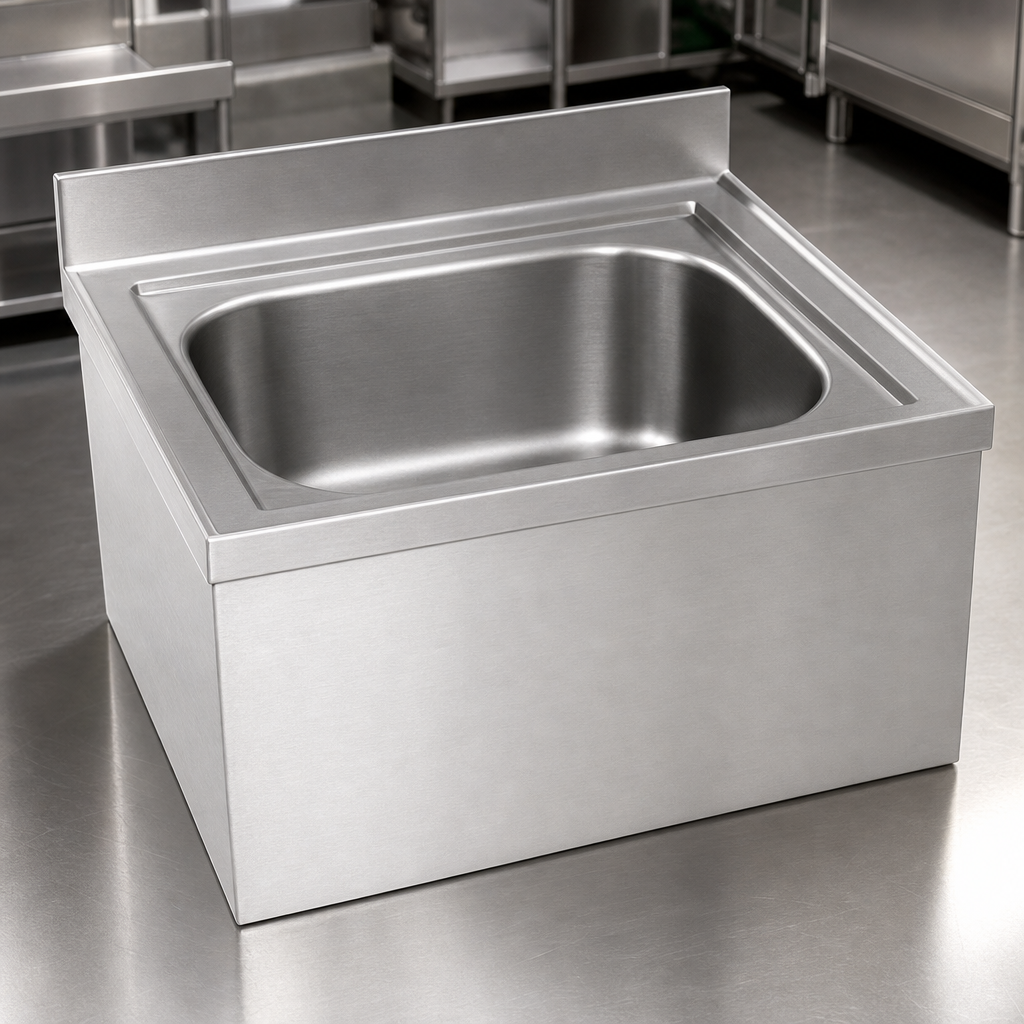

304 Stainless Steel Construction

Built from heavy-gauge type 304 stainless steel for durability and corrosion resistance.

12-Inch Deep-Drawn Bowl

One-piece seamless rectangular bowl measures 20 inches wide x 16 inches front-to-back x 12 inches deep.

16-Gauge Top with Anti-Splash V Edge

Heavy 16-gauge top features a double-offset V edge that helps prevent spillage.

2-Inch NPS Drain Assembly

Drain includes a nickel-plated cast bronze body and a removable snap-on stainless steel flat strainer plate.

Full Skirt Design

Concealed stud-bolted full skirt provides a clean appearance and tight sanitary seal.

Seamless Welded Construction

Entire top assembly is fused, welded, and planished, with belt-blended weld areas for a smooth satin finish.

Hot and Cold Water Supply Connections

Provides 1/2-inch IPS water supply connections for hot and cold lines; wall-mount faucets are available as options.

Type Mop Sink
Style Floor Mounted
Installation Type Floor Model
Material 304 Stainless Steel
Finish Satin Finish
Water Connection Required
Drain Connection Required
Water Inlet Size 1/2 Inch IPS
Drain Connection Size 2 Inch NPS
Selling Unit Each
Units Per Case 1
Shipping Width 25 Inches
Shipping Depth 22 Inches
Shipping Height 20 Inches
Shipping Weight 53 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year limited warranty from original installation, not to exceed 18 months from shipment.

Documents

PDF Cutsheet PDF Download PDF Care & maintenance PDF Download PDF Installation manual PDF Download PDF Brochure PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The overall size is 24-5/8 inches long x 21-1/2 inches wide x 19-1/2 inches high.
The bowl measures 20 inches wide x 16 inches front-to-back x 12 inches deep.
It is constructed of type 304 stainless steel with a 16-gauge top.
Yes. It includes a 2-inch NPS drain with a removable stainless steel flat strainer plate.
Wall-mount faucets are available as options, and the service faucet is sold separately.
The documentation lists a wall-mount faucet option, 3-pole mop holder, 4-pole mop holder, hose and bracket, and service faucet.
