Advance Tabco  |  SKU: 19-FM-1-ADA-F

Advance Tabco 19-FM-1-ADA-F Hand Sinks

$2,287.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Parts list Installation & operation
Related Searches
Hand Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

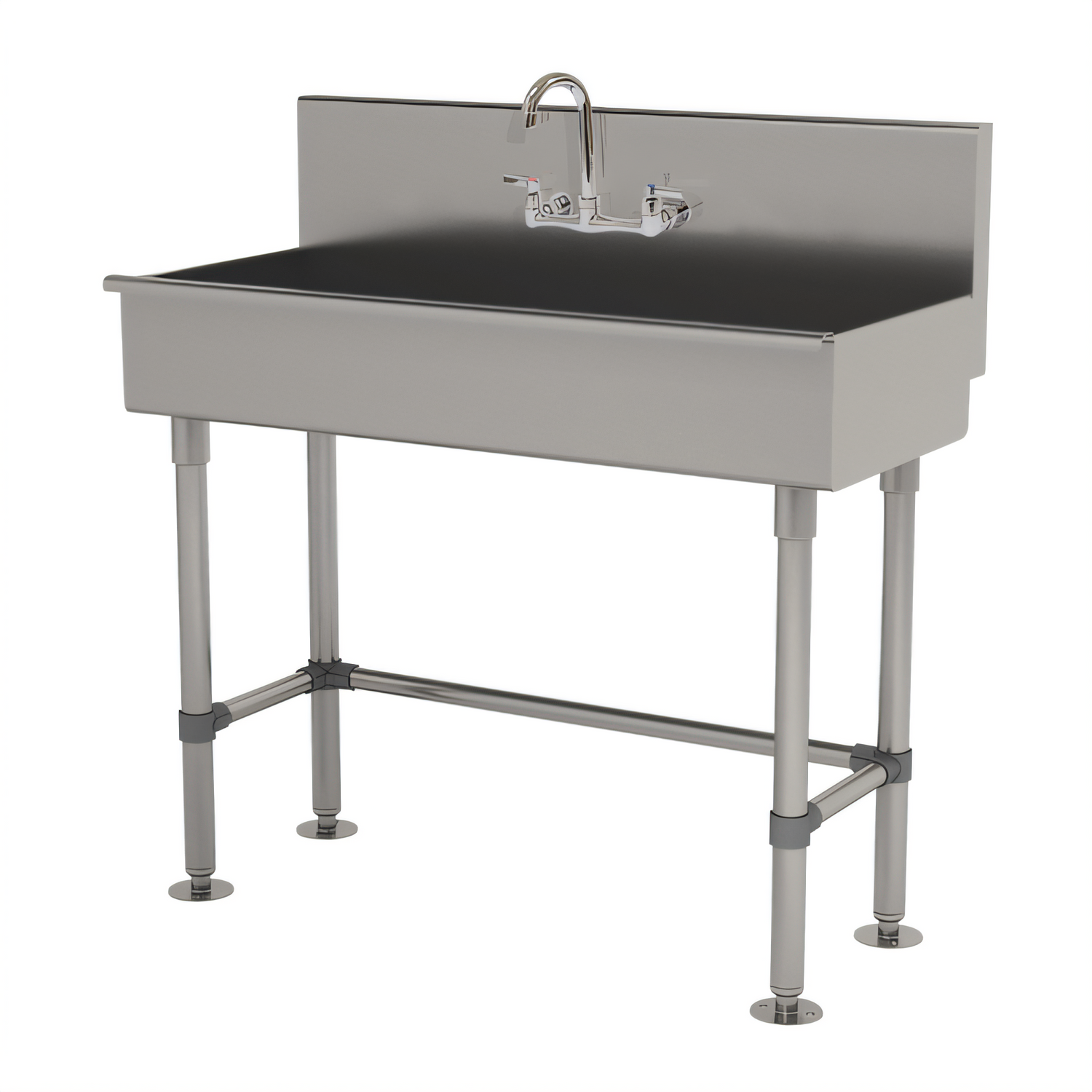

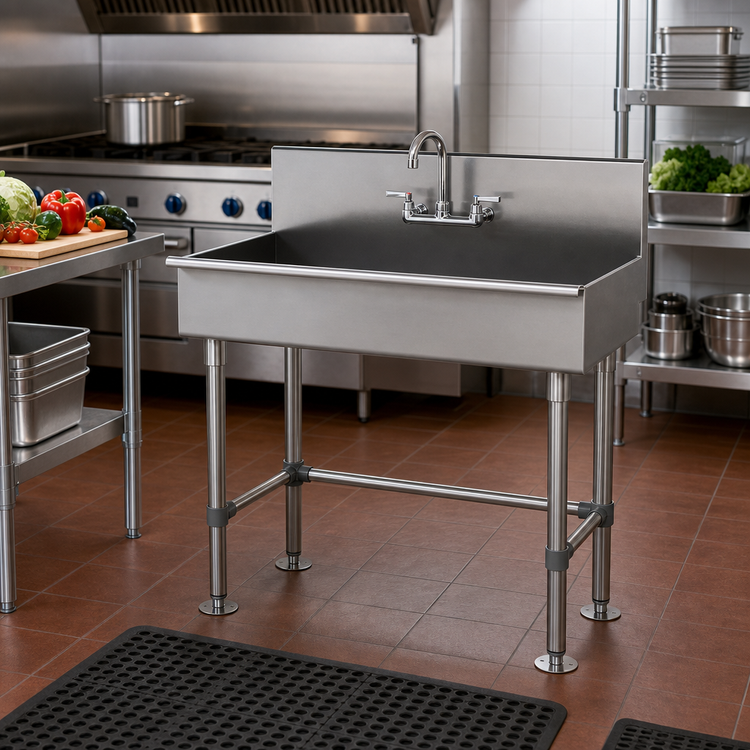

Advance Tabco 19-FM-1-ADA-F Stainless Steel Service Sink

1-Station • Floor Mounted • Includes Wrist-Blade Faucet & Drain

Engineered for heavy-duty janitorial and maintenance tasks, this ADA-compliant service sink pairs rugged 16-gauge type 304 stainless steel with rock-solid tubular legs and cross-bracing. A factory-installed gooseneck faucet and rear basket drain mean you’ll be up and running in no time.

Key Features

  • One-station, square-corner bowl—perfect for mop buckets & equipment rinse-offs

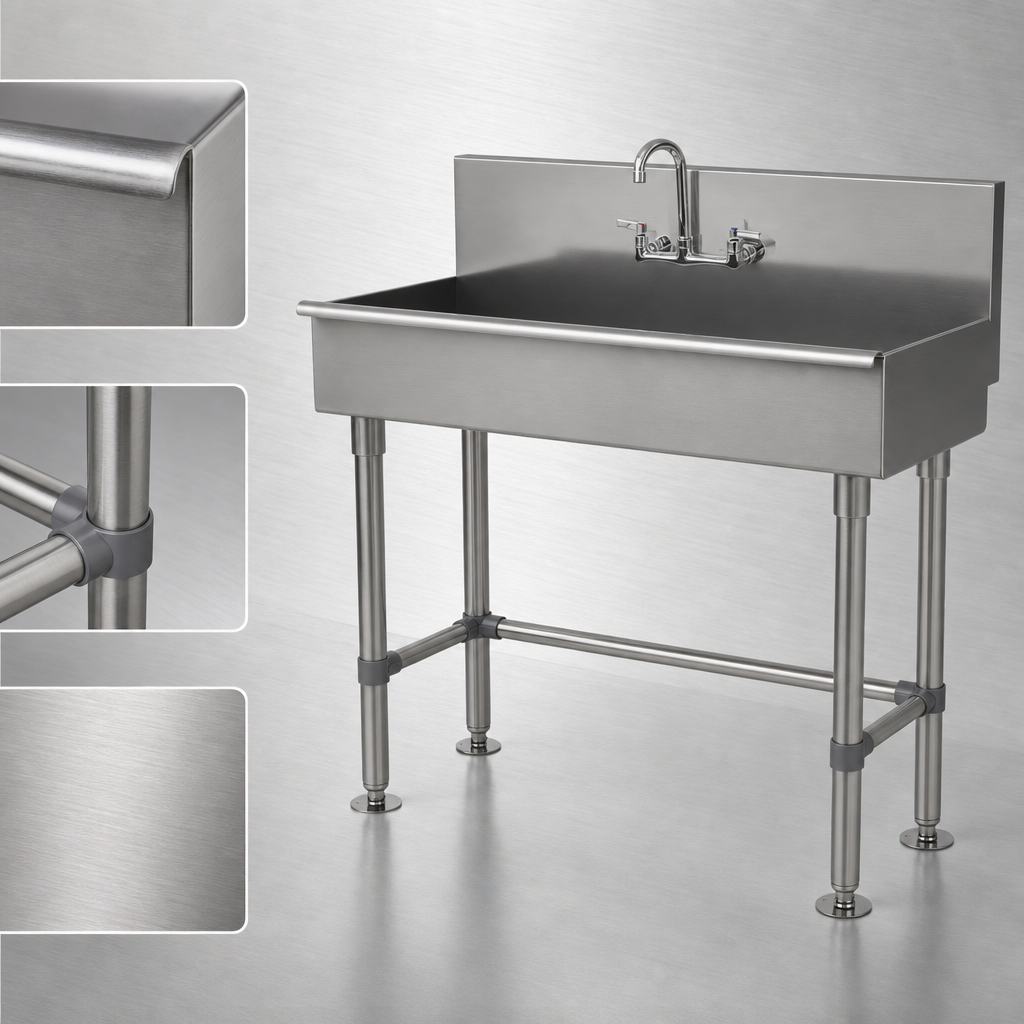

  • 16 ga. type 304 stainless steel bowl, apron & backsplash
  • 1 5/8" Ø tubular stainless steel legs with flanged feet for secure floor mounting
  • Side & rear adjustable cross-bracing for unmatched stability
  • 8 1/2" high backsplash with pre-punched 8" O.C. faucet holes
  • Included K-161-LU 6" gooseneck faucet with wrist-blade handles (lead-free, NSF 61/9)
  • 5" deep bowl minimizes bending and speeds cleanup
  • K-6 3 1/2" rear basket drain & strainer plate included
  • Two stainless steel “Z” brackets for code-compliant wall support
  • TIG-welded construction, blended to a satin finish
  • Fully ADA compliant (ANSI 2010) when installed per guidelines

Dimensions & Specs

Overall width 40 in.
Overall depth 19 1/2 in.
Overall height 42 1/2 in. (to top of backsplash)
Bowl size 40" W × 16" F/B × 5" D
Backsplash height 8 1/2 in.
Drain opening 3 1/2 in. (rear)
Faucet centers 8" on-center
Material / gauge Type 304 stainless steel / 16 ga.
Net weight 64 lb.

What’s Included

  • Advance Tabco 19-FM-1-ADA-F service sink
  • K-161-LU 6" gooseneck faucet with wrist-blade handles
  • K-6 rear basket drain & strainer plate
  • (2) Stainless steel “Z” wall brackets
  • Installation hardware & instructions

Looking for accessories such as soap dispensers or knee-operated valves? Contact us for genuine Advance Tabco upgrades.

California Prop 65 Notice: This product can expose you to chemicals, including lead, known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.

Features & Specs

Manufacturer

Advance Tabco

Certifications

ADA Compliant

Height

42.5in

Width

40.0in

Depth

19.5in

Shipping Weight

72.0lbs

Bowl Height (rim to drain)

5" deep

Bowl Depth (front to back)

15" - 19" front-to-back

Style

freestanding

Faucet

faucet included

Specifications

Service Sink, with stainless steel legs and flanged feet, includes faucet with wrist blades, 40"W x 19-1/2"D x 42-1/2"H (overall), 16" front-to-back x 5" deep (bowl size), 8-1/2"H backsplash, punched with (1) set of faucet holes 8" OC, includes 3-1/2" rear basket drain, 16 gauge 304 stainless steel construction, ADA compliant
