Key specifications
- Amps
- 12.5 Amps
- Phase
- 3-Phase
- Dimensions
- 79.0"W × 30.5"D × 34.0"H
- Type
- Hot Food Table
- Style
- Open Base
- Installation Type
- Floor Model

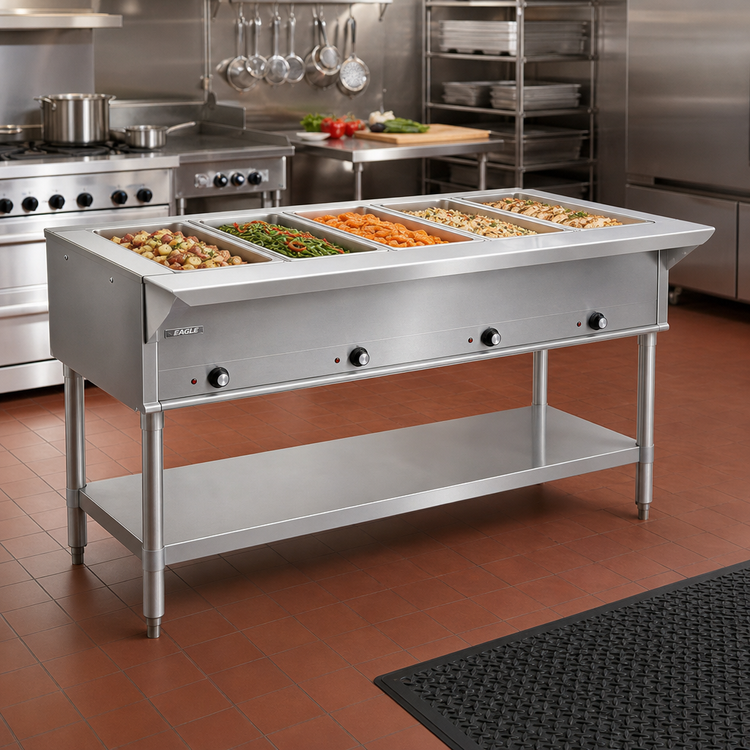

Eagle Group DHT5-208-3 5-Pan Dry-Well Hot Food Table
- 120 V · 1-phase · 8.3 A
- 208 V · 1-phase · 18 A
- 208 V · 3-phase · 12.5 A
- 240 V · 1-phase · 15.6 A
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description
The Eagle Group DHT5-208-3 is an electric hot food table with an open base and five dry wells sized for 12 in x 20 in pans.
It has a 430 stainless steel top and body, individual infinite controls, a polycarbonate cutting board, a galvanized steel adjustable undershelf and tubular legs, adjustable bullet feet, and a 3.75 kW, 208-volt, 60 Hz, three-phase electrical configuration with a cord and NEMA 15-20P plug.
- Five 12 in x 20 in dry wells
- 79 in wide, 30.5 in deep, and 34 in high
- Designed for dry operation
Overall Dimensions:
79.0"W x 30.5"D x 34.0"HProduct Weight:

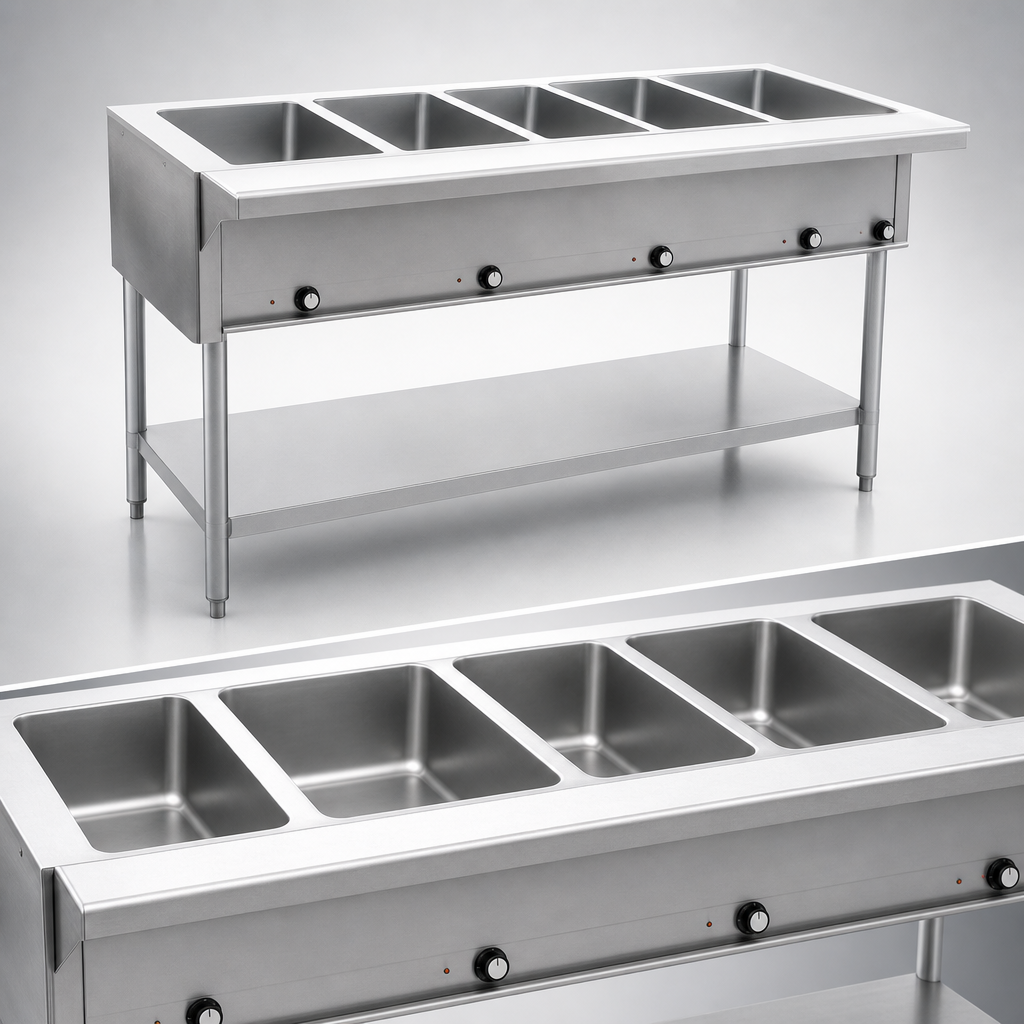

244.0 lbFive Dry Wells
Provides five open wells sized for 12 in x 20 in pans and designed for dry operation.

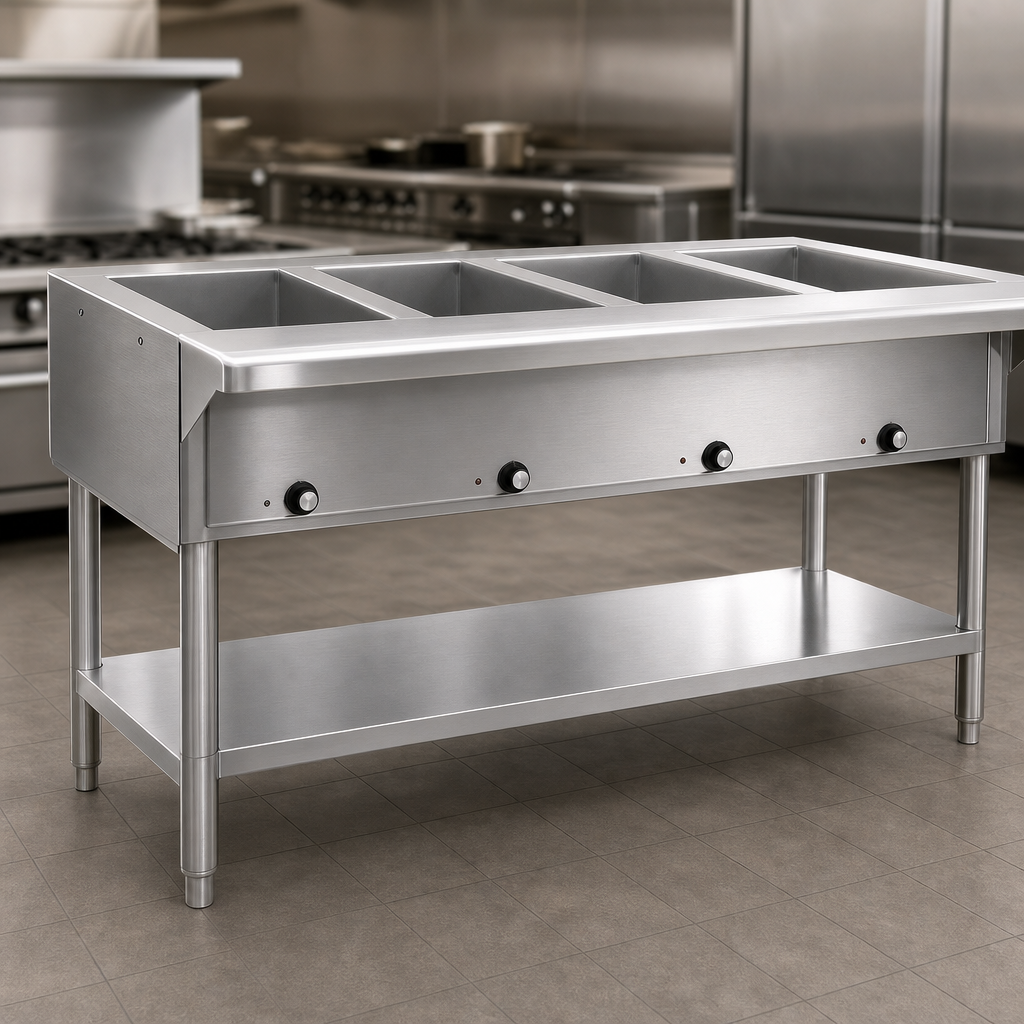

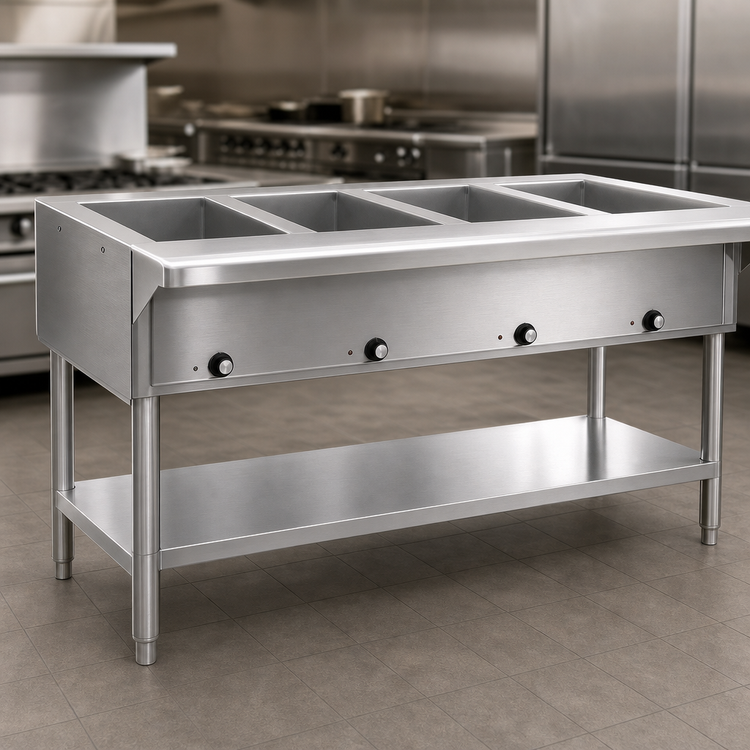

430 Stainless Steel Construction
The top and body are constructed of 430 stainless steel.
Infinite Controls
Individual infinite controls provide high and low settings plus eight other temperature settings.
Polycarbonate Cutting Board
Includes a polycarbonate cutting board mounted on the control side.
Adjustable Open Base
The open base has a galvanized steel adjustable undershelf and tubular legs with adjustable bullet feet.
Three-Phase Electrical Configuration
The unit is rated at 3.75 kW, 208 Volts, 60 Hz, and 12.5 Amps with a NEMA 15-20P plug.
