Key specifications

Amps
9.8 Amps Cold / 16.7 Amps Hot
Phase
1-Phase
Dimensions
78.0"W × 30.0"D × 34.0"H
Type
Hot/Cold Food Table
Style
Open Base
Installation Type
Floor Model
Spec sheet
Eagle Group SKU: DCS5-HCFU-C

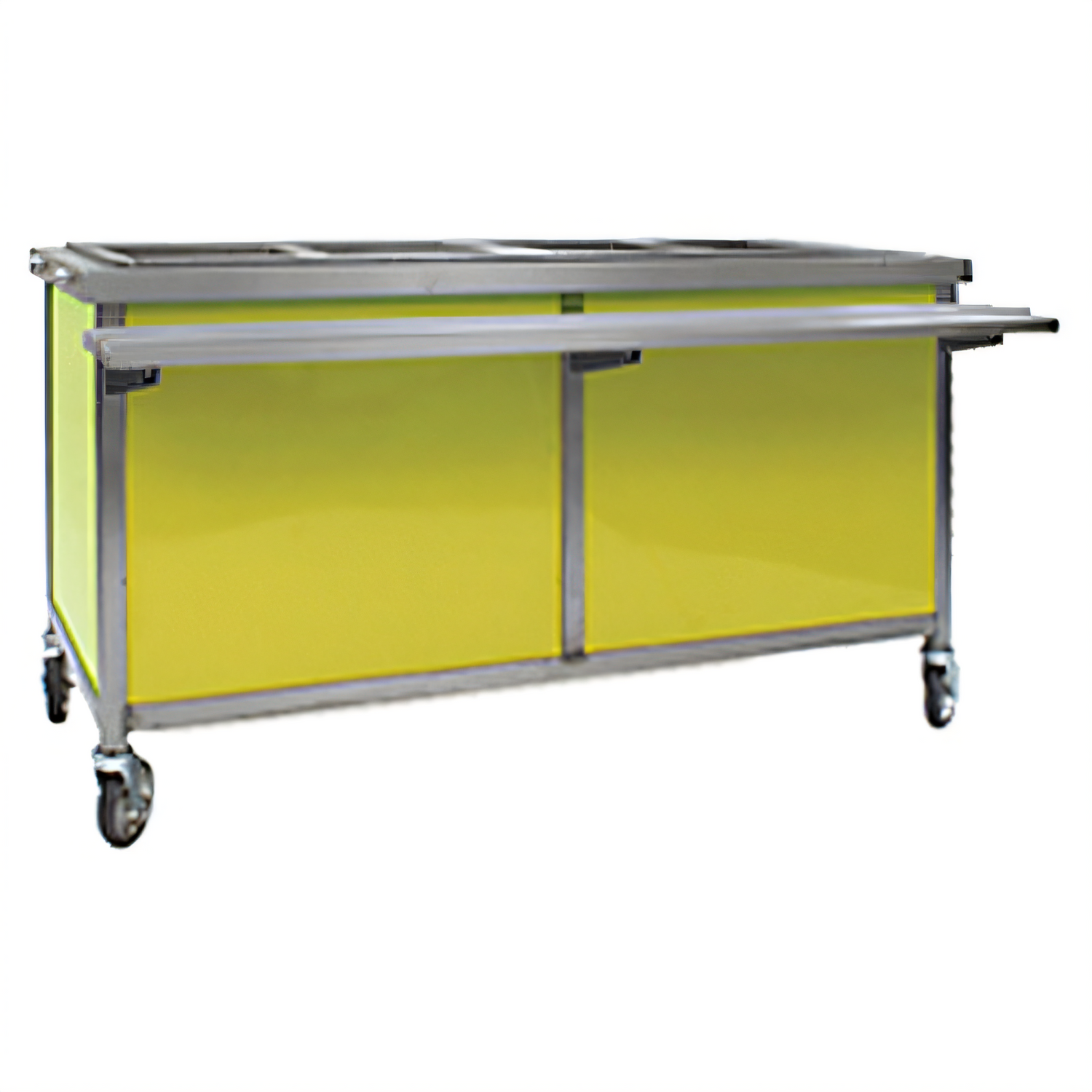

Eagle Group Director's Choice DCS5-HCFU-C 5-Well Hot/Cold Table

$16,503.67
/each
Estimated to ship in 3–6 business days Free Shipping
Front panel
End panels
Tray slide style
Work shelf material
Factory Add-Ons

Need something else? Contact us.

Included: Eagle Group warranty 12 months from factory shipment or 6 months from first placement into service, whichever comes first

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $1,527/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Hot/Cold Food Table
Style Open Base
Installation Type Floor Model
Material 304 Stainless Steel
Color Holly Berry Red
Interior Finish Stainless Steel
Cold Capacity 5 Pan Refrigerated Cold Well
Hot Capacity 5 Pans
Top Openings 5
Width 78 Inches
Depth 30 Inches
Height 34 Inches
Weight 270 lb
Top Gauge 16 Gauge
Top Thickness 2 Inches
Front Panel Material Laminate
Insulation Fiberglass
Caster Diameter 5 Inches
Caster Type Poly Swivel
Caster Brakes 2
Voltage 120/240 Volts
Amps 9.8 Amps Cold / 16.7 Amps Hot
Watts 4,000 Watts
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA L14-30P
Cord Length 6 Feet
Refrigeration Type Self-Contained
Compressor Horsepower 1/3 HP
Controls Thermostatic

Description

The DCS5-HCFU-C is a mobile hot/cold food table with five top openings, a 78-inch stainless steel top, and dual-temperature operation selected by a pre-wired hot/cold switch.

  • Hot mode: Immersion-type heating element with thermostatic control; water is required.
  • Cold mode: Self-contained condensing unit with sealed compressor.
  • The 16-gauge 304 stainless steel top and welded 304 stainless steel tubular base provide a durable serving-line configuration.
  • The open base has three open sides, an operator-side apron, and a holly berry red laminate front panel.
  • Five-inch poly swivel casters provide mobility, with two casters equipped with brakes.

Overall Dimensions:

78.0"W x 30.0"D x 34.0"H

Product Weight:

270.0 lb

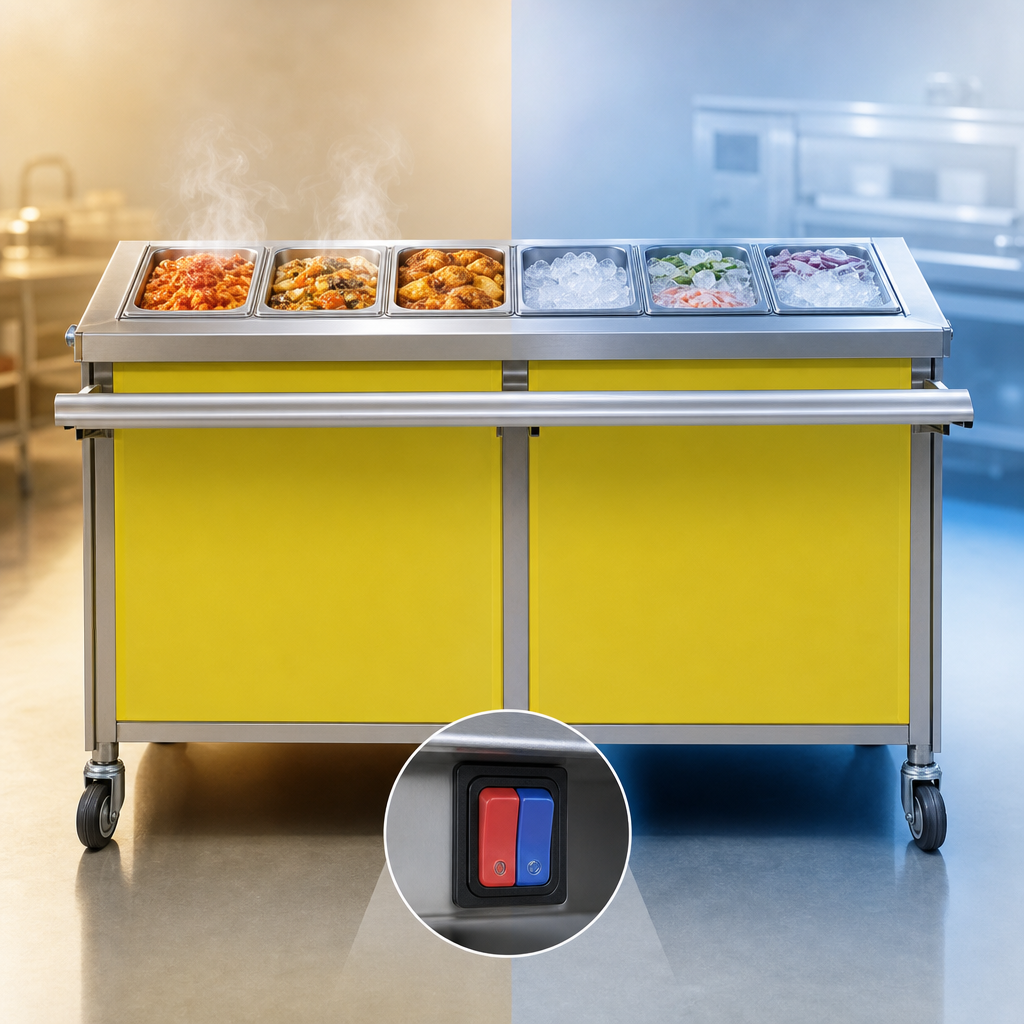

Dual Temperature Operation

Provides hot or cold operation through a pre-wired hot/cold selector switch.

Five Top Openings

The unit has five top openings for food wells.

Hot Mode Heating

Uses an immersion-type heating element with stainless steel sheath cover; water is required.

Self-Contained Refrigeration

Cold mode uses a self-contained condensing unit with a sealed compressor.

304 Stainless Steel Top and Base

Includes a 16-gauge 304 stainless steel top and a welded 304 stainless steel square tubular base.

Open Base

The base is open on three sides and includes an operator-side stainless steel apron.

Mobile Caster Base

Five-inch poly swivel casters are provided, with two casters having brakes.

Thermostatic Controls

Pre-wired thermostatic controls and a pilot light support hot and cold service.

Frequently Asked Questions

Yes. It provides dual-temperature hot or cold operation through a pre-wired selector switch.
It has five top openings.
It is specified for 120/240 Volts, 60 Hz, single-phase operation and uses a NEMA L14-30P twist-lock plug. Hot mode draws 16.7 Amps and cold mode draws 9.8 Amps.
Yes. Cold mode uses a self-contained condensing unit with a sealed compressor and a 1/3 HP condensing unit.
The product measures 78 inches wide, 30 inches deep, and 34 inches high, with a listed weight of 270 lb.
Yes. It has five-inch poly swivel casters, including two casters with brakes.
