Key specifications

Amps
9.8 Amps Cold; 19.3 Amps Hot
Phase
1-Phase
Dimensions
78.0"W × 30.0"D × 34.0"H
Type
Food Table
Style
Mobile
Installation Type
Floor Model
Spec sheet
Eagle Group SKU: DCS5-HCFU-B

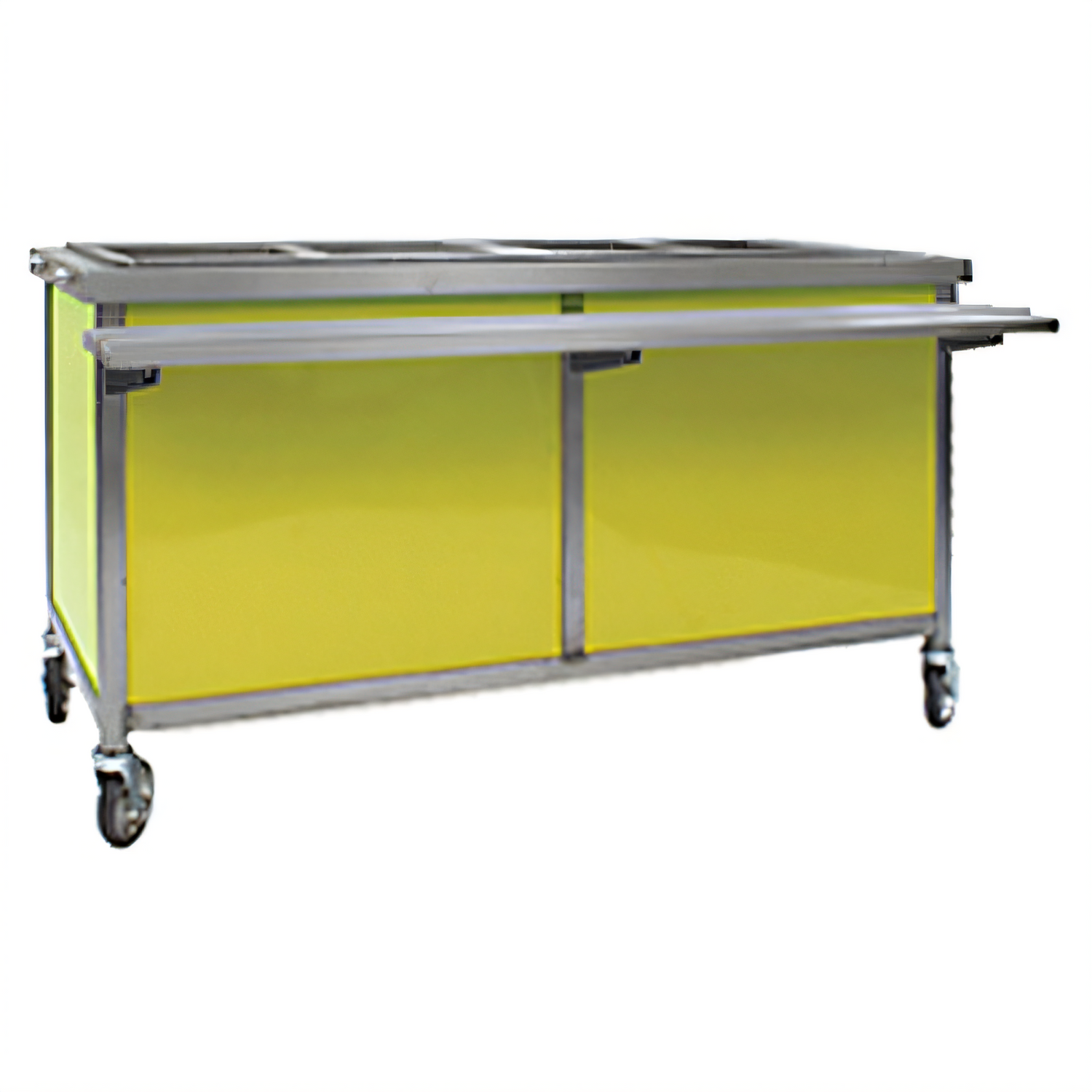

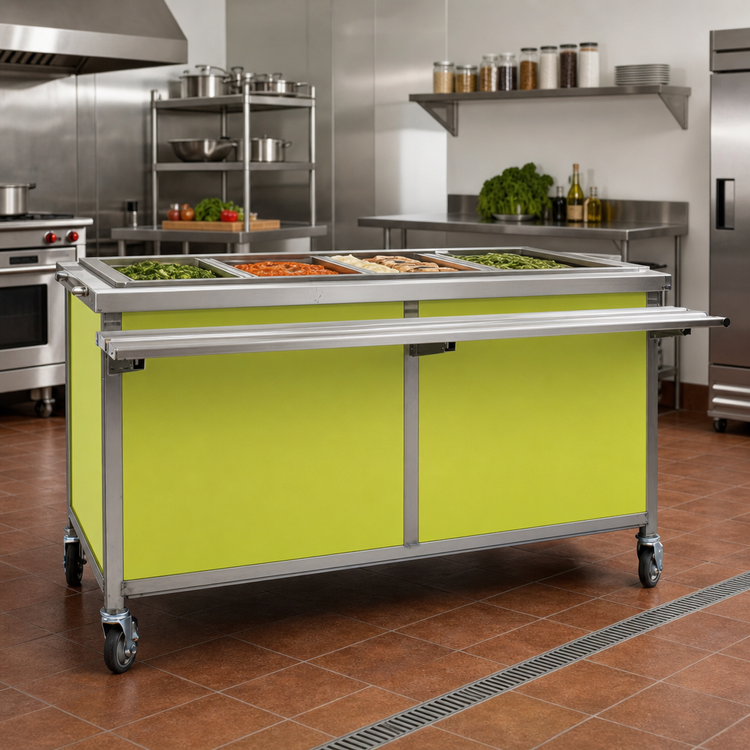

Eagle Group Director's Choice DCS5-HCFU-B 5-Pan Hot/Cold Food Table

$16,503.67
/each
Estimated to ship in 3–6 business days Free Shipping
Sneeze guard
Rear doors and panels
Front panel
End panels
Factory Add-Ons
Included: Eagle Group warranty 12 months from factory shipment or 6 months from first placement into service, whichever comes first

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $1,527/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Food Table
Style Mobile
Installation Type Floor Model
Material 304 Stainless Steel
Base Design Open Base
Pan Capacity 5 Pan
Top Openings 5
Refrigeration Type Self-Contained
Controls Hot/Cold Selector Switch; Thermostatic Control; Pilot Light
Front Panel Material Laminate
Front Panel Color Holly Berry Red
Insulation Fiberglass
Top Gauge 16 Gauge
Top Thickness 2 Inches
Heating Element Type Immersion
Condensing Unit 1/3 HP
Caster Size 5 Inches
Braking Casters 2
Width 78 in
Depth 30 in
Height 34 in
Weight 270 lb
Voltage 120/208 Volts
Amps 9.8 Amps Cold; 19.3 Amps Hot
Watts 4,000 Watts
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA L14-30P
Cord Length 6 Feet

Description

The Eagle Group DCS5-HCFU-B is a mobile food table designed for hot or cold service through a hot/cold selector switch.

  • Provides five top openings for five-pan service.
  • Hot mode uses an immersion-type heating element and requires water.
  • Cold mode uses a self-contained condensing unit with a sealed compressor.
  • Type 304 stainless steel construction includes a 16-gauge, 2-inch-tall top and stainless steel inner liner.
  • The open base has 5-inch poly tread swivel casters, including two with brakes.
  • The standard front panel is holly berry red laminate on a galvanized subpanel.

Overall dimensions are 78 inches wide by 30 inches deep by 34 inches high, with a 270-pound weight.

Overall Dimensions:

78.0"W x 30.0"D x 34.0"H

Product Weight:

270.0 lb

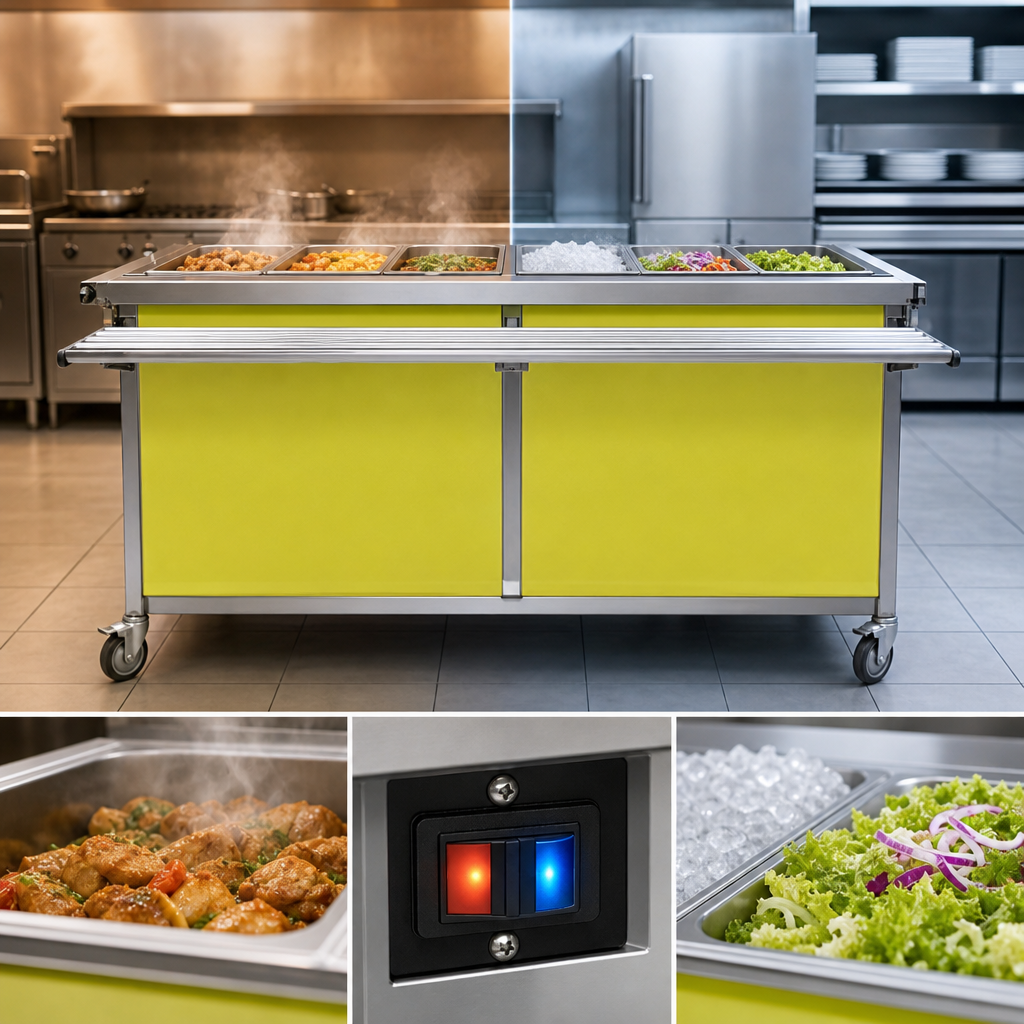

Dual Temperature Operation

A hot/cold selector switch supports hot or cold service with thermostatic controls and a pilot light.

Five Top Openings

The unit provides five top openings for five-pan hot or cold service.

Self-Contained Refrigeration

Cold mode uses a self-contained condensing unit with a sealed compressor and 1/3 HP rating.

Immersion Heating

Hot mode uses an immersion-type heating element with a stainless steel sheath cover; water is required.

Stainless Steel Construction

The unit has Type 304 stainless steel construction, including a 16-gauge, 2-inch-tall top and stainless steel inner liner.

Mobile Open Base

The welded tubular open base is fitted with 5-inch poly tread swivel casters, two with brakes.

Standard Front Panel

The standard front panel uses holly berry red laminate on a heavy-gauge galvanized subpanel.

Frequently Asked Questions

Yes. It has dual-temperature hot or cold operation with a hot/cold selector switch, thermostatic controls, and a pilot light.
Hot mode is rated at 208 V, 4,000 W, and 19.3 A. Cold mode is rated at 120 V, 1/3 HP, and 9.8 A. The unit is 60 Hz, single-phase, and uses an NEMA L14-30P plug.
The unit has five top openings and is specified for five-pan hot or cold service. The specifications do not state that pans are included.
Yes. It has 5-inch poly tread swivel casters, with brakes on two casters.
The food table is 78 inches wide, 30 inches deep, and 34 inches high, with a listed weight of 270 pounds.
For Eagle hot food tables and cold pan units, the warranty is 12 months from factory shipment or 6 months from first placement into service, whichever comes first. Warranty service must be authorized, and exclusions include maintenance, misuse, abuse, improper installation, and wrong voltage.

This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.

The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.
