Key specifications
- Amps
- 16.7 Amps Hot; 2.4 Amps Cold
- Phase
- 1-Phase
- Dimensions
- 50.0"W × 30.0"D × 34.0"H
- Type
- Hot/Cold Food Table
- Style
- Mobile
- Installation Type
- Floor Model
Spec sheet

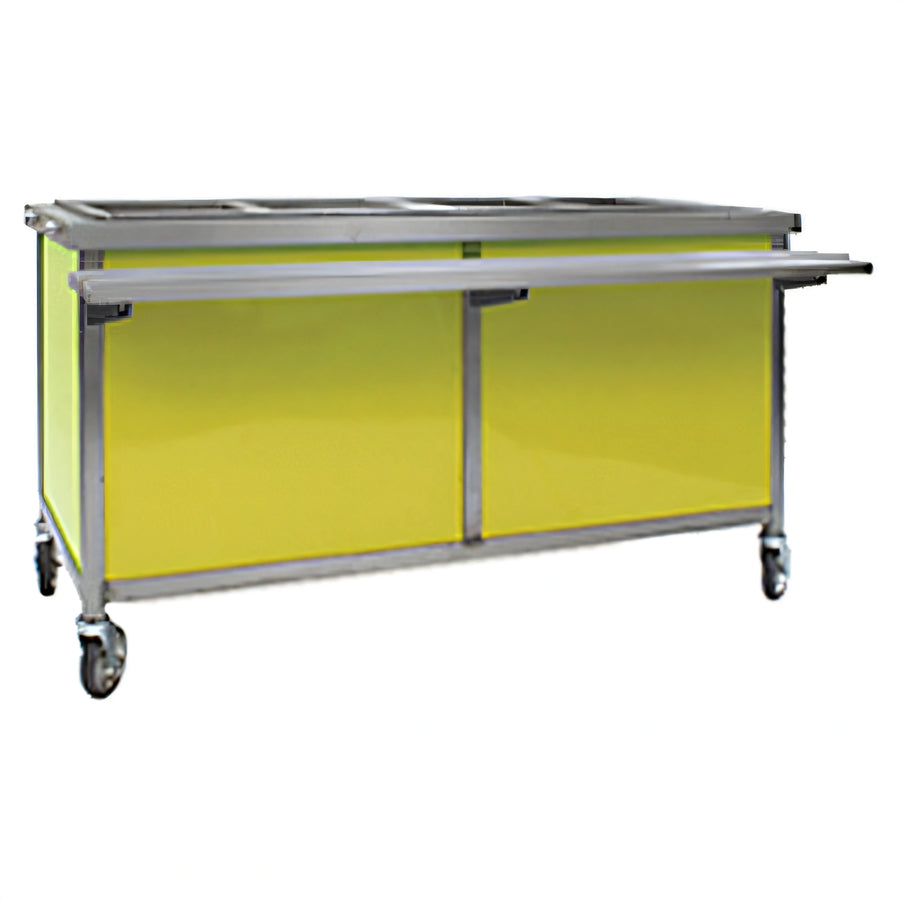

Eagle Group Director's Choice DCS3-HCFU-A 3-Pan Hot/Cold Table
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description
Mobile food table with dual-temperature hot or cold operation and three top openings.
- Hot mode: Immersion heating element with water required, 2 kW at 120 Volts, and thermostatic control.
- Cold mode: Self-contained condensing unit with sealed compressor, 1/5 HP, and CFC-free refrigerant.
- 16-gauge 304 stainless steel top and welded 304 stainless steel tubular open base with operator-side apron.
- Holly Berry Red laminate front panel on galvanized subpanel and 5-inch poly tread swivel casters, including two with brakes.
Overall Dimensions:
50.0"W x 30.0"D x 34.0"HProduct Weight:

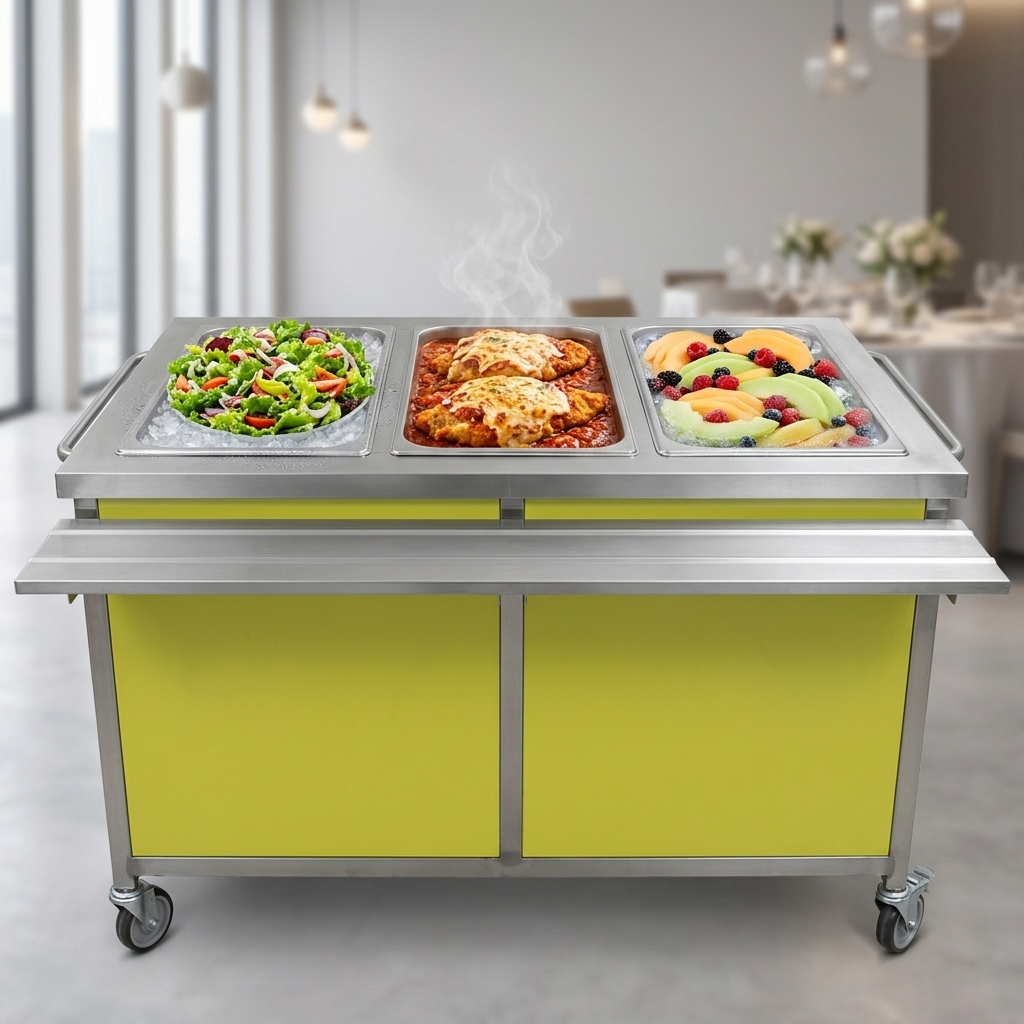

220.0 lbDual-Temperature Operation

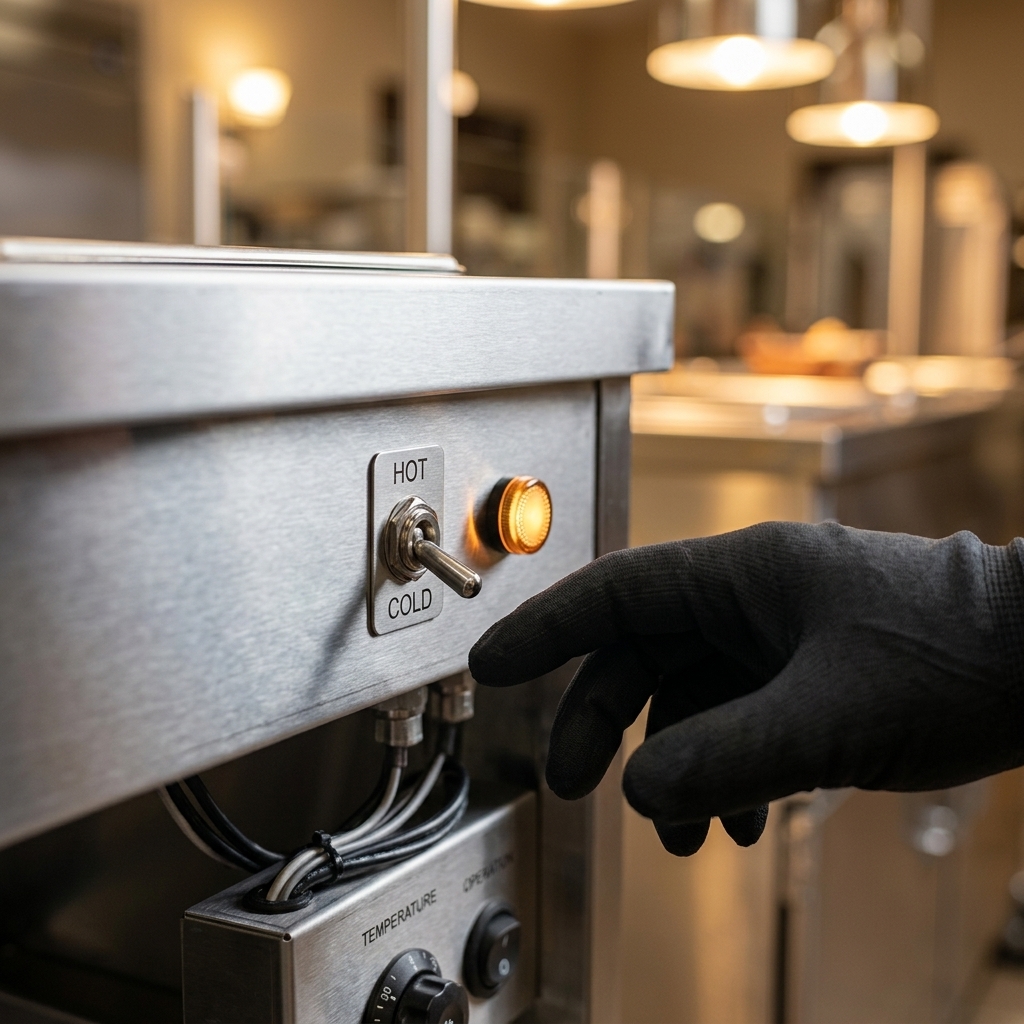

Provides hot or cold operation through the pre-wired hot/cold selector switch.
Hot Mode
Uses an immersion-type heating element with water required, 2 kW output, and 16.7 Amps at 120 Volts.
Cold Mode
Uses a self-contained condensing unit with a sealed compressor, 1/5 HP rating, and 2.4 Amps at 120 Volts.

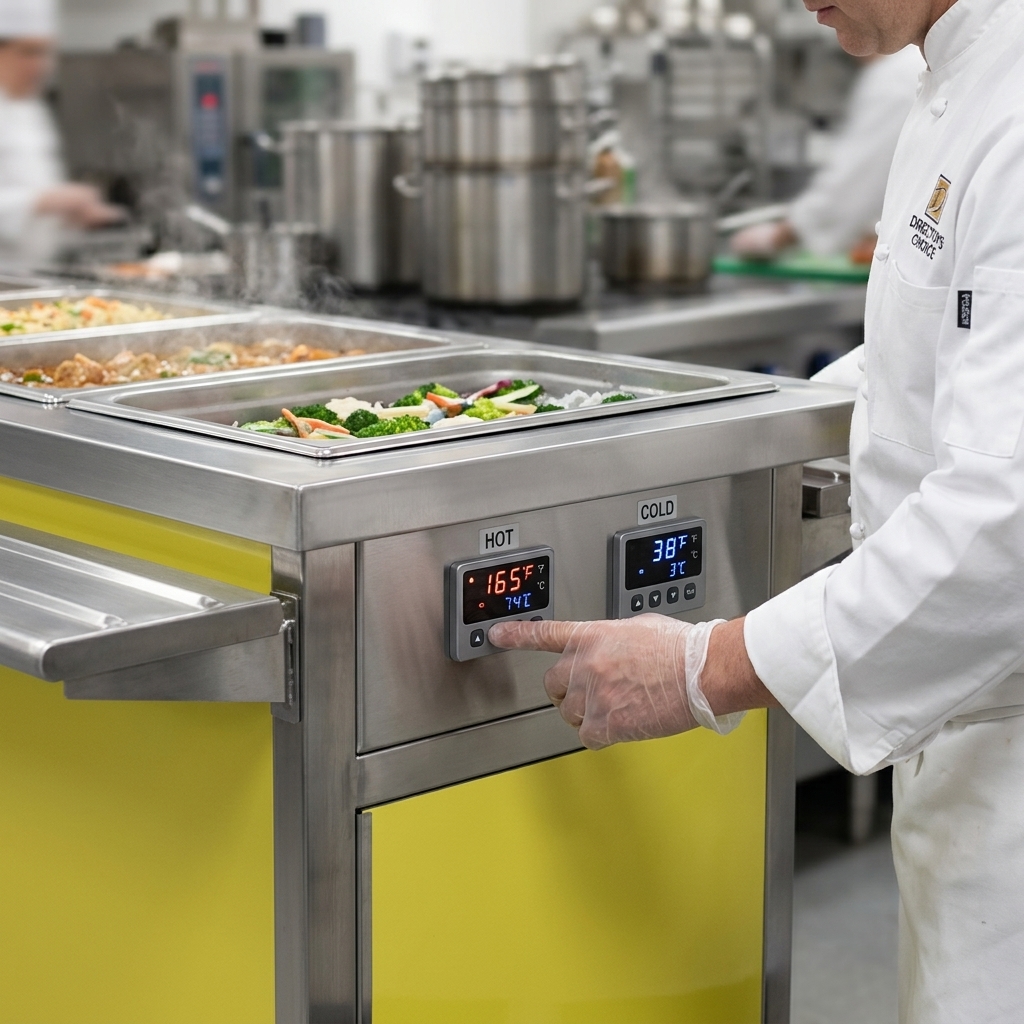

Thermostatic Controls
Includes thermostatic controls and a pilot light for hot and cold service.
Stainless Steel Construction
Features a 16-gauge 304 stainless steel top and a welded 304 stainless steel tubular base.
Open Base
Open on three sides with a stainless steel apron on the operator's side.
Mobile Casters
Includes 5-inch poly tread swivel casters, with two casters equipped with brakes.
Front Panel
Standard Holly Berry Red laminate front panel on a galvanized subpanel.
