Key specifications

Amps
14.9 Amps at 208 Volts / 17.0 Amps at 240 Volts
Phase
1-Phase
Dimensions
88.0"W × 34.0"D × 36.0"H
Type
Hot Food Well
Style
Waterless
Installation Type
Floor Model
Spec sheet
Duke SKU: EW-6-DLPG

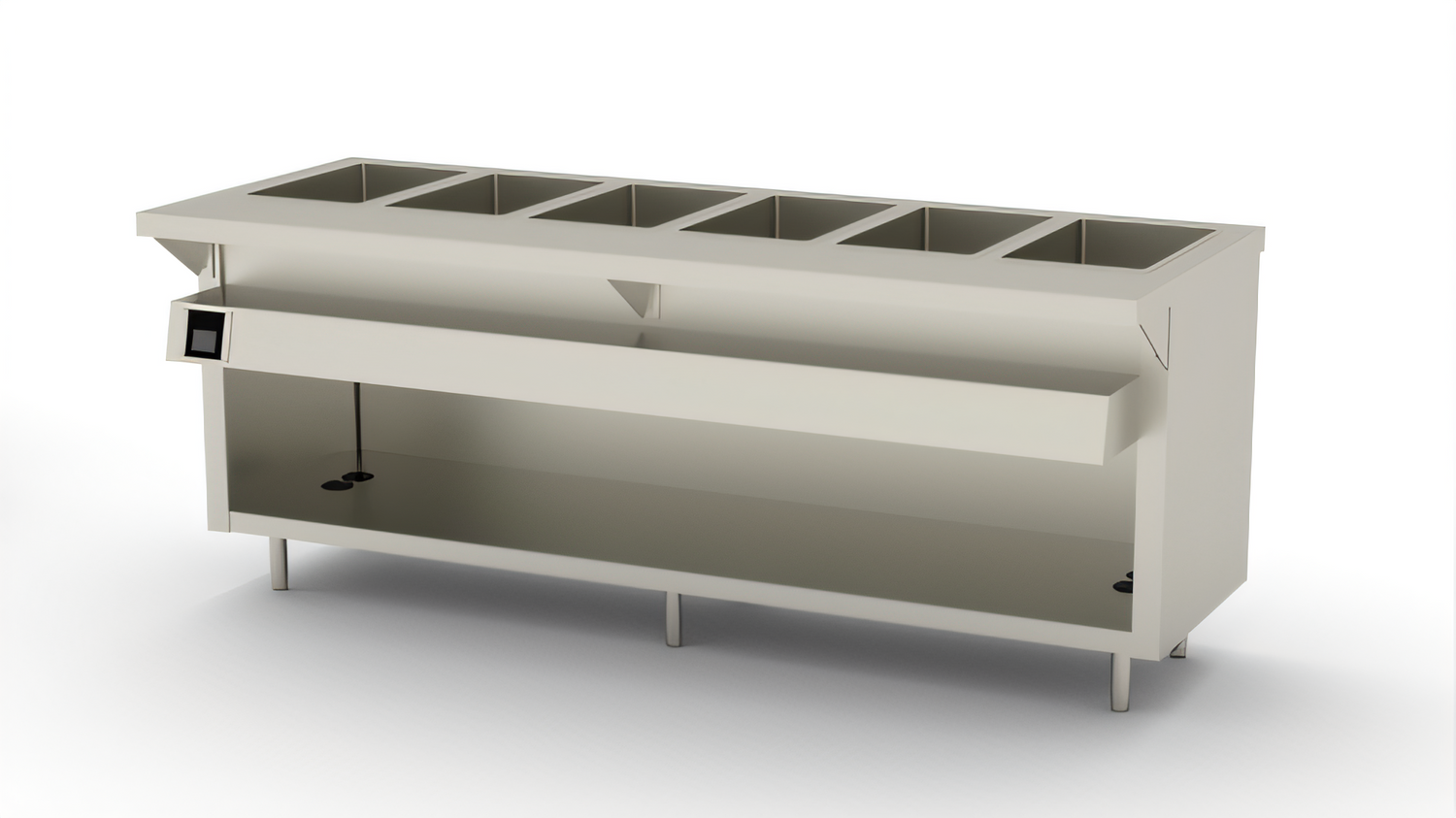

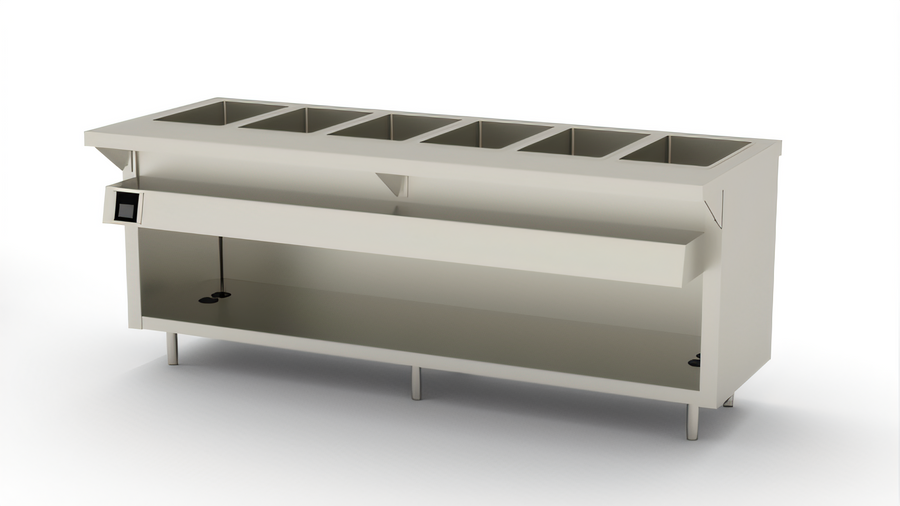

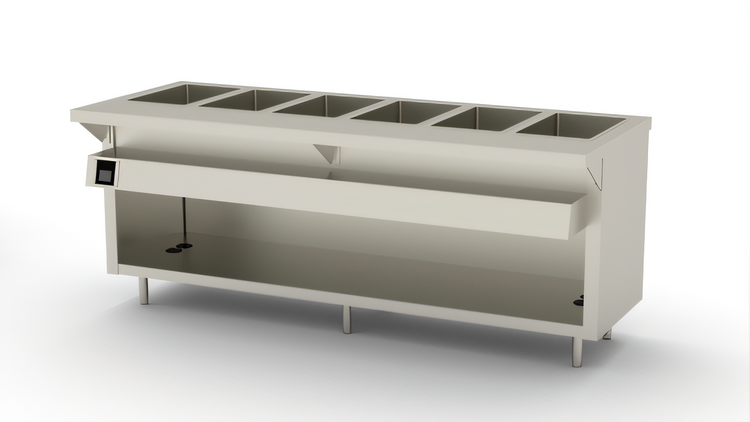

Duke Thurmaduke EW-6-DLPG 6-Pan Waterless Hot Food Well

$14,683.67
/each
Estimated to ship in 16–19 business days
Well count
Body
ElectricalRequired
Top gauge
Cutting surface
Base
Factory Add-Ons

Need something else? Contact us.

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $1,358/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Hot Food Well
Style Waterless
Installation Type Floor Model
Material Paint Grip Steel
Finish Painted
Design Open Storage Base
Top Material 300 Series Stainless Steel
Top Gauge 16 Gauge
Well Material Stainless Steel
Well Type Sealed Well
Pan Size Full Size
Pan Capacity 6 Pans
Body Gauge 20 Gauge
Undershelf Material Paint Grip Steel
Controls Touchscreen
Preset Levels Low, Medium, High
Voltage 208/240 Volts
Amps 14.9 Amps at 208 Volts / 17.0 Amps at 240 Volts
Watts 3.092 kW at 208 Volts / 4.082 kW at 240 Volts
Phase 1-Phase
Plug Type NEMA 6-20 at 208 Volts / NEMA L6-30 at 240 Volts
Cord and Plug Not Included
Leg Height 6 Inches

Description

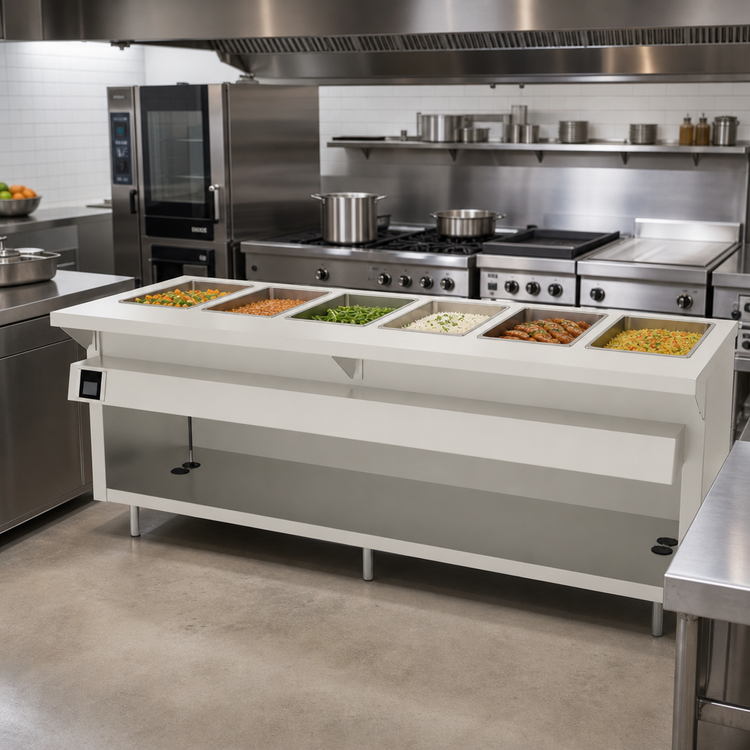

The Duke Thurmaduke EW-6-DLPG is an electric hot food well unit with six stainless steel sealed wells for dry, waterless operation.

  • Touchscreen control: One touchscreen control operates all wells and provides Low, Medium, and High presets.
  • Work and storage surfaces: An integral stainless steel cutting board, dish shelf, and open storage base support foodservice preparation and holding.
  • Construction: The unit has a 16 gauge stainless steel top, 20 gauge paint grip steel body and undershelf, and 6 inch stainless steel legs with adjustable feet.

Overall Dimensions:

88.0"W x 34.0"D x 36.0"H

Product Weight:

595.0 lb

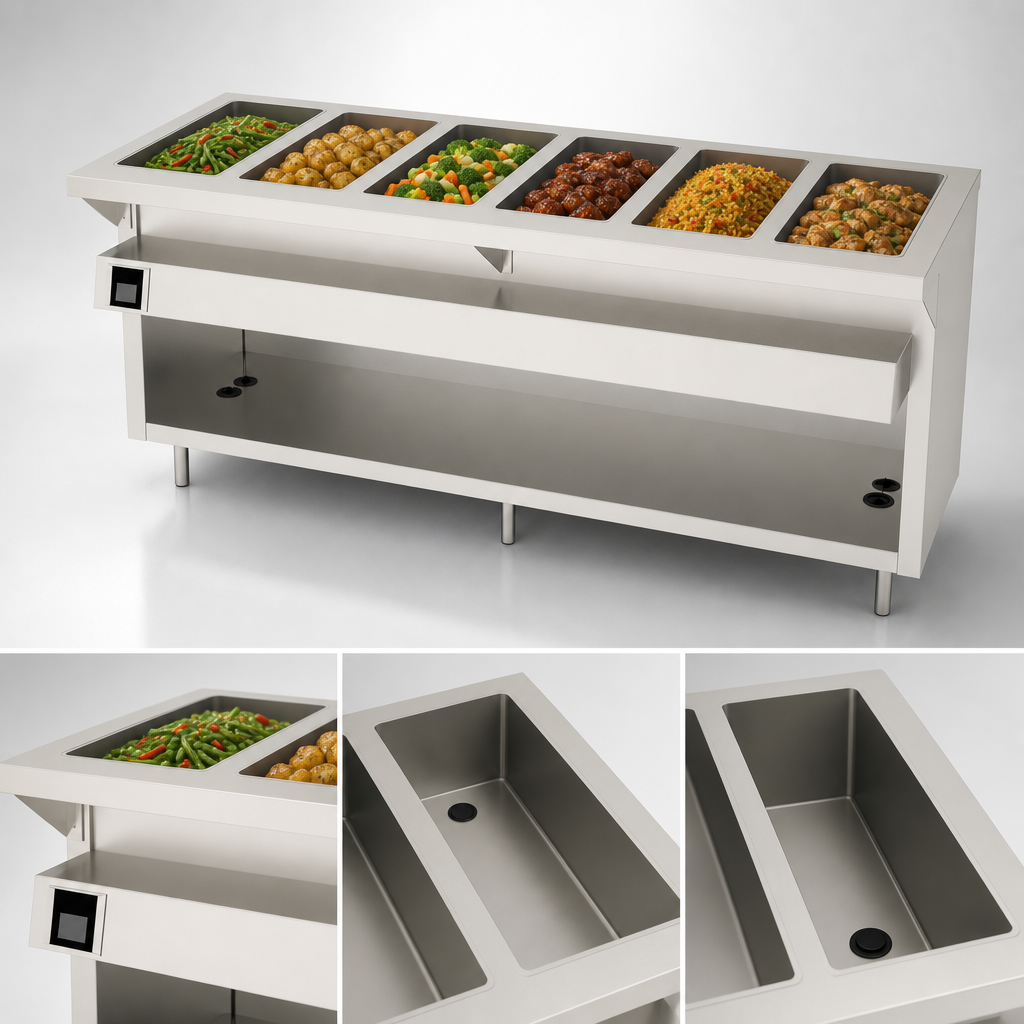

Waterless Well Design

The six wells are specified for dry operation, and the user guide states not to add water.

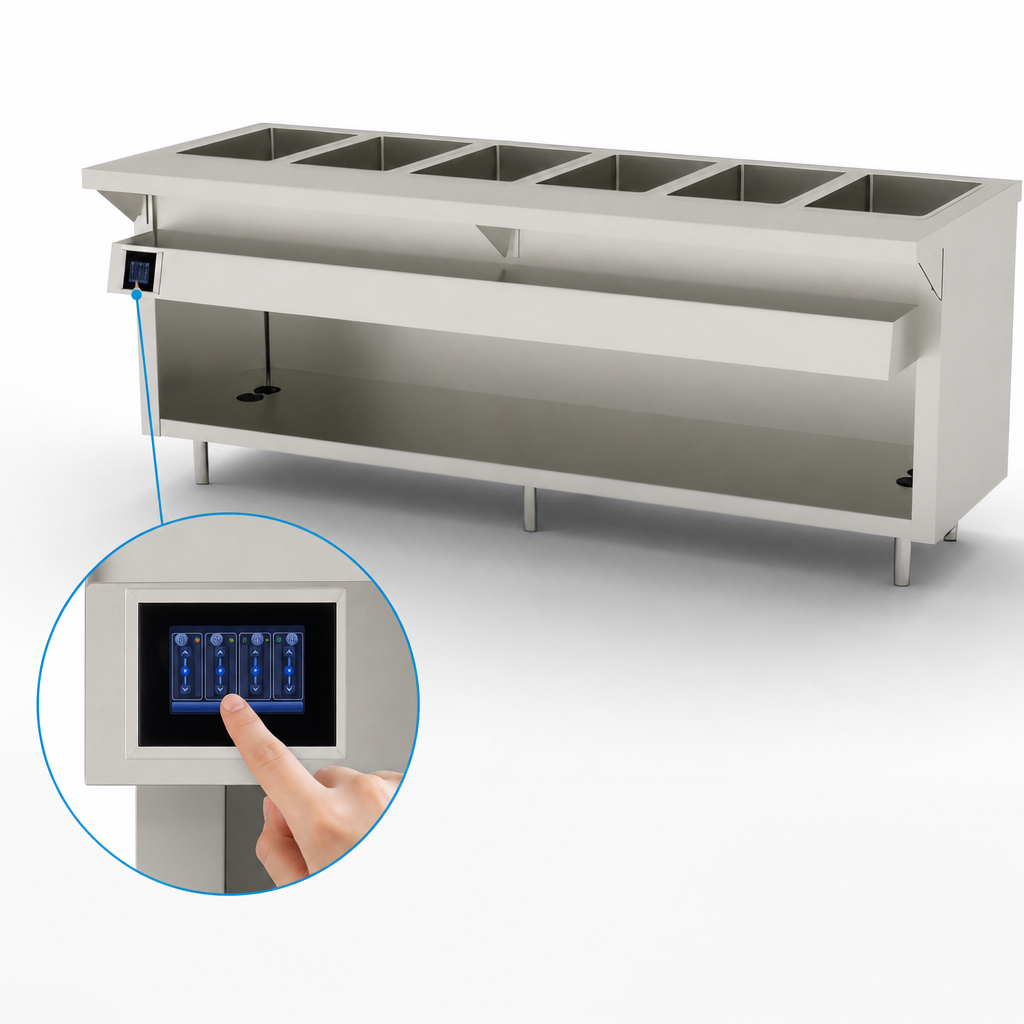

Touchscreen Controls

One touchscreen control operates all wells and provides Low, Medium, and High presets.

Stainless Steel Top

The top is constructed from 16 gauge, 300 series stainless steel.

Integrated Work Surfaces

The unit includes an integral stainless steel cutting board and dish shelf.

Open Storage Base

The open base includes an undershelf for storage.

Adjustable Leg System

Six inch stainless steel legs include adjustable feet.

Future Connectivity

The cut sheet lists built-in Wi-Fi and Bluetooth for future connectivity.

Proposition 65: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Frequently Asked Questions

No. The user guide says not to add water, and the cut sheet specifies dry operation only.
It has six stainless steel sealed wells.
One touchscreen control operates all wells, with Low, Medium, and High presets.
The cut sheet lists 208 Volt, 3.092 kW, 14.9 Amp operation with a NEMA 6-20 connection, or 240 Volt, 4.082 kW, 17.0 Amp operation with a NEMA L6-30 connection. The unit is single phase.
No. The cut sheet states that the cord and NEMA plug are not included.
The unit measures 88 inches wide by 34 inches deep by 36 inches high and weighs 595 pounds.
