Key specifications

Amps
28.5 Amps at 120 Volts; 12.5 Amps at 208 Volts; 14.2 Amps at 240 Volts
Phase
1-Phase
Dimensions
74.0"W × 34.0"D × 36.0"H
Type
Hot Food Unit
Style
Waterless
Installation Type
Floor Model
Spec sheet
Duke SKU: EW-5-DLSS

Duke Thurmaduke EW-5-DLSS 5-Well Waterless Hot Food Unit

$13,780.31
/each
Estimated to ship in 16–19 business days
Well count
Body material
ElectricalRequired
Cord and plug length
Top gauge
Height
Factory Add-Ons

Need something else? Contact us.

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $1,275/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Hot Food Unit
Style Waterless
Installation Type Floor Model
Material Stainless Steel
Pan Capacity 5 Pans
Well Type Sealed Well
Base Design Open Storage Base
Controls Touch Screen
Top Gauge 16 Gauge
Body Gauge 20 Gauge
Voltage 120/208/240 Volts
Watts 3.417 kW at 120/240 Volts; 2.592 kW at 208 Volts
Amps 28.5 Amps at 120 Volts; 12.5 Amps at 208 Volts; 14.2 Amps at 240 Volts
Phase 1-Phase
Plug Type NEMA 5-50 at 120 Volts; NEMA 6-20 at 208/240 Volts

Description

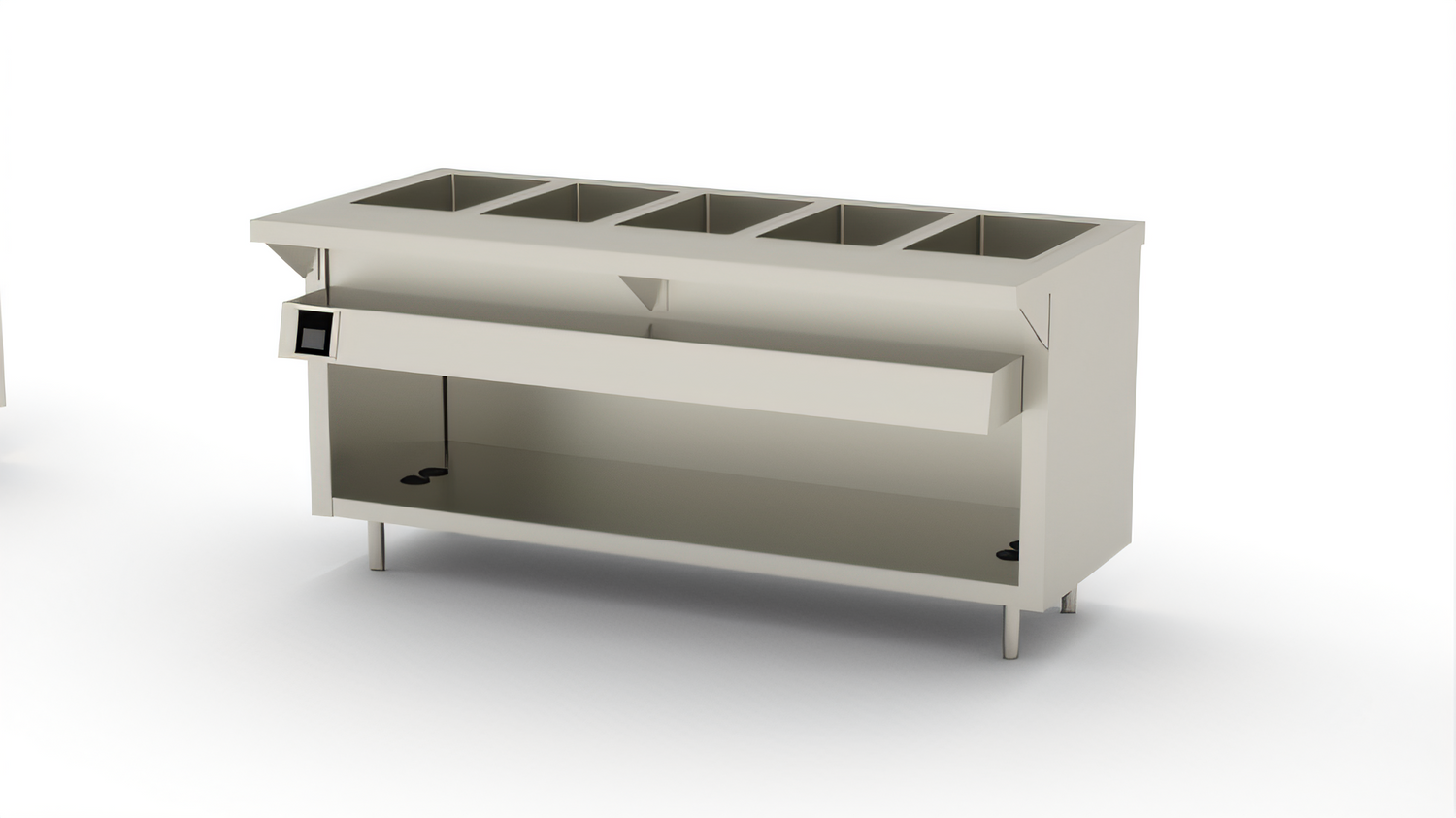

The Duke Thurmaduke EW-5-DLSS is a 74-inch electric waterless hot food unit with five stainless steel sealed wells and an open storage base.

  • Waterless operation: The sealed wells are designed for dry operation; the user guide instructs operators not to add water.
  • Touch-screen control: One touch-screen control operates all wells and provides Low, Medium, and High presets.
  • Stainless steel construction: The top is 16 gauge stainless steel, while the body and undershelf are 20 gauge stainless steel.
  • Service features: The unit includes an integral stainless steel dish shelf that is 8.5 inches wide.
  • Open storage: The base includes a full bottom shelf and stands on 6-inch stainless steel legs with adjustable feet.

Overall Dimensions:

74.0"W x 34.0"D x 36.0"H

Product Weight:

495.0 lb

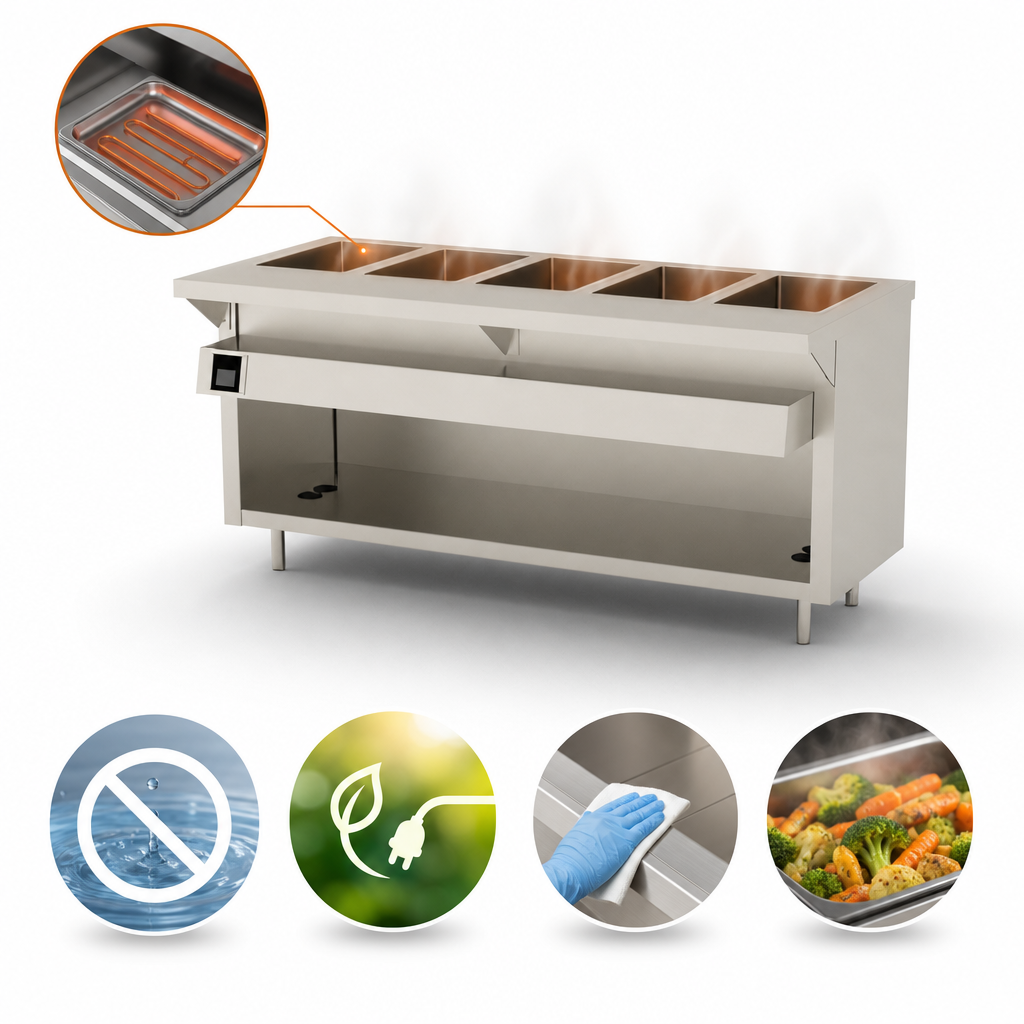

Five Sealed Wells

The unit has five stainless steel sealed wells for dry, waterless operation.

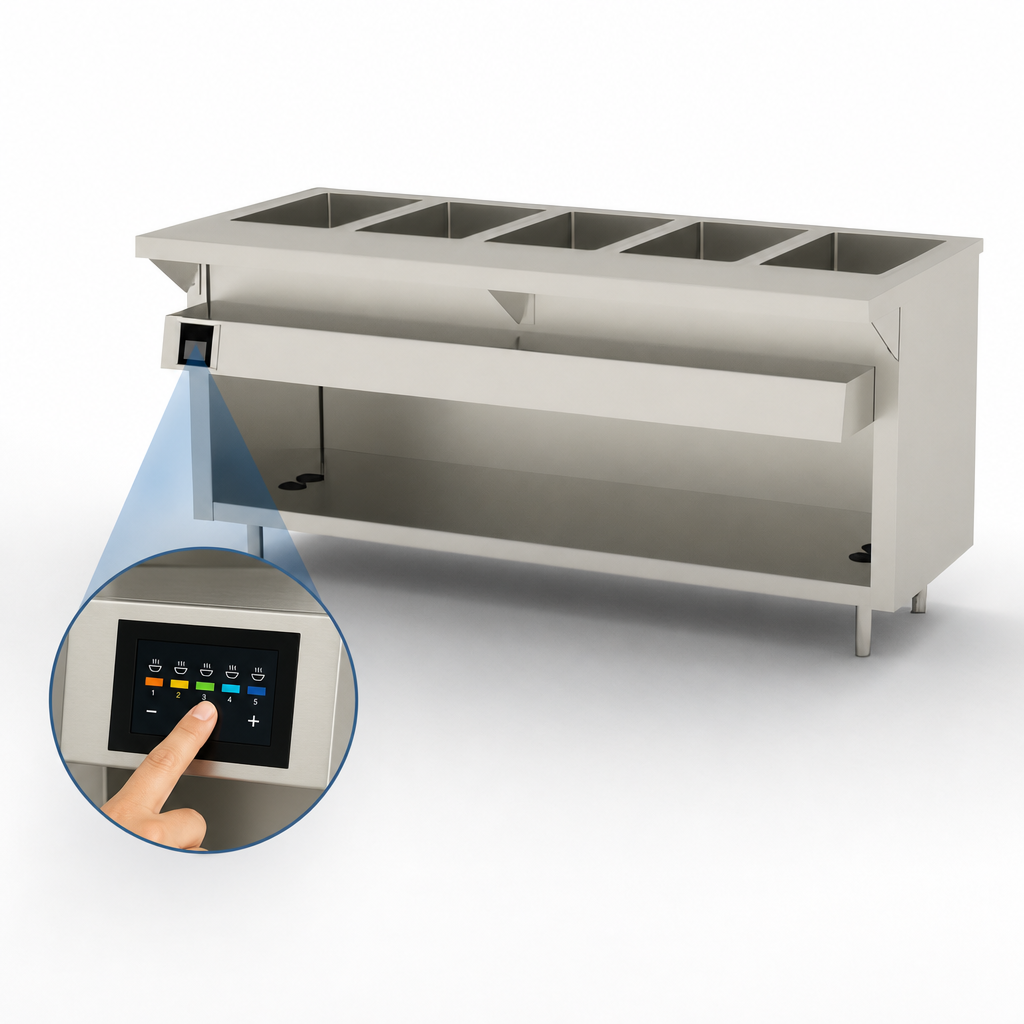

Touch-Screen Controls

One touch-screen control operates all wells and provides Low, Medium, and High presets.

Stainless Steel Construction

The top is 16 gauge stainless steel, and the body and undershelf are 20 gauge stainless steel.

Open Storage Base

The open base includes a full bottom shelf.

Dish Shelf

An 8.5-inch-wide one-piece stainless steel dish shelf is provided.

Adjustable Legs

The unit has 6-inch stainless steel legs with adjustable feet.

Proposition 65: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Frequently Asked Questions

No. It is designed for dry, waterless operation, and the user guide instructs operators not to add water.
It has five stainless steel sealed wells.
One touch-screen control operates all wells and provides Low, Medium, and High presets.
The unit is 74 inches wide, 34 inches deep, and 36 inches high, with a listed weight of 495 pounds.
The cutsheet lists 120 Volts at 3.417 kW and 28.5 Amps with a NEMA 5-50 connection, 208 Volts at 2.592 kW and 12.5 Amps with a NEMA 6-20 connection, or 240 Volts at 3.417 kW and 14.2 Amps with a NEMA 6-20 connection. The unit is single phase, and the cord and NEMA plug are not included.
