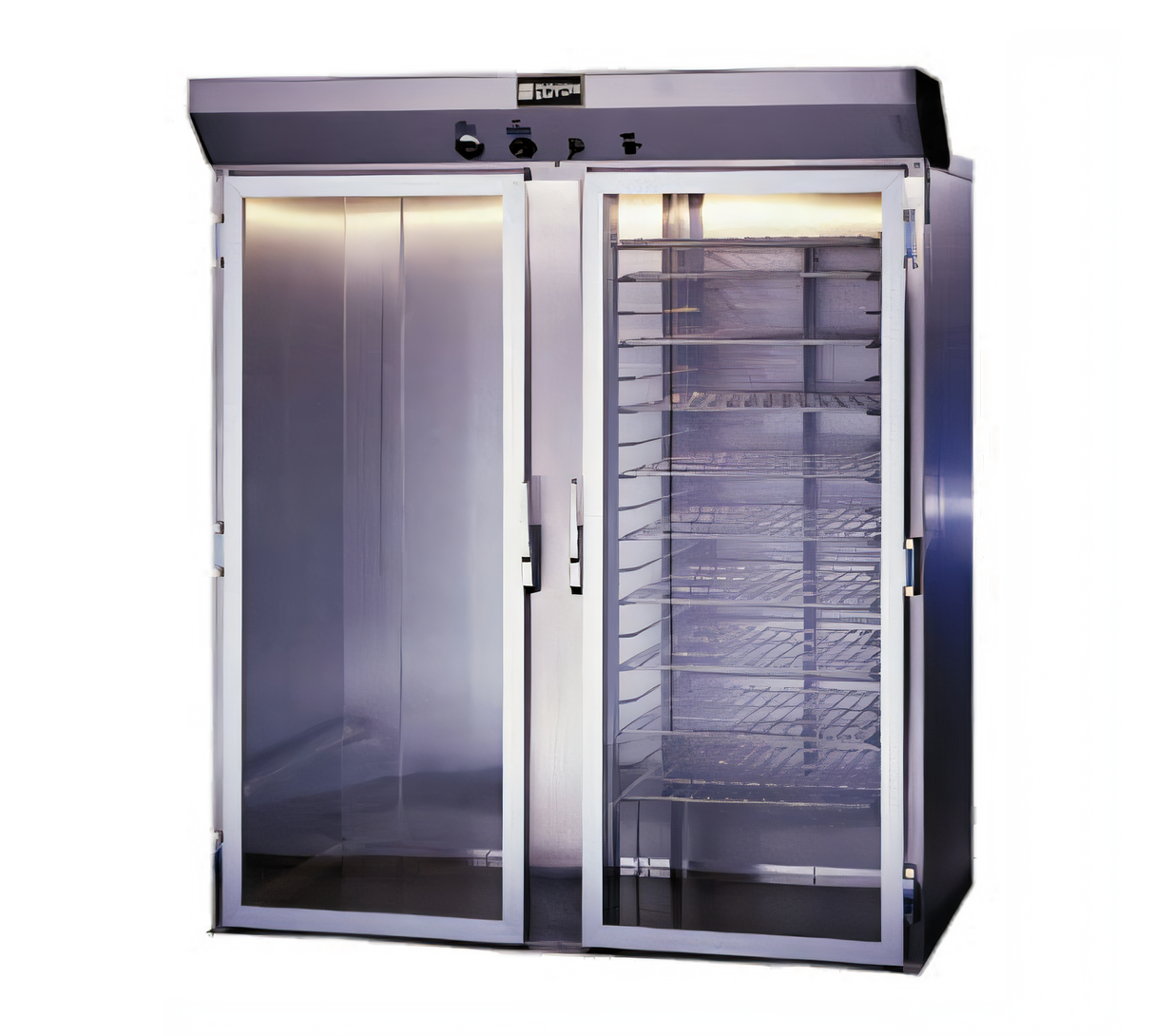

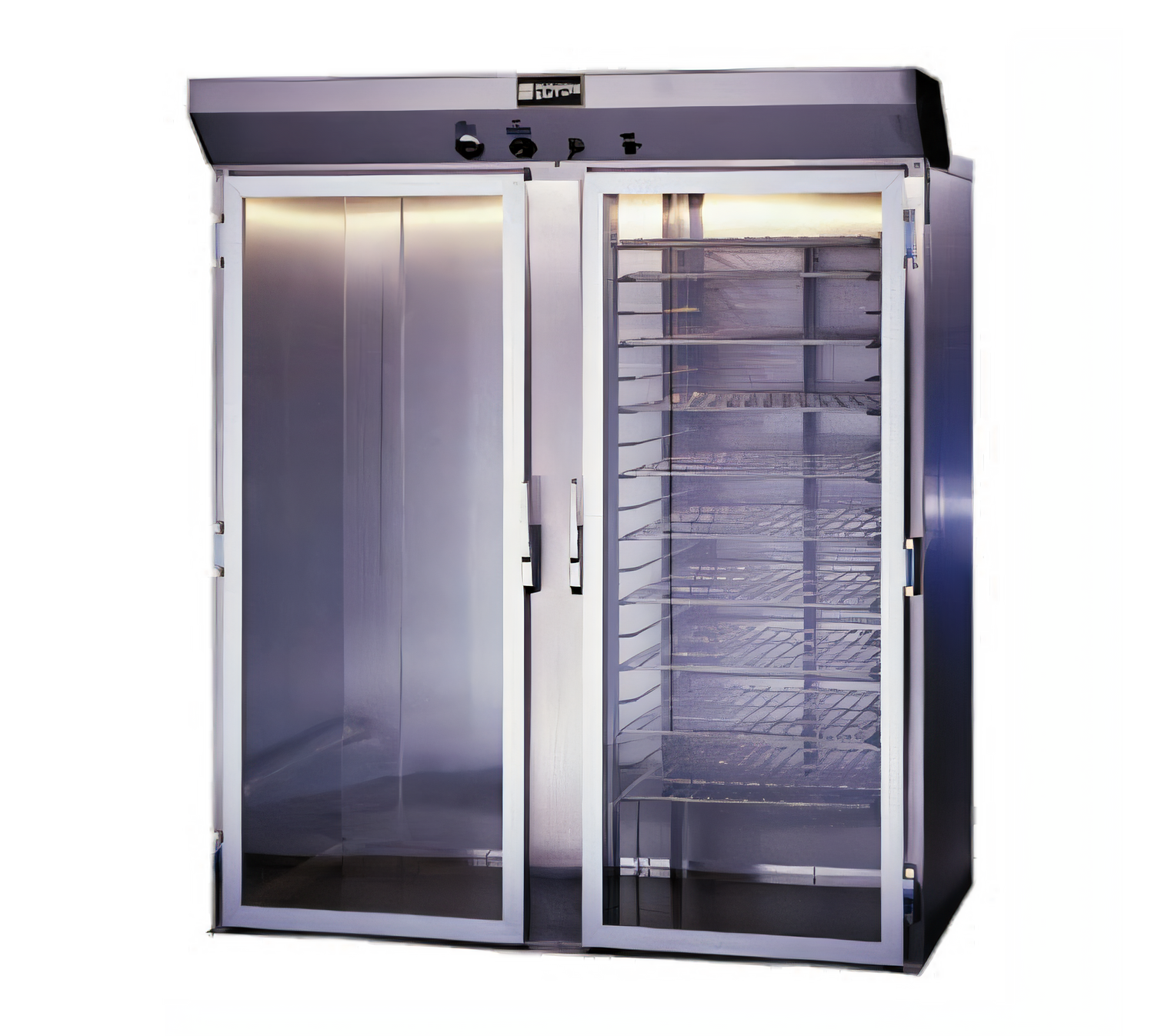

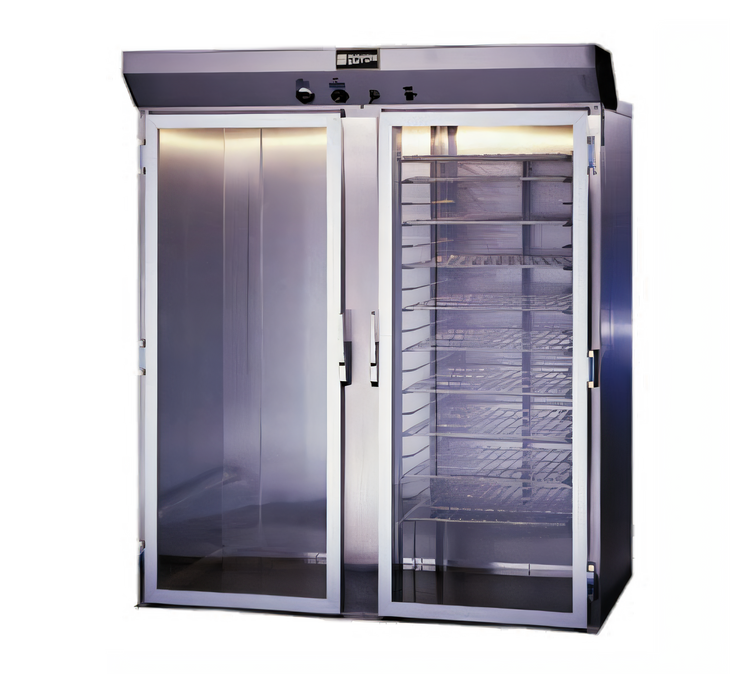

Doyon E236TLO Roll-In Double Door Proofer Cabinet

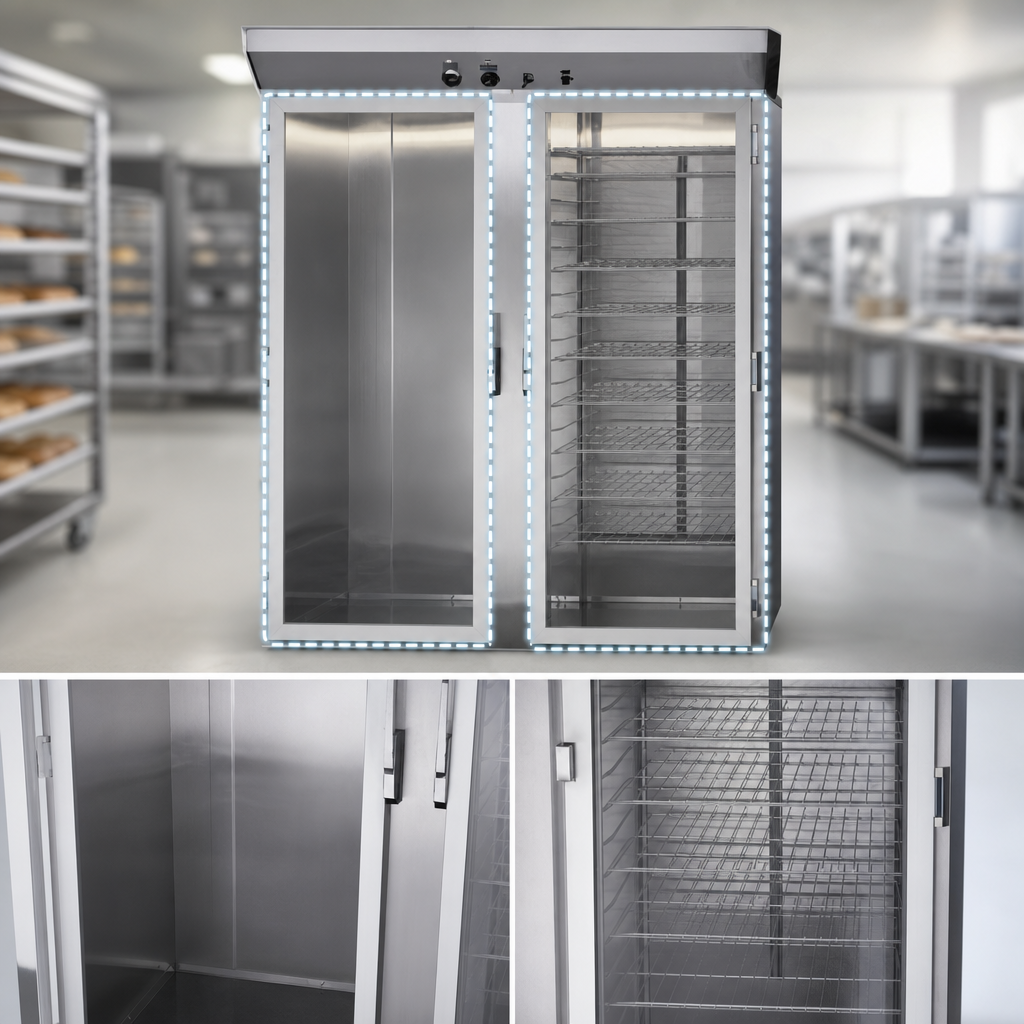

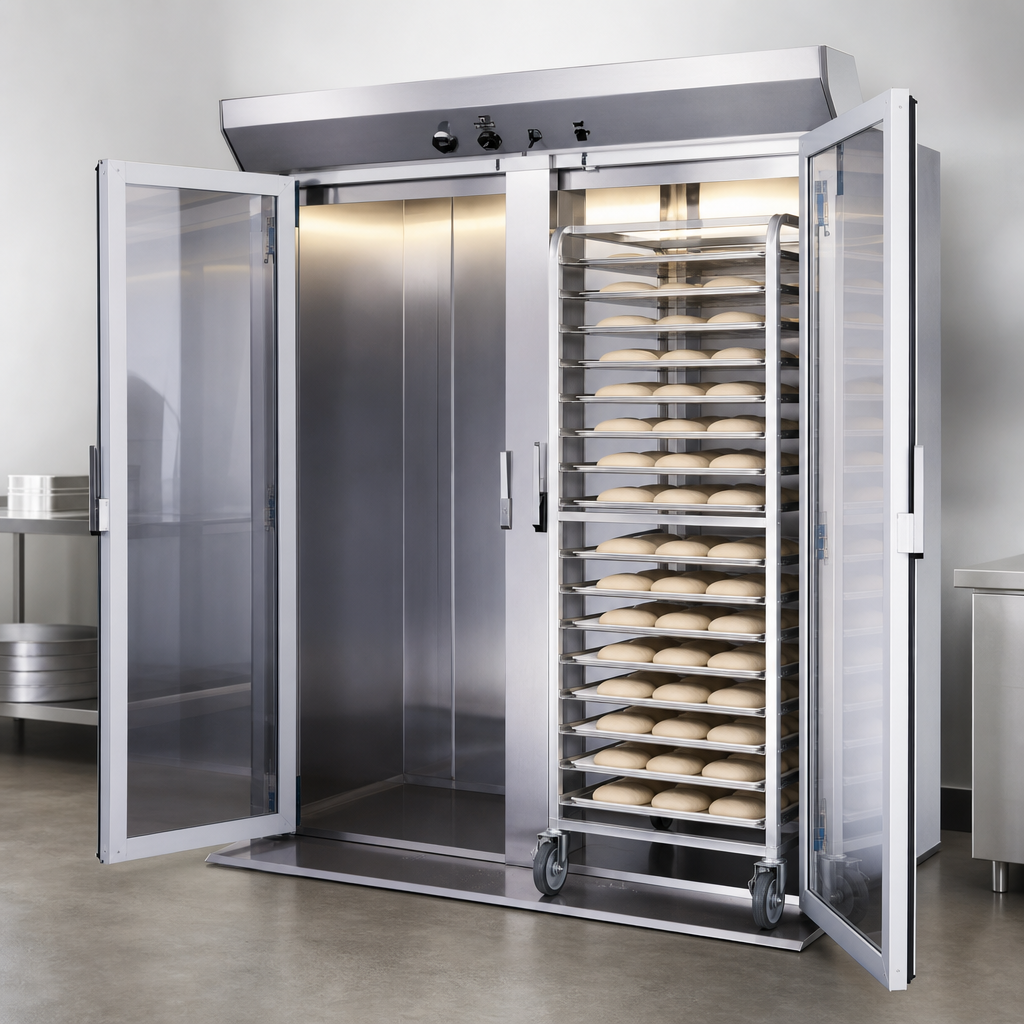

Two-section | Holds two double racks or four single racksGive every batch the perfect rise with Doyon’s flagship roll-in proofer. The E236TLO blends precise heat, controlled humidity and effortless loading to keep your production moving and your dough at its best.
Key Features
- Even-Airflow heating system delivers uniform temperature & humidity to every tray.
- Proofs from room temperature up to 110 °F (43 °C) with relative humidity as high as 95 %.
- Solid-state, independent controls for heat, humidity and timer—simple, intuitive operation.
- Automatic water fill system – no water pans to monitor or refill.
- Full-view tempered glass doors for quick visual checks without losing heat or moisture.
- Rugged stainless-steel interior & exterior with an aluminum flush floor for smooth rack entry.
- Ships fully assembled and NSF, cETLus, ETL-Sanitation listed for immediate, worry-free installation.
At-a-Glance Specifications
| Model | E236TLO |
|---|---|
| Capacity | 2 double racks • 4 single racks (racks sold separately) |
| Interior Temp Range | Room temp – 110 °F (43 °C) |
| Relative Humidity | Up to 95 % RH |
| Overall Dimensions (W × D × H) | 77 ½ ″ × 48 ½ ″ × 84 ″ (1969 × 1232 × 2134 mm) |
| Door Opening (W × H) | 32 ½ ″ × 73 ½ ″ (826 × 1867 mm) |
| Crated Weight | 900 lb (409 kg) |
| Electrical |
7.2 kW, 1-phase 120/208 V • 35 A 120/240 V • 31 A |
| Water Inlet | ¼ ″ NPT (6 mm) |
| Certifications | NSF • cETLus • ETL-Sanitation |
| Warranty | 2 year parts • 1 year labor (USA & Canada) |
Recommended Options & Accessories
- Water filter kit (model PLF240) for optimal element life.
- Stainless-steel doors (suffix SD) for high-impact environments.
- Door bumpers (suffix DB) to protect against cart collisions.
- Prison package (suffix PPE) for detention facilities.
- Pass-through configuration for streamlined production flow.
Installation Clearances: Maintain at least 4 ″ (102 mm) on sides & back and 24 ″ (609 mm) on top from combustible materials.
Specifications are subject to change without notice. Images may show optional accessories.
Doyon Baking Equipment (Middleby)
Doyon Baking Equipment (Middleby) E236TLO Dough Proofers & Retarders
SKU: E236TLO
$16,523.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Doyon E236TLO roll-in proofer/retarder: two-section, holds 2 double or 4 single racks, stainless steel, glass doors, precise heat/humidity control.
Manufacturer
Doyon Baking Equipment (Middleby)
Height
84.0in
Width
77.5in
Depth
48.5in
Shipping Weight
900.0lbs
Pan Capacity
2 double pan racks
Proofer Controls
solid state controls
Interior Finish
stainless steel
Sections
2 section
Exterior Finish
all stainless steel exterior
Specifications
Proofer Cabinet, roll-in, two-section, capacity two (TLOI) double racks or four single racks, solid state heat/humidity controls, auto. water entry, full view glass doors, stainless steel interior and exterior
