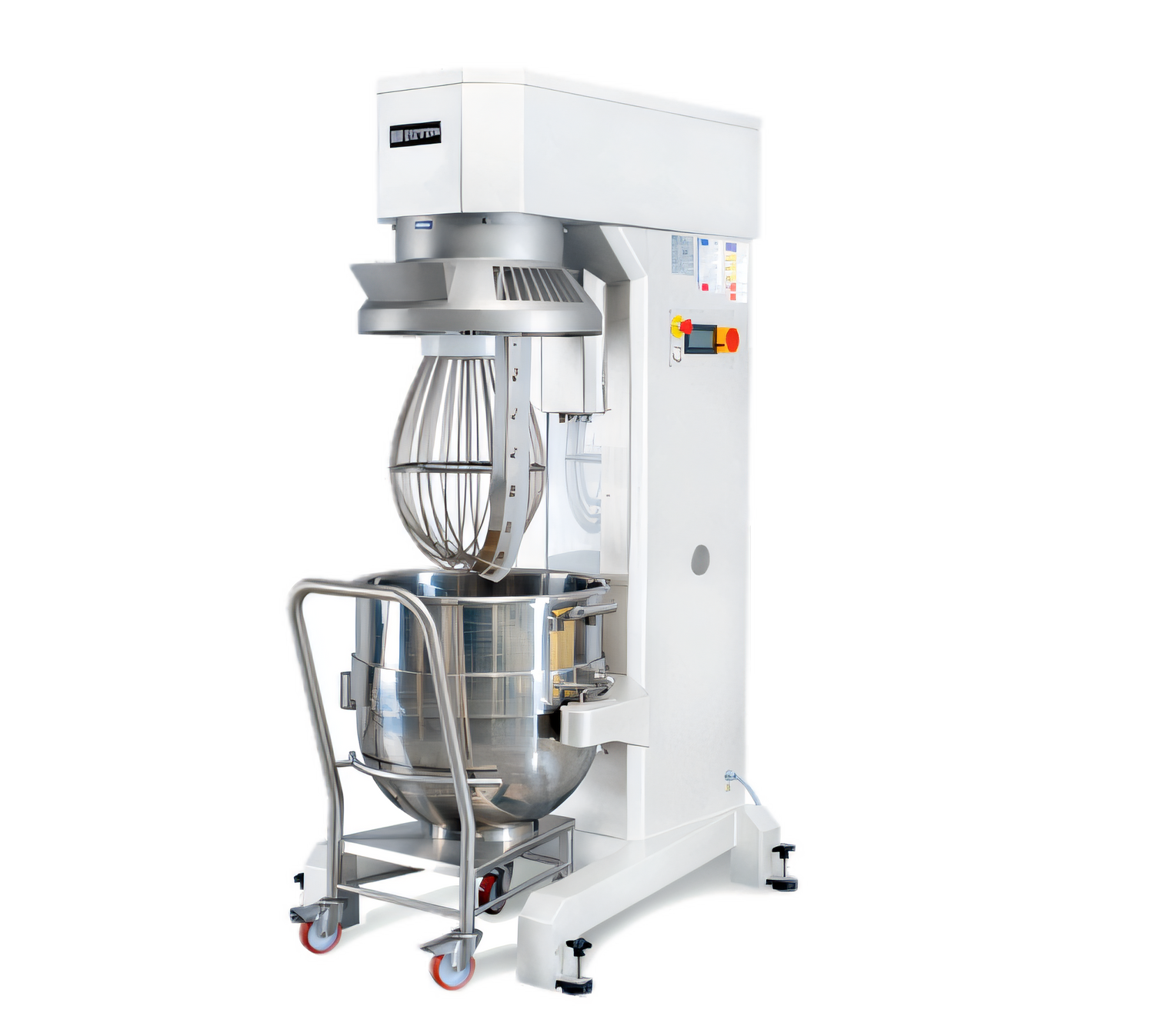

BTL100 100-Qt Planetary Mixer
Floor Model | 4 HP | Doyon Baking EquipmentWhen production volumes spike, the Doyon BTL100 keeps your kitchen moving. A rugged 4 HP motor drives up to 140 lb of dough in a full 100-quart bowl, while the intuitive digital control lets you switch among 20 speeds without stopping the mixer. From signature breads to airy meringues, every batch gets consistent, repeatable results.
Why You’ll Love It

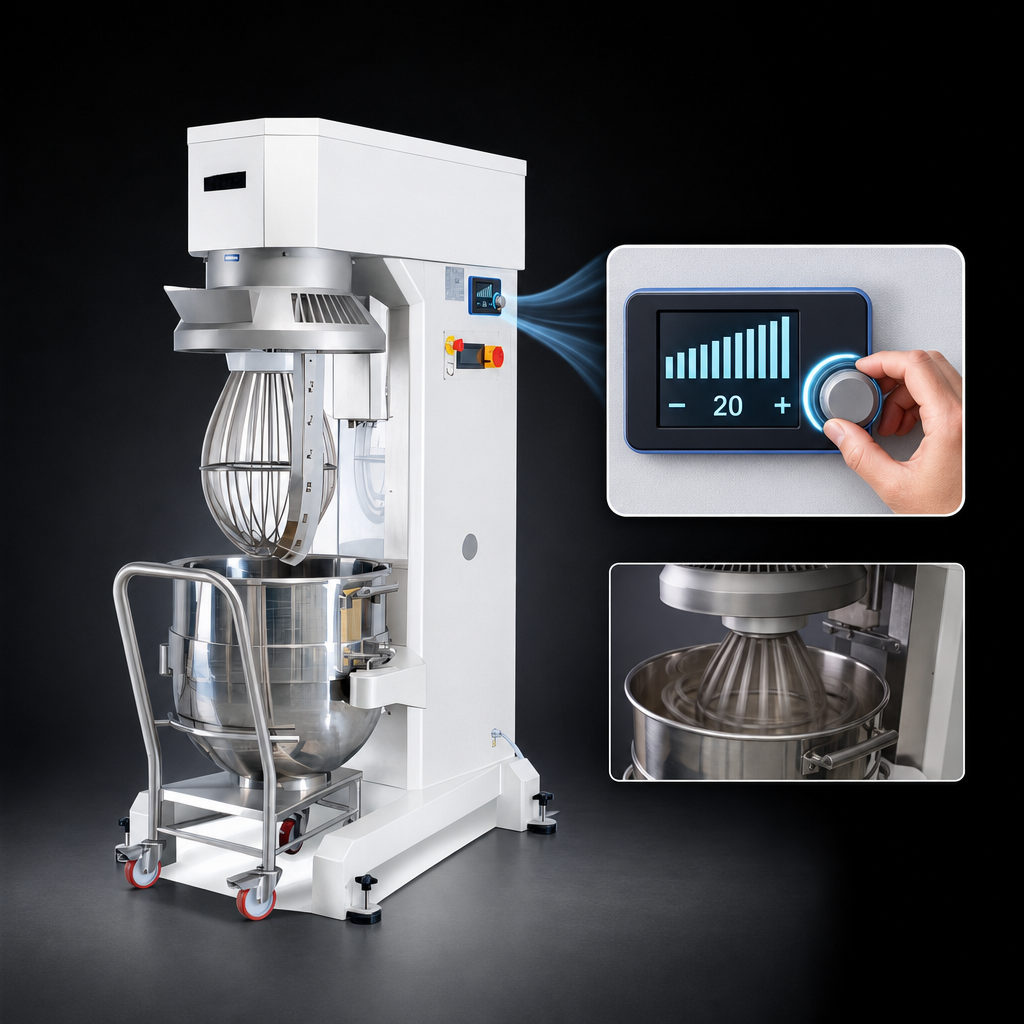

- 20 true operating speeds – change on the fly, no gearbox downtime.
- 99-minute timer with 7 programmable speed & time presets for fool-proof batches.
- Electric bowl-lift system and integrated bowl drain streamline loading, unloading & cleanup.
- Emergency stop, bowl wire guard and automatic motor cut-off put safety first.
- Thermal overload protection and non-slip belt drive maximize uptime.
What’s Included
- 100 qt stainless steel bowl (BTL100B)
- Dough hook (BTL100C)
- Wire whip (BTL100F)
- Flat beater (BTL100P)
- Ingredient chute & full-coverage safety bowl guard
Commercial-Grade Construction
- Heavy-duty carbon & cast-iron frame with lead-free enamel coating
- Stainless-steel legs resist rust
- Four in-line stationary casters plus quick-lock anti-vibration device
- cETLus & ETL-Sanitation listed
Technical Specs
| Model | BTL100 |
|---|---|

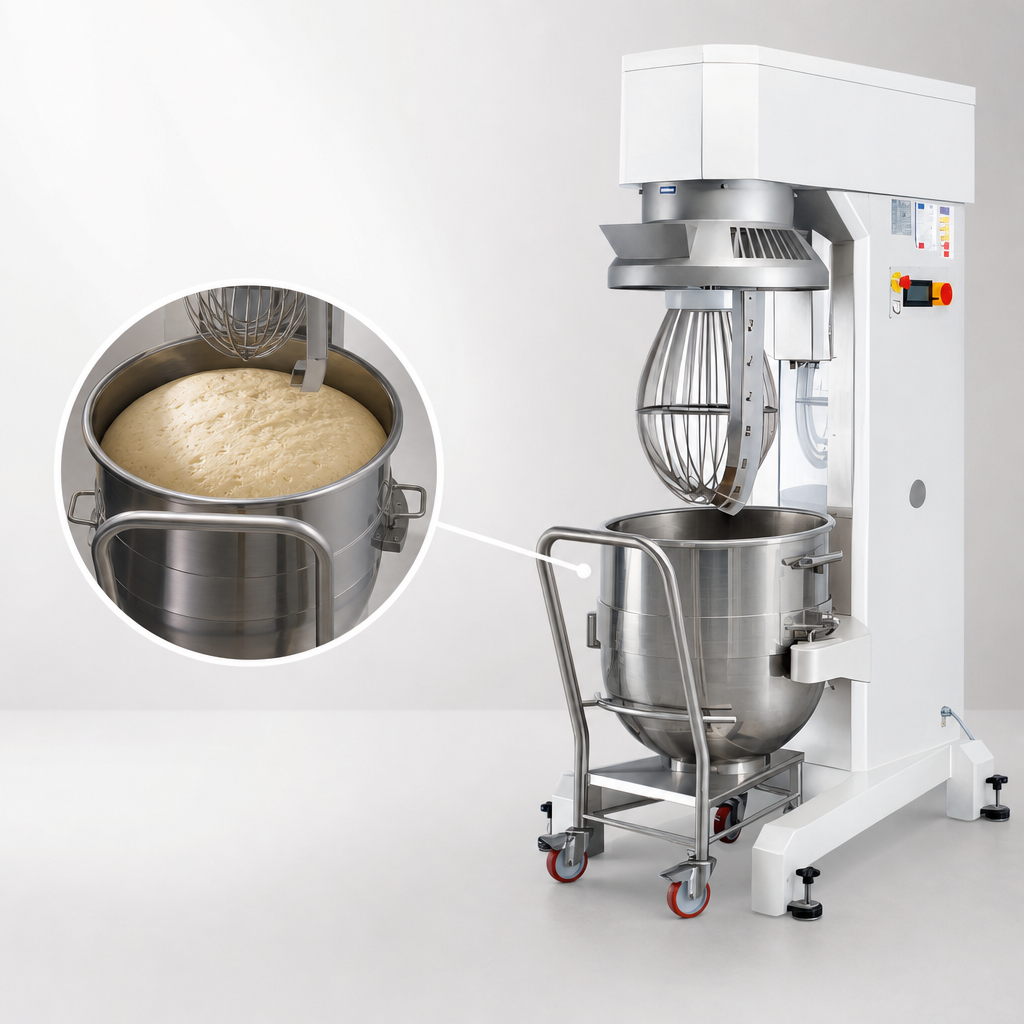

| Capacity | 100 qt bowl | 140 lb (63.5 kg) dough @ 55 % AR |
| Motor | 4 HP, belt drive |
| Speeds | 20 (programmable) |
| Timer | 0–99 min, 7 programmable steps |
| Electrical | 208/240 V, 3 Ph, 17 A, NEMA L15-30P |
| Dimensions (W × D × H) | 36 1/4" × 49 3/16" × 82 1/16" (921 × 1249 × 2084 mm) |
| Weight | 1,200 lb (545 kg) |
| Clearance | 6" (152 mm) on all sides; keep top & bottom unobstructed |
| Hub | #12 attachment hub (optional accessories) |
| Certifications | cETLus, ETL-Sanitation |
| Warranty | 2 years parts / 1 year labor (USA & Canada) |
Popular Accessories (sold separately)
- Dolly for mobile bowl transport (BTL100D)
- Vegetable & pepperoni slicer attachment (SM100CL)
- Meat grinder attachment (SM100HV)
- Full stainless-steel construction upgrade (suffix I)
Specifications and design are subject to change without notice. Always install and wire equipment in accordance with local codes and a licensed professional.
Doyon Baking Equipment (Middleby)
Doyon Baking Equipment (Middleby) BTL100 Planetary Mixers
SKU: BTL100
$50,965.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Doyon 100-qt planetary mixer — 20 speeds, 7 programmable settings, 99-min timer, electric lift, integrated drain, 4HP, heavy-duty floor model.
Manufacturer
Doyon Baking Equipment (Middleby)
Certifications
cETLus, ETL-Sanitation
Height
82.1in
Width
36.25in
Depth
49.2in
Shipping Weight
1200.0lbs
Timer
with timer
Speed
20-speed
Attachments
bowl guard, bowl, beater, whip, paddle
Hub size
without hub
Bowl Capacity
100 - 200 quart
Type
floor model
Specifications
Planetary Mixer, floor model, 100 quart capacity, (20) speeds, (99) minutes mixing timer, (7) programmable speed & time settings, emergency stop, integrated bowl drain, electric bowl lifting, includes: stainless steel bowl, dough hook, whip, flat beater & safety bowl guard, cast iron frame with enamel coated steel finish, (4) stationary casters, 4HP, cETLus, ETL-Sanitation
