Winco

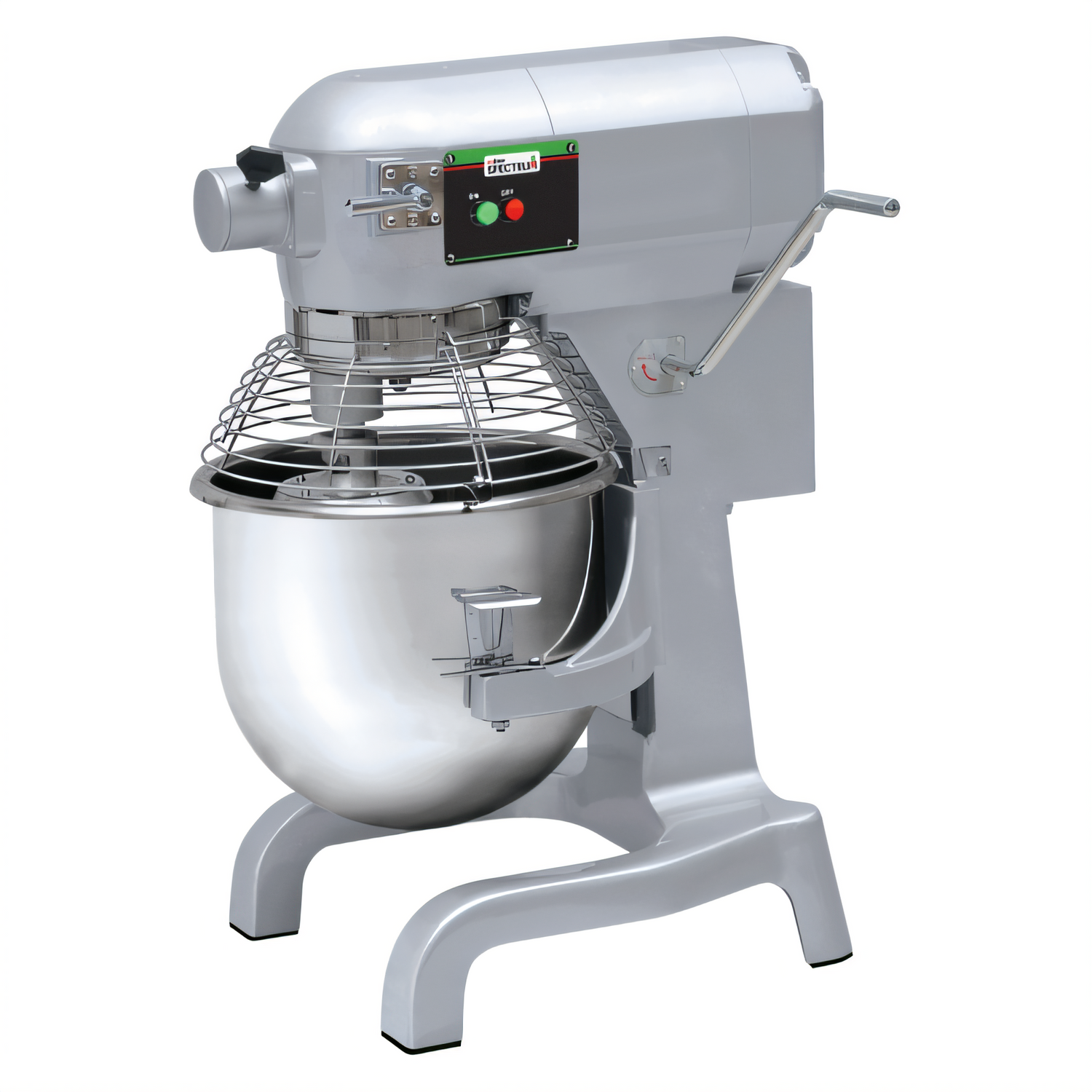

Winco Spectrum™ EMP-20 20 Liter Floor Model Planetary Mixer with #12 Hub

SKU: EMP-20
$1,385.00
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Mixers Food Prep Equipment Mixers New Arrivals Planetary Mixers Restaurant Equipment Winco

Winco Spectrum™ EMP-20 20 Liter Floor Model Planetary Mixer with #12 Hub

3-Speed, Gear-Driven, 110V, 1.5 HP

Built for bakeries, cafés, and delis, this 20-liter floor mixer combines gear-driven power, three fixed speeds, and a #12 hub in a rugged commercial frame.

  • 20-liter bowl capacity is well-suited for medium batch mixing.
  • Gear-driven, high-torque transmission delivers dependable mixing performance.
  • Heavy-duty die cast iron construction is built for demanding kitchen use.
  • 304 stainless steel bowl includes a safety guard and interlock bowl lift.
  • Comes standard with a wire whip, flat beater, and spiral dough hook.
  • Industry-standard #12 attachment hub supports compatible accessories.
  • 110V, 1-phase operation with a NEMA 5-15P plug.
  • Non-slip rubber feet help keep the mixer stable during operation.

Overall Dimensions:

19.88"W x 21.68"D x 29.75"H

Product Weight:

233.7 lb

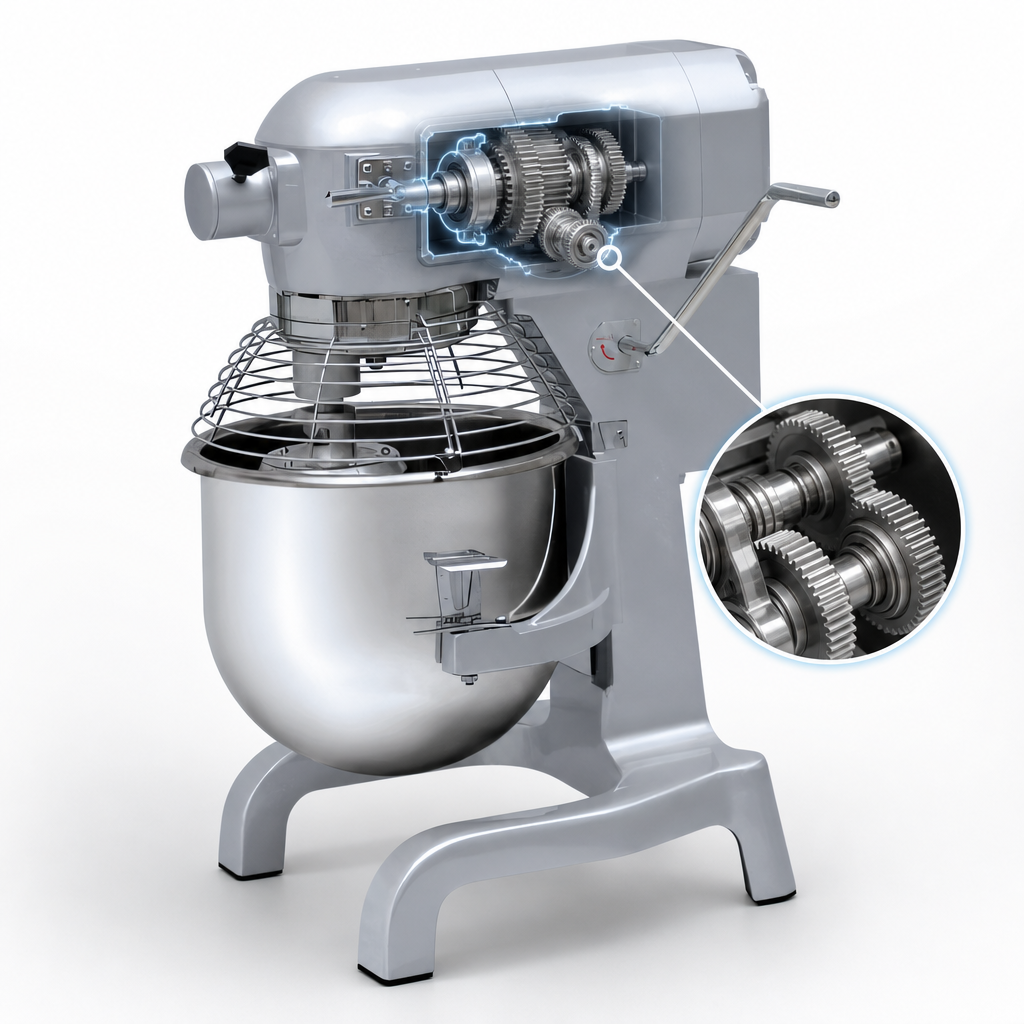

Gear-Driven, High-Torque Transmission

Provides consistent power and durability for tough mixing applications.

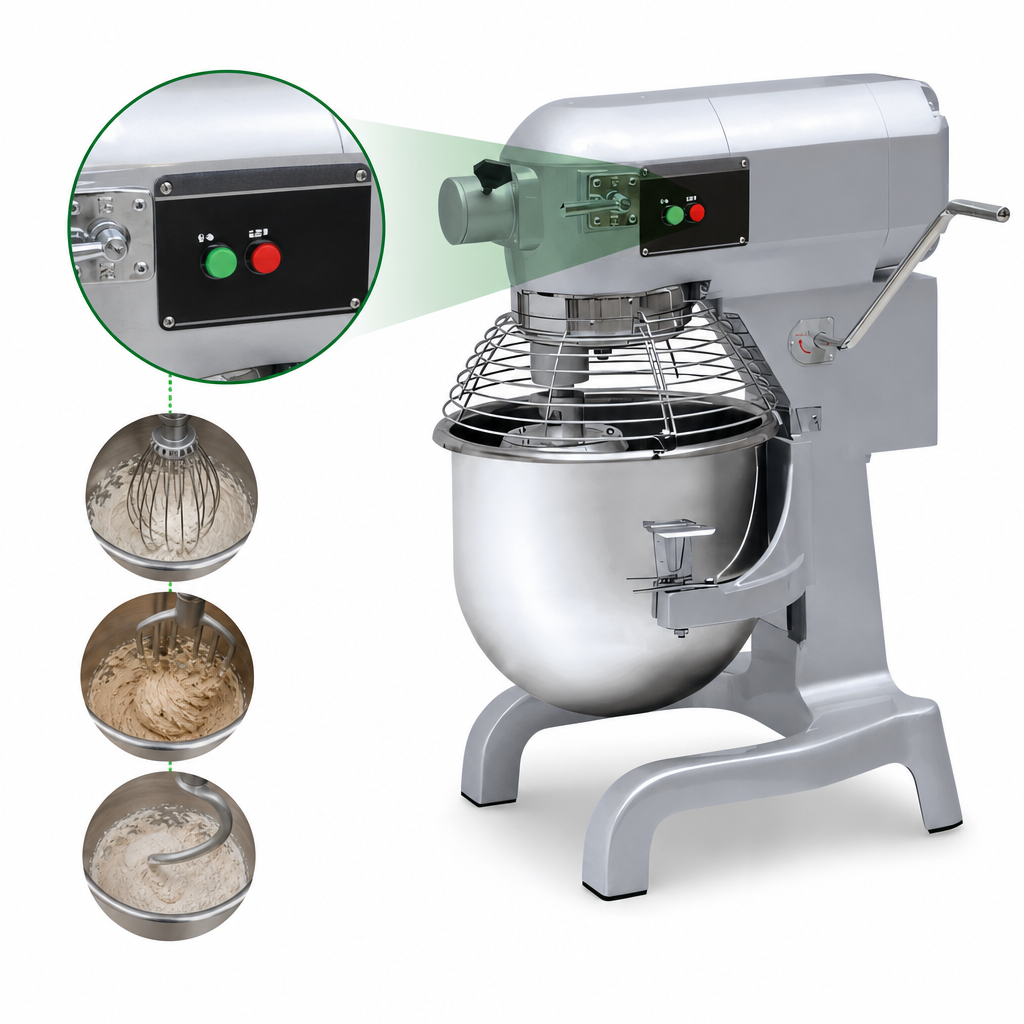

Three Fixed Mixing Speeds

Offers three speed settings for a range of mixing tasks and ingredients.

304 Stainless Steel Bowl

Large-capacity stainless bowl is durable and easy to clean.

Safety Guard and Interlock Bowl Lift

Adds operator safety during mixing and bowl handling.

#12 Attachment Hub

Accepts compatible hub accessories for added versatility.

Included Mixing Tools

Wire whip, aluminum flat beater, and spiral dough hook are included.

Manual Resettable Thermal Overload Protection

Helps protect the motor from overheating during heavy use.

Heavy-Duty Die Cast Iron Construction

Rugged body construction supports long-term commercial use.

Non-Slip Rubber Feet

Helps keep the mixer steady during operation.

Type Planetary Mixer
Style Floor Model
Installation Type Floor Model
Capacity 21.1 Quarts (20 Liters)
Material Die Cast Iron
Horsepower 1.5 HP
Mixing Speeds 3 Speeds
Attachment Hub Size #12 Hub
Voltage 110 Volts
Hertz 50/60 Hz
Phase 1-Phase
Amps 10 Amps
Watts 1.10 kW
Plug Type NEMA 5-15P
Shipping Width 20 Inches
Shipping Depth 22 Inches
Shipping Height 30 Inches
Shipping Weight 233.7 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

1-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download PDF Sell sheet PDF Download PDF Emp capacity chart PDF Download PDF Manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It includes a 304 stainless steel bowl, safety guard, wire whip, aluminum flat beater, and spiral dough hook.
No, this model is specified without a timer.
It requires 110V, 50/60 Hz, 1-phase power, 10 amps, and uses a NEMA 5-15P plug.
This mixer uses an industry-standard #12 attachment hub.
No. The capacity chart notes that hub attachments should not be used while mixing.
The mixer is covered by a one-year parts and labor warranty in the U.S. and Canada; international coverage is parts only.
