Key specifications

Phase
1-Phase or 3-Phase
Dimensions
86.0"W × 32.0"D × 34.0"H
Type
Hot Food Counter
Style
Semi-Enclosed
Installation Type
Floor Model
Material
Stainless Steel
Spec sheet
Dinex SKU: DXPDME6SS

Dinex DXPDME6SS 6-Well Sealed Wet/Dry Hot Food Counter

$9,963.36
/each
Estimated to ship in 4–7 business days
Electrical
Protector guard
Cutting board
Mobility
Included: Dinex warranty One-year parts and labor warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $922/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Hot Food Counter
Style Semi-Enclosed
Installation Type Floor Model
Material Stainless Steel
Pan Size 12 x 20 Inches
Pan Capacity 6 Pans
Well Type Sealed Wet/Dry
Top Construction 20-Gauge Stainless Steel
Controls Infinite Controls with Pilot Light
Watts 6,000 Watts
Voltage 208/240 Volts
Phase 1-Phase or 3-Phase
Well Depth 6-1/2 Inches
Drain Type Manifold Drains

Description

The Dinex DXPDME6SS is a stationary electric hot food counter with a semi-enclosed stainless steel cabinet base and six sealed wet/dry wells.

Each 12 x 20 inch well includes a 1,000-watt tubular heating element, infinite control and pilot light. The unit has a 20-gauge stainless steel top, operator-side maple cutting board, recessed plate shelf, manifold drains and four legs.

  • Six 12 x 20 inch sealed wet/dry wells
  • 6,000 watts total heating power
  • 208 or 240 volt, single- or three-phase configurations
  • Stationary 86-inch design

Overall Dimensions:

86.0"W x 32.0"D x 34.0"H

Product Weight:

575.0 lb

Six Sealed Wet/Dry Wells

Each well has a 12 x 20 inch opening, 6-1/2 inch depth and coved corners.

Electric Heating

Each well has a 1,000-watt tubular heating element, for 6,000 watts total.

Individual Controls

Each well has an infinite control and pilot light.

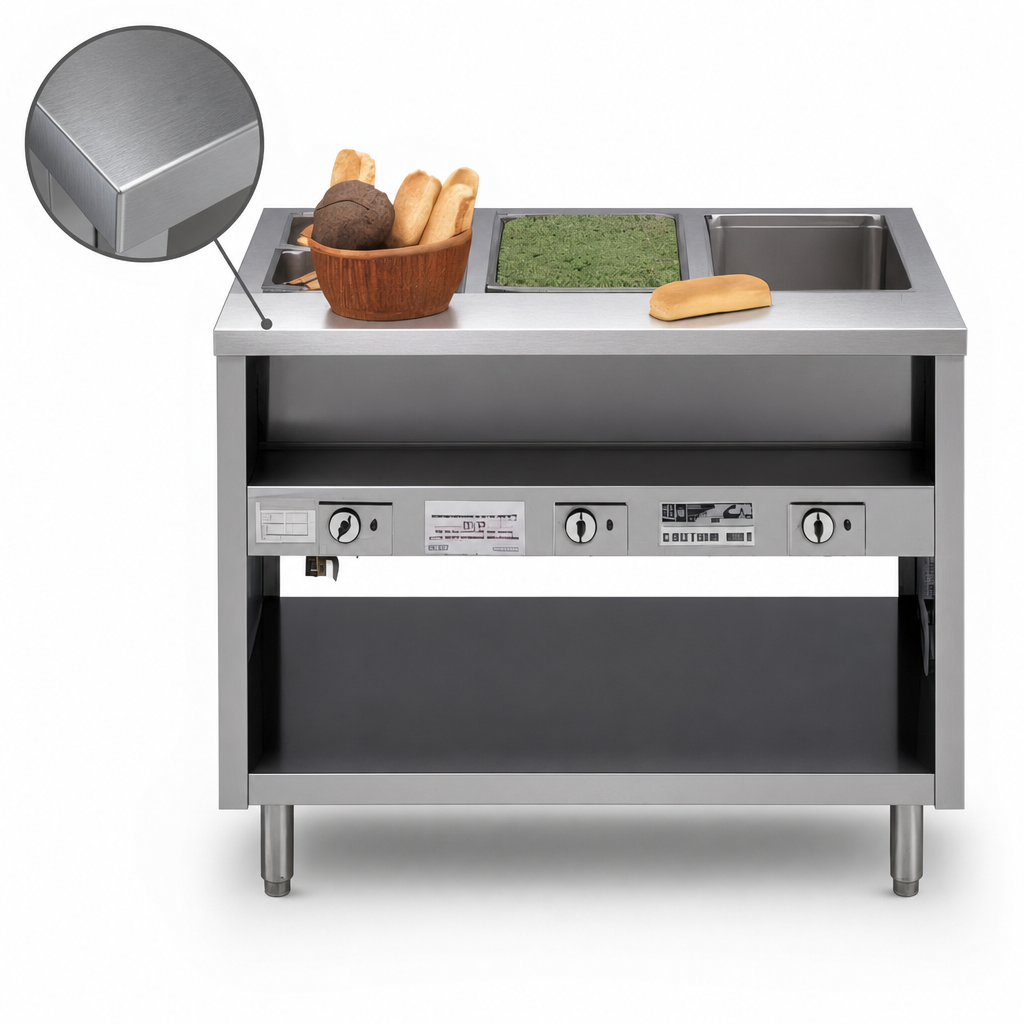

Stainless Steel Construction

The unit has a 20-gauge stainless steel top and stainless steel cabinet base.

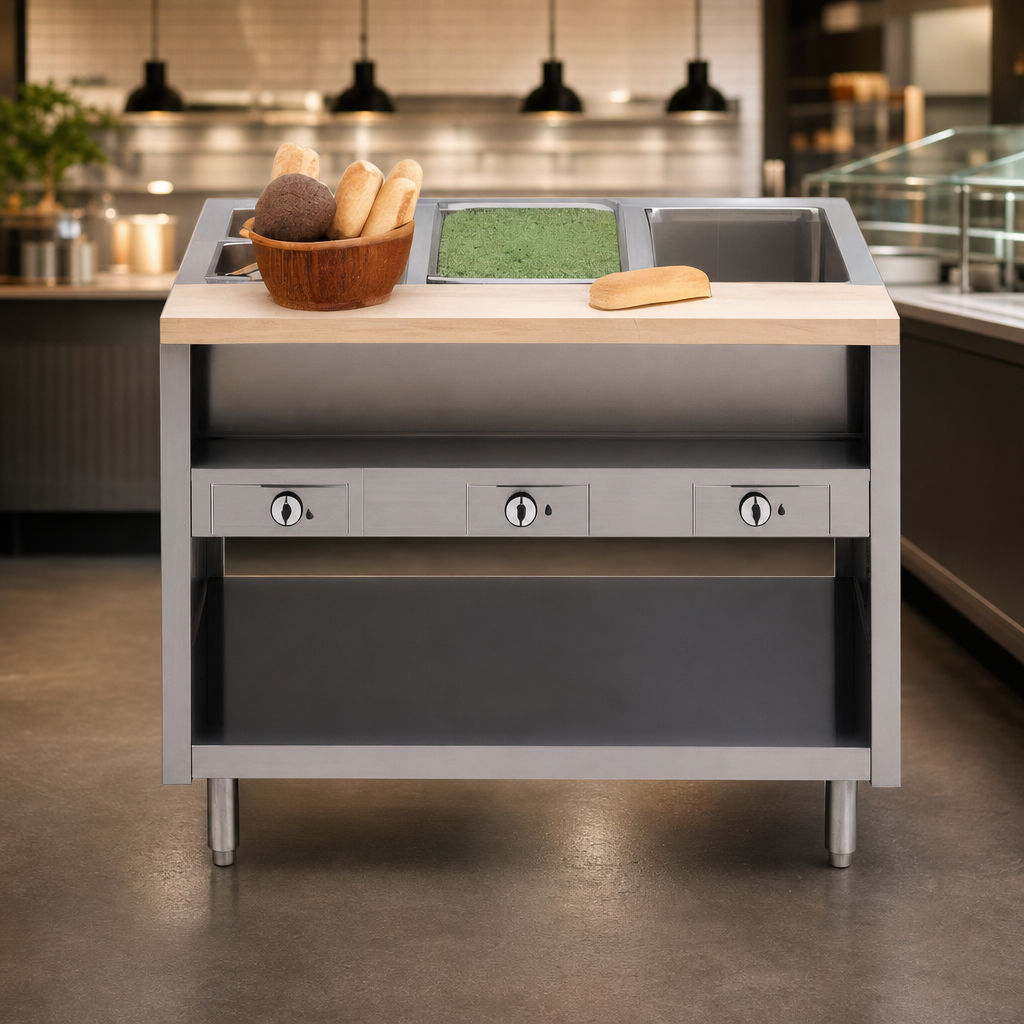

Semi-Enclosed Base

The cabinet base is semi-enclosed with an open control side.

Cutting and Serving Surface

An 8-inch maple cutting board and 7-1/2-inch recessed plate shelf are included.

Manifold Drains

Manifold drains are standard.

Adjustable Legs

The unit includes four adjustable 6-inch legs.

Frequently Asked Questions

It has six sealed wet/dry wells.
Each well has a 12 x 20 inch opening and is 6-1/2 inches deep.
The six-well unit is available at 208 or 240 volts in single- or three-phase configurations.
The counter is 86 inches wide, 32 inches deep and 34 inches high, with a listed weight of 575 pounds.
It has a semi-enclosed stainless steel cabinet base with an open control side.
The product has a one-year parts and labor warranty.
