Key specifications

Dimensions
72.0"W × 32.0"D × 34.0"H
Type
Hot Food Table
Style
Semi-Enclosed Base
Installation Type
Floor Model
Material
Stainless Steel
Power Source
Electric
Spec sheet
Dinex SKU: DXPDME5SS

Dinex DXPDME5SS 72-Inch 5-Well Electric Hot Food Table

$8,548.65
/each
Estimated to ship in 4–7 business days
Electrical
Cutting board
Protector guard
Mobility
Included: Dinex warranty One year parts and labor

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $791/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Hot Food Table
Style Semi-Enclosed Base
Installation Type Floor Model
Material Stainless Steel
Power Source Electric
Well Count 5
Pan Size 12 x 20 Inches
Pan Capacity 5 Pans
Well Type Sealed Well
Top Gauge 20 Gauge
Watts 5,000 Watts
Controls Infinite Controls
Drain Type Manifold Drains
Control Side Open
Cutting Board Material Wood
Leg Count 4

Description

The Dinex DXPDME5SS is a stationary electric hot food table designed to hold hot food during meal assembly. It features five sealed wells with 12 x 20 inch openings, a stainless steel top and cabinet base, and a semi-enclosed cabinet design.

  • Five sealed wells with individual 1,000-watt tubular heating elements
  • Infinite controls and pilot lights for the wells
  • Wood cutting board and open control side
  • Standard manifold drains and four legs

The unit provides 5,000 watts of total heating power and measures 72 inches wide, 32 inches deep, and 34 inches high.

Overall Dimensions:

72.0"W x 32.0"D x 34.0"H

Product Weight:

410.0 lb

Five Sealed Wells

Includes five sealed wells with 12 x 20 inch openings and 6-1/2 inch depth.

Individual Well Heating

Each well has a 1,000-watt tubular heating element with an infinite control and pilot light.

Stainless Steel Construction

The top and cabinet base are stainless steel.

Wood Cutting Board

Includes a wood cutting board.

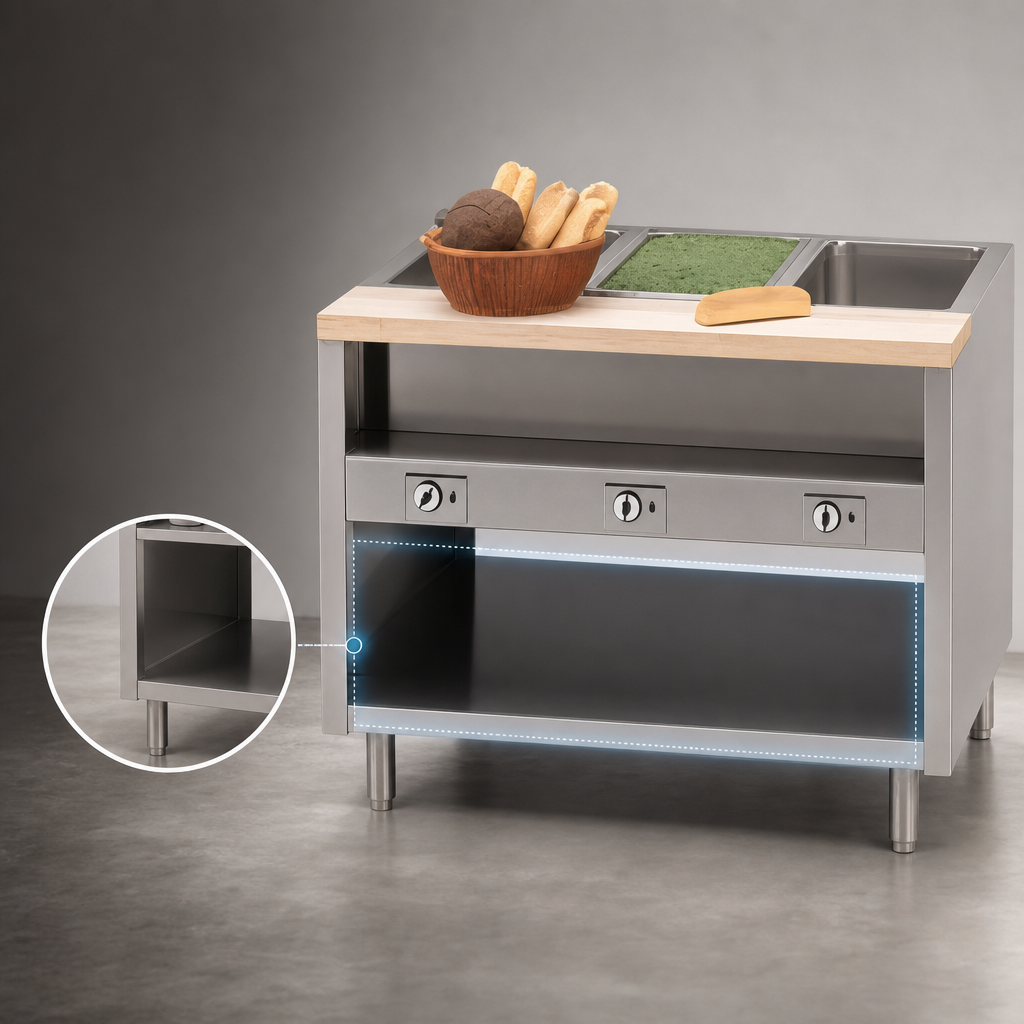

Semi-Enclosed Cabinet Base

The stationary unit has a semi-enclosed cabinet base.

Open Control Side

The control side is open.

Manifold Drains

Manifold drains are standard.

Four Legs

The unit is supported by four legs.

Frequently Asked Questions

It has five sealed wells with 12 x 20 inch openings.
Yes. The DXPDME5SS is a stationary modular hot food table.
The unit is 72 inches wide, 32 inches deep, and 34 inches high.
It has a semi-enclosed stainless steel cabinet base with an open control side.
Yes. Manifold drains are standard.
The five-well unit has 5,000 watts of total heating power.
